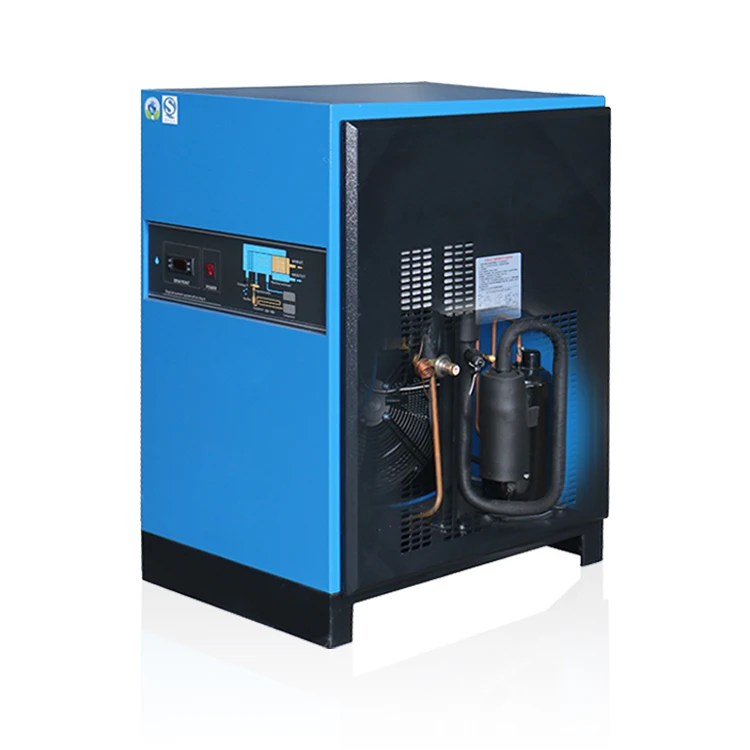

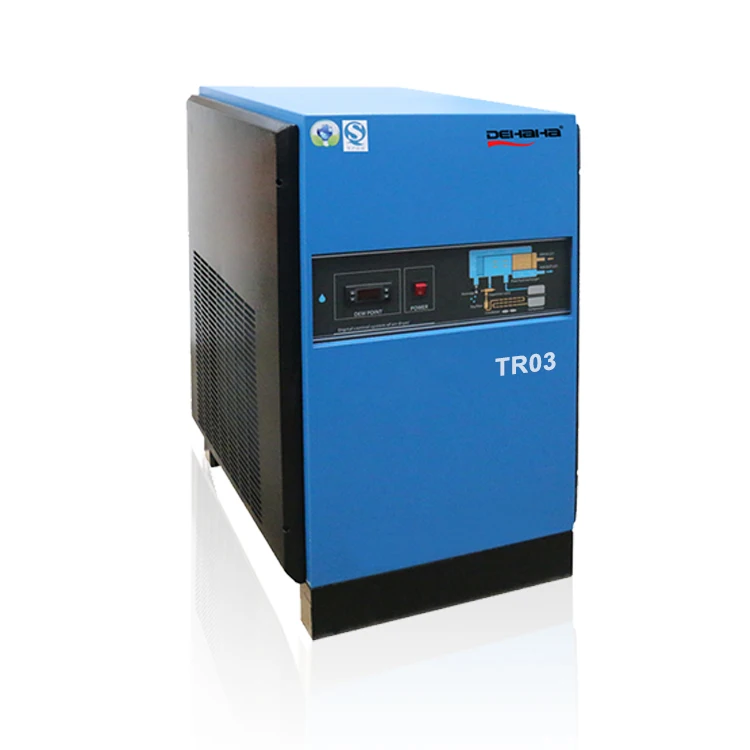

Новинка, Бесшумный Компрессор с воздушной сушилкой из Китая, сушильное Оборудование для замораживания 125 Куб. ФТ/мин, фунт/кв. Дюйм, компрессор с воздушной сушилкой, нм, 3/мин, 1 комплект

Energy saving: aluminum alloy three-in-one heat exchanger design minimizes the process loss of cooling capacity and improvesRecycling of cold capacity, the total input power of this model is reduced by 15~ under the same processing capacity50%.

High efficiency: the integrated heat exchanger is equipped with guide fins to make the compressed air uniform inside Heat exchange, built-in gas-water separation device with stainless steel filter screen, water separation is more thorough.

Intelligent: Multi-channel temperature and pressure monitoring, real-time display of dew point temperature, automatic recording of accumulated operating time, self-diagnosis function, display of corresponding alarm codes, and automatic protection of equipment.

Environmental protection: In response to the international Montreal agreement, this series of models all use R134a and R410a environmentally friendly refrigerants, which have zero damage to the atmosphere and meet the needs of the international market.

Stable: The standard is equipped with a constant pressure expansion valve, and a standard configuration with intelligent temperature control. In the laboratory test, when the intake air temperature reaches 65°C and the ambient temperature reaches 42°C, it still runs stably, and has a temperature Degree pressure double antifreeze protection. While saving energy, it extends the service life of the equipment.

Technical parameter

Rated working conditions of TR series refrigeration dryer:
Rated ambient temperature: 38℃, maximum 42℃
Rated compressed air inlet temperature: 38℃, maximum 65℃
Rated compressed air pressure: 0.7MPa, up to 1.6MPa
Pressure dew point under rated conditions: 2℃ ~10℃ (atmospheric dew point: -23℃ ~-17℃)
Installation environment: no sunlight, no rain, good ventilation, installed on a horizontal hard base, no obvious dust and flies
