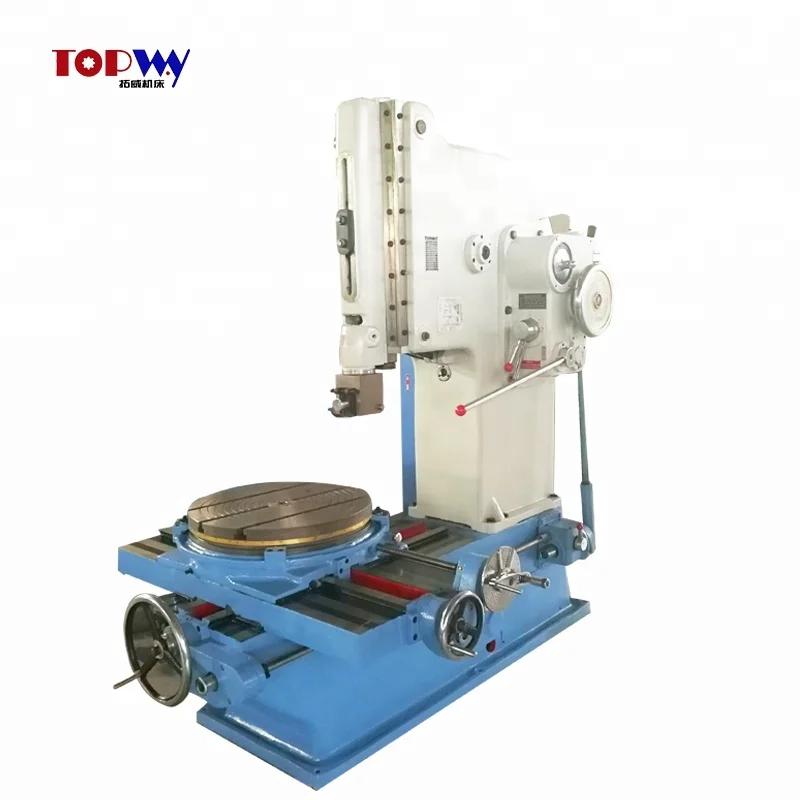

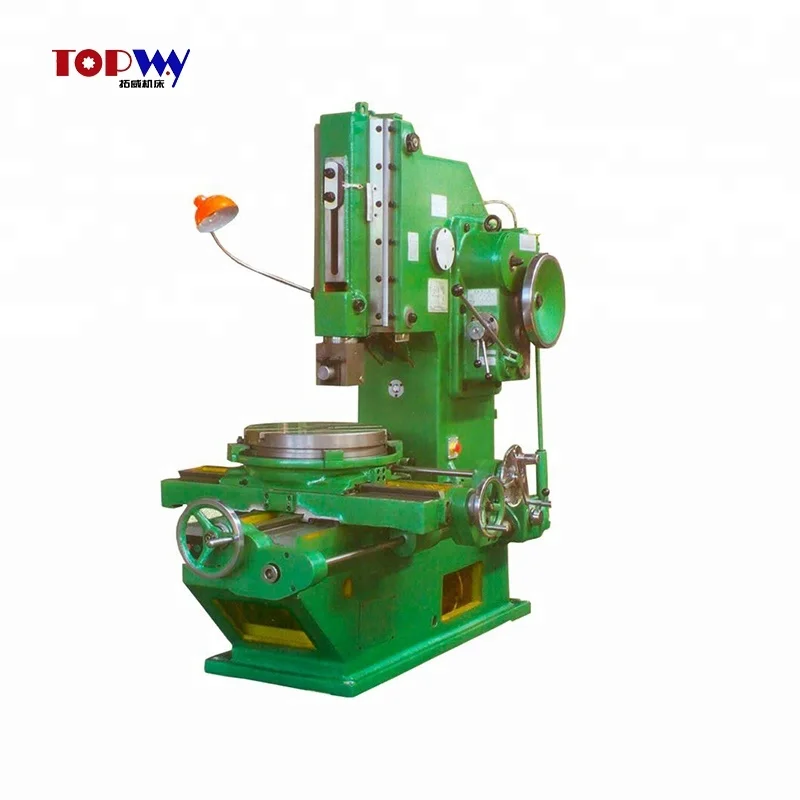

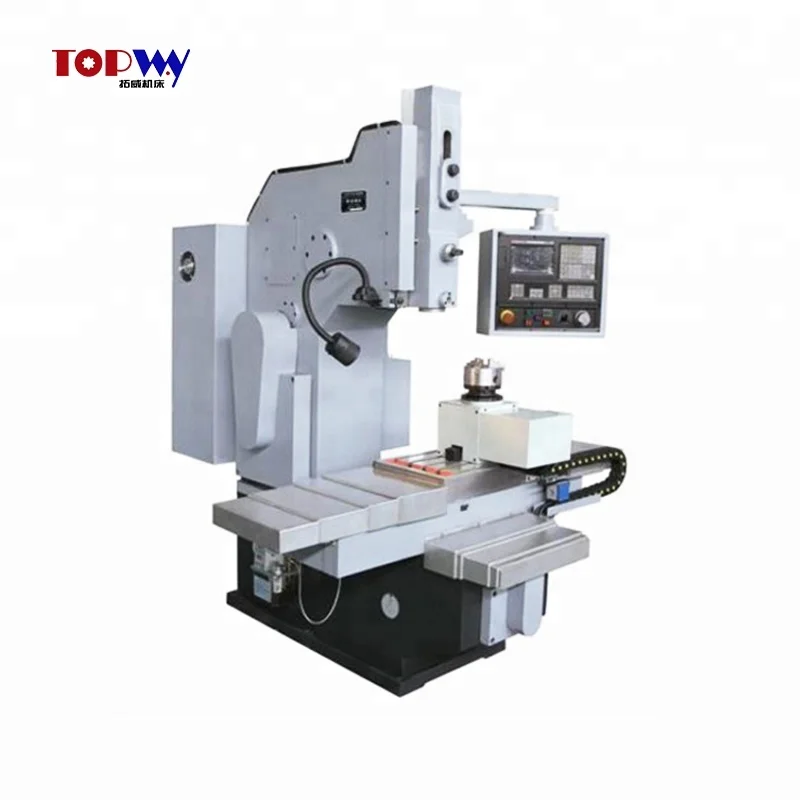

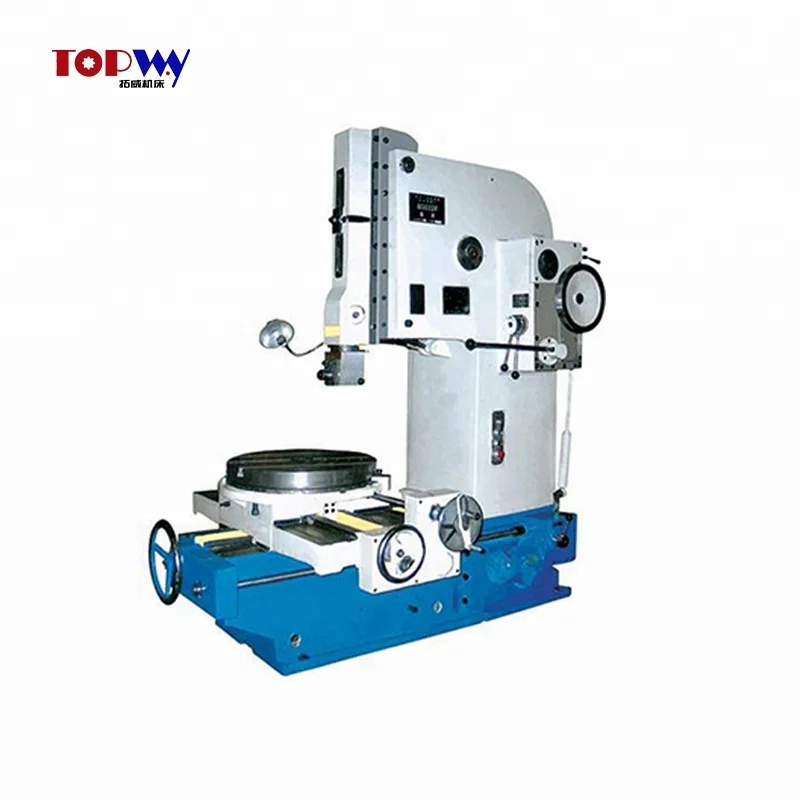

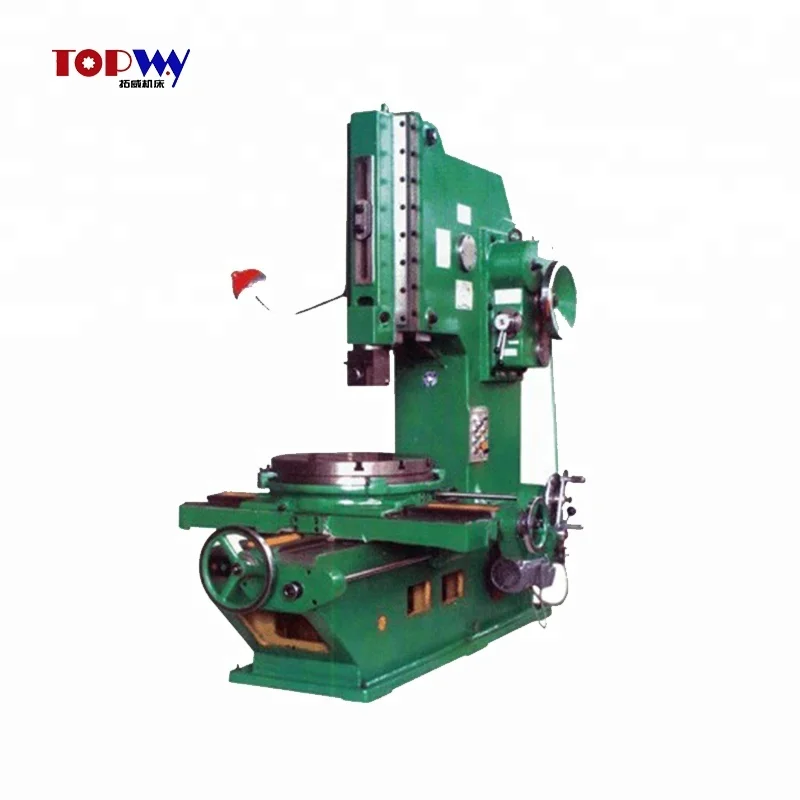

B5020 / B5032 high quality low price keyway slotting machine
B5020 / B5032 high quality low price keyway slotting machine
B5020 / B5032 high quality low price keyway slotting machine
B5020 / B5032 high quality low price keyway slotting machine
B5020 / B5032 high quality low price keyway slotting machine
B5020 / B5032 high quality low price keyway slotting machine
B5020 / B5032 high quality low price keyway slotting machine

B5020 / B5032 high quality low price keyway slotting machine

Share on (60798290738):


Price:

Quantity:


Product Overview

Description


Product Description
\t
Specification
\t
Unit
\t
B5032
\t
B5020
\t
Max. Slotting length
\t
mm
\t
320
\t
220
\t
Worktable size
\t
mm
\t
630*560
\t
200
\t
Ram motion frequency
\t
times/min
\t
20.32.50.80
\t
32.50.80.125
\t
Ram tilt angle
\t
°
\t
0-8
\t
0-8
\t
Ram vertical adjustment distance
\t
mm
\t
315
\t
230
\t
Cutter head bearing surface to the distance between the forearm bed
\t
mm
\t
600
\t
485
\t
Table Diameter
\t
mm
\t
630
\t
500
\t
The distance between the lower end of the sliding frame to work table
\t
mm
\t
490
\t
320
\t
Max. longitudinal moving distance of working table
\t
mm
\t
630
\t
500
\t
Max. transverse moving distance of working table
\t
mm
\t
560
\t
500
\t
Table maximum rotation angle
\t
°
\t
360
\t
360
\t
Vertical and horizontal table power feed range
\t
mm
\t
0.08-1.21
\t
0.08-1.21
\t
Table rotary feed range
\t
mm
\t
0.052-0.783
\t
0.052-0.783
\t
 Motor power
\t
kw
\t
4
\t
3
\t
Motor speed
\t
r/min
\t
960
\t
1430
\t
Machine weight
\t
kg
\t
3000
\t
2200
\t
Outline dimension
\t
mm
\t
2261*1495*2245
\t
1916*1305*1995
Related Products
Company Information

Q1. How can I get a quotation?
A. Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.
Q2. Can you provide customized machine or SPM (Special purpose machine)?
A. Yes, we provide smart CNC solutions for our customer, in order to increase efficiency.

Q3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory is available.
Q4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.
Q5. What's your warranty terms?
A. We will supply a replacement for parts that prove to be defective for a period of 18 months, starting on the machine's bill of lading date. Extended warranty is available at the time of purchase. Please contact your TOPWAY sales representative for details.
Q6. What's the delivery time, and what's the package?
A. Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package.
