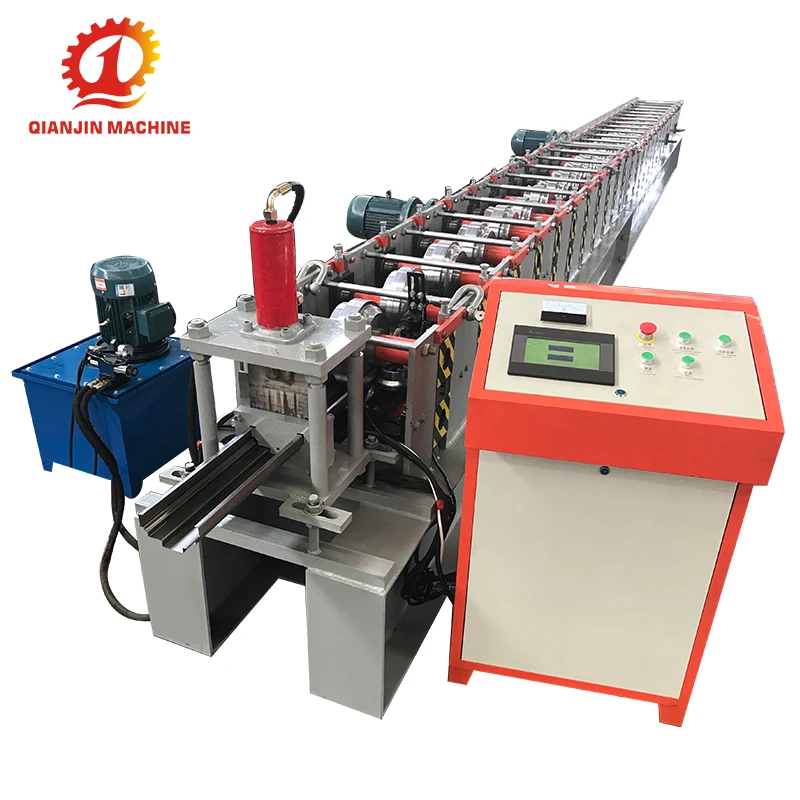

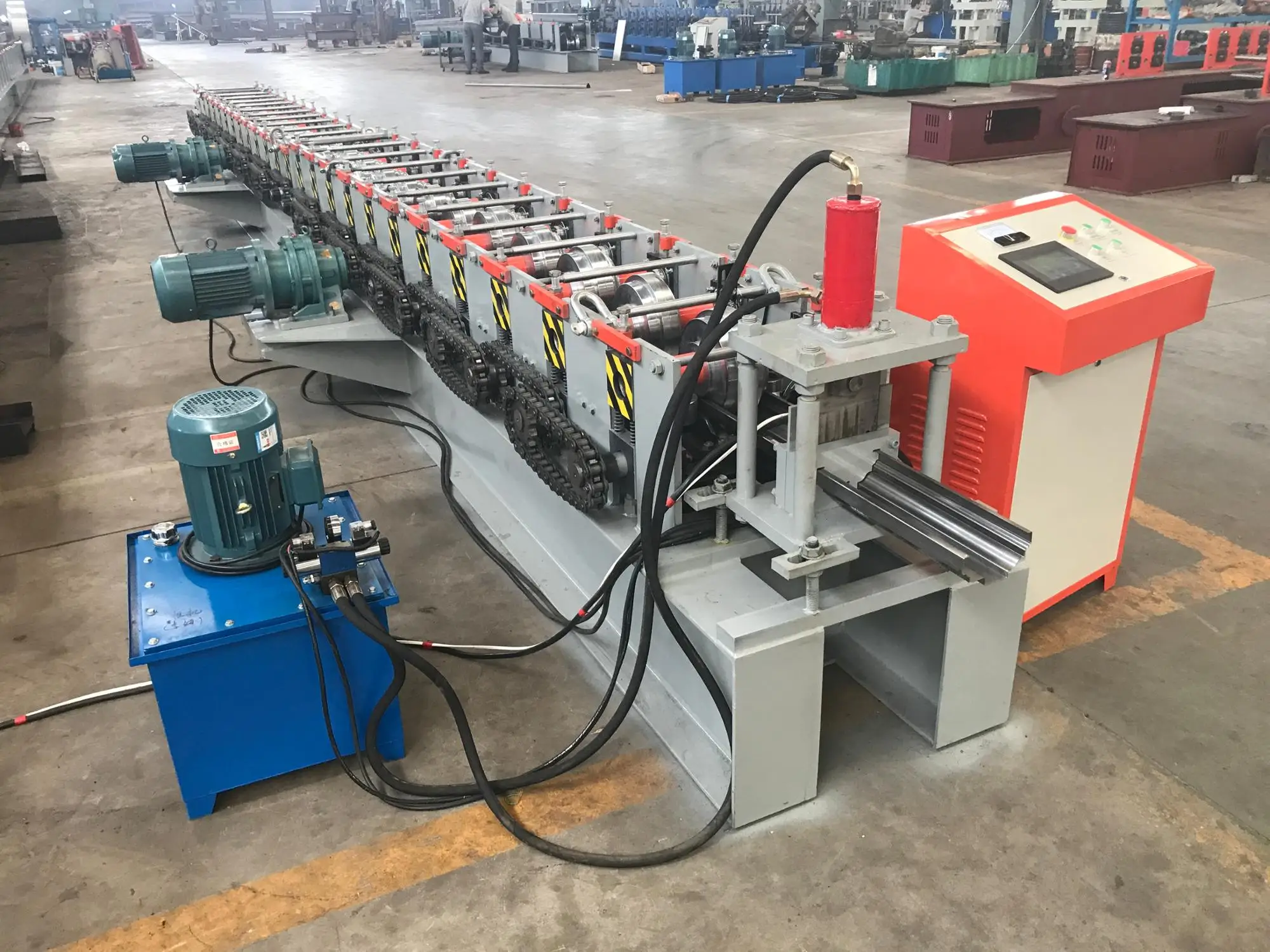

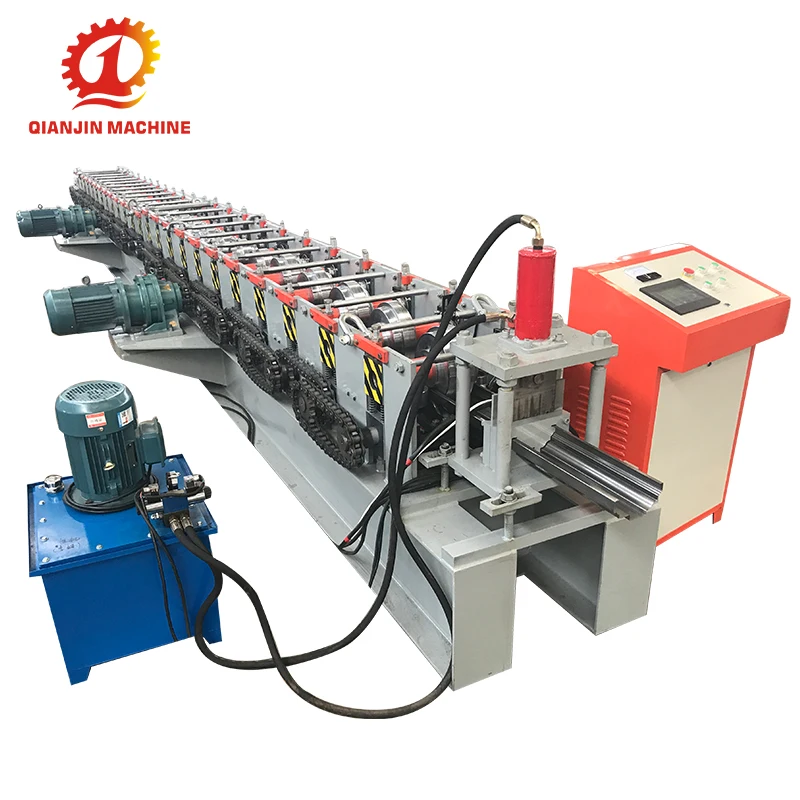

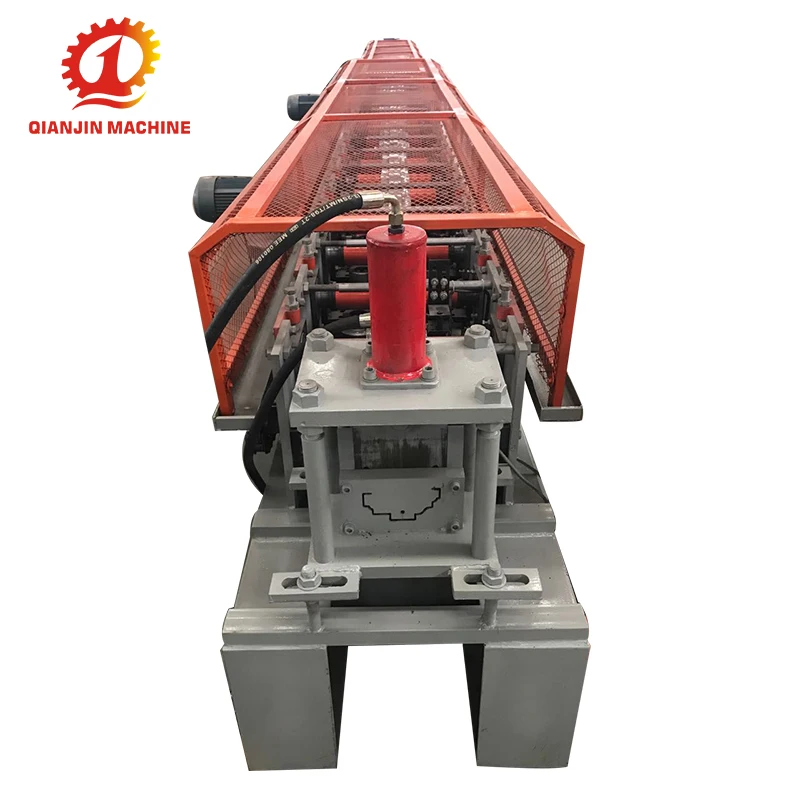

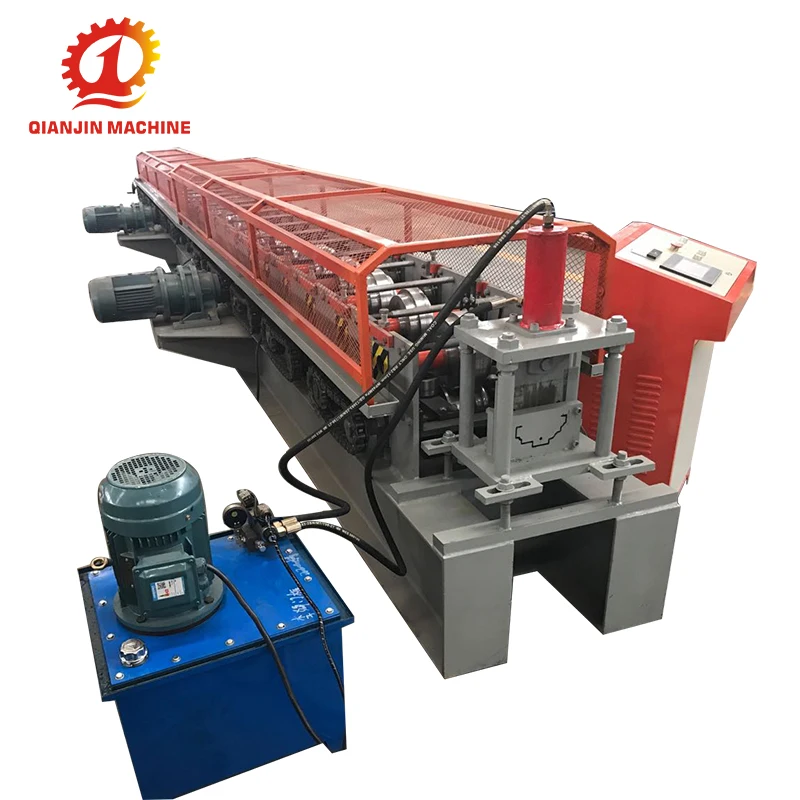

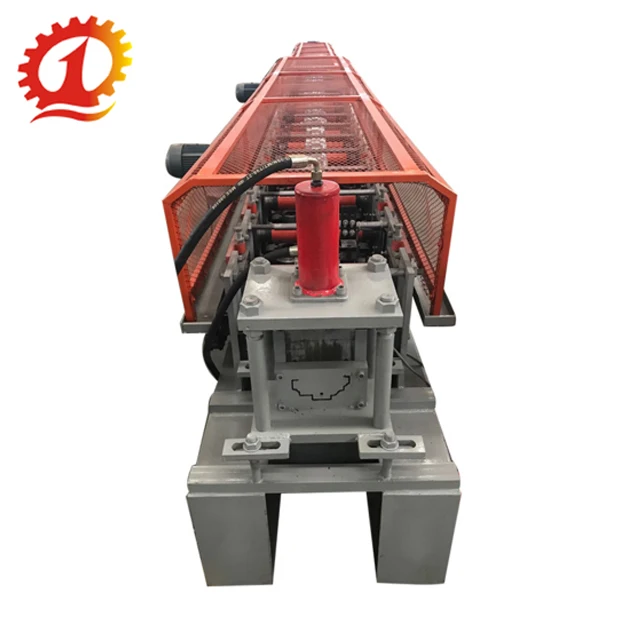

Window Metal Steel Door Frame Making Machine

The finished product of High Quality Steel Door Frame Press Roll Forming Machine For Steel Door Production Line is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.

No.	Window Metal Steel Door Frame Making Machine
Sample
1	Profile Size	YX 280
2	Suitable Raw Material	0.3-0.6mm, G350-G550, Color steel coil, Galvanized coil, Aluminized zinc coil or as your request
3	Under Frame	400 H-beam
4	Sidewall	16mm
5	Connect Bar	25mm, zinc plated
6	Roller	High grade 45# steel, processed by CNC lathe, hardening and tempering, polishing, hard chrome plated 0.05-0.07mm, with keyway
7	Shaft	70mm, solid, finish turning, cylindrical grinding, with keyway
8	Forming Stations	25
9	PLC	DELTA, TAIWAN
10	Main Motor	5.5kw, Lichao, Shanghai, with reducer
11	Hydraulic Pump station	4kw

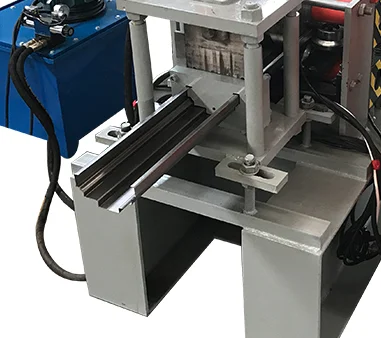

12	Cutting blade	Cr12Mov, quenching 58-62°, double oil cylinder
13	Oil paint	National standard grey
14	Computer screen	DELTA, TAIWAN
15	Chain	1inch

 equipment during guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t forced by human are excluded).

2.If the equipment are out of work in the guarantee period, the buyer needs our repairman to come to buyer’s factory, the buyer should be responsible for the tickets(including round-trip ticket), the fee of transportation to the buyer’s factory andaccommodation. Required to change spare parts, the buyer should afford the freight fee and we don’t ask extra fee.

C. Training

During installation and adjustment of the equipment, our engineers shall provide the training to

buyer’s personnel request to operate and maintain the equipment.

Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.

D. Lifetime services

Lifetime services to every customer.

Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.

After we get down payment, we will arrange production. About 30-45 days for delivery.

Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.

Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.

Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.

Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
       2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5       hours), then we can pick up you.
