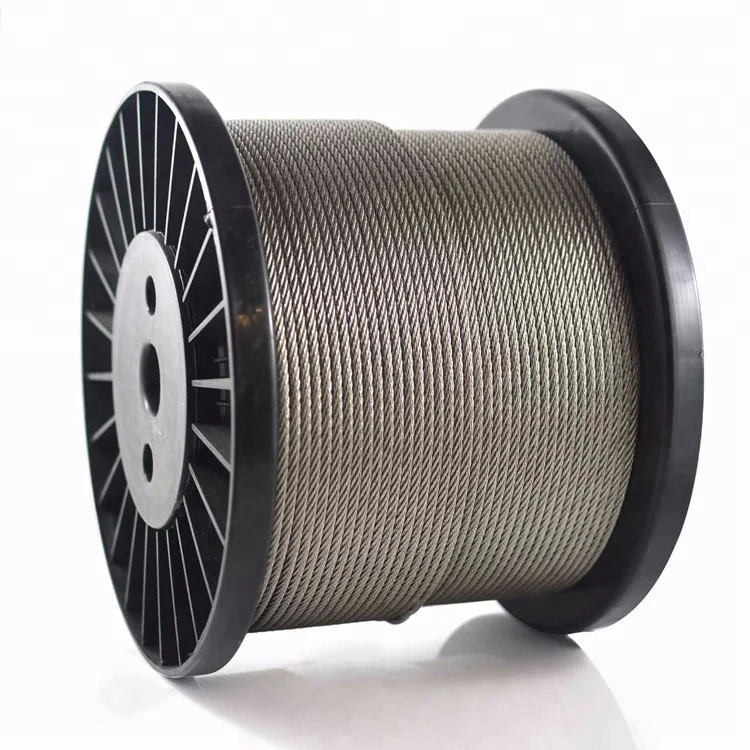

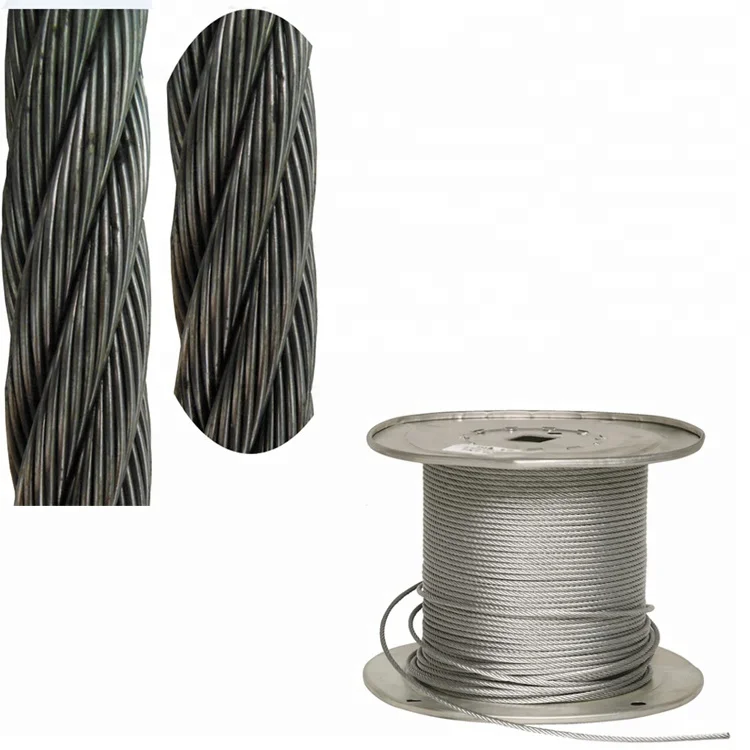

AISI 304 316 Stainless Steel Wire Rope Nominal Tensile Strength 1570 Mpa Diameter 0.3 12mm For Aircraft Lifting
1. Material: 300 series stainless steel
2. Standard: DIN, GB, EN12385-4, AISI, BS, ASTM, JIS etc
3. Construction: 7x19, 7x37, 6x36, 19x7, etc.
4. T/S: 1470MPA, 1570MPA, 1670MPA, 1770MPA
5. Application: lifting, hoist, crane, etc.
6. Certification:ISO and SGS.
7. Diameter: 5-50mm

Chemical composition:
| Standard: | ||||||||
| Grade | C % | Ni % | Cr % | P % | S % | SI % | Mn % | Mo % |
| 304 | ≤0.08 | 8-10 | 18-20 | ≤0.035 | ≤0.03 | ≤1.0 | ≤2 | |
| 316 | ≤0.08 | 10-14 | 16-18 | ≤0.035 | ≤0.03 | ≤1.0 | ≤2 | 2-3 |
| 304L | ≤0.03 | 8-10 | 18-20 | ≤0.035 | ≤0.03 | ≤1.0 | ≤2 | |
| 316L | ≤0.03 | 10-14 | 16-18 | ≤0.035 | ≤0.03 | ≤1.0 | ≤2 | 2-3 |
| AISI304 | ≤0.07 | 8-10 | 17-19 | ≤0.035 | ≤0.03 | ≤1.0 | ≤2 | |
| AISI316 | ≤0.08 | 10-14 | 16-18 | ≤0.045 | ≤0.03 | ≤1.0 | ≤2 | 2-3 |

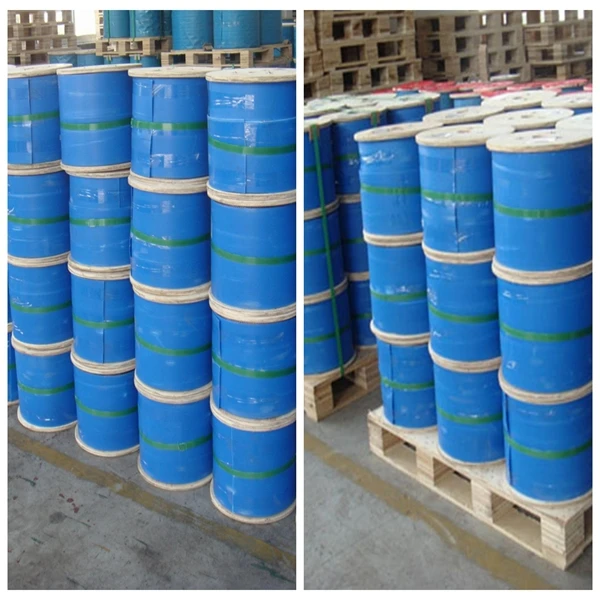

Packing: Export Package
Inner packing:
Wooden reel and craft paper
Outer packing:
Wooden pallet or according to customer's request

Why you choose us?
1. We are Alibaba Assessed 4 years Gold Supplier.
2. We are a factory manufacturing stainless steel wire rope, best production capability, best quality control, best service.
3. Competitive price and quality guaranteed.

1. Can samples be sent free?
For quality reference, we can supply 1-2 samples for free. But the freight will be collected.
2.Are your products of good quality? How can I trust you?
Yes. We are a professional manufacturer of steel wire rope in China, having 20 years experience of producing cables and more than 10 years export stainless steel wire rope,wire. We have always been cooperating with all domestic petroleum and petrochemical companies. And our products have win good reputations. If this is your first time to contact us, please trust us, we’ll not let you down.
3.Can I place an order as appointed type or technical parameter of well logging cable?
Yes, this is achievable.
4.What is your payment terms?
TT deposit 50% upon order confirmation, then balance against the copy of B/L Or L/C at sight.
How to order:
In ordering steel wire rope, you are requested to give us complete information as specified below:
a. Material: 201,202,301,302,303,304,304L,316,316L,430,420,310S etc .
b. Size: Diameter of the rope in millimeter or inches
c. Construction: Number of strands, number of wires per strand and type of strand construction.
d. Type of Core: Fiber core( FC), independent wire rope core(IWRC) or independent wire strand core(IWSC).
e. Lay: Right regular lay, left regular lay, right lang lay, left lang lay.
f. Coating: Bright(ungalvanized), galvanized or stainless, PVC or Grease.
g. Grade of wire: Tensile strength of wires.
h. Breaking Load: Minimum or calculated breaking load in tones or pounds.
i. Lubrication: Whether lubrication is desired or not, and required lubricant.
j. Length: Length of wire rope.
k. Packing: In coils wrapped with oil paper and hessian(orp.p) cloth, or on wooden reels.
l. Quantity: By number of coils or reels, by length or weight.
m. Remarks: Shipping marks and any other special requirement
