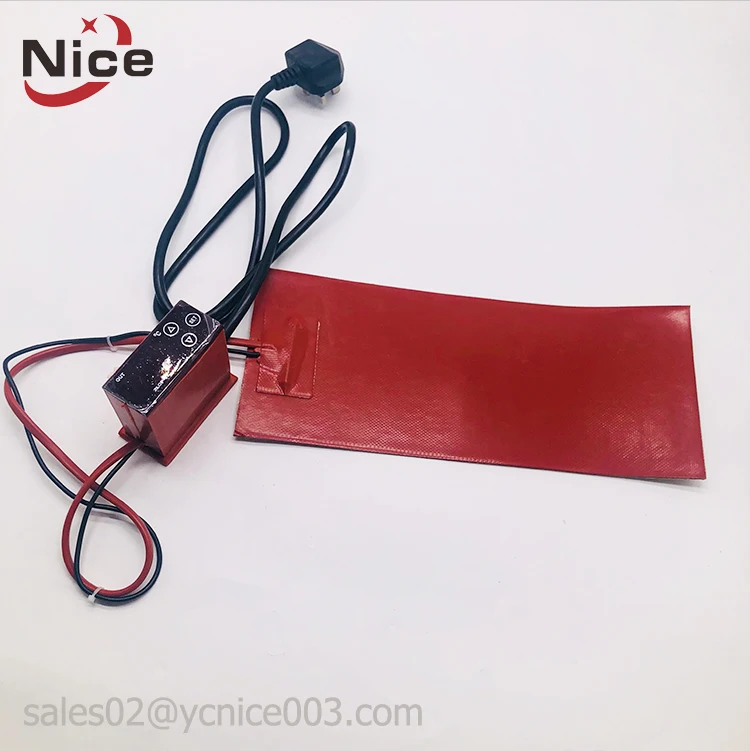

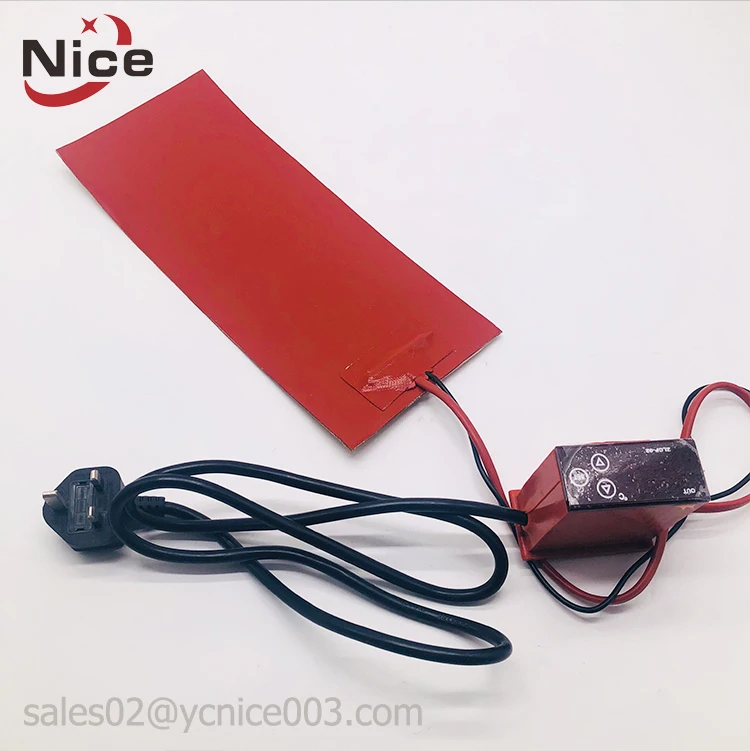

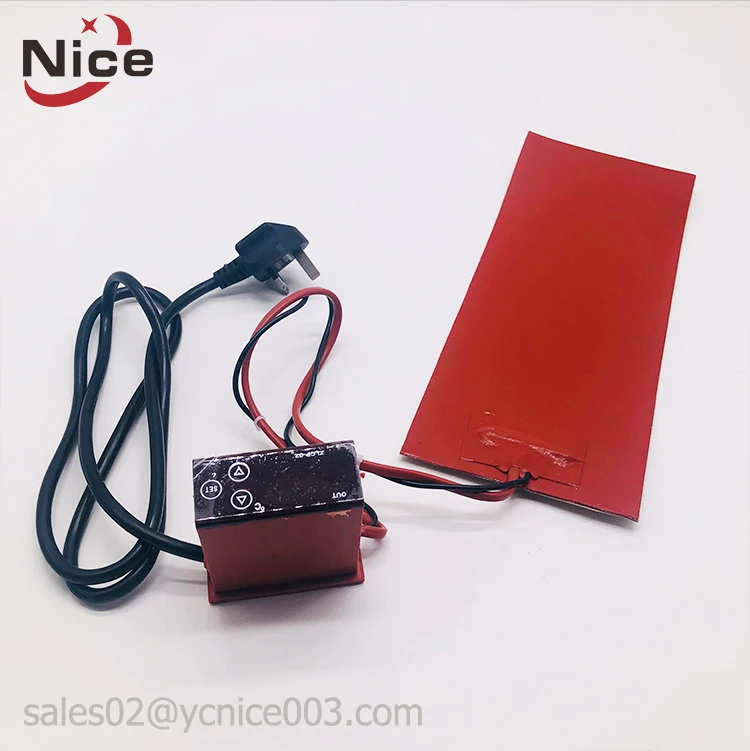

Flexible heat strip 12v machine heating silicone rubber thin film

Product Overview

Description

Flexible heat strip 12v machine heating silicone rubber thin filmis a kind of thin film which heats upon electrified, in a standard thickness of 1.5mm, Adopting nickel chrome wires or 0.05 mm~0.10mm thick nickel chrome foils etched to some certain shapes, the heating component is wrapped with heat conducting and insulating materials on both sides, and completed in high-temperature die forming and aging heat treatment.

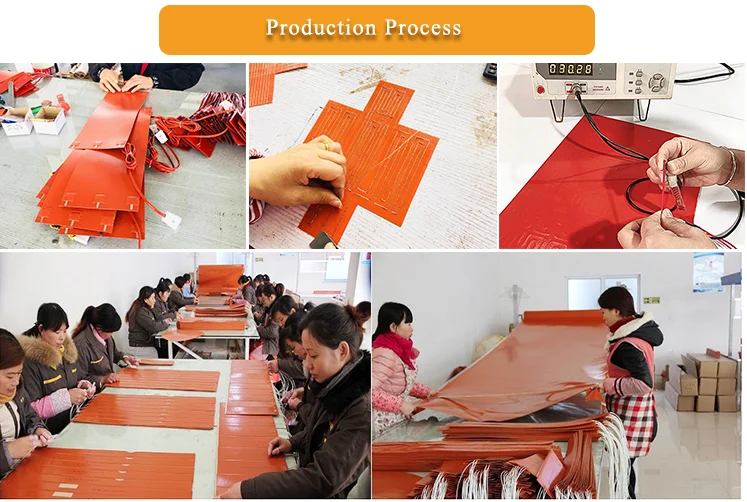

It consists of high temperature resistance wire wound around a fiberglass core for added support and flexibility while still allowing for expansion and contraction during heat up and cool down. The element is laid out in a computer designed pattern to provide maximum heat transfer and temperature uniformity. After the element is laid out, it is vulcanized between two sheets of silicone rubber until they become one. The silicone rubber sheets also have a layer of fiberglass for added strength and tear resistance. The same vulcanization process is used to attach the power leads and cord sets to the heater windings.

Number	Description	parameter
1	Maximum temperature resistant of insulant	300°C
2	Maximum Operating Temperatures	250 °C
3	Power deviation	5%
4	Insulating resistance	≥ 5 MΩ
5	Compressive strength	1500V/5S
6	Size of drum heater	any size,by cutomized

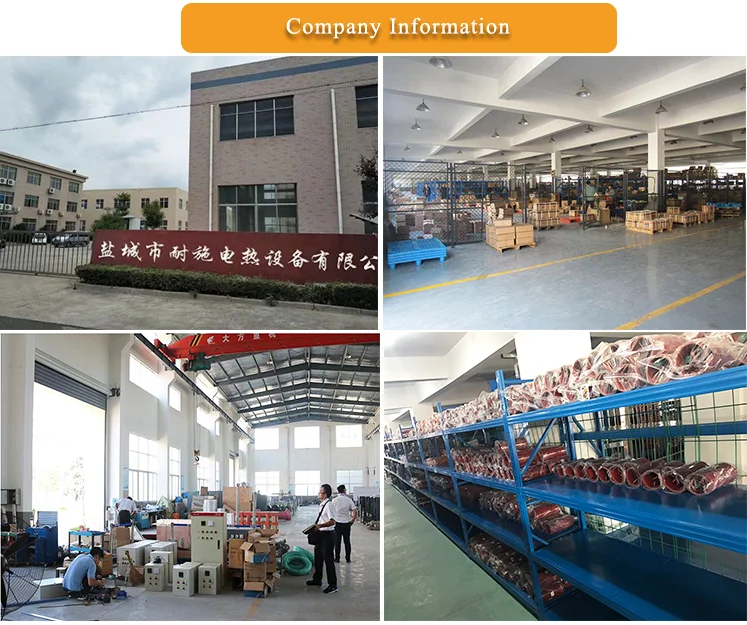

Yancheng Nice Electric Heating Equipment Co.,Ltd,a professional manufacturer according to customers’ requirements,has advanced production lines,testing equipment and QC department to provide clients with high quality goods.In addition,an experienced R&D department and service team to give clients best heating solutions.

Our products have been exported to Europe,America,Asia,Mid East etc,more than 200 countries,and used widely in Plastic Machinery,Vacuum Packing,Petroleum Chemical Industry,Food,Industrial Furnaces and Autonmation etc.

Thank you for your patience and welcome your cooperation.

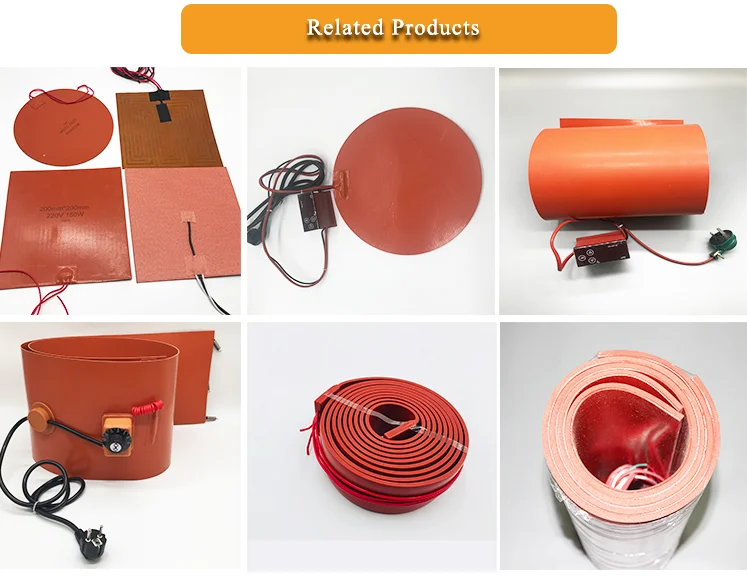

We have many silicone heater types in stock,you can choose what you want.

1.Delivery time

  For samples,5 to 7 days after payment

  For big quantity,negotiated time

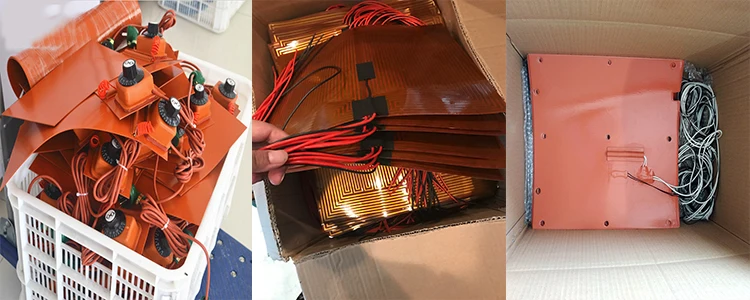

2.Package

   1pcs/1 plastic bag    10 pcs/1 paper box

    For heavy products,wooden case
