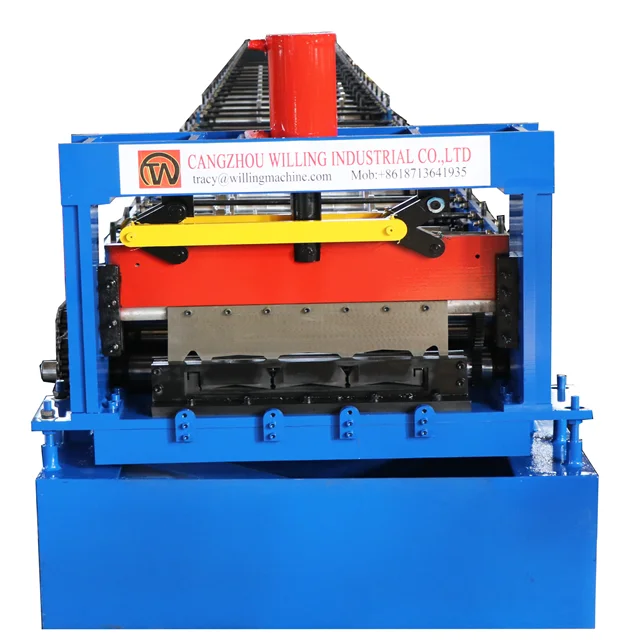

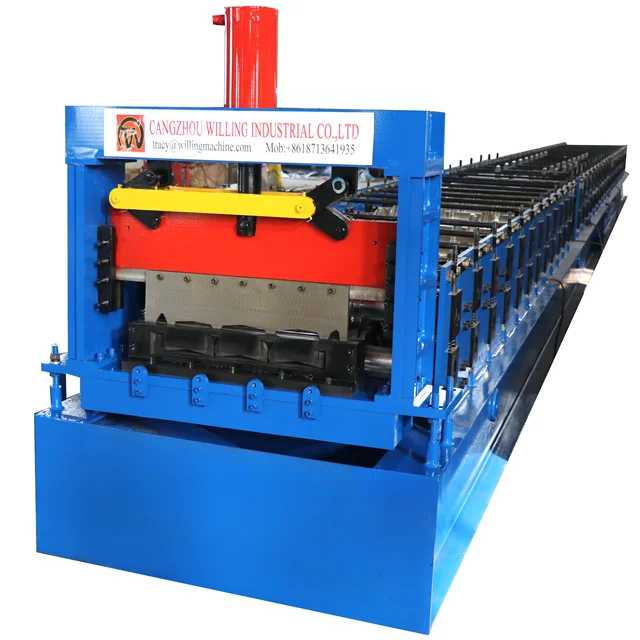

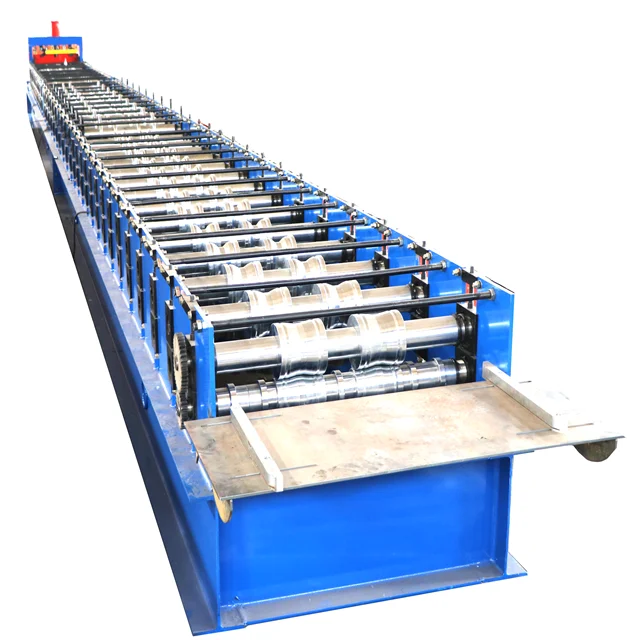

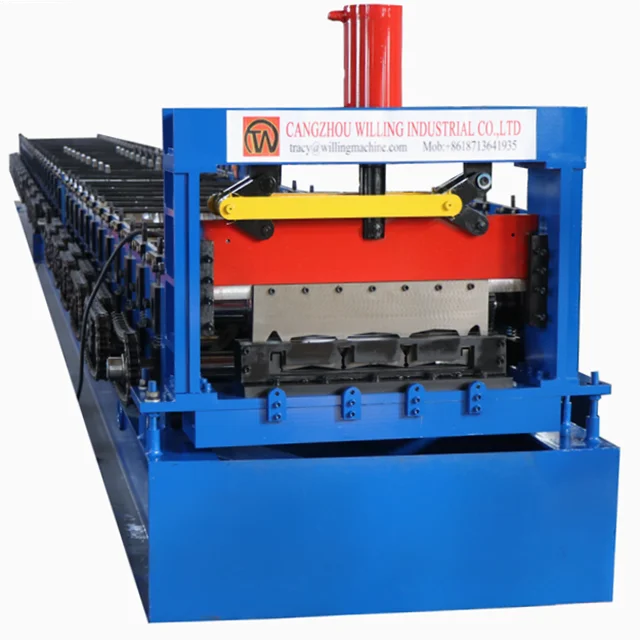

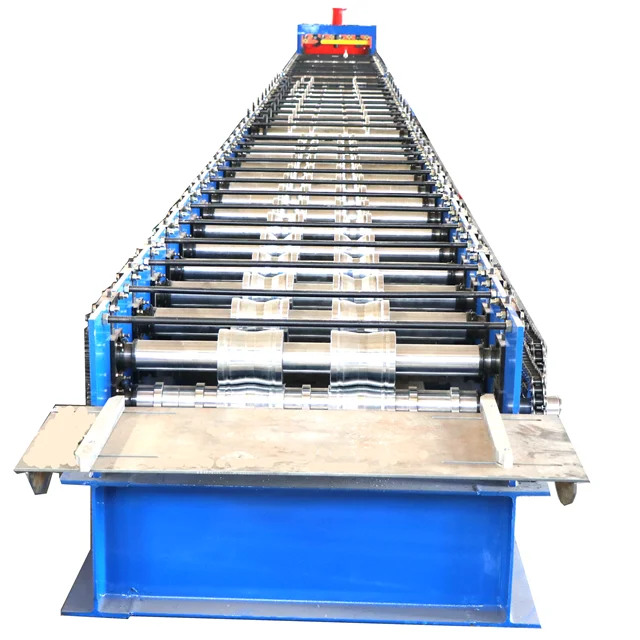

Automatic Control Metal Floor Deck Roll Forming Machine / Steel Floor Tile Making Making Machine

Product Overview

Description

 Automatic Control Metal Floor Deck Roll Forming Machine / Steel Floor Tile Making Making Machine

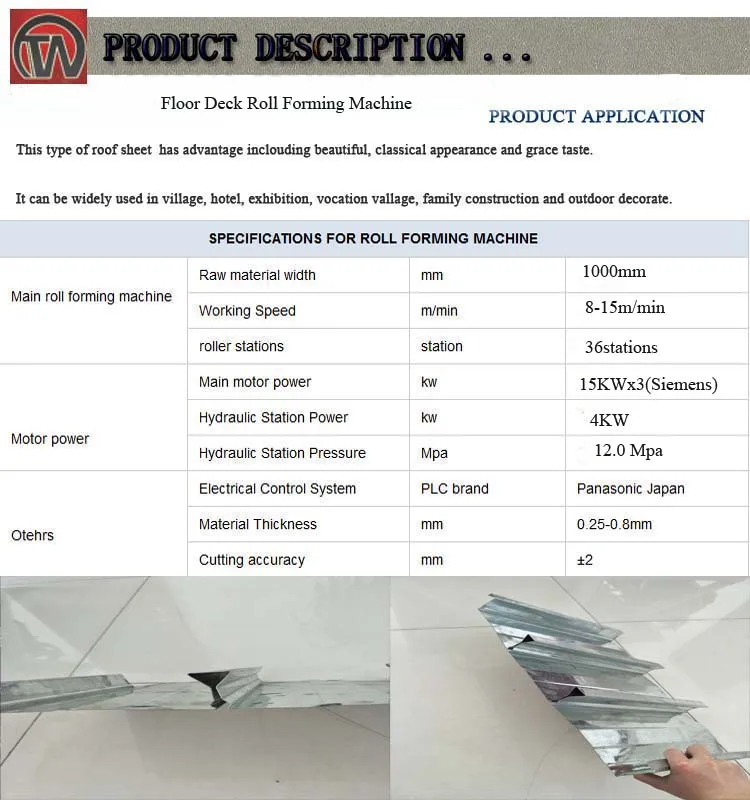

1.Suitable material	Color steel sheet , galvanized steel sheet,aluminum sheet

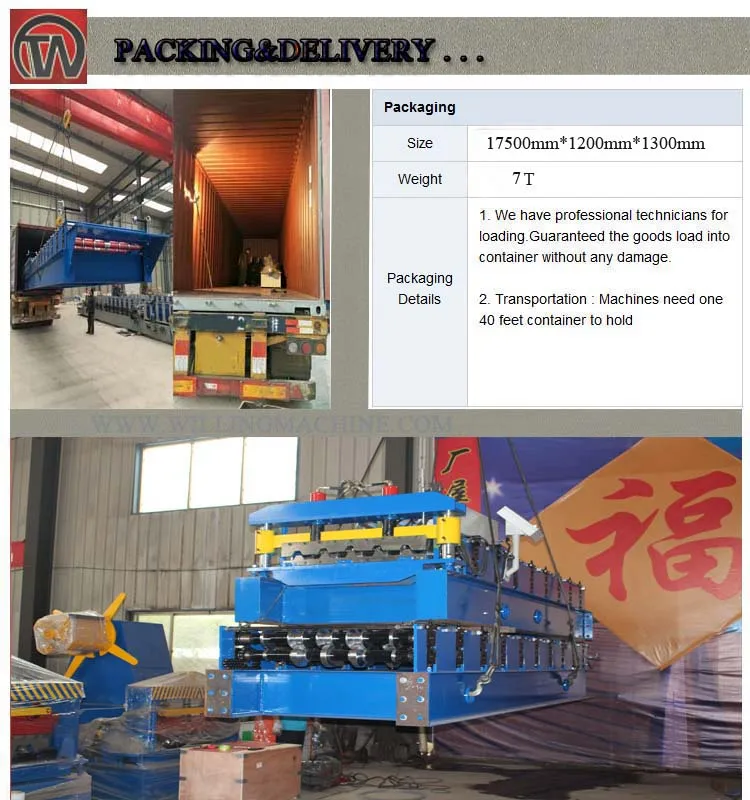

2.Installation Dimension (L*W*H):	17500mm*1200mm*1300mm
3.Main motor power	15KWx3(Siemens)
4.Hydraulic station power	4KW
5. Hydraulic oil pump	12.0 Mpa
6.Thickness of material	0.2mm~0.8mm
7.Diameter of principal axis	Φ70-90mm
8.Material expand width	1000mm
9.Electric tension	380V 3phase 50HZ or as the customer's requirements

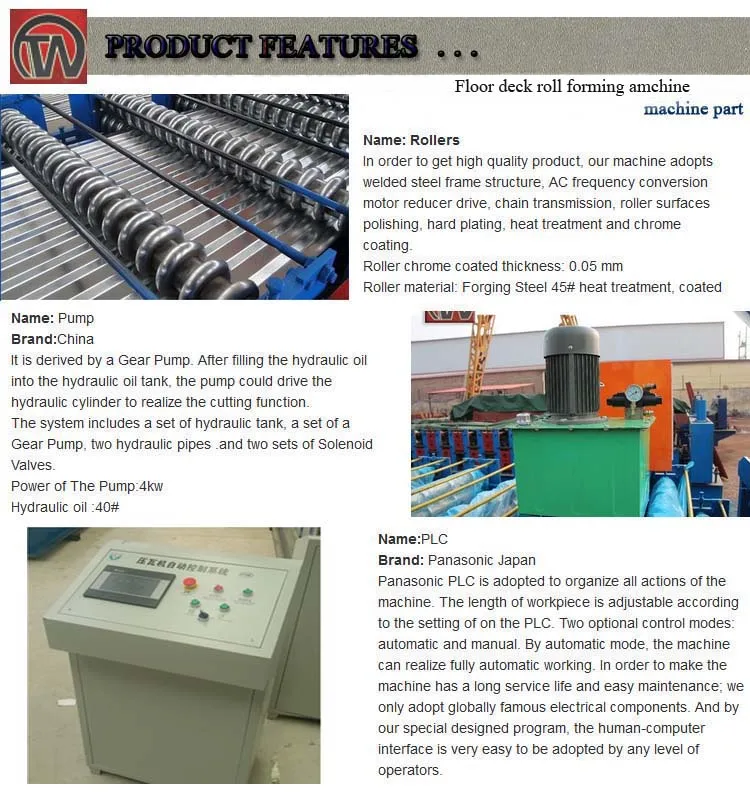

10.Material of roller	High grade 45# forged steel plated with hard chrome plating
11.Controlling system	PLC
12.Processing speed	8-15m/min
13.Processing precision within	1.00mm (depend on design)
14.Material of cutting blade	Cr12 mould steel with quenched treatment
15.Kind of drive	0.6 inch chain link bearing model 6210
16.Roller station	36 Rollers
17.Roller material	high grade 45#steel; Cr12 quenching
18. Leak frame load-bearing	7T

1.We can promise the tolerance to be 0.8mm due to 18 sets CNC machines on site. All the rollers and shafts are solid.

2.We have 16 engineers with more than 10 years experience to offer the most popular solutions.

3. installation engineers can go to your site within 7 days.

4.12 months maintenance and whole life technical support.

5.We cooperate with Maersk,APL,CMA,EMC,MSC, and PIL etc, 32 big shipping companies.

Pre-sale Service

1. Send you invitation letter, If you wanna visit our factory and check the machines.

2. Good Quality   Manufacturer competitive price   Quick Response   Reliable Service for you.



Selling Service

1. Short delivery time after deposit 30-40 days.

2. Email you the production schedule and make prompt delivery for you.

3. We will count the cheapest shipping cost and fastest forwarder for you and send documents promptly.

4. Always be here for your service 12 hours per day.



After-sale Service

1. We welcome all feedback about our products and prices and services from our customers.

2. Any questions, please contact with us freely by E-mail or Telephone.
