500 2000 liter 5 layer extrusion plastic molding machine
- Category: Extrusion Blow Molding Machines >>>
- Supplier: Weifang Xinhengda Machine Co. Ltd.
Share on (60799146877):
Product Overview
Description
Product Description
| Machine Model | Unit | XHD2000-3 | XHD2000-4 | XHD2000-5 |
| Review | ||||
| Capacity Range | L | 500-2000 | 500-2000 | 500-2000 |
| Number of Layers | 1-3 | 1-4 | 1-5 | |
| Machine Size | M | 11*5*6.3 | 11*8*6.5 | 11*8*6.5 |
| Machine Weight | TON | 50 | 65 | 70 |
| Total Power | KW | 390 | 404.5 | 441.5 |
| Average Energy Consumption | KW | 220 | 220 | 230 |
| Extruder | ||||
| Screw Size | MM | 100/110/100 | 90/90/90/90 | 90/80/80/80/90 |
| Screw L/D | 30/1 | 30/1 | 30/1 | |
| Screw Output | KG/H | 450 | 450 | 450 |
| Screw Motor | KW | 55/75/55 | 45/45/45/45 | 45/37/37/37/45 |
| Heating Power | KW | 54.5 | 64 | 80 |
| Die Head | ||||
| Accumulator Capacity | L | 100 | 100 | 95 |
| Max Shot Weight | KW | 75 | 75 | 71 |
| Max Die Core | MM | 600 | 600 | 600 |
| Heating Power | KW | 100 | 110 | 110 |
| Clamping System | ||||
| Daylight Between Platens | MM | 1040-3200 | ||
| Mold Plate Size | MM | 1800*1900 | ||
| Clamping Forces | KN | 1800 | ||
| Hydraulic system | ||||
| Main Pump Motor Power | KW | 45 | ||
| Servo Pump Motor Power | KW | 5.5 | ||
Product Application:

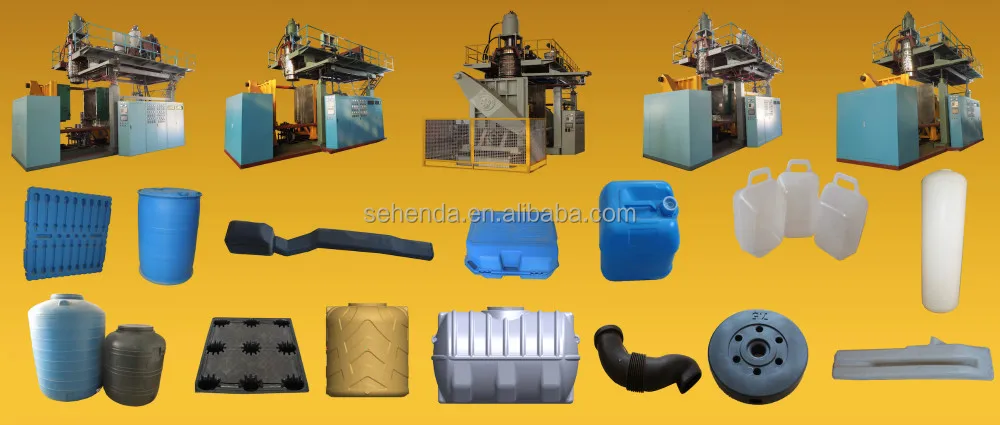

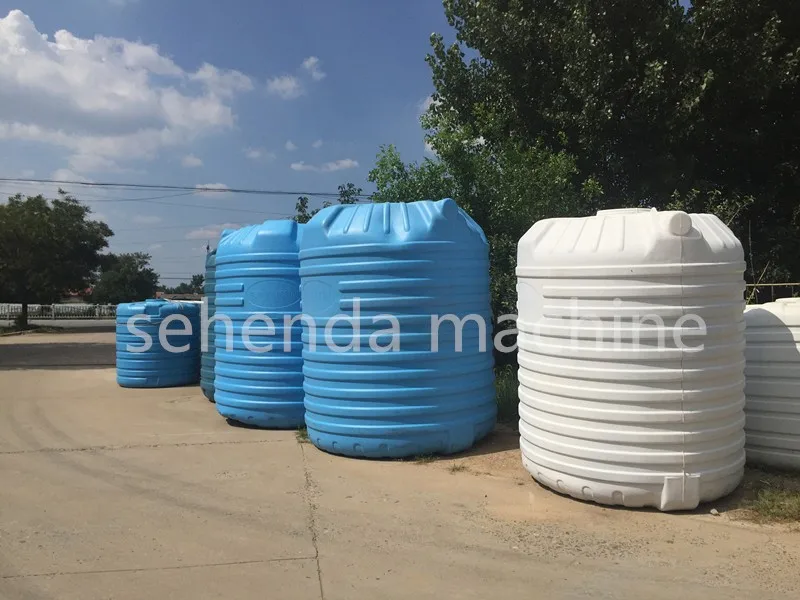

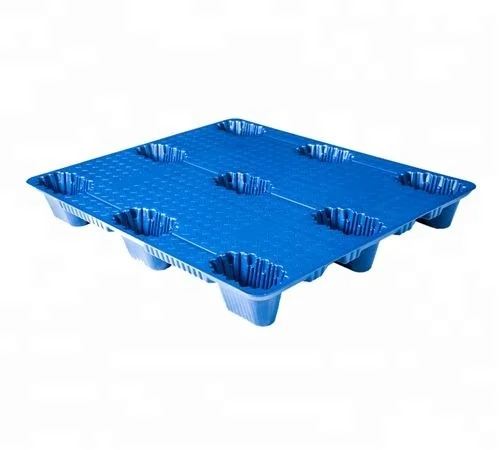

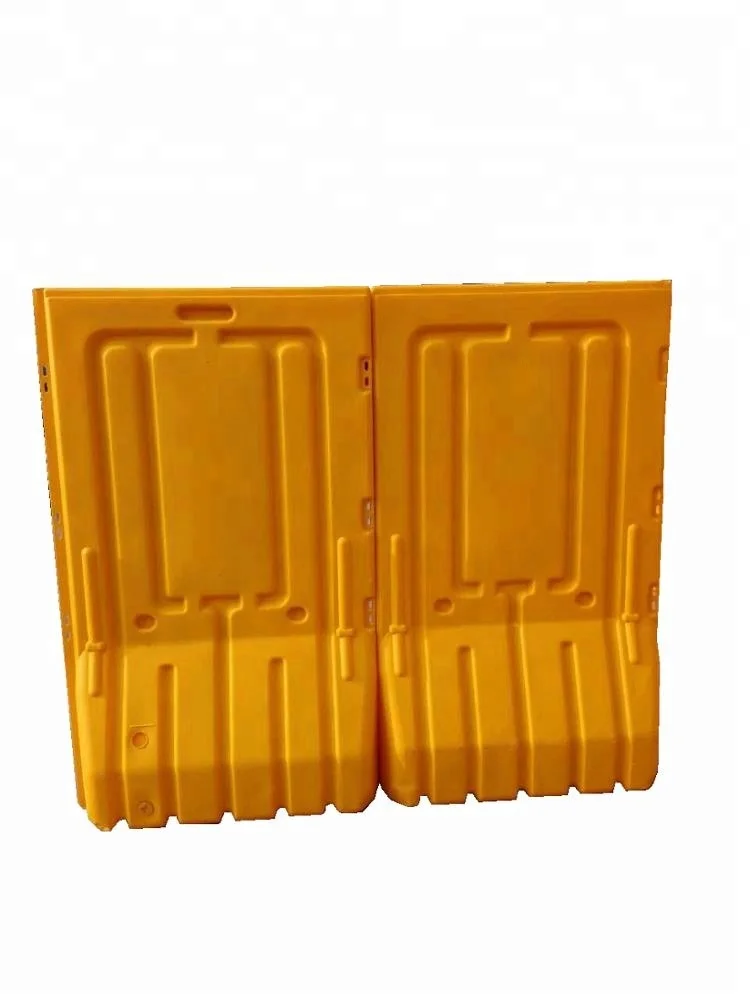

Application: Water tank, septic tank, plastic pallet, chemical tank, road barrier, frp vessel, IBC, L-ring drum, floating dock, fish tank and other customer-made product
Main Features:
Tanks produced never leakage
Save cost of production
High productivity automatically
Configuration
Product Function

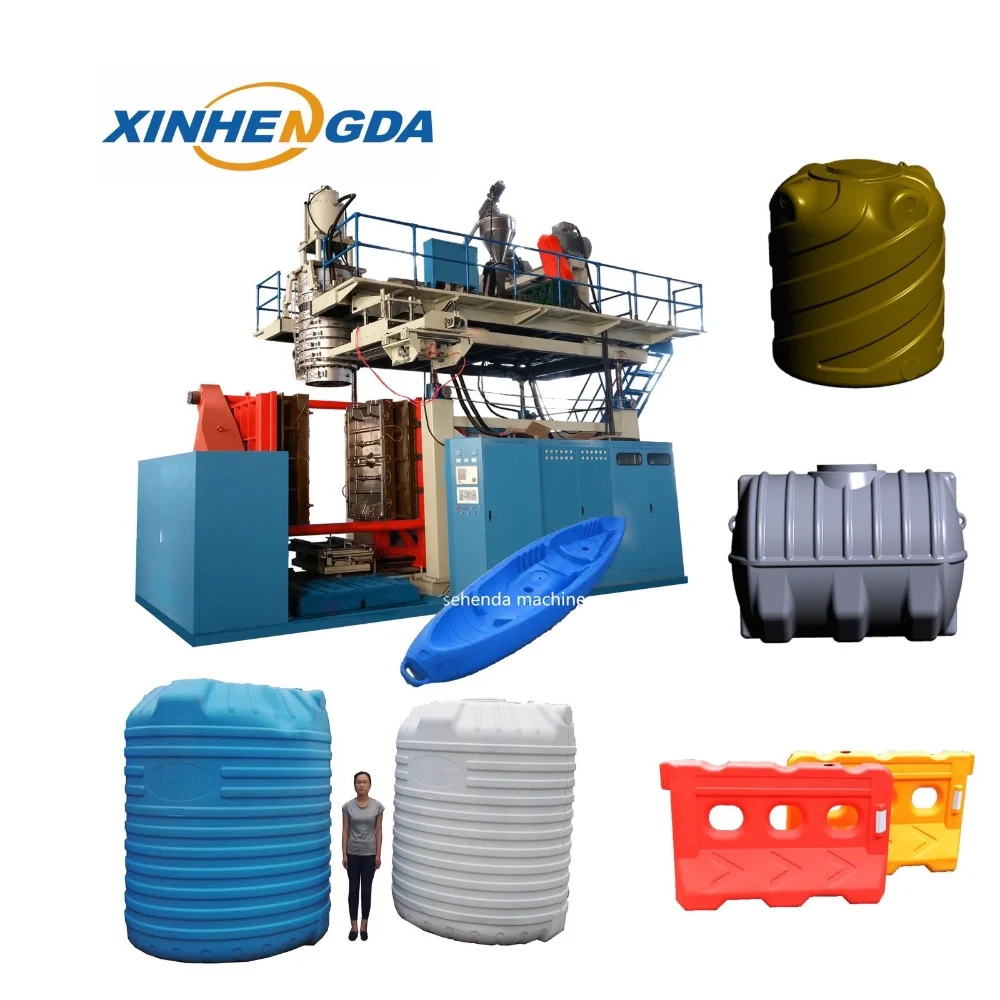

This Blow Molding Machine can produce plastic blow molding products such as wter tanlk,pallets, fuel tank of vehicle, chemical container etc. The maximum container volume is 10000L.
Certifications
Packing & Delivery
Our Service
After-Sales Service
Pre-Sales Service
* Inquiry and consulting support.
* Machine test show.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
