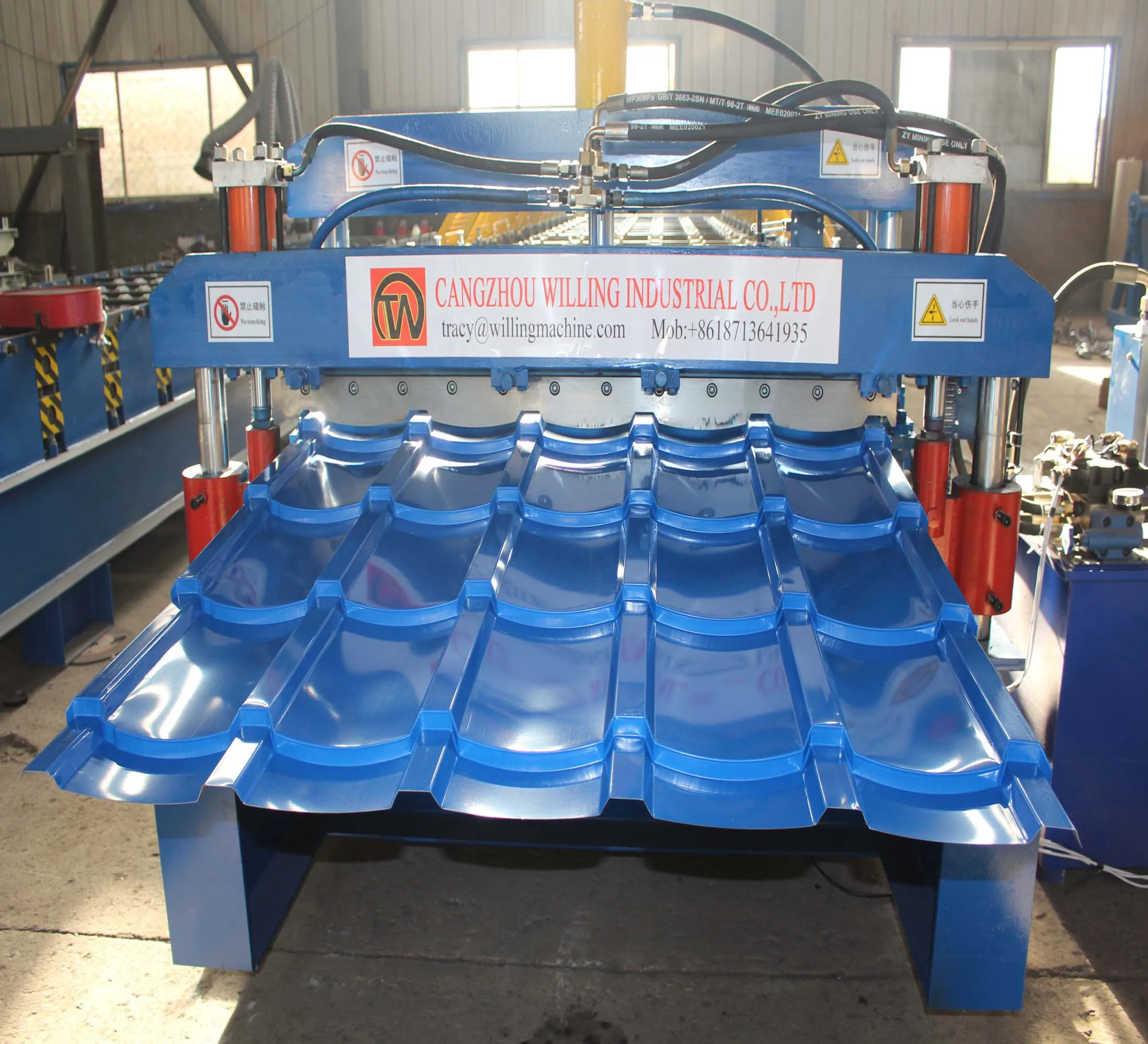

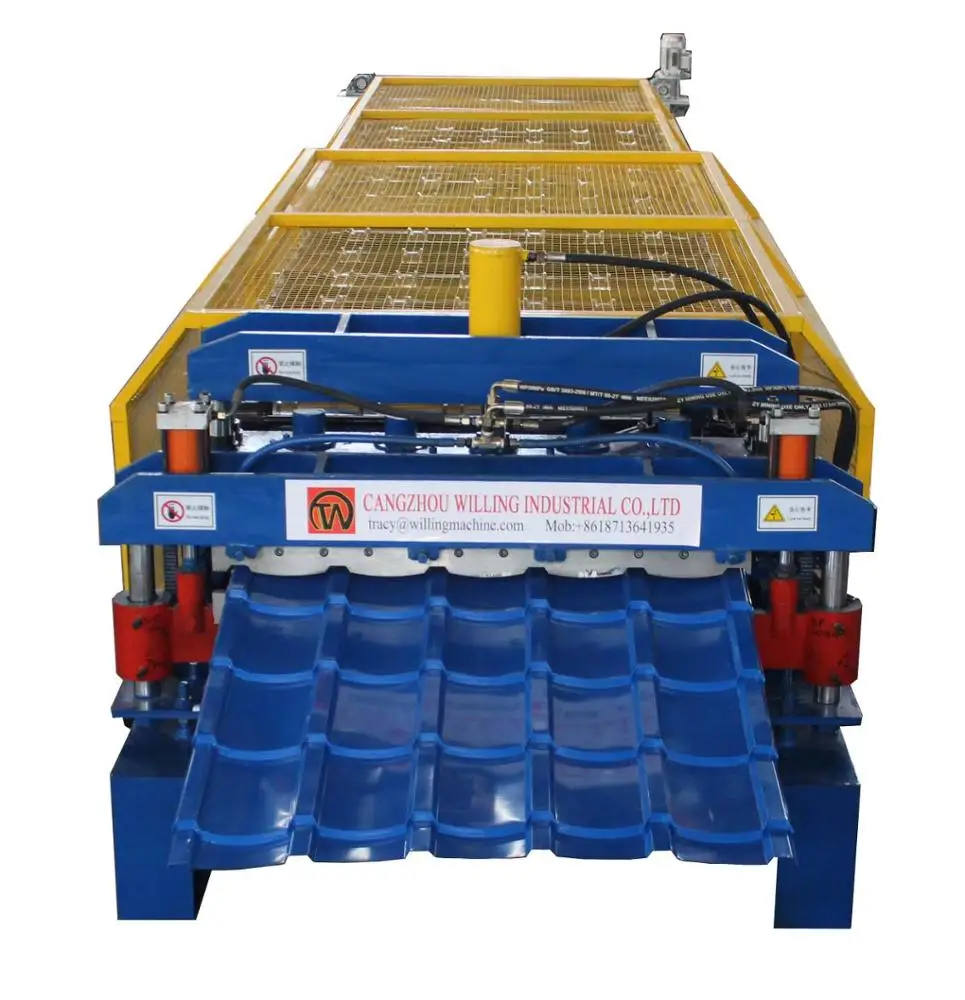

Botou City Willing Hungary IBR and Glazed Tile Double Layer Roof Panel Roll Forming Machine

Product Overview

Description

Botou City Willing Hungary IBR and Glazed Tile Double Layer Roof Panel Roll Forming Machine

No	Item	Description
1	Coil	Width:1250mm
2	Forming speed	8-15 m/min&1-4m/min (not including cutting time)
3	Roller Stations	15&16stations
4	Material of Roller	45# steel finish machining, plated hard
5	Material of Main Shaft	45# steel finishing machining and then slack
6	Material of Shaft	80 mm 45#steel forged
7	Driven Motor Power	7.5KW
8	Hydraulic Station Power	11 KW
9	Hydraulic Station Pressure	12.0 Mpa
10	Electrical Control System	Taida PLC
11	Dimension (L*W*H)	7300*1550*1200mm
12	Material of Cutter	GCr12
13	Driving Mode	single chain 1 inch
14	Material Thickness	0.3-0.8mm
15	Power Supply	380V, 60HZ, 3 PHASES
16	Cutting accuracy	±2 mm



1.We can promise the tolerance to be 0.8mm due to 18 sets CNC machines on site. All the rollers and shafts are solid.

2.We have 16 engineers with more than 10 years experience to offer the most popular solutions.

3. installation engineers can go to your site within 7 days.

4.12 months maintenance and whole life technical support.

5.We cooperate with Maersk,APL,CMA,EMC,MSC, and PIL etc, 32 big shipping companies.

Pre-sale Service

1. Send you invitation letter, If you wanna visit our factory and check the machines.

2. Good Quality   Manufacturer competitive price   Quick Response   Reliable Service for you.



Selling Service

1. Short delivery time after deposit 30-40 days.

2. Email you the production schedule and make prompt delivery for you.

3. We will count the cheapest shipping cost and fastest forwarder for you and send documents promptly.

4. Always be here for your service 12 hours per day.



After-sale Service

1. We welcome all feedback about our products and prices and services from our customers.

2. Any questions, please contact with us freely by E-mail or Telephone.
