9g 360 Degree Continuous Rotation Micro Servo Rc Servo K power M0090 W/ Metal Gear/ Mini DC Motor

Share on (60799722889):


Price:

Quantity:


Product Overview

Description


Product Details

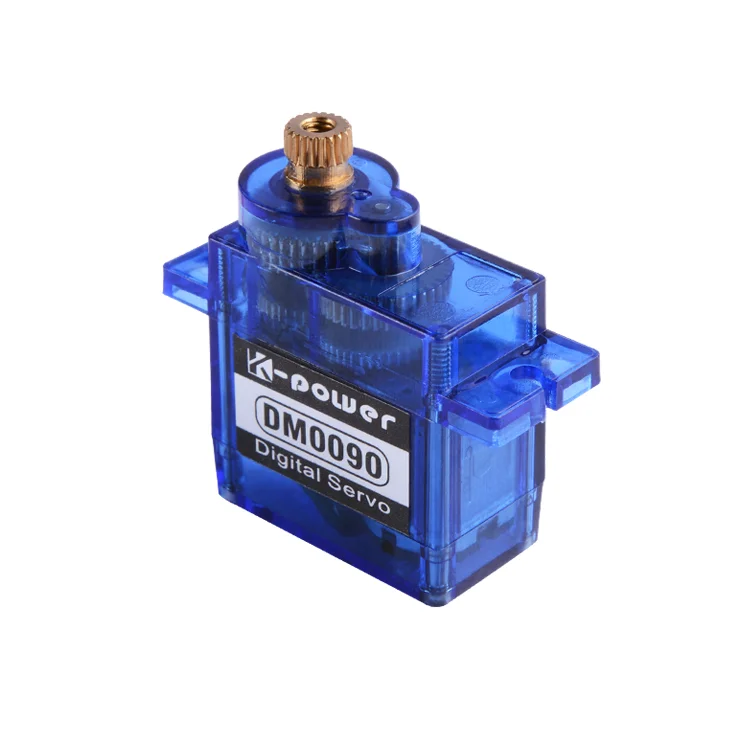

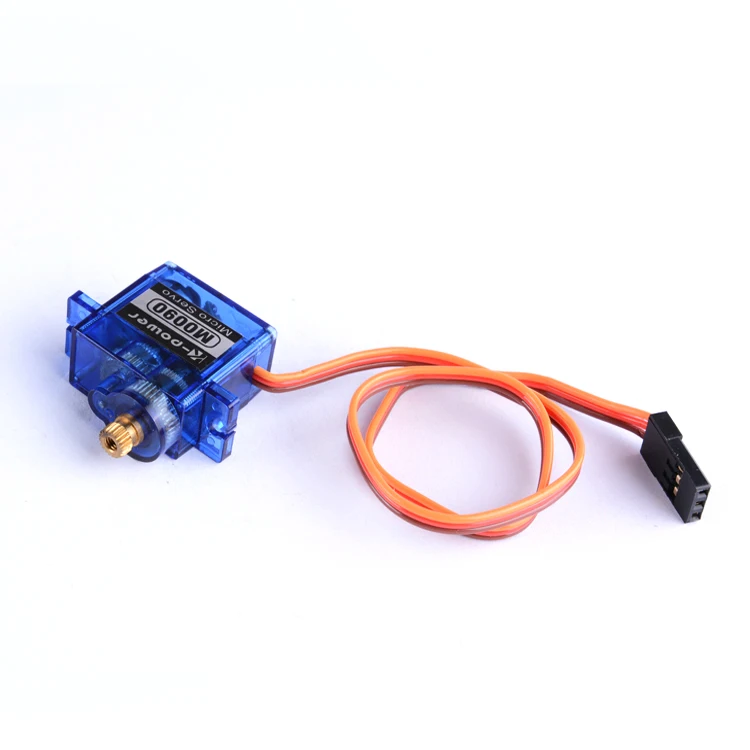

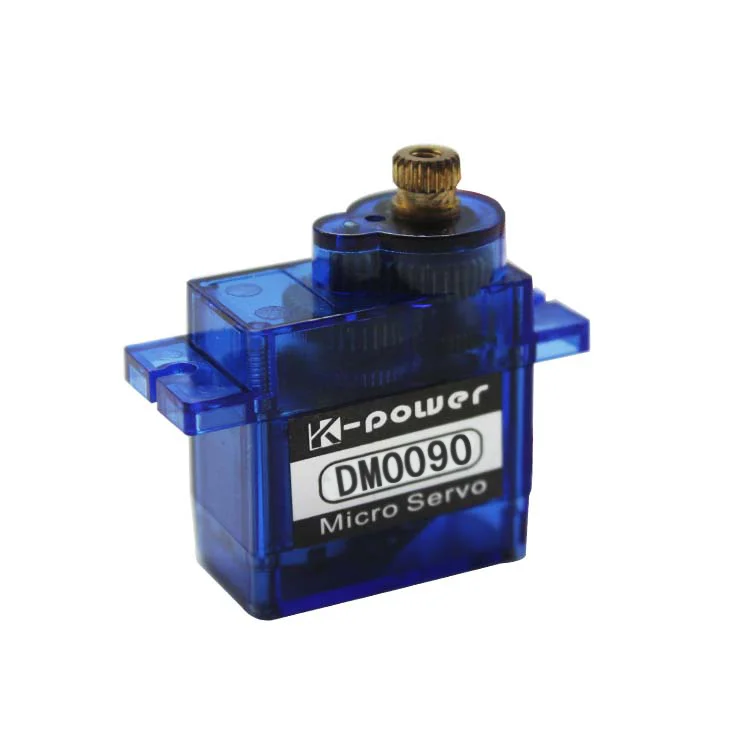

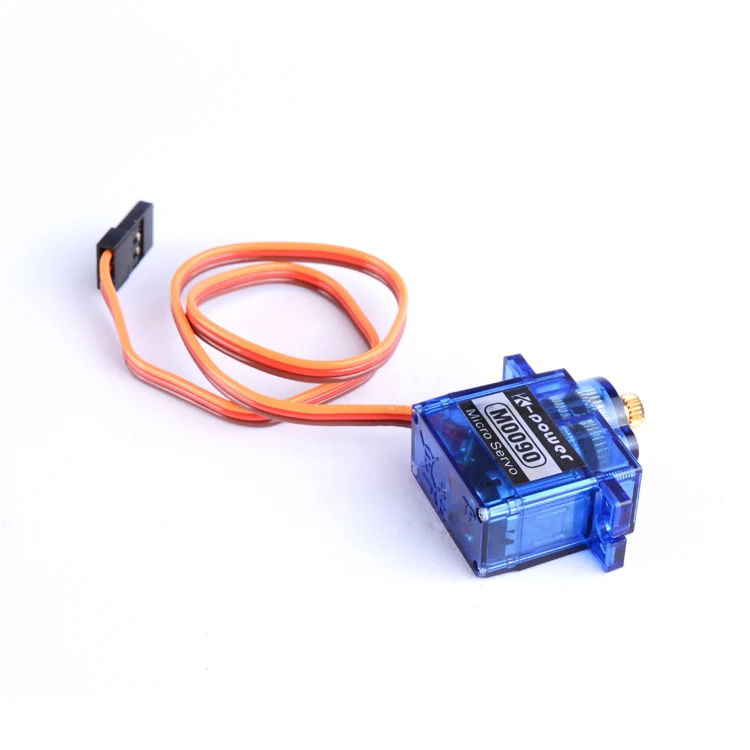

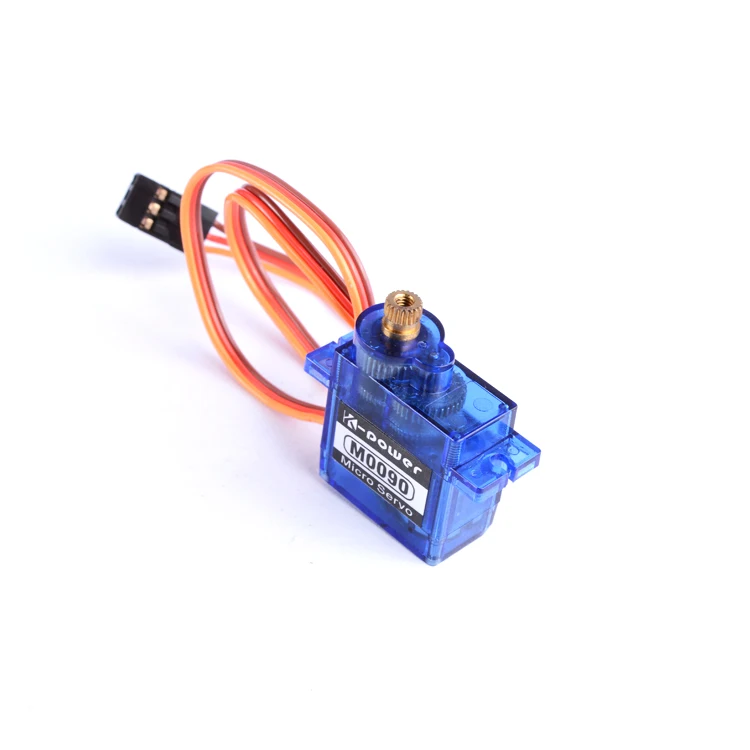

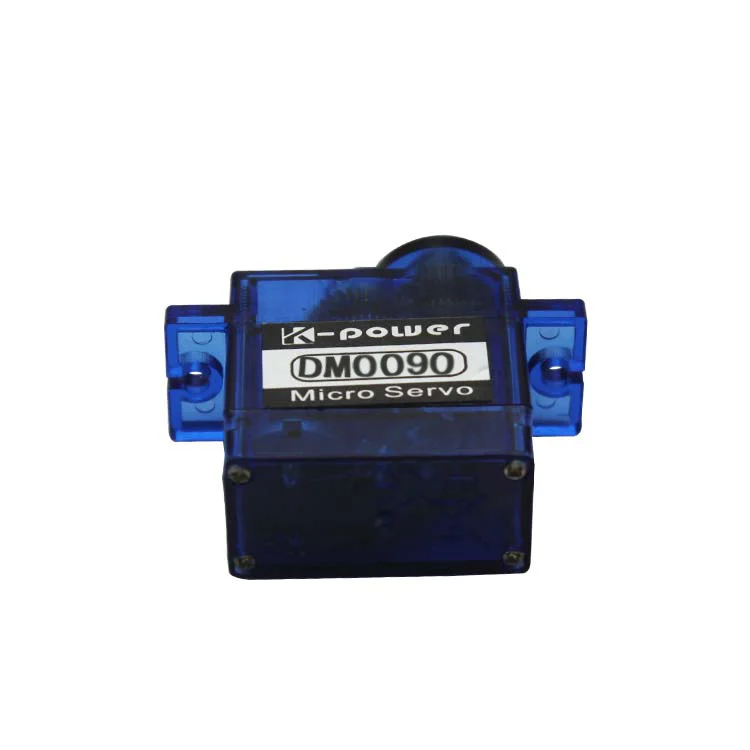

9g 360 Degree Continuous Rotation Micro Servo Rc Servo K-power M0090 W/ Metal Gear:


Super light-weight \t13g / 0.5oz

> Over-spec refined design out performs ordinary micro size servo.
> Light weight design which provides smoother, faster, and more efficient operation.
> Strict production and quality control of plastic components ensures long life and reliability

Product Parameters
\t
Model Type:
\t
Analog Servo M0090
\t
Motor Type:
\t
Brushed
\t
Case material:
\t
Plastic
\t
Gear material:
\t
Metal
\t
Bearing Type:
\t
NO BB
\t
Weight:
\t
13g / 0.5oz
\t
Dimension:
\t
22.4*12.5*22.8mm³ / 0.9*0.5*0.9in³
\t
Operation Voltage:
\t
4.8-6V
\t
Torque:
\t
1.7kg-cm/4.8V; 1.9kg-cm/6.0V
\t
23oz-in/4.8V; 26oz-in/6.0V
\t
Speed:
\t
0.09sec/60°/4.8V; 0.08sec/60°/6.0V
\t
Pulse Width:
\t
900-2100
\t
Dead band width:
\t
4μs
\t
Interface Type:
\t
JR / FT / JST1.5 / JST2.0 / Other
\t
Operating Temperature:
\t
-20 to 60 centigrade
\t
Splining:
\t
20T
\t
Wire Length:
\t
Based on your requirement
\t
Waterproof:
\t
No
\t
Certification:
\t
CE & FCC
\t
Application:
\t
\t\tDIY Robot, DIY RC Toys
\t
Service
\t
Customized and OEM are available.
\t
\t
Any requirement, please feel free to tell us.
Customized the service for you! Thanks!
Product Details Show
More Applications

Light switch servo controller


Smart E-lock


Intelligent toilet flushing controller


Smart shutter controller


Fruit picker

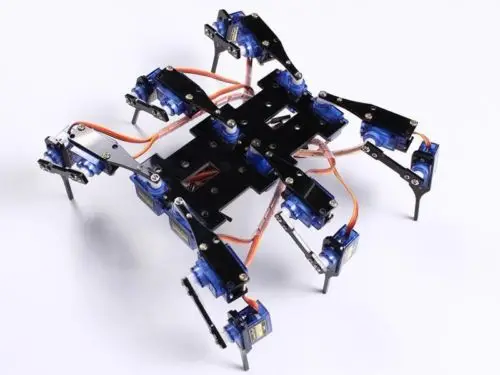

Robot Arm


Product Processing
Why choose us

Professional

Having over 13 years' experience, supplier of  HOBBICO / SHARP / STARA / FOXCONN etc.

R&D Support

Professional R&D Department can provide the supports of constructional design and software.

High quality

Stable product quality, supply, the good faith management.

FAQ

Q: Can I get a free sample?

A: Some servos support free sample. Please contact with us for more detailed information.

Q: What is your servo's rotation angle?

A: The rotation angle can be adjusted according to your requirements, but it is 0~120 degree if no requirement, please do contact with us if you need special rotation angle.

Q: What is your servo's communication?

A:  PWM, TTL, RS485 are optional. most of servo are PWM if no requirement, please do contact with us if you need not PWM.

Q: Can I get customized servo?

A: Of course! we have an excellent and Professional R&D Department, providing the supports for both constructional design and software. Perfect customization services are our main business.

We are confident we can make any to suit your application!

Q: For a customized servo, how long is the R&D time (Research & Development time)?

A: Normally, 10~50 business days depends on your requirements.
