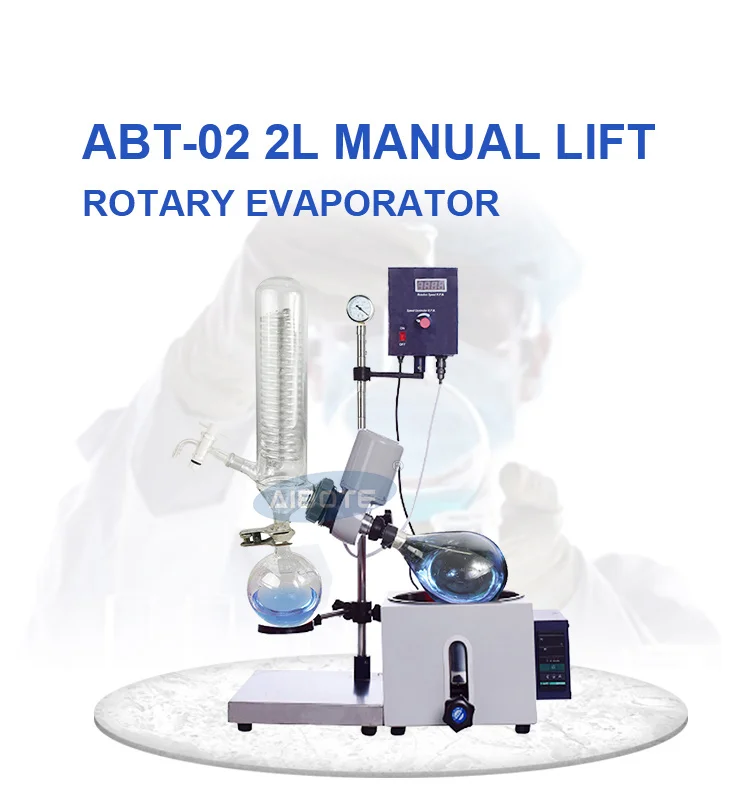

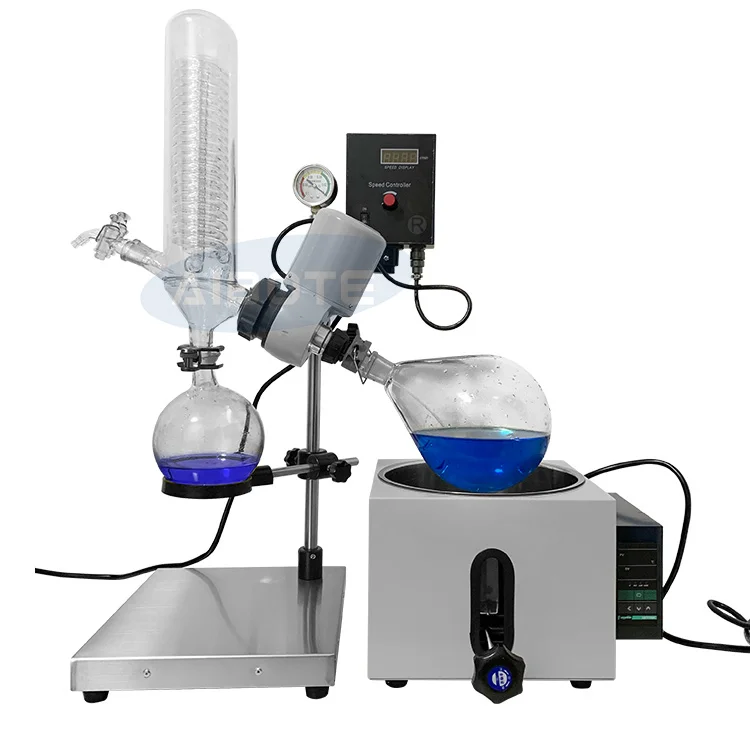

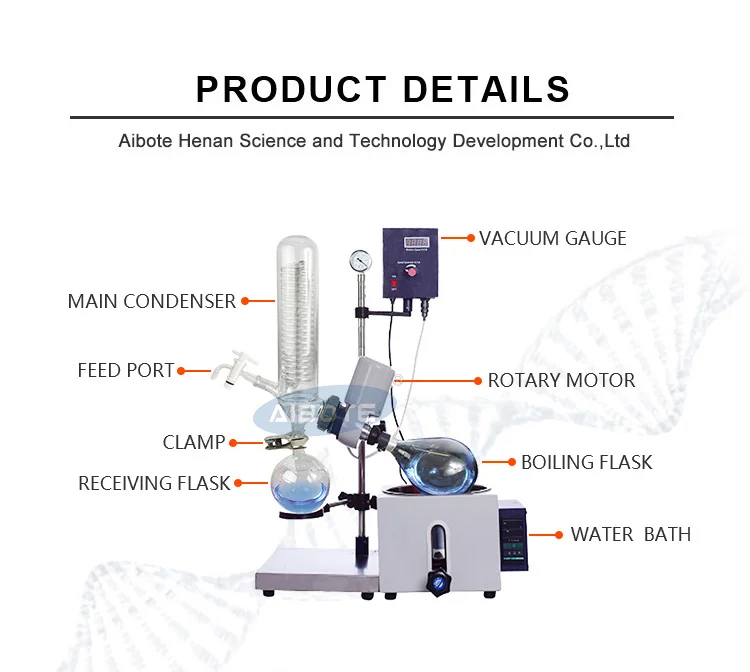

Cheap Mini Industrial tabletop Machine Distillation 2L Chiller Rotovap

Product Overview

Description

Product  Name : Cheap Mini Industrial tabletop Machine Distillation 2L Chiller Rotovap

Model : ABT201D











Main Features

a. For both lab and pilot experiment/production use .
b. High vacuum, intelligent temp. control.

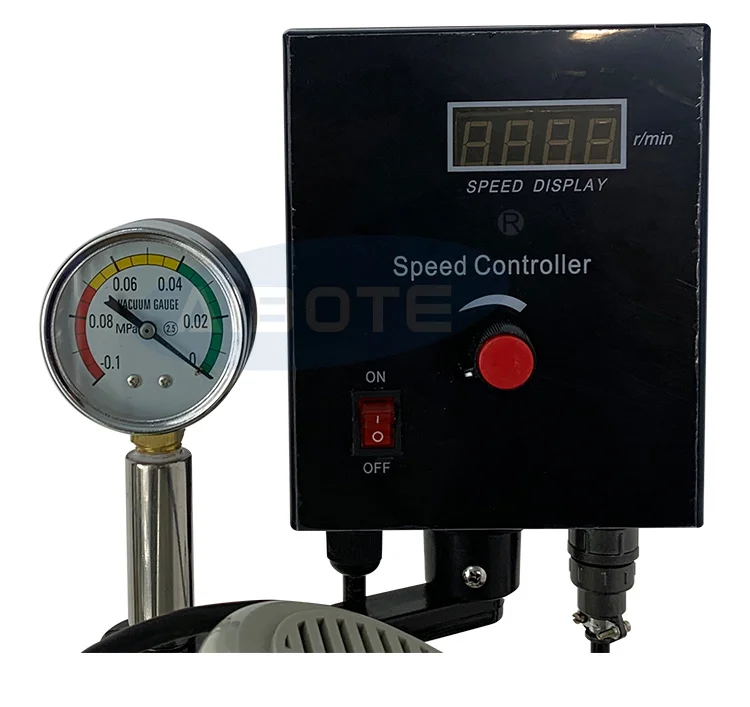

c.Display of Rotary Speed, Heating Bath Temp. & Vacuum Rate;
d.  Bath Lifting;
e . Standard Connector Condenser Tube





Technical Specification





Model	ABT201D
Type of cooling	vertical
Collect flask	500ML
Rotary Flask	250ML-2L (Noted :1L flask as standard outfits)
Motor Power	40W

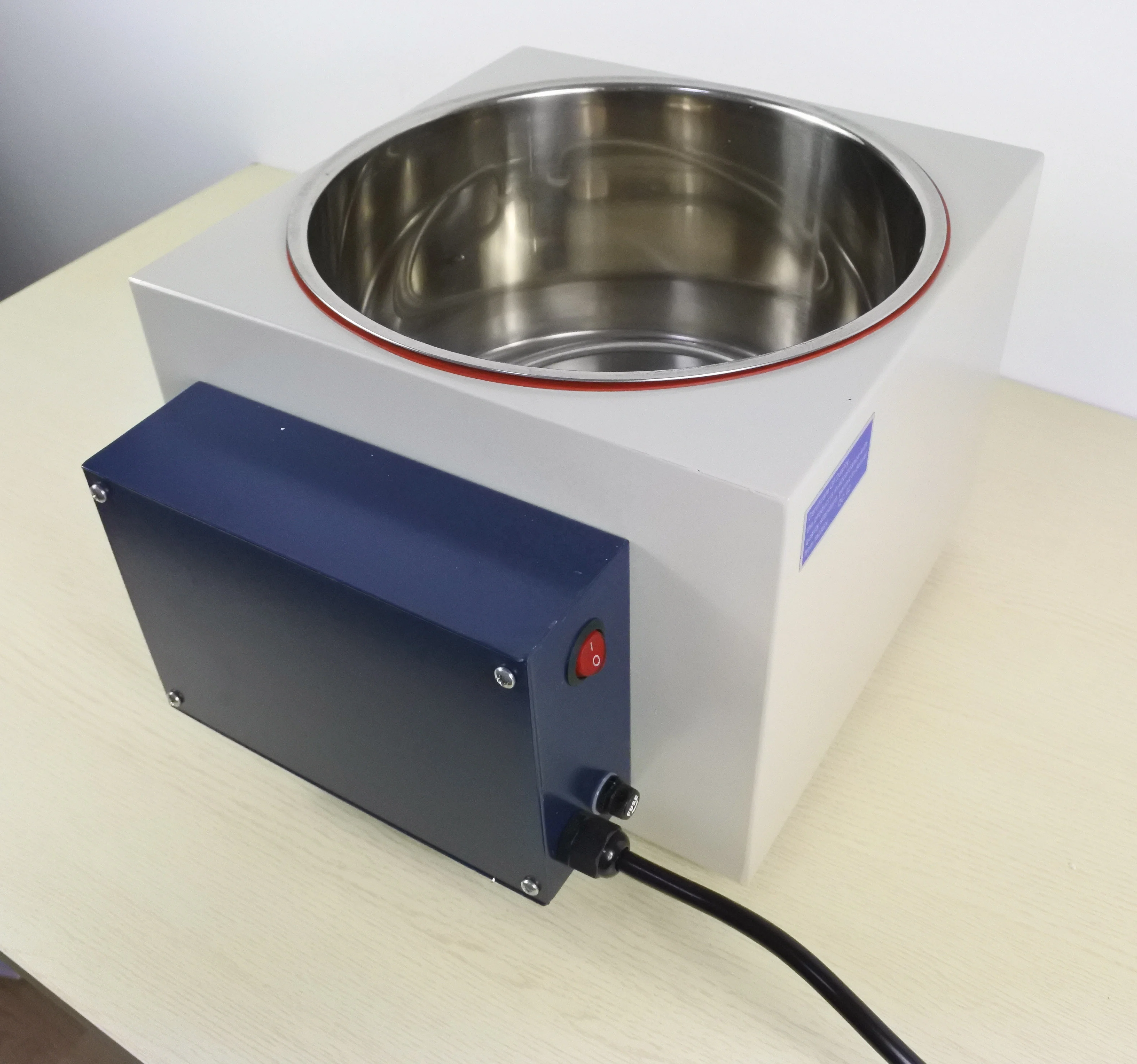

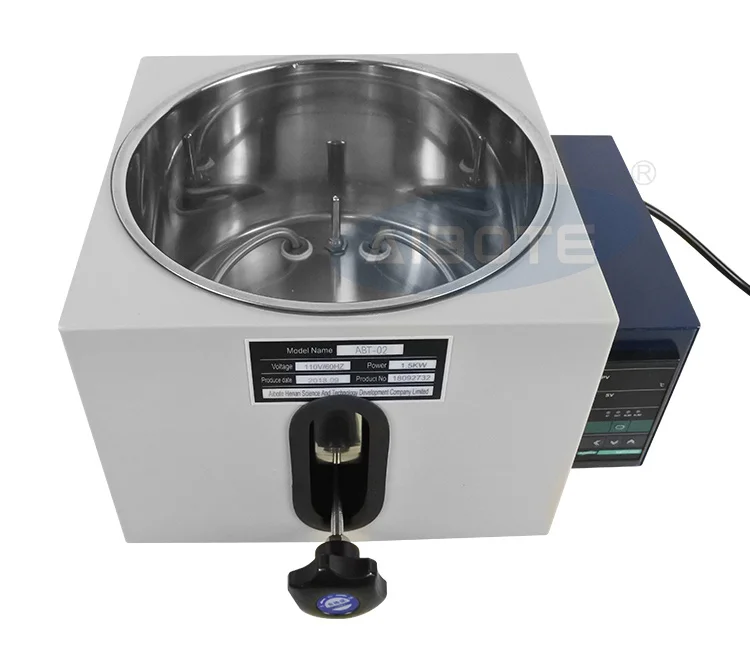

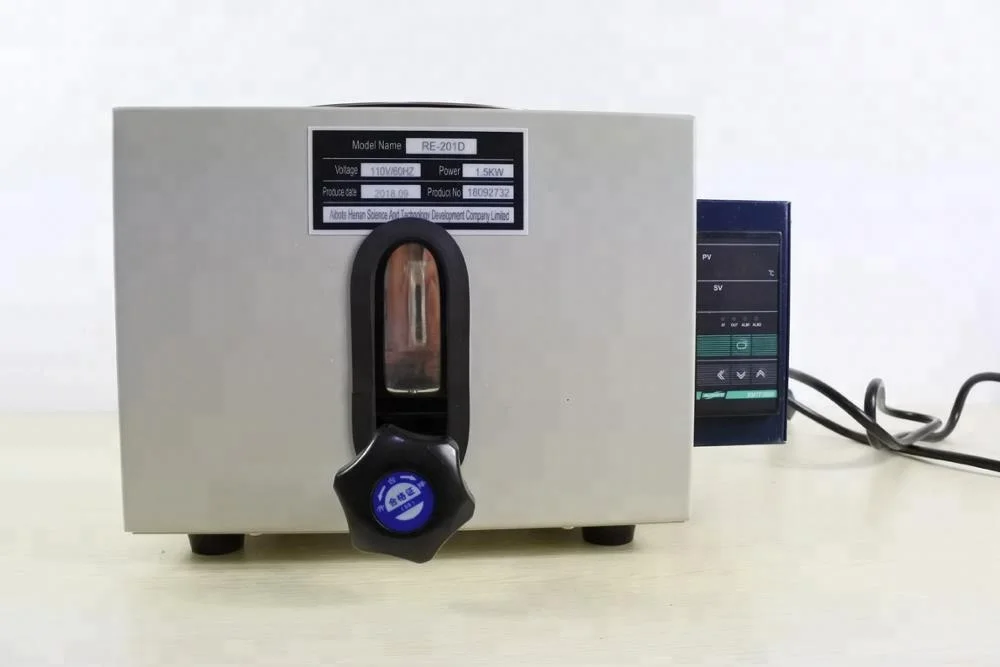

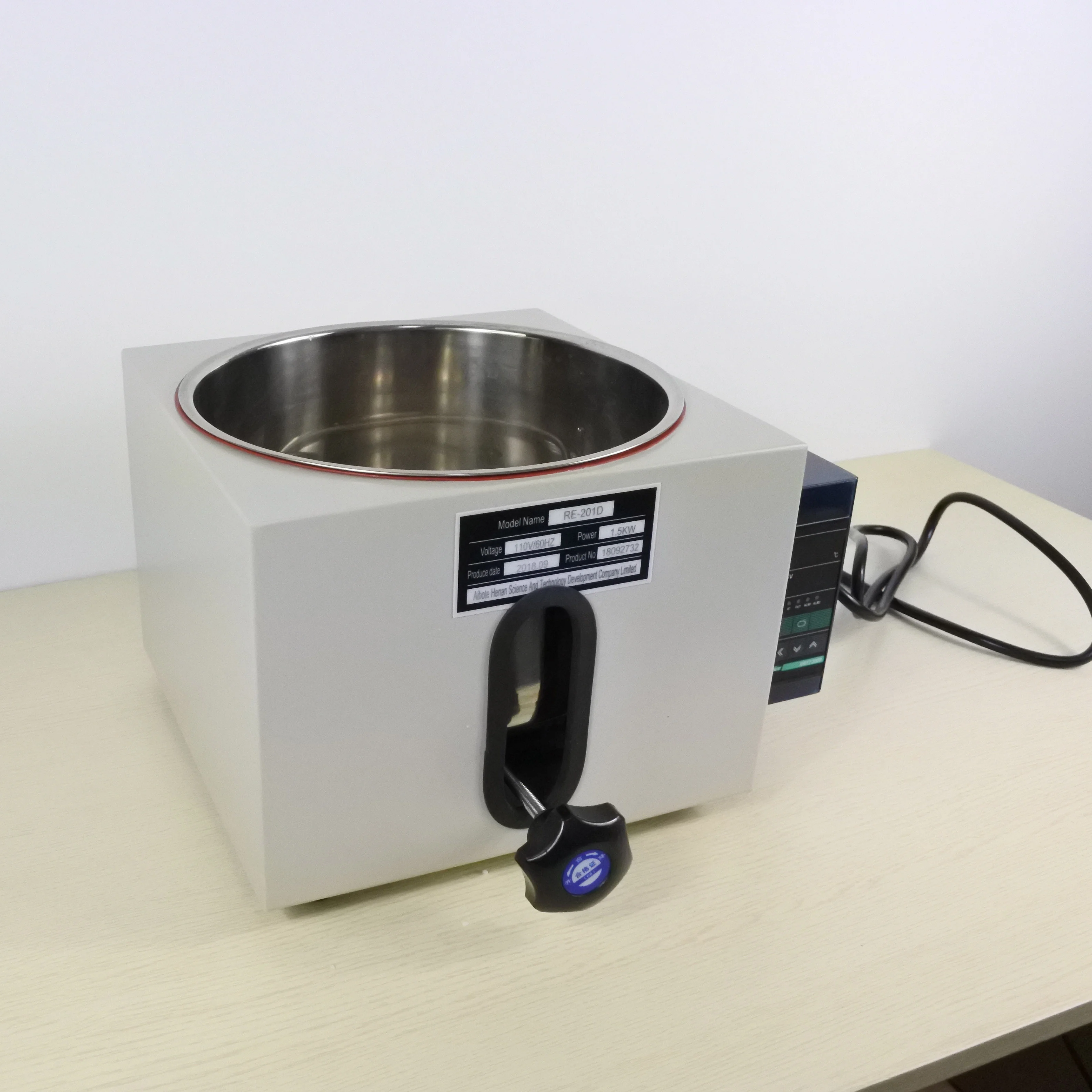

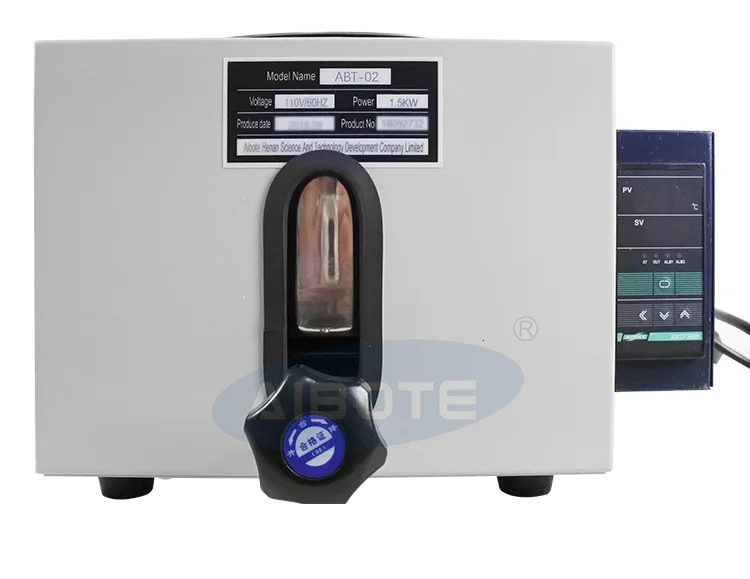

Bath power	1000w
Bath Voltage	100 V- 24V.

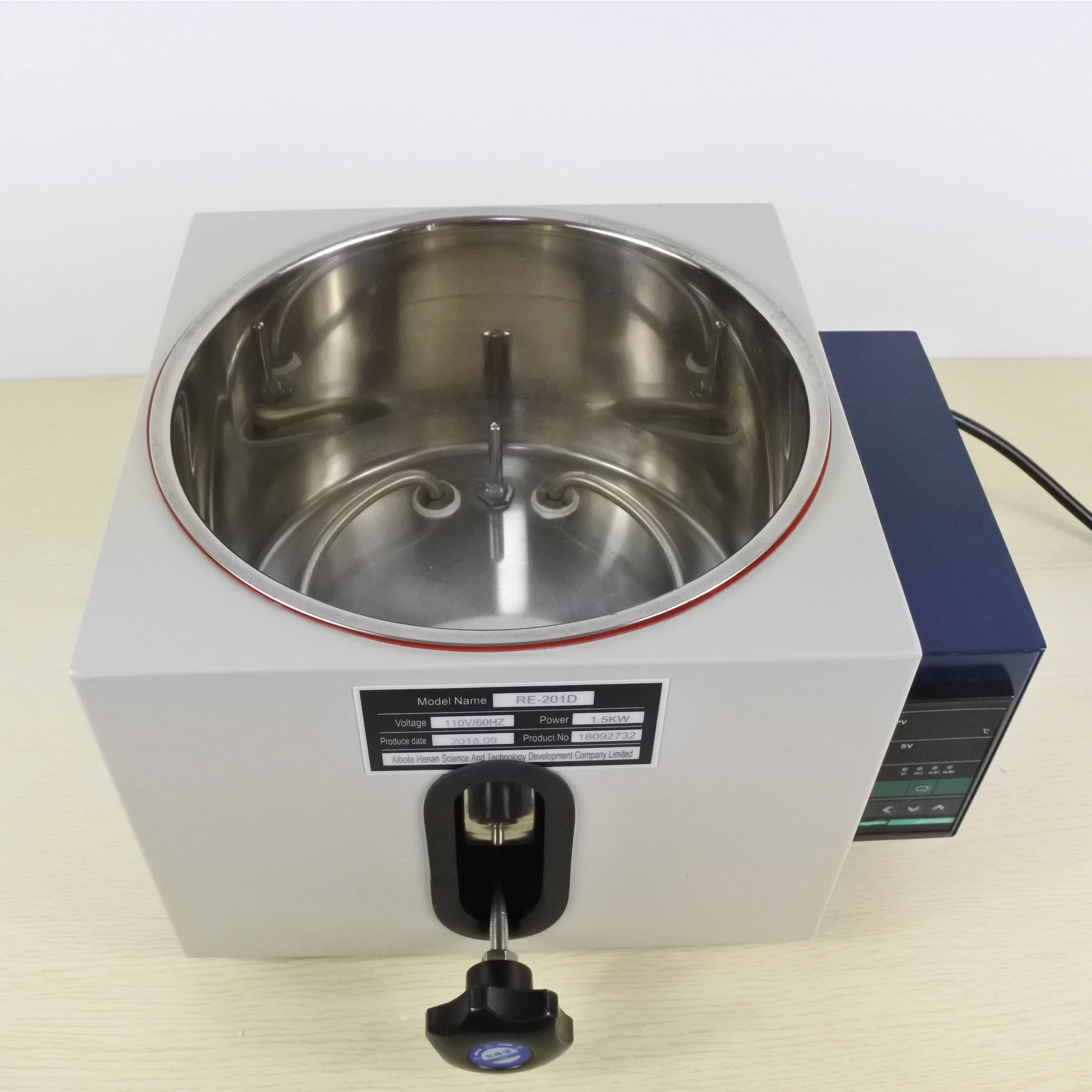

Bath Material	Stainless steel combined bath. Material e Completely Closed Heated .
Cooling surface	1500 cm2
Evaporation rate	2L/ H
Power supply	100- 240V.
Motor principle	DC
Speed range	20 - 200 rpm
Reversible direction of rotation	no
Speed tolerance set rotation speed < 100rpm	1 ±rpm
Speed tolerance set rotation speed > 100rpm	1 ±%
Lift	Auto-rise /drop
Stroke	150 mm
Heating temperature range	room temp.to99

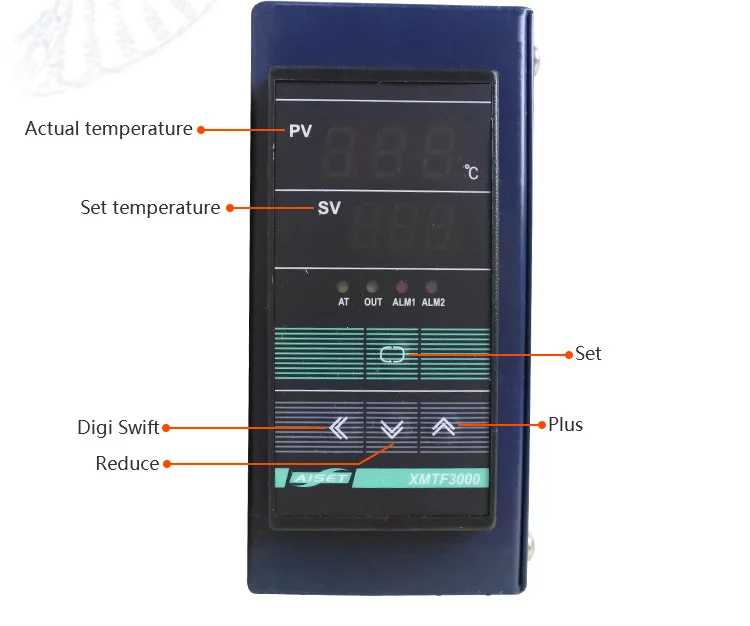

Heat Control	PID
Heat control accuracy	1 ±K
Bath volume max.	2 l
Vacuum controller integrated	no
Timer	no
Dimensions (W x H x D)	730×520×650 mm
Weight	27 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
RS 232 interface	no
USB interface	no
Analog output	no
vacuum	0.098 Mpa











1 Are you a factory or trading company ?



A : We are a factory



2 .Where is your company location ? How can i  visit there ?



A :Our factory is in zhengzhou city ,henan province , China , near XINZHENG INTERNATIONAL AIRPORT , you can fly to ZHENGZHOU AIRPORT to us , welcome to visit us !



3.What the material  of your products ?



A: superfine ceramic for top plate for all of our stirrers ,metal shells , can be customized as your requests



4. How can i  get some  sample ?





A. We are honored to offer sample for your evaluation
