galvanized corrugated roofing sheet making machine steel roofing tile cold forming machine
- Category: >>>
- Supplier: Cangzhou Zhiye Cold Forming Machinery Co. Ltd.
Share on (60801358382):
Product Overview
Description
Product Description

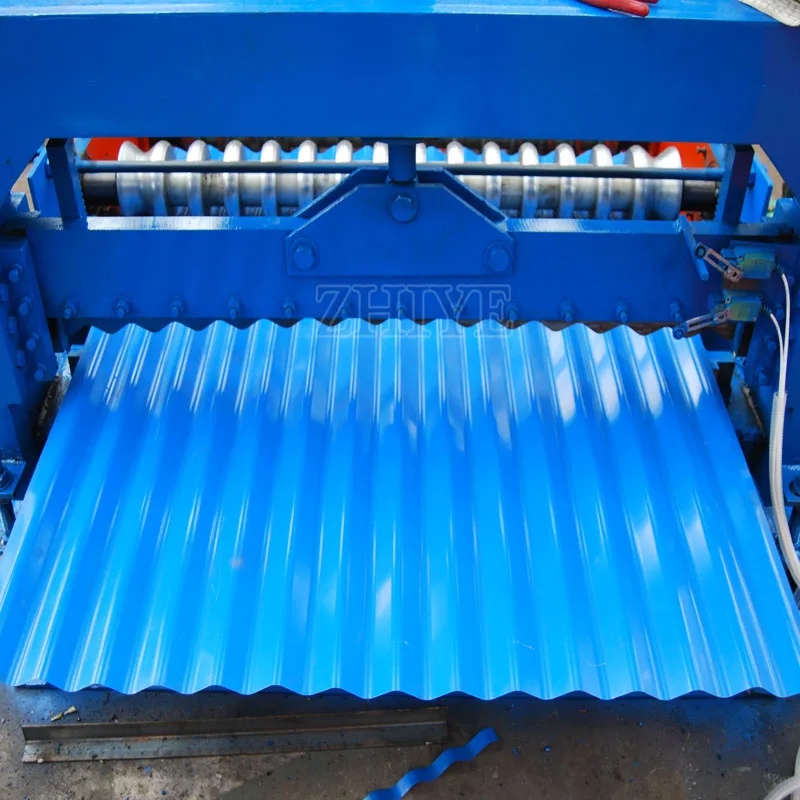

galvanized corrugated roofing sheet making machine steel roofing tile cold forming machine
*The products of galvanized corrugated roofing sheet making machine steel roofing tile cold forming machine are used as the roof sheet outside of building to increase the beauty and durability of the roof tile panel . We can design the machine according to your requirement .
We put the steel sheet into the feeding part . The roll forming part will work under the motor power. The roller will bite the steel sheet , the sheet will feed into the machine along with the rotation of the roller. The panel enter into pressing part from forming part. The hydraulic cylinder will drive the mold of the pressing system up and down , it can press the color steel into shape of glazed tile. The cutting part can cut the steel tile into specific length.
No. | item | galvanized corrugated roofing sheet making machine steel roofing tile cold forming machine |
1. | Processing Material | PPGI,GI |
2. | Processing Thickness(mm) | 0.3-0.6mm |
3. | Coil width | 1000mm |
4. | Material of Rollers | 45# steel, with hard chrome coated |
5. | Diameter of Shaft | 70mm |
6. | Production Speed | 0-14m/min |
7. | Roller Driven | Decelerating Motor+Chain Transmission |
8. | Cutting Model | Hydraulic Profile Cutting |
9. | Length Measurement | Encoder |
10. | Control Style | PLC |
11. | Operation Model | Button + Touch Screen |
12. | Voltage | 380V 50HZ or at buyer's request |
13. | Total Power | 8kw |
Detailed Images
galvanized corrugated roofing sheet making machine steel roofing tile cold forming machine

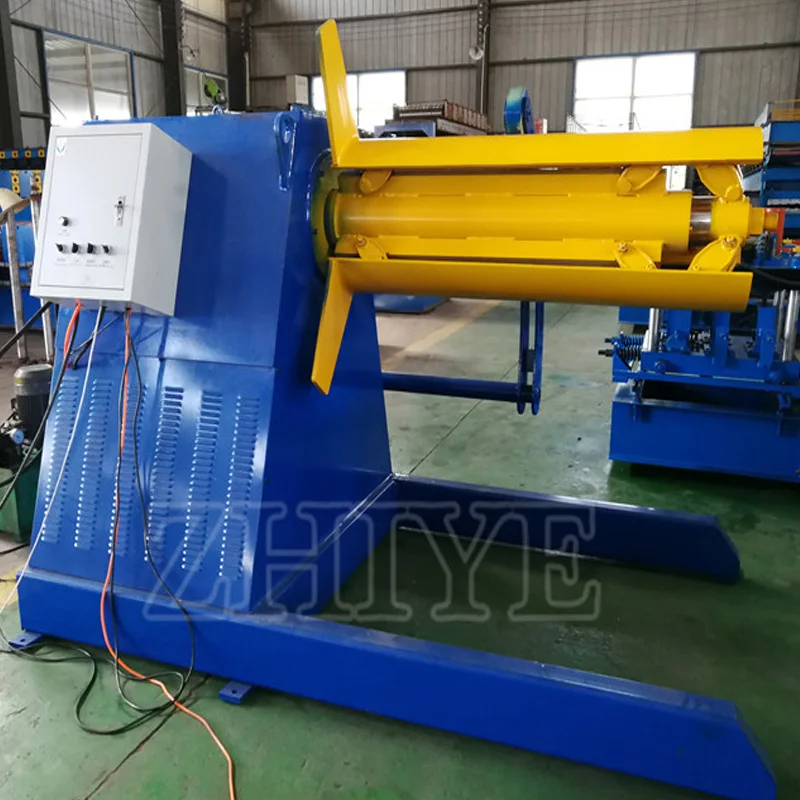

1)Manual Uncoiler:
Usage: It is used to support the steel coil and uncoil it The steel coil is expansion by hand.
Loading capacity:5T
Inner diameter: 450-508mm
Wall Tiles Making Machine
galvanized corrugated roofing sheet making machine steel roofing tile cold forming machine
2)Feeding Table:
Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
galvanized corrugated roofing sheet making machine steel roofing tile cold forming machine

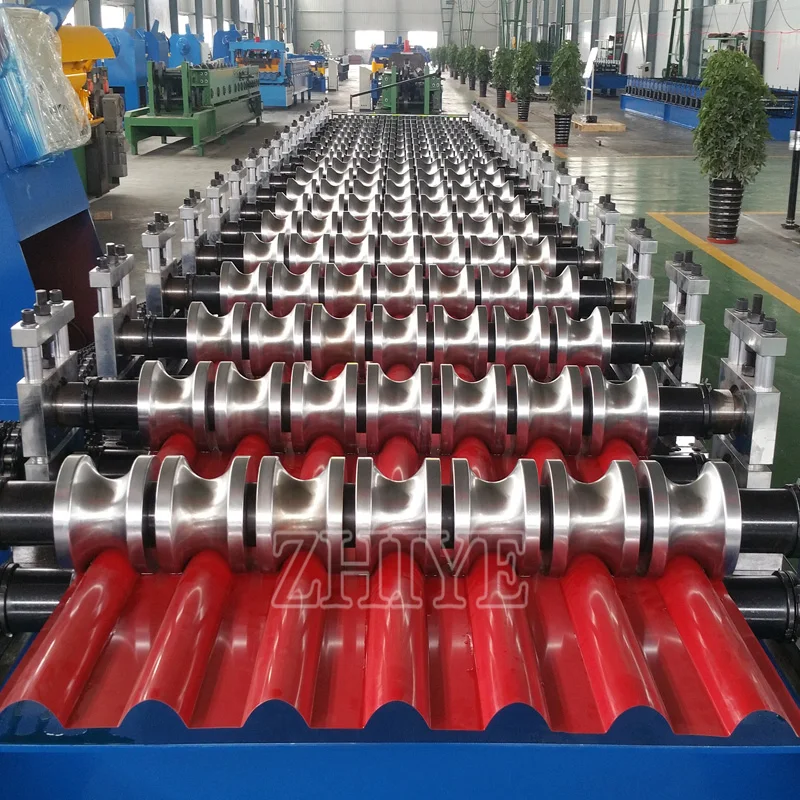

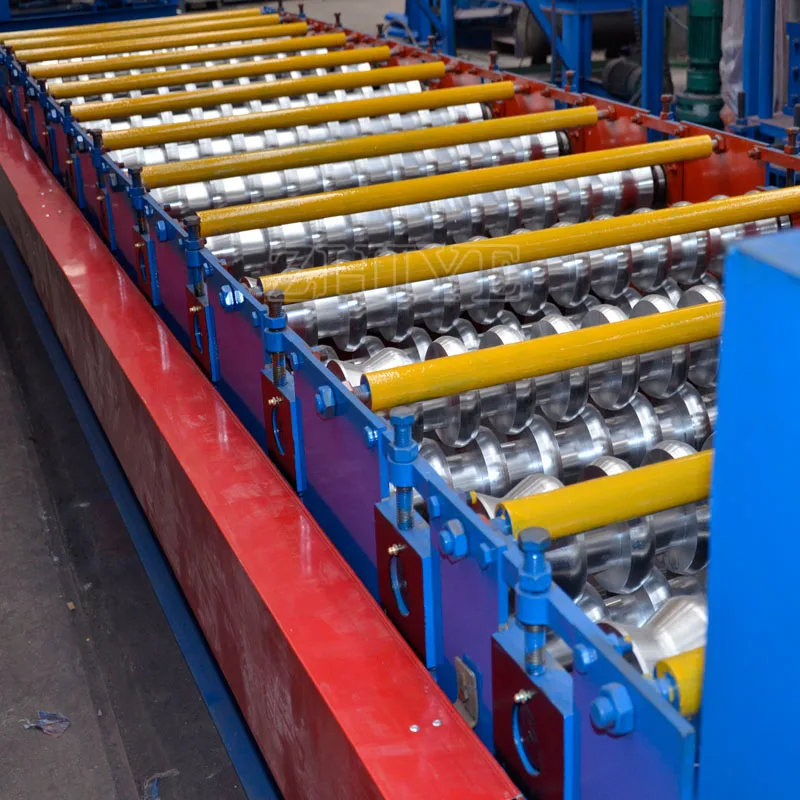

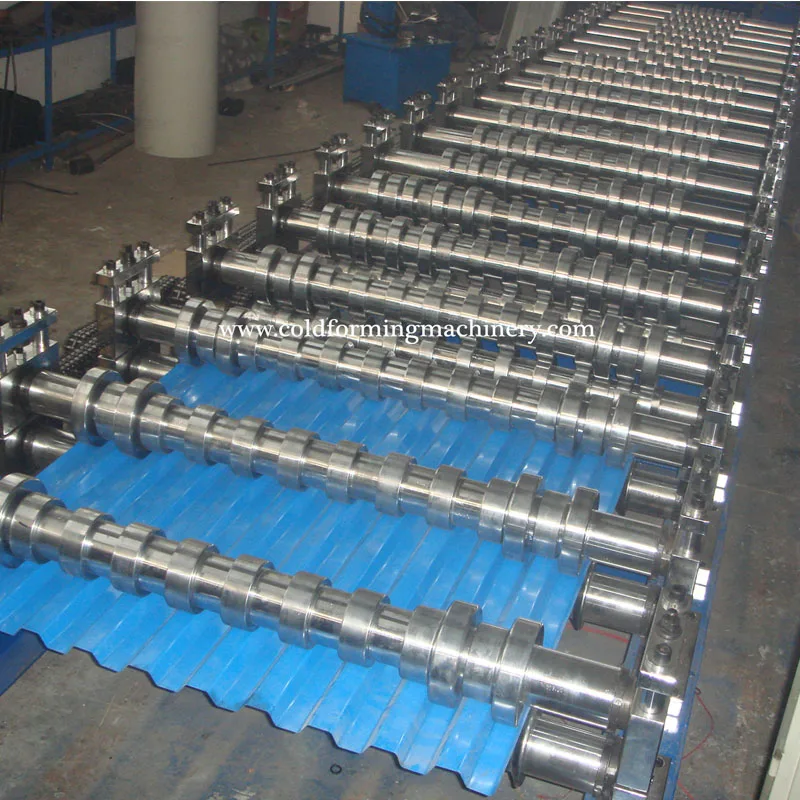

3)Main Roll Forming Machine:
It is designed according to the customers' profile drawing. It adopts motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and galvanization treatment. The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped
galvanized corrugated roofing sheet making machine steel roofing tile cold forming machine
4)Hydraulic System:
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.Power:4kw Hydraulic oil: 40#
Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, and two hydraulic pipes. And two sets of electromagnetism valves.With reducer combination, long life, high precision
5)Shearing Mechanism:
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12
Components: It contains one set of cutting tools, one hydraulic tank and one cutter machine.
Roofing Tile Making Equipments
6)Computer Control Cabinet:
It adopts Delta/Siemens PLC to control. The target piece's length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.Touching screen
Packing & Delivery
1,We have professional technicians for loading Guaranteed the goods load into container without any damage.
2,Nude, with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.
3,30 working days after received the deposite
Used Metal Roof Panel Roll Forming Machine
Our Service
Aftersales service:
This producing line is maintained free of charge for 24 months. When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to debug. Buyers should take all the fees for technicians travelling abroad, including 100usd/day labor cost ,round-trip flight ticket and accommodation there.
