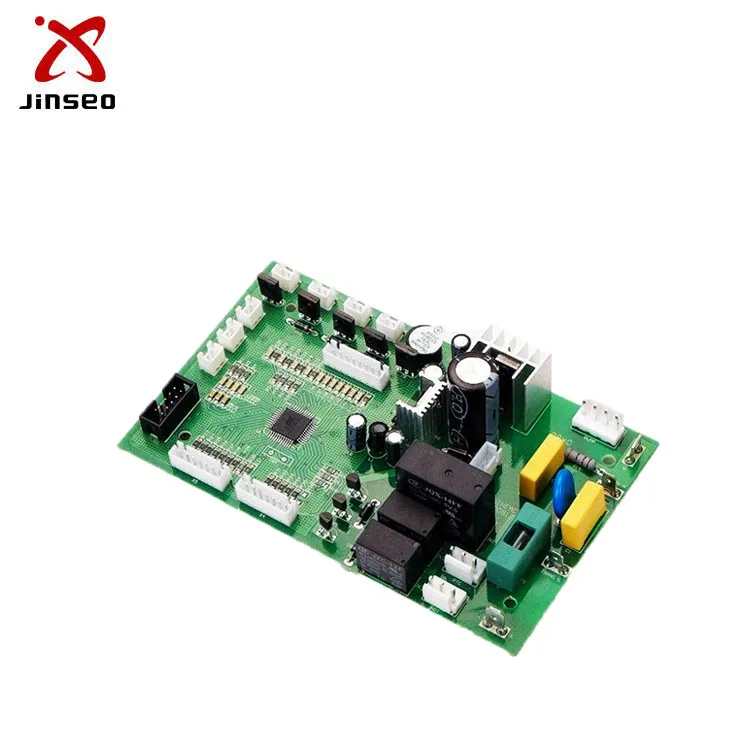

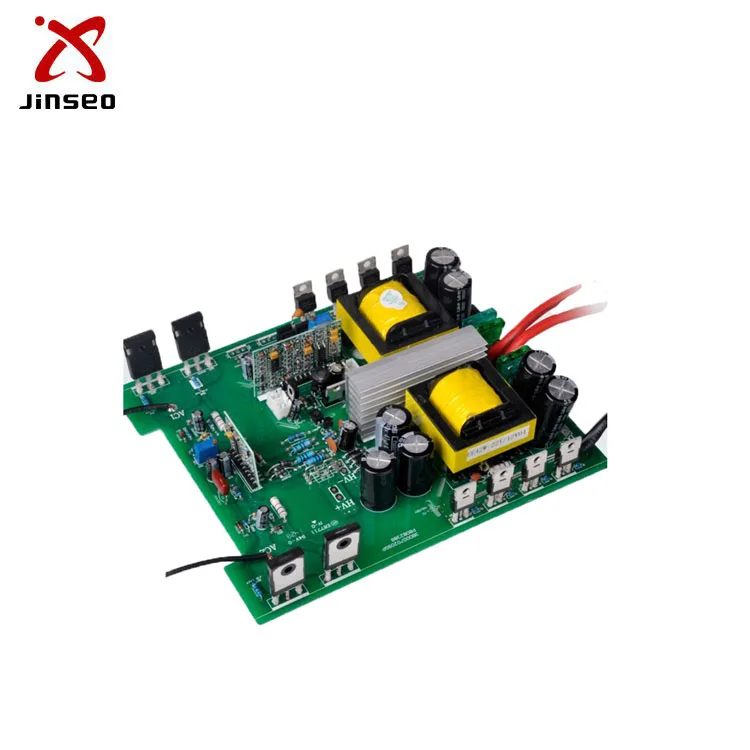

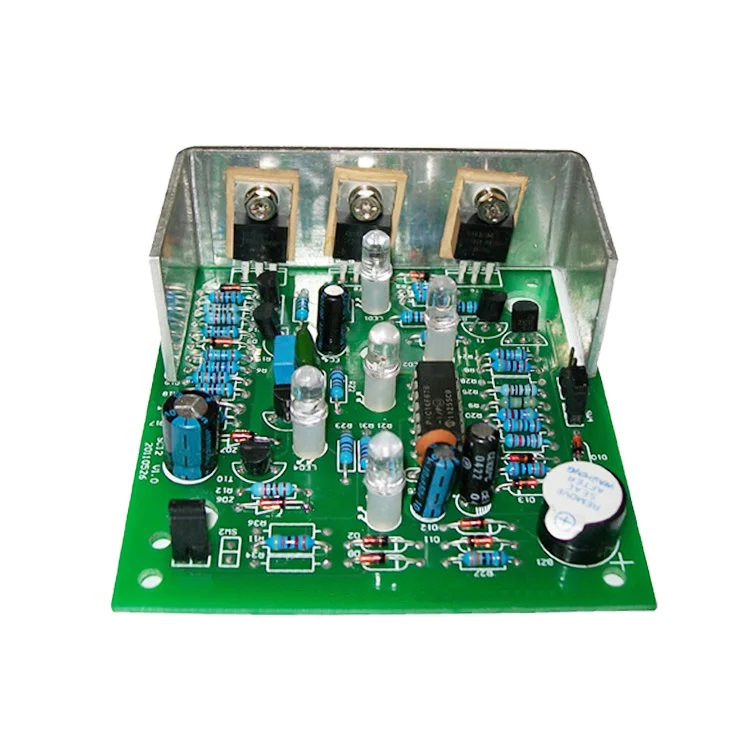

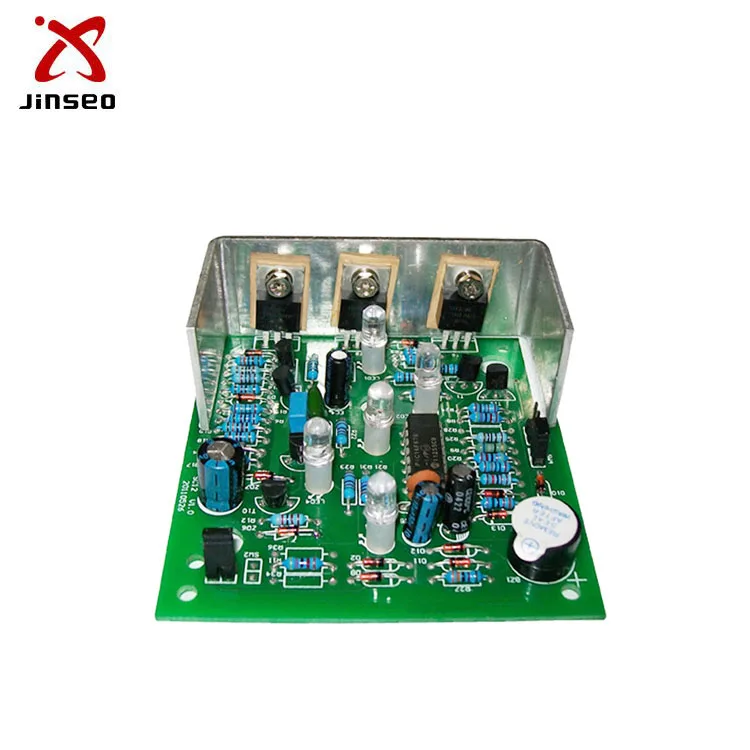

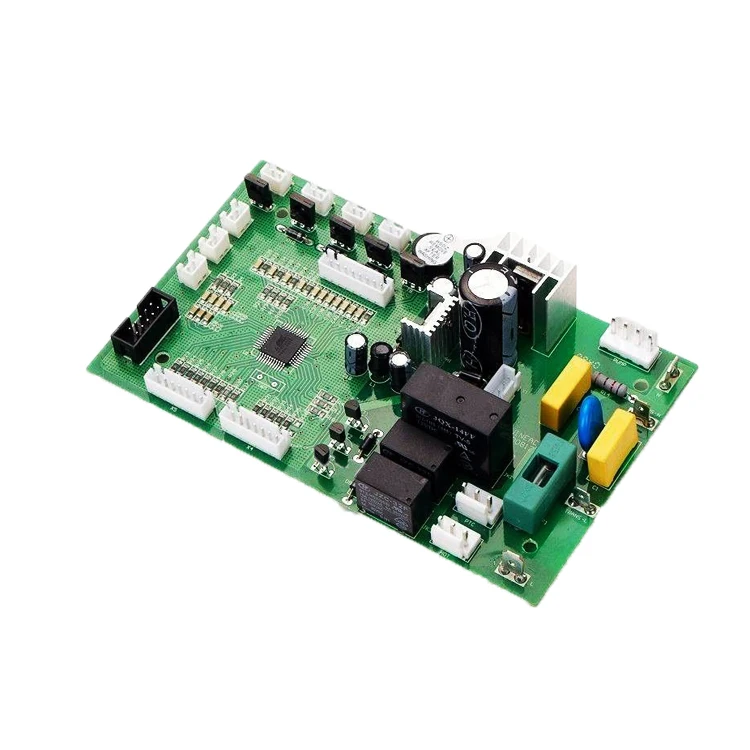

Quick Delivery Solar Power Inverter PCB Assembly Manufacturer

Specialty PCB Assembly

We specialize in Quick-turn and Prototype PCB Assembly, as well

                as design and production supporting services.

Fast, Precise Prototype Assembly

PCB Assembly Specialists

Fast Turn Times

Turnkey

From one-off prototypes, to small

Fast prototype PCB assembly.

production runs, to full orders

Fabrication, parts sourcing and

Consignment, half and full Turnkey

assembly – One stop solution

options available

Fast/Instant Quoting

Prototype to Short-run

Delivery Guarantee

Fast quoting speeds up your

No MOQ, No NRE, 1 prototype for

Time is money, 99% on time delivery

project time

test, or up to 10000 for mid or large

production runs

PCB Fabrication

Advanced Assembly

PCB Design & Production

Support

Fast Turnarounds

Quick Turn

PCB Layout Services

Manufacturer Direct Pricing

Low SMT Price

Free DFA Analysis

Guaranteed Quality

Rigid, Flex, Rigid Flex

Board Material Suggestions

Full Capabilities

SMT, Through-Hole, Mixed Technology

Rule Driven Design Advices

Custom Circuit Boards

NO SET-UP, NO Stencil, NO NRE’s

Full DFM Review for Manufacturing

Charge

Advantage

Jinseo Electronic specializes in quick-turn PCB assembly. From one-off prototypes, to production runs. We'll get

your order done on time.

Our mission is to be your PCB assembly partner, making prototype and short-run assembly both easy and accu-rate.

We can source the parts for you, or you can send them to us.

Turn times as short as 24 hours

No Minimum Quantity

Class II Inspection standard and Class III Inspection available

99% On-Time Guarantee

Design for Assembly Checking

Passive down to 0201 size

Rigid and Flex Circuits

SMT & Thru-hole Assembly

NO Set-Up Charges, NO NREs, & NO Stencil Charges

BEST PRICES

GUARANTEE

ON TIME DELIVERY

IPC & RoHS Standard

Fast Turn Times

Prototyping is about speed, and we are concerning it. We can do prototype assemblies in as little as 24 hours and

short-run production orders in as few as 10 days.

Parts Sourcing

Our team of Sourcing and Procurement specialists are able to speed through the process of finding the right comp-onents, ordering them and tracking their arrival. Then our Inventory specialists scour the arriving parts to ensure the correct quantity and parts are received—setting the job to move seamlessly through our Production and Quality de-partments before shipping out.

We can source some or all of your parts through our network of trusted distributors.

Parts Sourcing

Our team of Sourcing and Procurement specialists are able to speed through the process of finding the right comp-onents, ordering them and tracking their arrival. Then our Inventory specialists scour the arriving parts to ensure the correct quantity and parts are received—setting the job to move seamlessly through our Production and Quality de-partments before shipping out.

We can source some or all of your parts through our network of trusted distributors.

Design for Assembly Checking

Our Engineering Dept. can check for errors, such as wrong part rotation or incorrect pad size, that can stall or even completely derail an assembly order. We catch these mistakes upfront and work with customers to correct them be-fore a single component is placed on a board.

Layout Engineering

Jinseo Electronic Designers have thousands of layout and assembly experiences, they know how to engineer PCB layout that succeed.

Assembly Capability Details

Files Requirements for Assembly

Experienced manufacturing requires flexible requirements. Our experts can assemble your PCB using a variety of data, but please observe the following guidelines to avoid a delay.

Please combine the following files into a single ZIP file and email to Marketing@jinseo.com.cn. Make sure you put your order number in the subject field. Eg.: "Files for order AE######".

1. Bill Of Materials (BOM)

Please be sure to set the 'Type' field to to the correct value and use DNS (do not stuff) for any components we will not be placing. We can accept your BOM in a number of formats but please make sure your BOM should include:

• Quantity of each part


• Reference designator


• Part number (Manufacturer Part No. is preferred, But Digi-Key, Mouser, Newark part numbers are okay)


• Part description


• Package description (QFN32, SOIC, 0805, etc. package is very helpful but not required).


• Type (SMT, Thru-Hole, Fine-pitch, BGA, et.).

2. Gerbers

Please include all gerber files. At a minimum we need top and bottom silkscreen, copper and the solder paste layers.

3. Centroid

It should include component locations, rotations and reference designators.

Quality

Jinseo Electronic has done thousands of assemblies, and we know what works. We’ve compiled our best practices and tips for PCB design, prototyping and parts sourcing.
