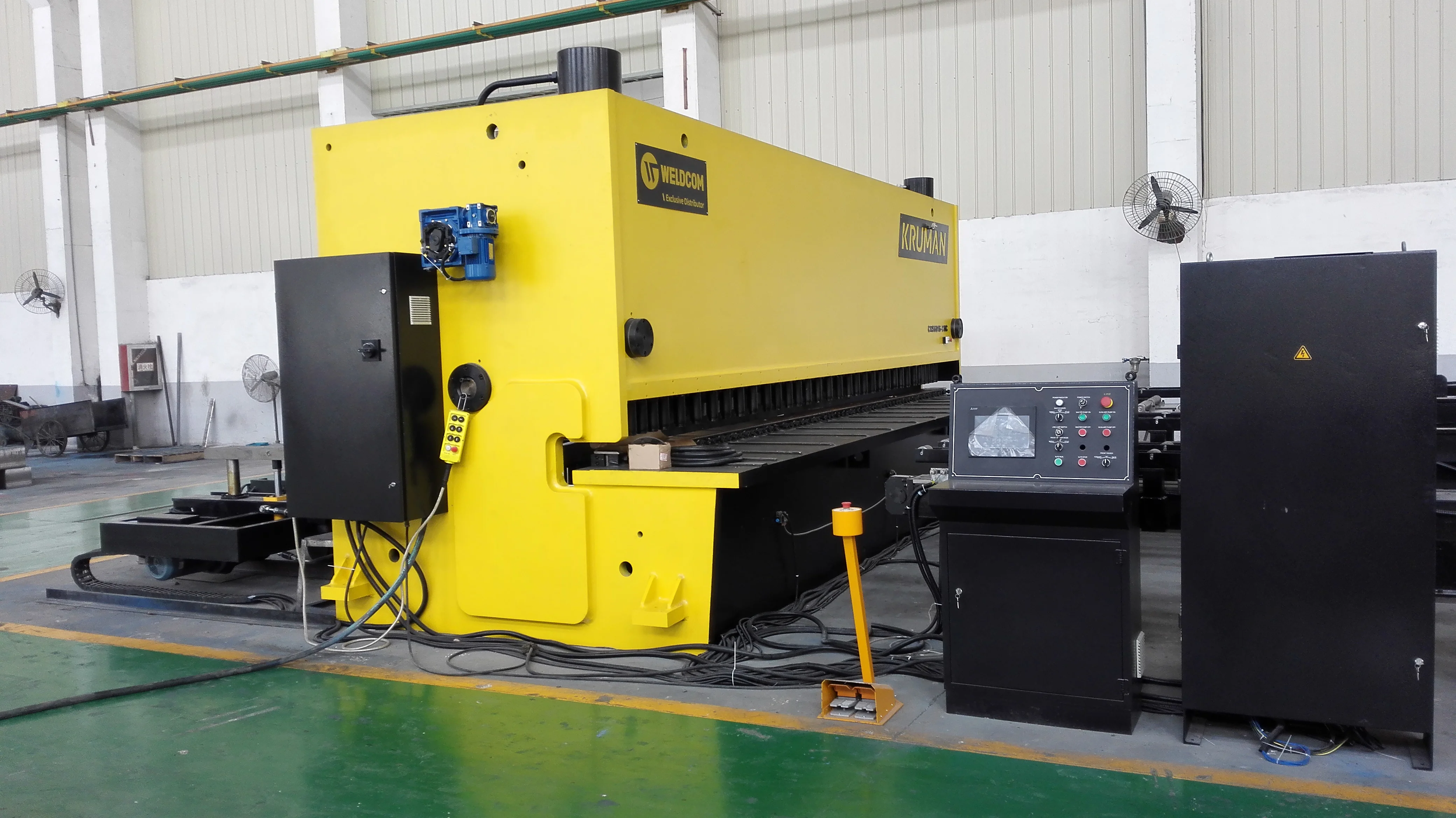

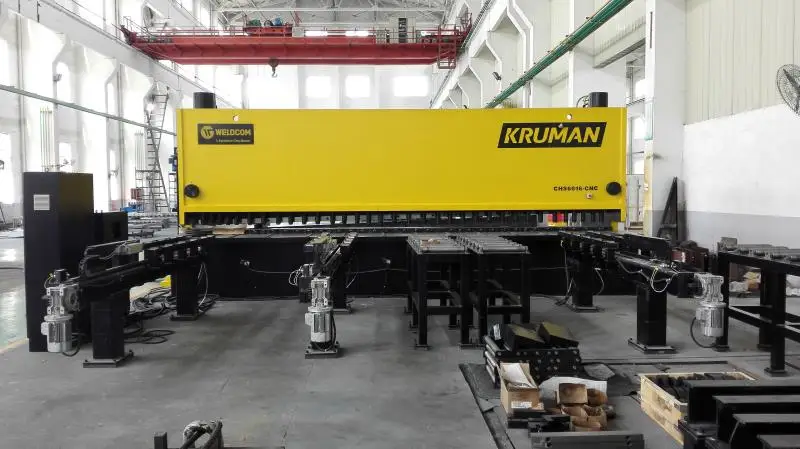

Name:12 x 6000mm cnc metal sheet guillotine hydraulic shearing machine

The CNC Guillotine shear machine makes heavy-duty shear affordable. Frame and cutting beam offer maximum rigidity and resistance to deflection and torsional force for accurate shearing of mild steel up to16mm. This guillotine shear features four cutting edges that can be turned three times before grinding for increased production life. Cost-efficiently manufactured. Our guillotine shear machine fit your needs and your budget.


Standard Accessories
1.\tDAC360 , Netherlands CNC controller
2.\tREXROTH, Germany hydraulic system
3.\tSUNNY, USA oil pump with slide-in pipes joints

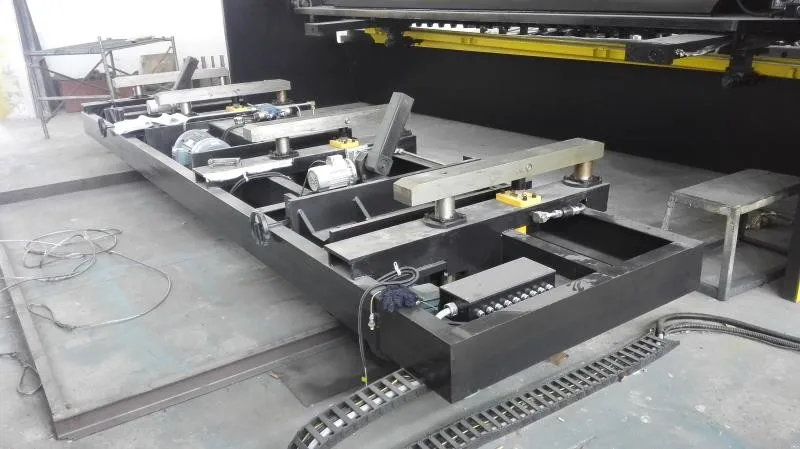

4.\tBackgauge with ball screw and linear guideway ,drive by AC Servo motor
5.\tAutomatic shearing angle and blade gap
6.\tHydraulic hold downs with sequential operation
7.\tMoveable foot switch
8.\tFinger guard
9.\tInterchangeable blades with four cutting edges
10.\tOne set of standard blade (upper and lower) materials is 6CrW2Si

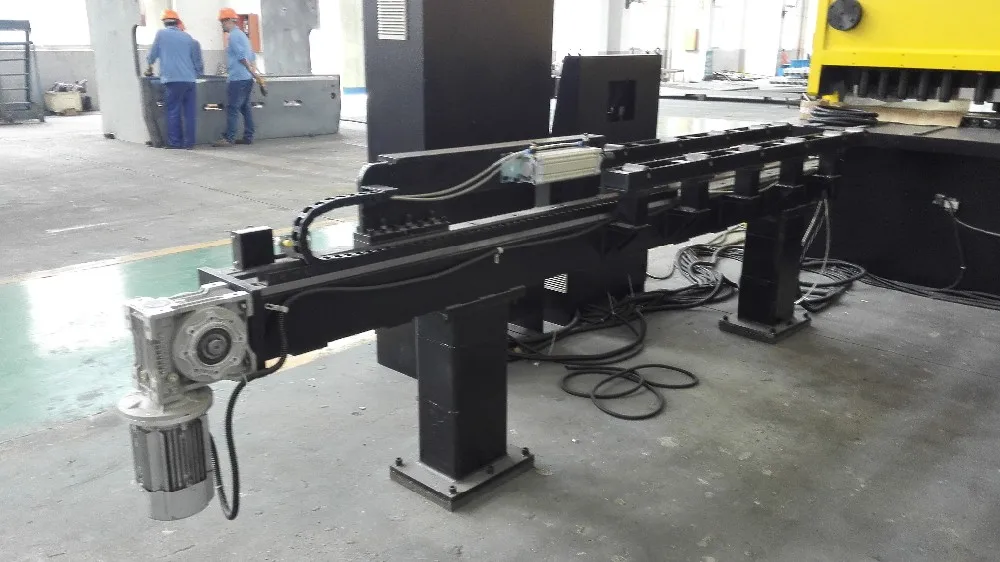

11.\tFront support arms with length 1000mm (at least 3pcs)
12.\tBall worktable ,reduce the contact between sheet plate and machine work table
13.\tOften-used internal hexagonal key spanner for adjusting blades
14.\tComprehensive instruction & maintenance manual


Optional Accessories
1.\tPneumatic sheet support systems for thin materials
2.\tLong and powered squaring arm with ruler
3.\tOil cooler
4.\tOil heating system
5.\tLaser cutting line

6. Blade for stainless steel cutting
7.\tAnti- twist system
8.\tSheet feeding system
9.\tStacker systems
10.\tExtended backgauge stroke and throat depth





Products Parameter


Shearing Capability(mm)
Number of Stroke (min-1)
Back Gauge (mm)
Shearing Angle(°)
Throat Depth (mm)
Motor Power (KW)
Net Weight (kg)
Dimension (LxWxH)(mm)
4x2000
16-25
20-600
0.5-2.0
100
4
3200
2750x1500x1600
4x2500
16-25
20-600
0.5-2.0
100
5.5
4000
3300x1500x1700
4x3200
16-25
20-600
0.5-2.0
100
5.5
6000
4000x1600x1900
4x4000
16-25
20-600
0.5-2.0
100
7.5
7600
4800x1650x2000
6x2500
10-25
20-600
0.5-2.0
100
7.5
5800
3200x1650x2000
6x3200
10-25
20-600
0.5-2.0
100
7.5
7000
3900x1650x2000
6x4000
10-25
20-600
0.5-2.0
100
7.5
9000
4750x1800x2200
6x5000
8-20
20-900
0.5-1.5
100
7.5
13000
5730x2250x2210
6x6000
8-20
20-900
0.5-1.5
100
11
16000
6730x2250x2300
6x9000
4-6
20-900
0.5-2.0
100
11
38000
9800x2700x2660
8x2500
10-25
20-600
0.5-2.0
100
11
6000
3200x1700x2280
8x3200
10-25
20-600
0.5-2.0
100
11
8300
3900x1750x2280
8x4000
10-25
20-600
0.5-2.0
100
11
9500
4750x1800x2200
10x2500
10-25
20-600
0.5-2.0
100
15
8500
3200x1800x2200
10x3200
10-25
20-600
0.5-2.0
100
15
9500
3900x1850x2200
10x4000
10-25
20-600
0.5-2.0
100
15
11000
4800x1900x2280
12x2500
6-20
20-900
0.5-2.5
250
18.5
10500
3710x2200x2200
12x3200
6-20
20-900
0.5-2.5
250
18.5
12000
3900x2200x2200
12x4000
6-20
20-900
0.5-2.5
250
18.5
15800
4850x2280x2450
16x2500
5-15
20-900
0.5-2.5
250
22
12500
3400x2280x2280
16x3200
5-15
20-900
0.5-2.5
250
22
14500
4150x2280x2280
16x4000
5-15
20-900
0.5-2.5
250
22
17800
4850x2280x2450
20x2500
5-15
20-900
0.5-3.0
250
30
13000
3200x2855x2200
20x3200
5-15
20-900
0.5-3.0
250
30
16100
3900x2855x2300
20x4000
4-15
20-900
0.5-3.0
250
37
23000
4760x2855x2420
25x2500
4-15
20-900
0.5-3.5
250
37
22700
3200x2900x2500
25x3200
4-15
20-900
0.5-3.5
250
37
27200
3900x2900x2700
25x4000
4-15
20-900
0.5-3.5
250
45
31500
4700x2900x2900
30x2500
4-10
20-1000
1.0-3.5
250
30
22700
3400x2900x2700
30x3200
3-10
20-1000
1.0-3.5
250
37
27200
4200x2900x3200

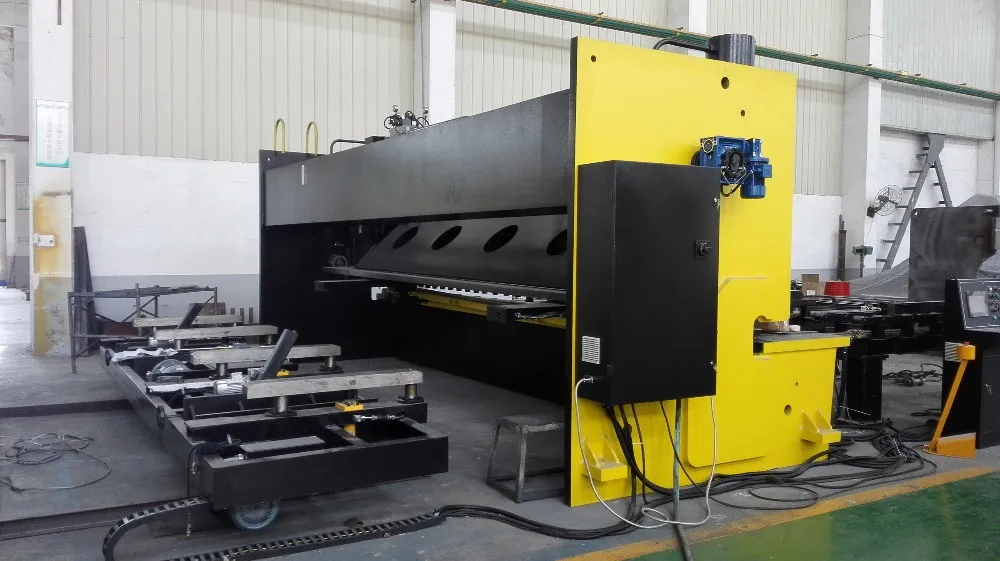

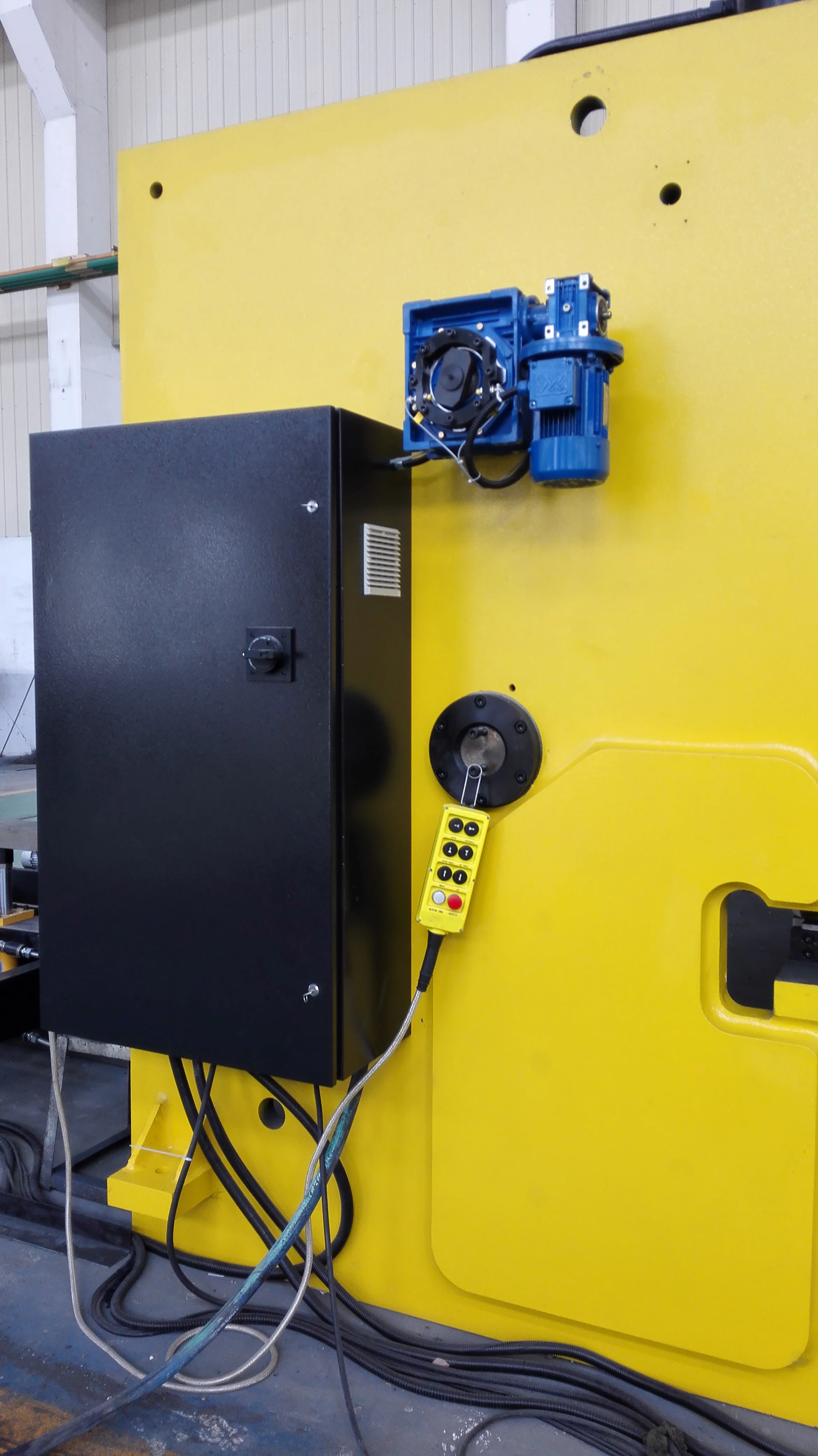

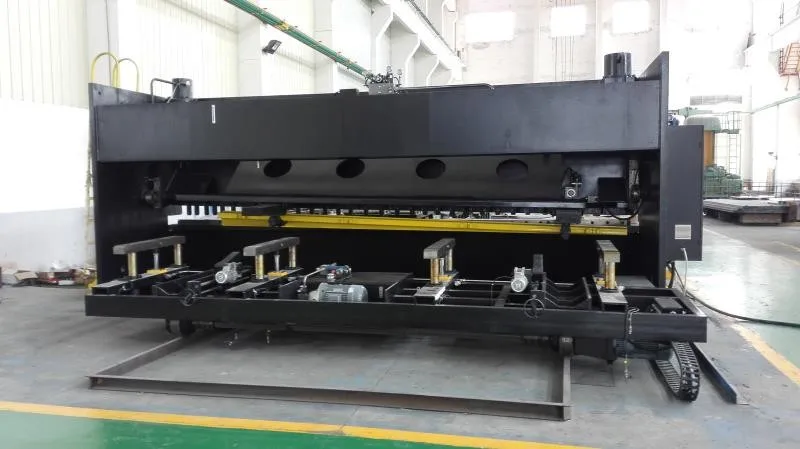

Machine details








Our Customer




Packing & Delivery







About Us




Contact Us




FAQ


Q: Are you trading company or manufacturer ?

A: We are factory.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
