Film Blow Moulding Machine SS 3L High Quality Bio Plastic PE Machinery
Film Blow Moulding Machine SS-3L High Quality Bio Plastic PE Machinery
Film Blow Moulding Machine SS-3L High Quality Bio Plastic PE Machinery
Film Blow Moulding Machine SS-3L High Quality Bio Plastic PE Machinery
Film Blow Moulding Machine SS-3L High Quality Bio Plastic PE Machinery
Film Blow Moulding Machine SS-3L High Quality Bio Plastic PE Machinery
Film Blow Moulding Machine SS-3L High Quality Bio Plastic PE Machinery

Film Blow Moulding Machine SS 3L High Quality Bio Plastic PE Machinery

Share on (60804954757):


Price:$30,000.00

Quantity:


Product Overview

Description



Product Description


Product Application

It is fit for high density and low density polyethylene industry film(HDPE/LDPE), farm-oriented mulch film.



Main Technical Parameters
SS-3L Series Three Layers/Screws Film Blowing Machine
Model
600
800
1000
1200
1500
2000
Dia. of Screw
Φ40/45/40mm
Φ45/50/45mm
Φ50/55/50mm
Φ55/60/55mm
Φ60/65/60mm
Φ65/70/65mm
Ratio of Screw
30:1
30:1
30:1
30:1
30:1
30:1
Speed of Screw
10-90rpm
10-90rpm
10-90rpm
10-90rpm
10-90rpm
10-90rpm
Max. Output
50-80kg/h
80-140kg/h
80-180kg/h
110-200kg/h
150-250kg/h
160-240kg/h
Power of Main Motor
11kw/15kw/15kw
15kw/18.5kw/15kw
18.5kw/22kw/18.5kw
18.5kw/22kw/18.5kw
22kw/30kw/22kw
30kw/37kw/30kw
Die Model
Φ120mm
Φ180mm
Φ220mm
Φ250mm
Φ400mm
Φ500mm
Thickness of Film
0.008-0.12mm
0.008-0.12mm
0.008-0.12mm
0.008-0.12mm
0.008-0.12mm
0.008-0.12mm
Max Folding Width of Film
100-600mm
200-800mm
300-1000mm
500-1200mm
500-1500mm
1000-2000mm
Machine Weight
3.0t
4.0t
5.0t
7.0t
9.0t
15t
Machine Dimension
6200*2400*4500mm
6400*2600* 4800mm
6600*2800*5200mm
6800*3000* 5200mm
7500*3600* 6500mm
9000*4800* 8500mm

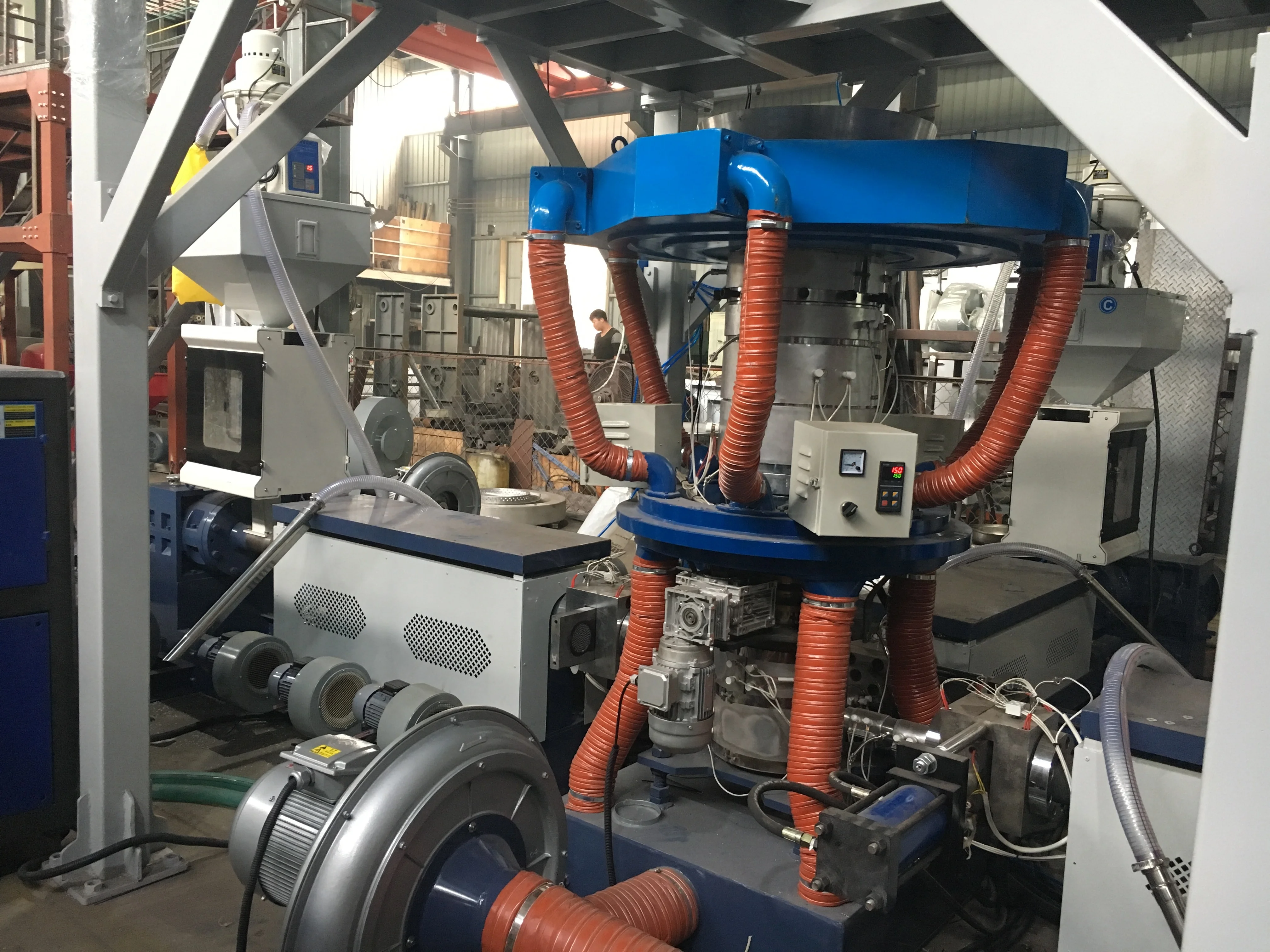

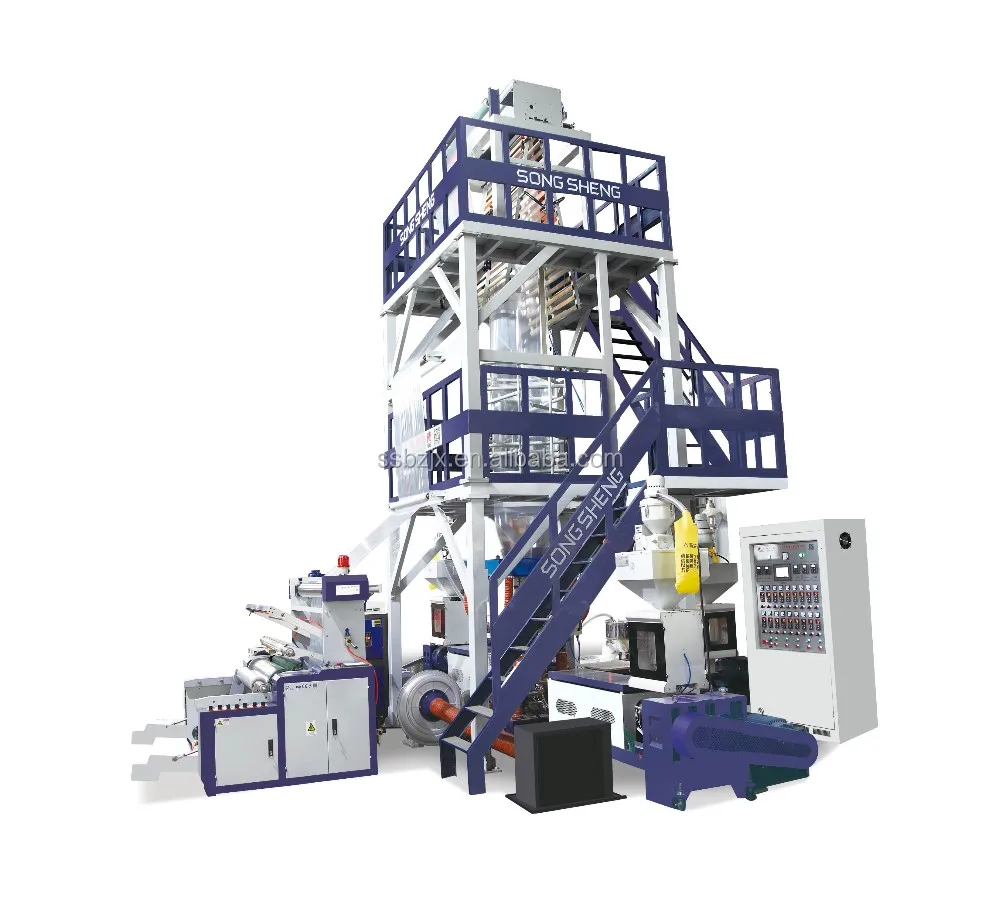

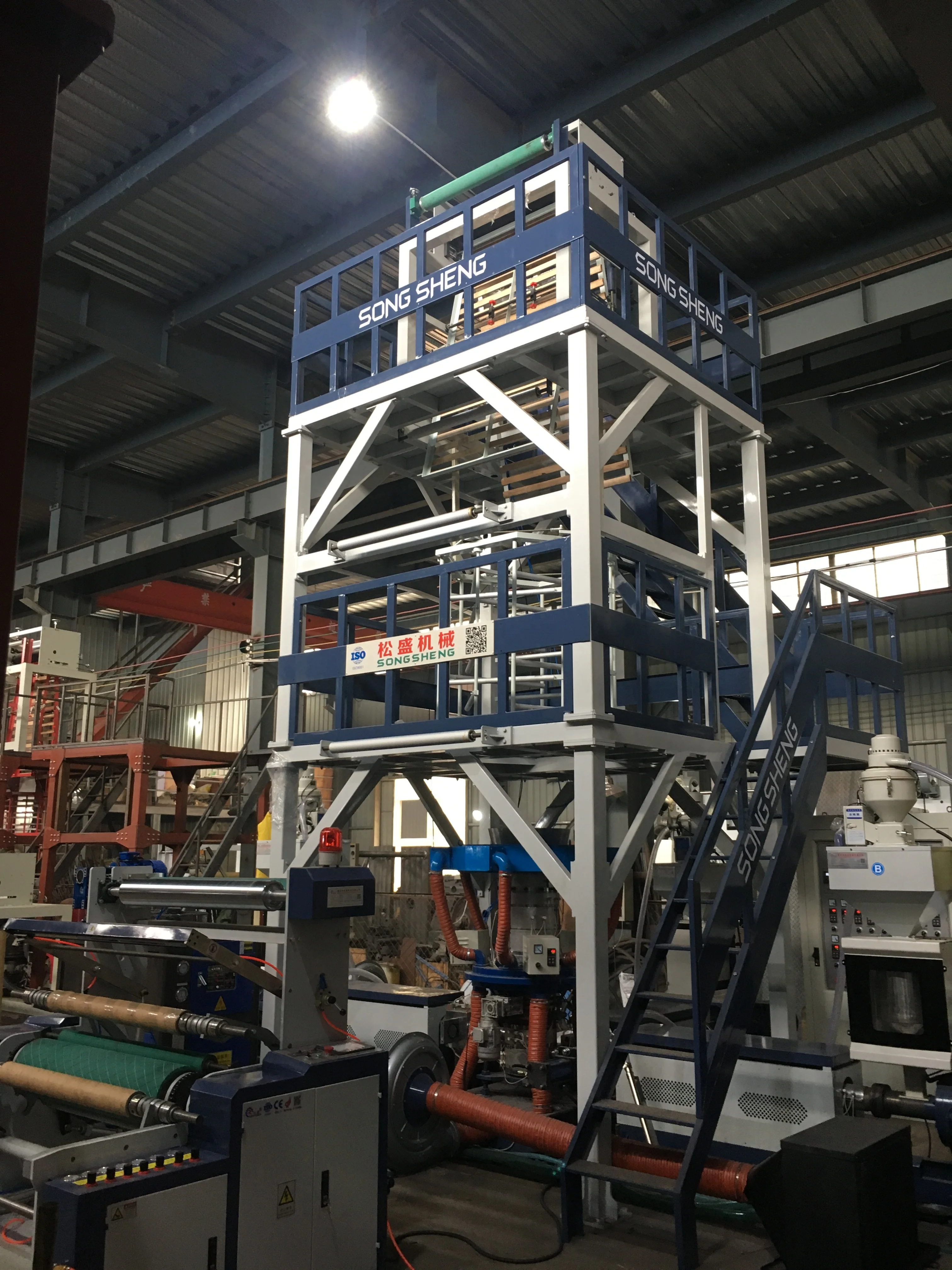

Main Machine Picture:





Detailed Images

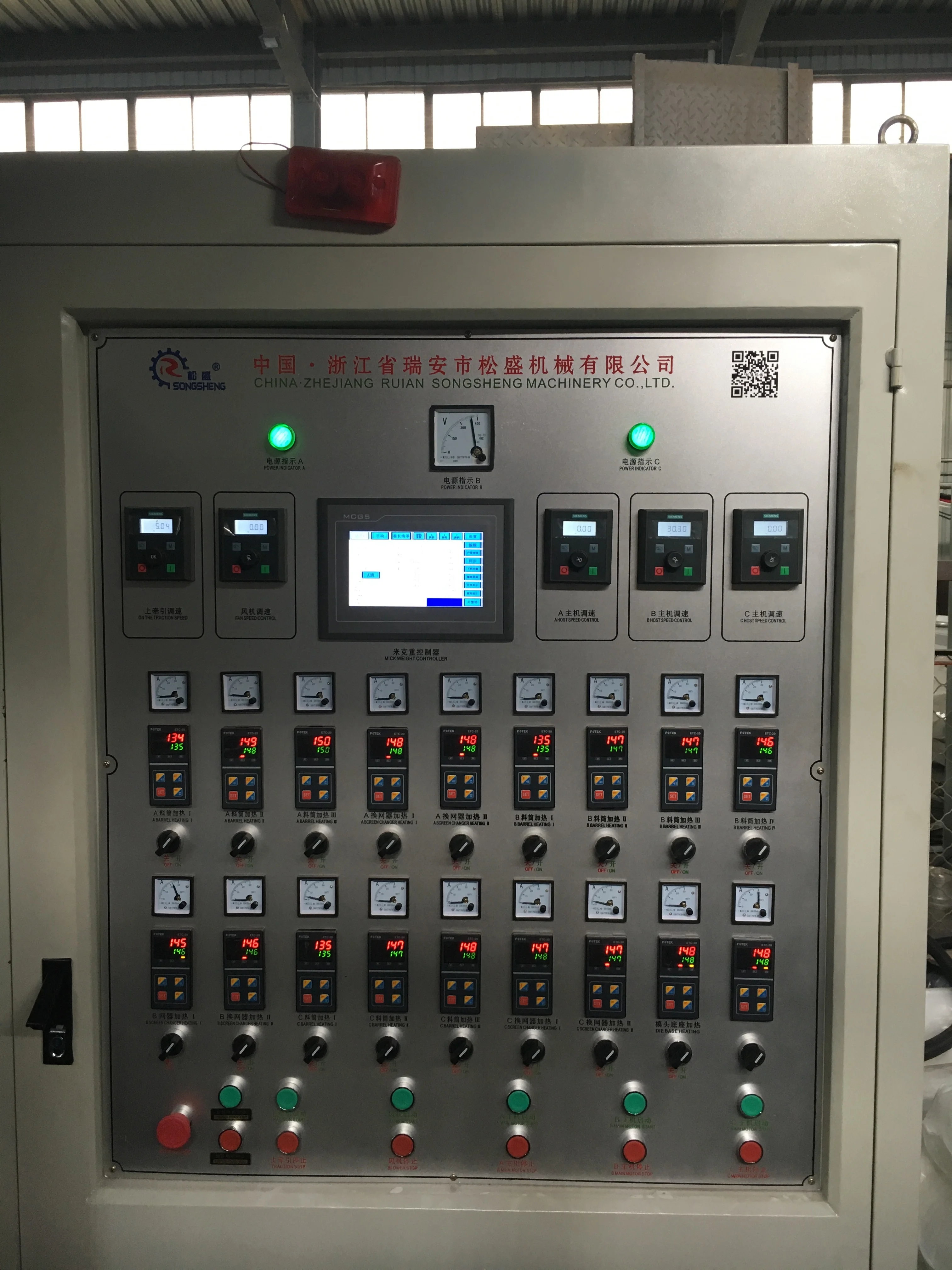

Name: Electric Control Cabinet

With Automatic Gravimetric System

Electric parts: Temperature control meter-Fotek, Others such as Schneider, CHINT, people's electrical appliances



Name: Three Screws,

            High speed screw,

            double alloy screws

Original: Zhoushan, China.

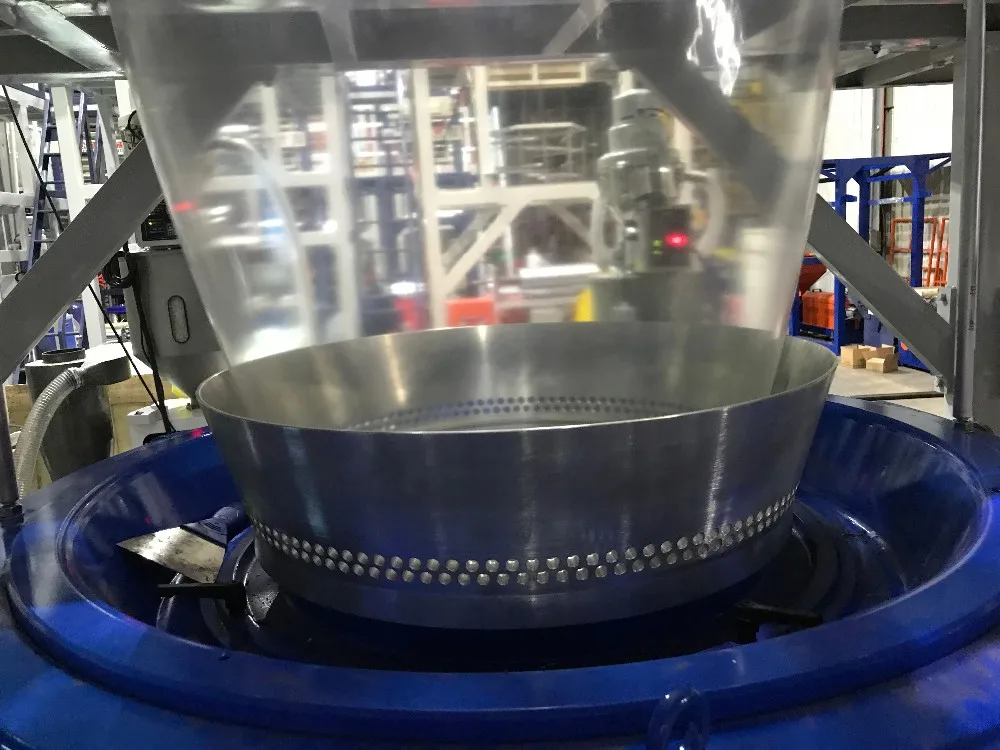

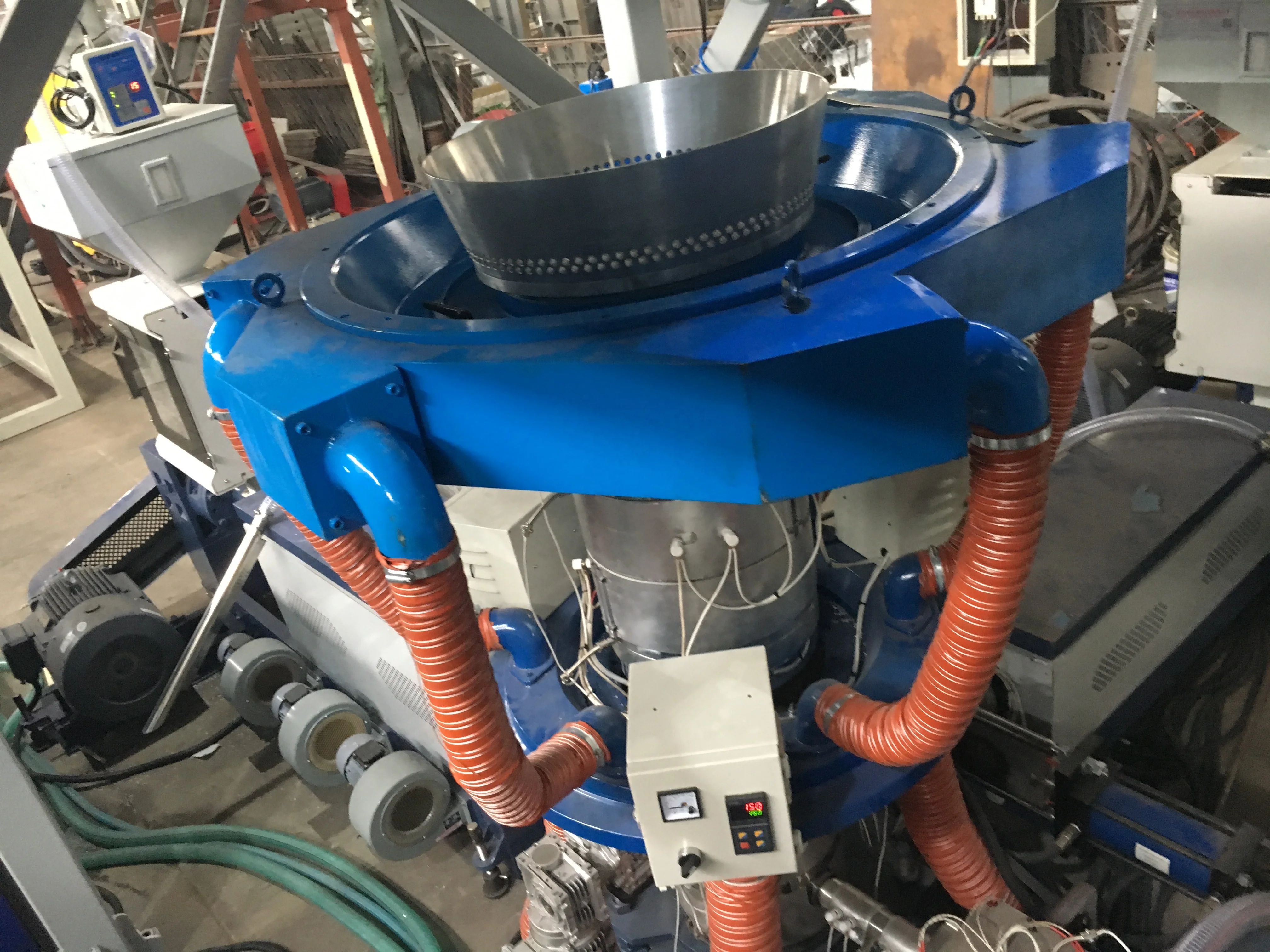

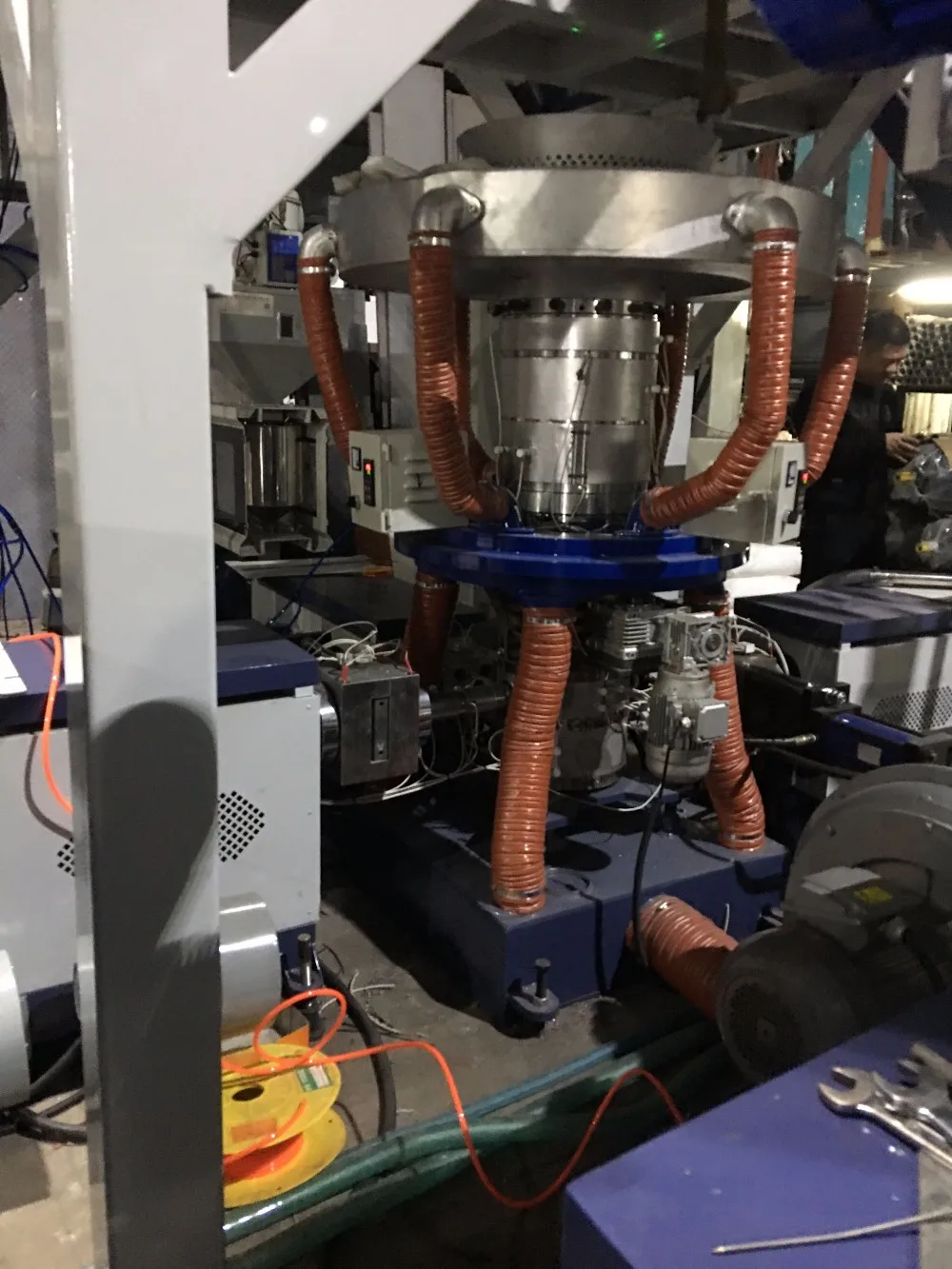

Name: Air ring

            Taiwan Style

            Double lip

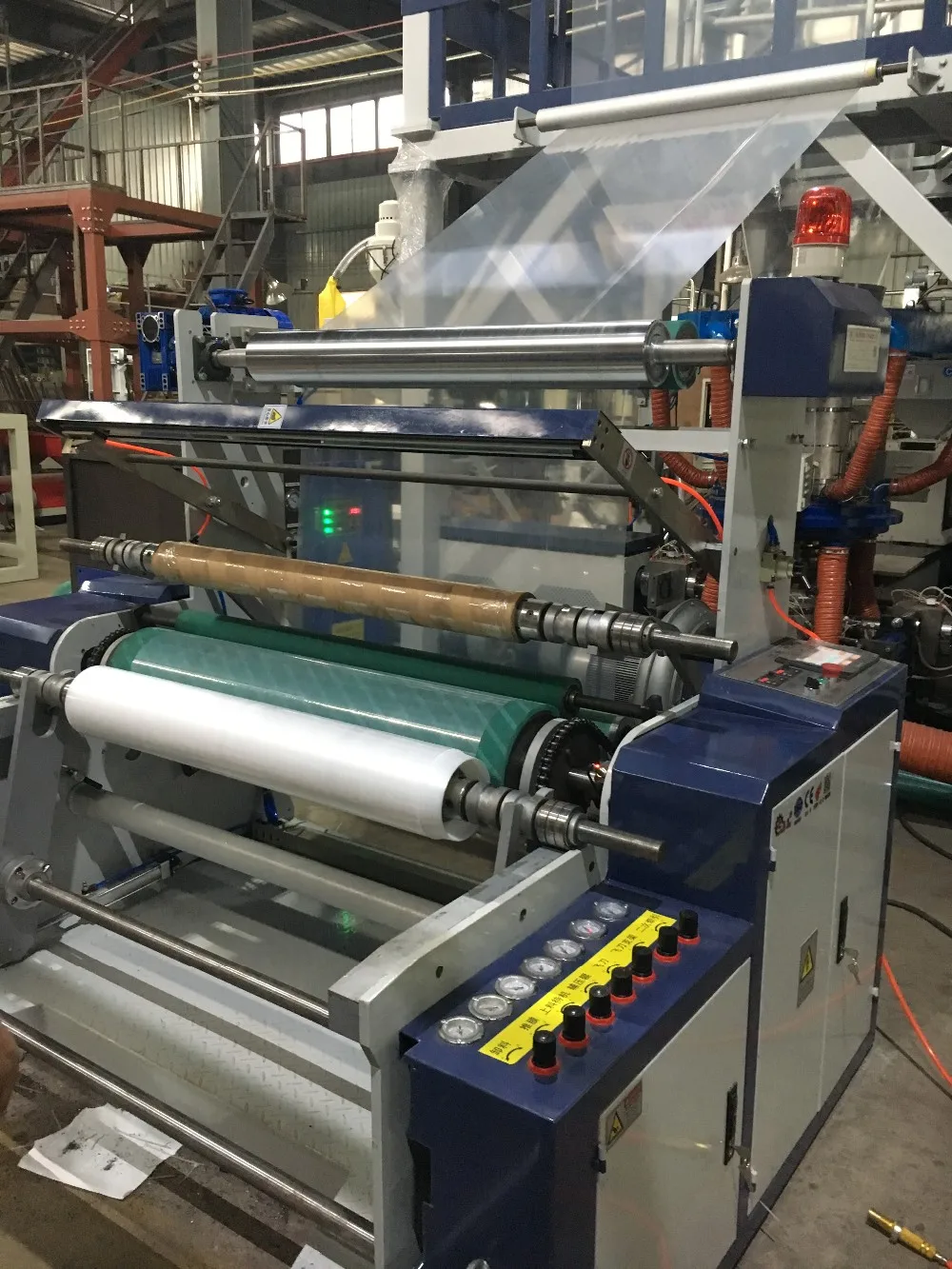

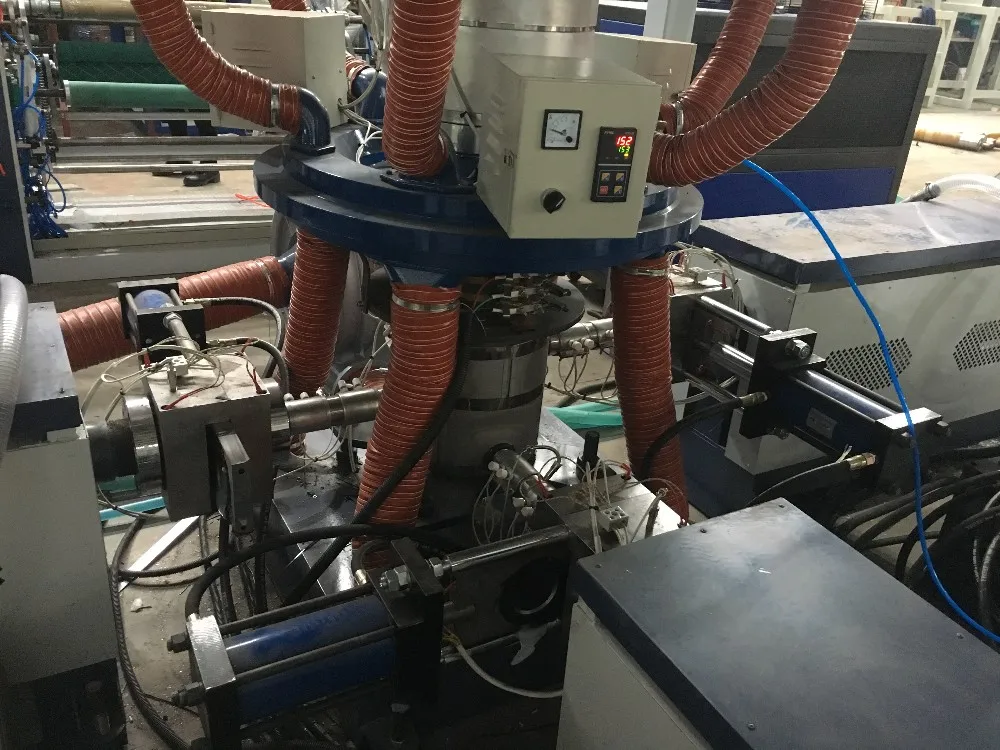

Rotary Die:                                                                                     Automatic rewinder

inside spiral, center feed                                                                              With fly cutter, automatically to cut and change the
45C steel die runner hard chromium plating                                            roller, which is save time and save cost compared with
                                                                                                                          manualy type. And account the meter automatically

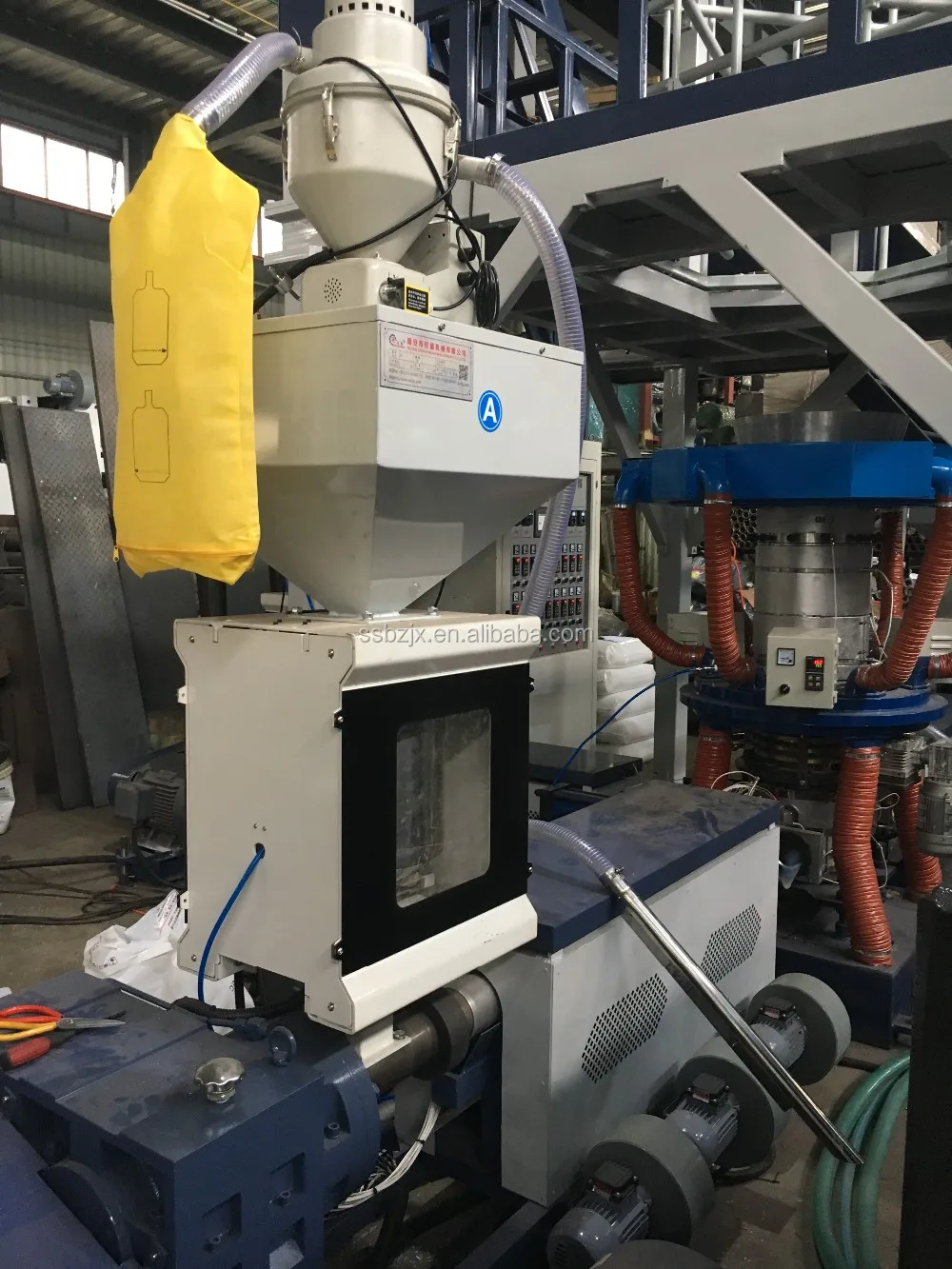

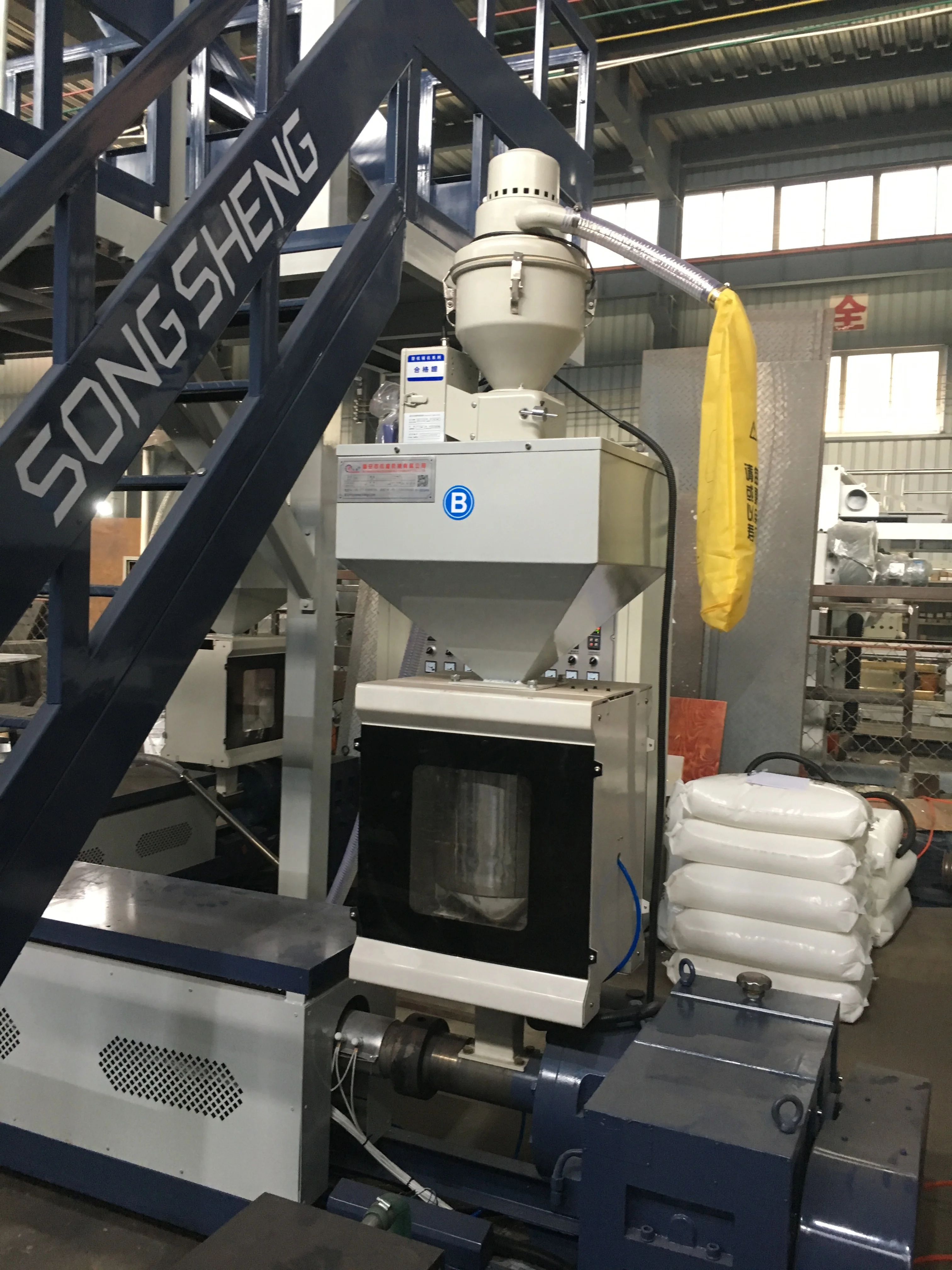

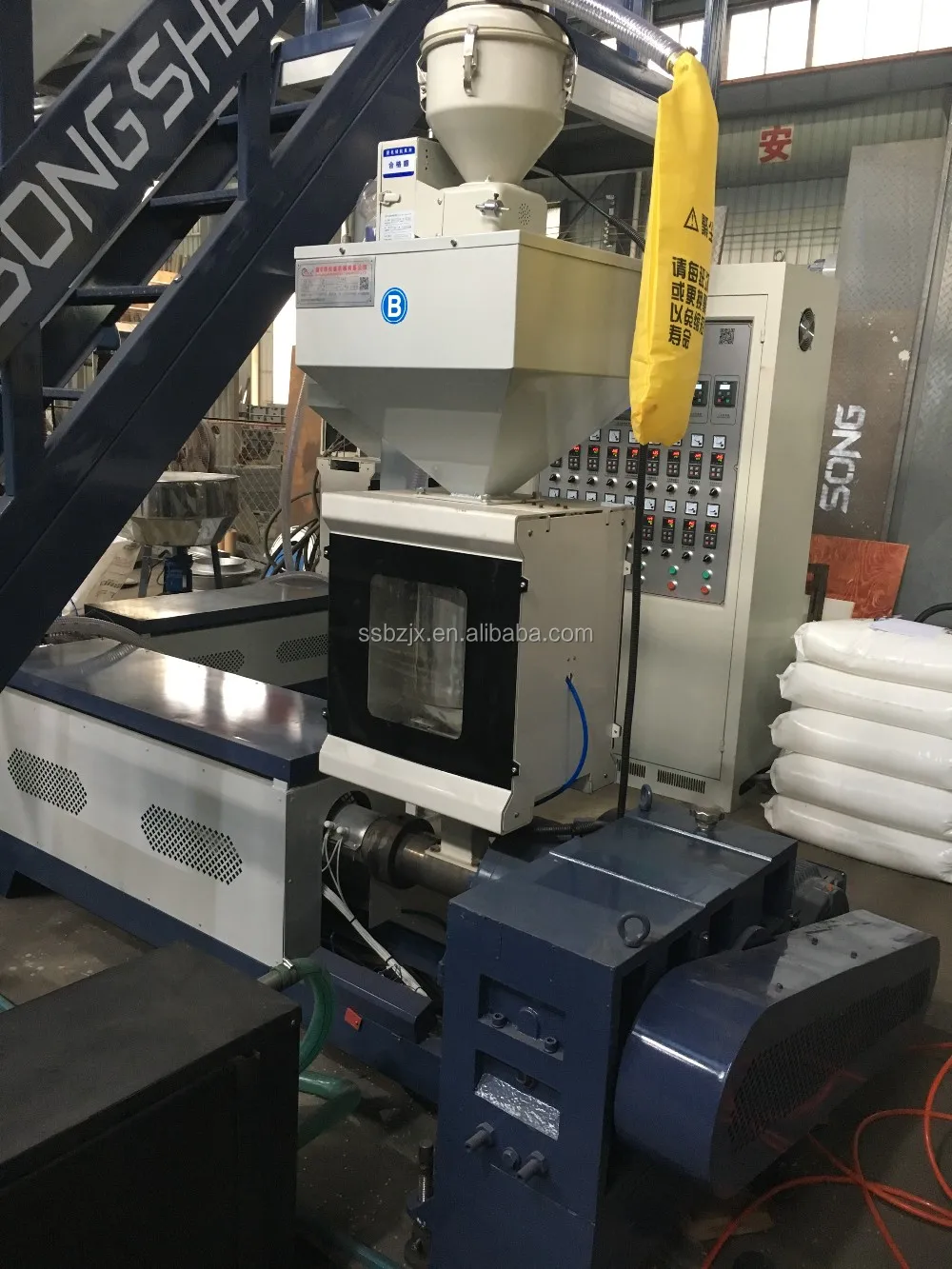

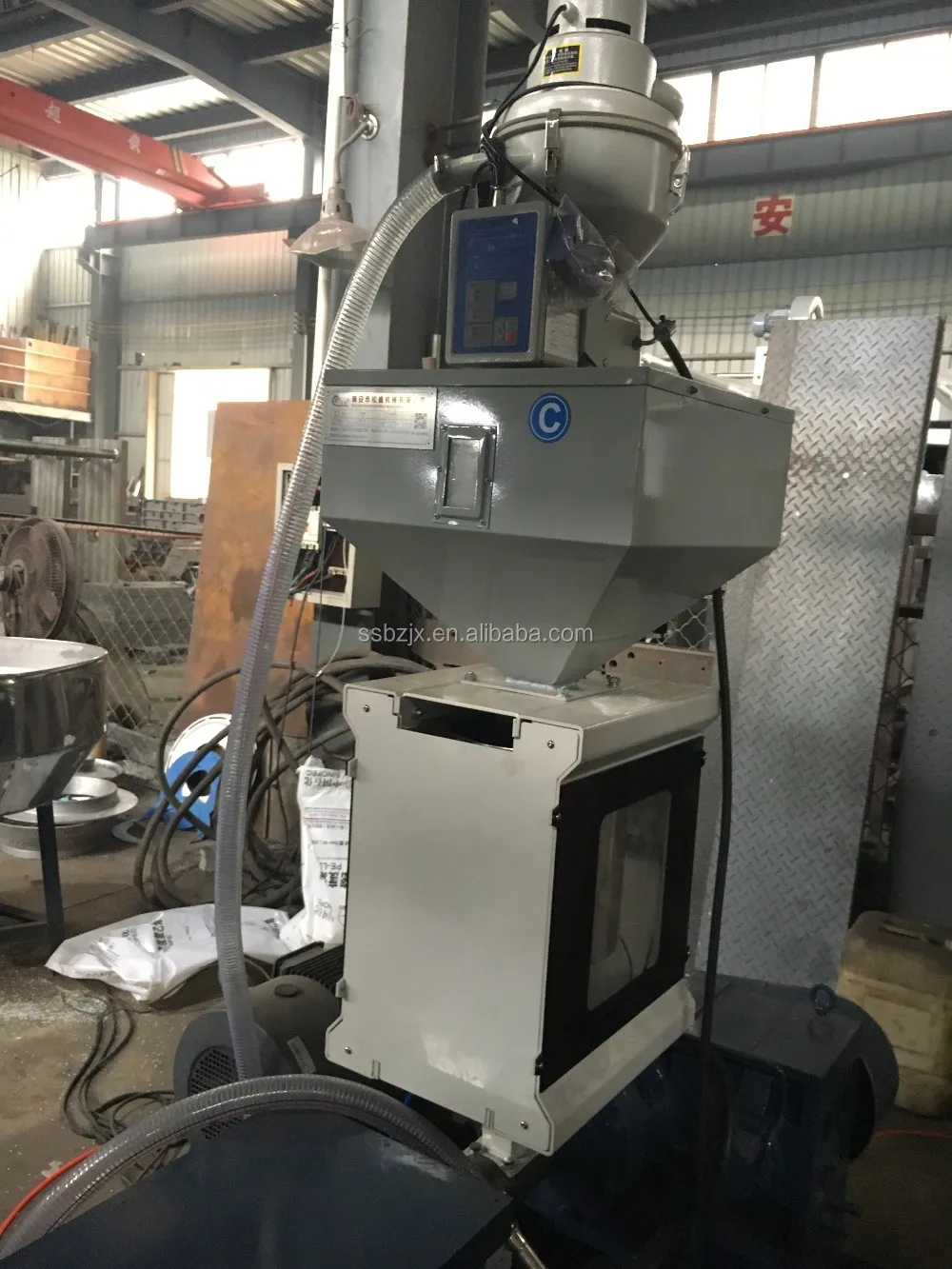

                               ABC Three Layers/Extrusion Parts: with Auto Loader. Gear Box-Taiwan Style



Water cooling system

Main Motor: Siemens

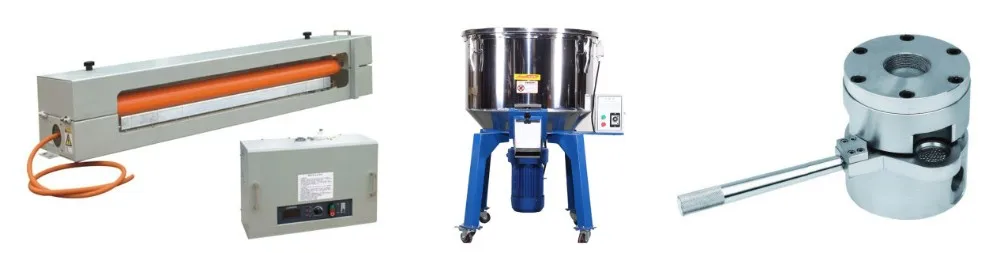

Corona device                                                                        Auto Mixer                                       Fast Manual Screen Change



Our Company




Company Information:

Ruian Songsheng Machinery Co., Ltd is located in China's plastic machinery production base- Ruian city. Company specialized in manufacturing film blowing machine, plastic bag machines and other equiped machines in one line for more than 10 years. We strive for quality and innovation in machine. We export the machines to worldwide as Southeast Asia, the Middle East, South Asia, Russian, North Asia, North America, Eastern Europe, Africa etc.  Most welcome from all country to visit our company.







Our Service


Pre-sales Service:                                                           After-sales Service

* Inquiry and consulting support.                                                    *Training how to instal the machine, training how to use
* Sample testing support.                                                                      the machine.
* View our Factory.                                                                                 * Engineers available to service machinery overseas.

* Pick up customer from air-port and stations.







Factory Shows








Packing & Delivery




Related Products


SS-H2 Double Die Film Blown Machine


High Speed SS-HL Series PE Film Blowing Machine


SS-CGS Fully Automatic Super High Speed Plastic Bag Making Machine




SSXJ Series Supermarket PE Rolling Bag Making Machine


Plastic Bag Soft Handle Loop Making Machine


Plastic Film Two colors flexo printing machine




FAQ


Q1: Are you factory or trading company?
    we are the manufacturer/factory for film blowing machine, plastic bag /t shirt bag/shopping bag making machine & printing machine etc.

Q2: How does your factory do quality control?
    We have profession engineers' team to prove and ensure machine quality.

Q3: Machine warranty?
    one year since machines arrived your port.

Q4: What's your delivery time?
     Normally, it need 15 to 20 working days since get the deposit.

Q5: How do you keep the after-sales service?
    We do business based on faith, we insist on " quality is the first and most important" . We will carefully check the material, produce, test and adjust machines again and again.  If have any doubts, please contact us online or by calling, we will reply ASAP.

Q6: Where's your company located? how can we visit?
     Our company located in Jingye Road, Ruian Economic Development Zone. You can by air to Wenzhou airport or by bullet train to Ruian Station. We welcome all friends from the world for future cooperation.
