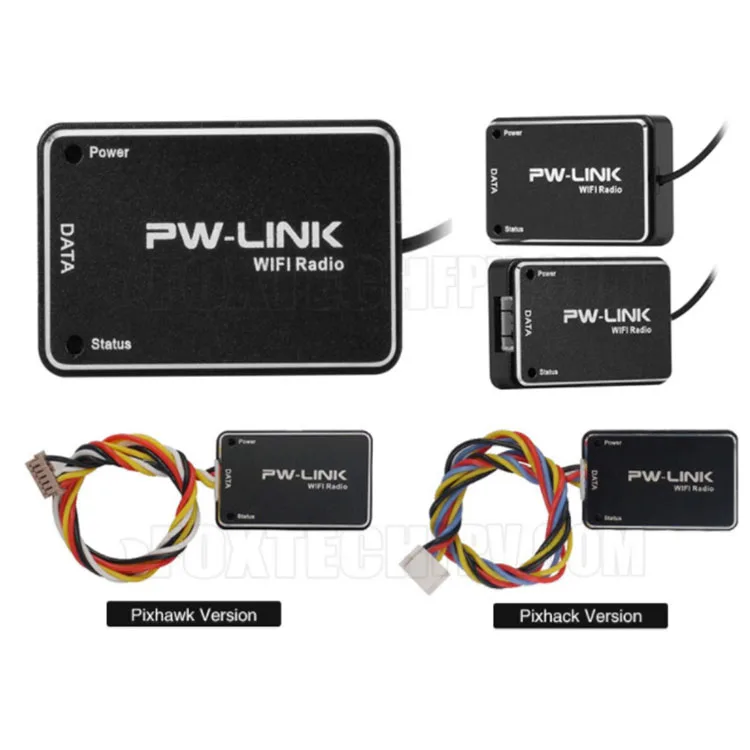

CUAV PW-LINK WIFI Digital Transmission Module
This PW-Link is 2.4G wireless data transmission module. After a number of practical test, the reasonable transmission
distance is about 450 meters. Because of its small size, long transmission distance, stable data, convenient connection
features, it is very suitable for small UAV data receiving at several hundred meters.
| Specifications: | |
| Size: | 28x17x1.2mm |
| Weight: | 9.6g |
| Wireless Standards: | IEEE 802.11g,IEEE 802.11b |
| Transmission Speed: | 11g: The highest54Mbps,11b:The highest 11Mbps |
| Attended Mode: | UDP:14550 |
| Channel Range: | 1-13 |
| Frequency Range: | 2412-2472MHz |
| Transmitting Power: | 18dbm |
| Antenna Type: | UFL typ |
| Wireless Safe: | WPA/WPA2 security mechanism |
| Communication Protocols: | Transparent transmission mode of serial port |
| Traffic Rate: | 57600 |
| Working Voltage: | 5V +- 0.25V |
| Working Current: | 100MA |
| Working Temperature: | -20 - 50°C |
| Operation Humidity: | 10% - 90%RH( noncondensing ) |
| Storage Temperature: | -40 - 80°C |
| Storage Humidity: | 5% - 90%RH (noncondensing) |
| Your Purchase Includes: |
| 1x PW-LINK WIFI Digital Transmission Module |
| 1x Connecting Data Cable |
