Price:RUB 492,817.00 - RUB 667,198.40

Quantity:


Product Overview

Description

Product Description

Usage:

Grind and maintain CNC turret punch die.

And also can be used for punches,concave mould and shearing mould.

Advantages:
1.Efficient: one-time set up clamp, achieve automatic tool setting and automatic cool down.
2.Time-saving: it only takes 2-3 min to grind the die.
3.Easy-to-use:  one button control complete automatically


Technological Parameters
Net weight
600KG
The diameter of grinding wheel
135mm
Power and speed of main drive motor
2.2KW 2840r/pm
Power and speed of rotated table motor
0.4kw 1700r/pm
Cooling water pump
90W 25L/MIN
Voltage
AC380V 50HZ
Maximum stroke
200mm
Dimension(W*L*H)
705*785*1950mm

Main feature:


1.Fully automatic grinding, one-time set up clamp, automatic tool setting(no need to set artificially) and automatic cool down. No need to modify the grinding wheel.Each feeding volume is controlled in 0.015mm until the completion of the die grinding,.Grinding can be completed in the average 2-3 minutes including the time of setting up the clamp.

2.Coarse grinding, fine grinding and exact grinding can be distinguished and completed automatically by touched human-machine interface control system .Then the die is unannealed, unbreakable,and durable.

3.Long-guided die for station A and B can be ground without disassembling spring , whether it is flat or oblique punches. Easy-to use;Time-saving;Efficient.

4.The automatic CNC grinding machine is tiny,so it can be placed closed to punch and used anytime without effecting die.





Regular color-blue and red. All colors is available upon your requirement.

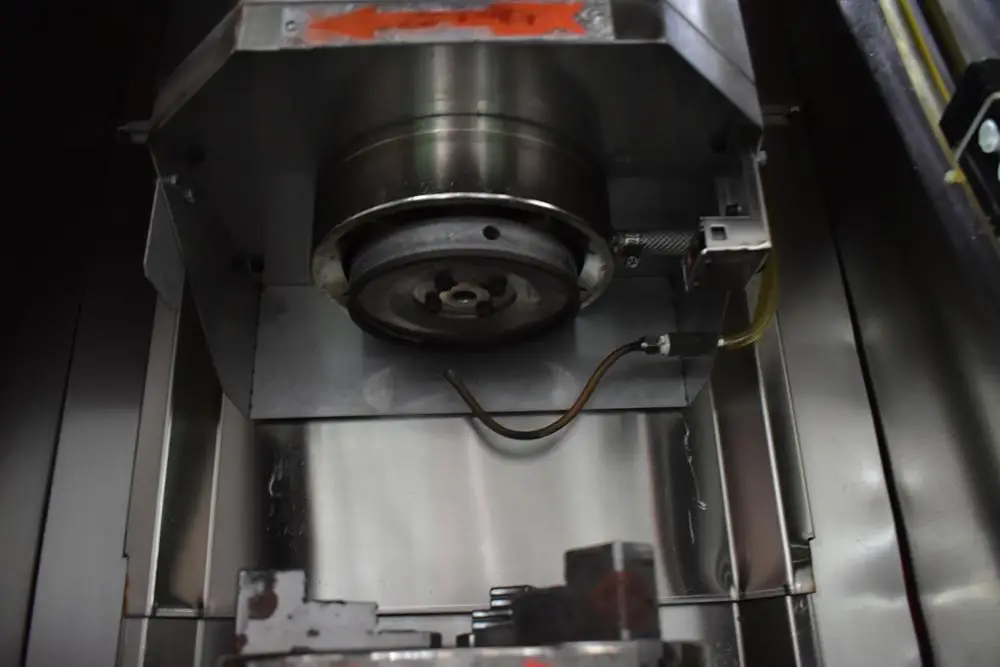

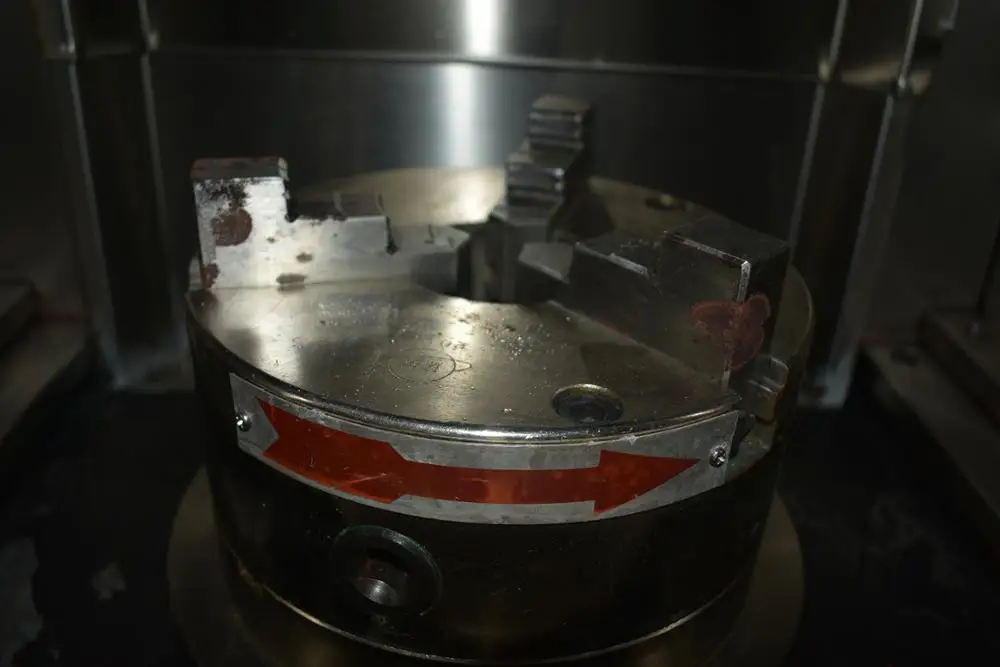

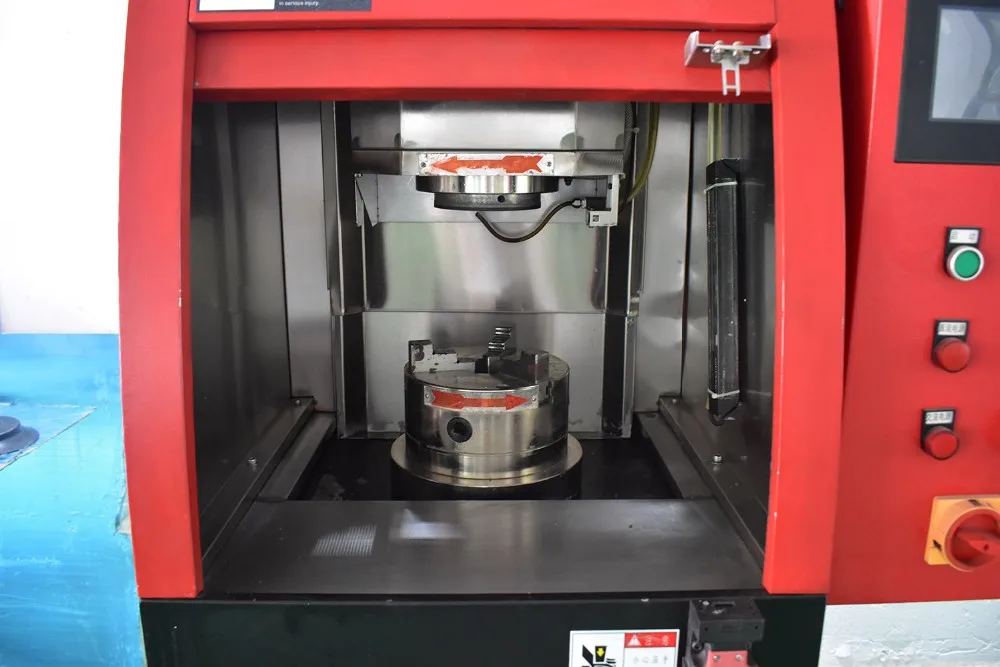

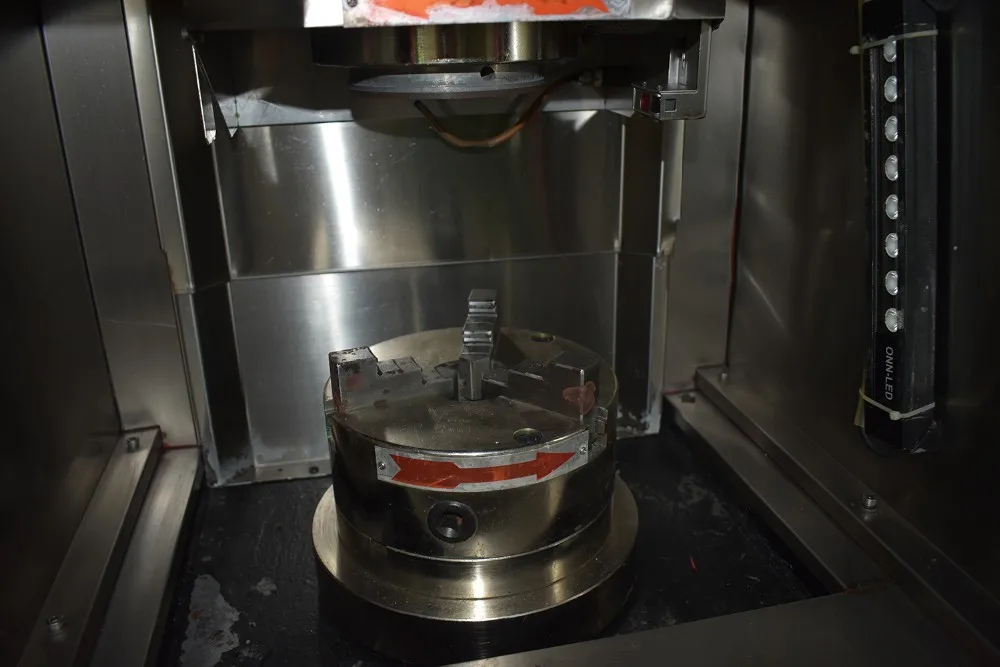

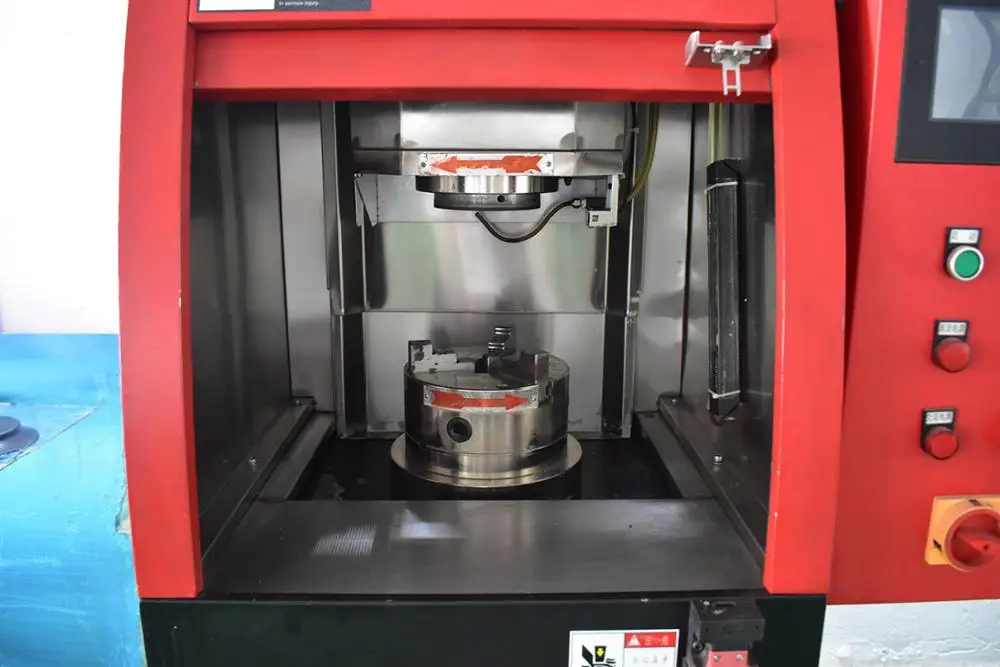

Internal Detail



Our Company

Guangdong Taiding Automation Technology Co., Ltd. , mainly engaged in electronic sheet metal processing, sheet metal automation lifter (rocker arm, feeding machine, vacuum lifter, sucker and upper and lower parts) of the product development, production, sales, after-sales service as one of the professional production-oriented enterprises, the company engaged in this industry for more than 10 years, Now has a complete, scientific quality management system. We are also engaged in CNC punching die (diginal punch A-station die, digital punch B-Station die, digital punch C-station die, digital punch D-station die, digital punch E-station die, such as 85 series, 90 series of molds, Tailift digital punch die, Mei Ming series of molds, Shengtong machine tool series of molds etc. domestic and foreign famous CNC punching machine matching molds. Guangdong Taiding Automation Technology Co., Ltd. is recognized by the industry as integrity, strength and product quality . Welcome friends from all the world visit, guidance and business negotiations.

                                             Our Team


                                    Our Team


Workshop


Workshop


Workshop


Certifications
FAQ

1, Q: Min. Order Quantity?
   A: 1 set is OK.

2. Q: How about your technical team construction?
    A: We have professional technicians team with 13 years' experience.

3, Q: What's our warranty?
    A: 12 months

4, Q: Ways of payment
    A: T/T, L/C, Pay pal, Western Union

5, Q: Ways of shipment
    A: EXW, FOB, by Air/Sea , upon your requirements

6, Q: Are you a trader or manufacture?
    A: We are manufacturer, owns our factory in Guangdong .Welcome to visit!

7, Q: Can you accept OEM or ODM?
    A: Of course,Logo is also acceptable

8, Q: What is the delivery time?
    A: For general specification model, it can be delivered within 15 days;
        For customized models, delivery time shall be discussed and confirmed according to order.
