Cold extrusion press is used for cold extrusion sleeve connection

Product Overview

Description

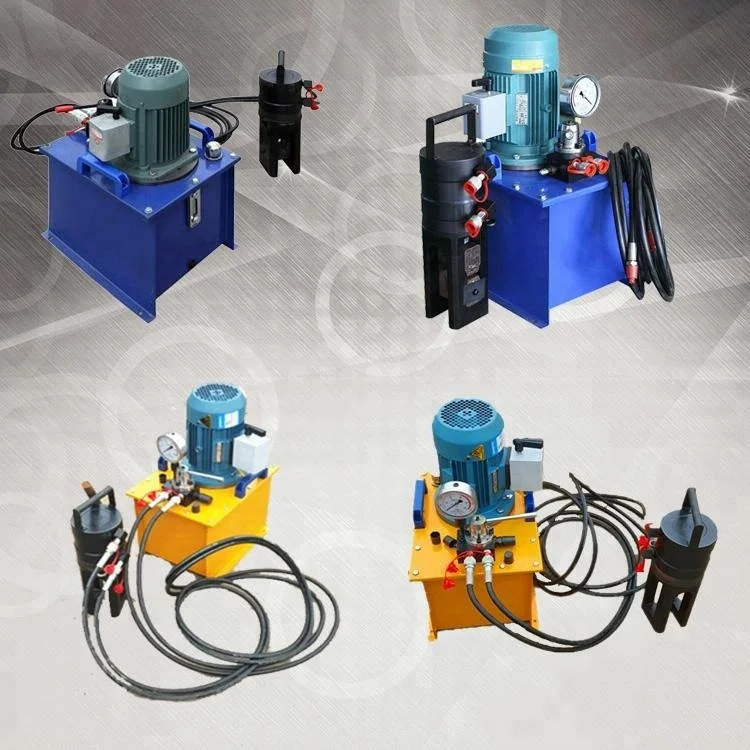

Cold Extrusion Press Machinery for Threadless Coupler

The Product Description:

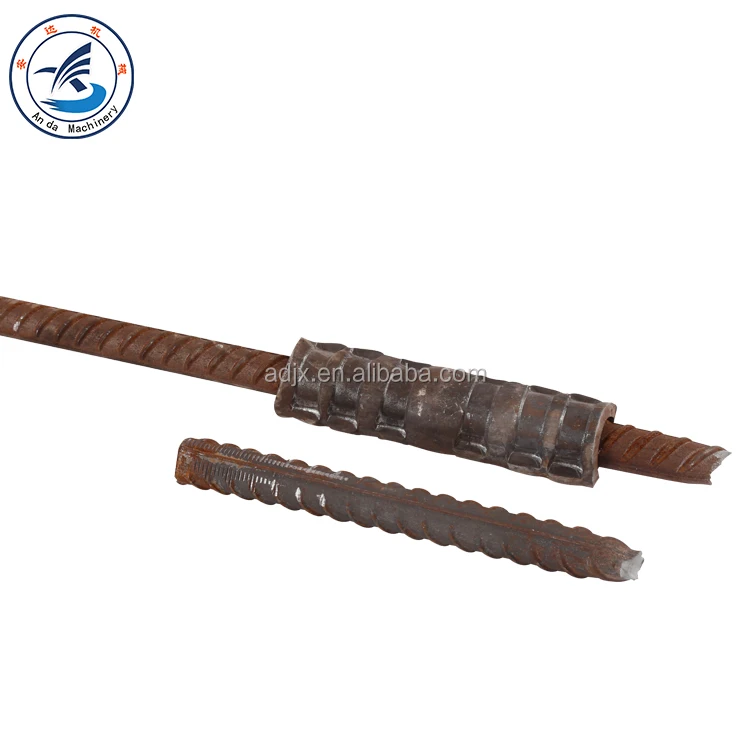

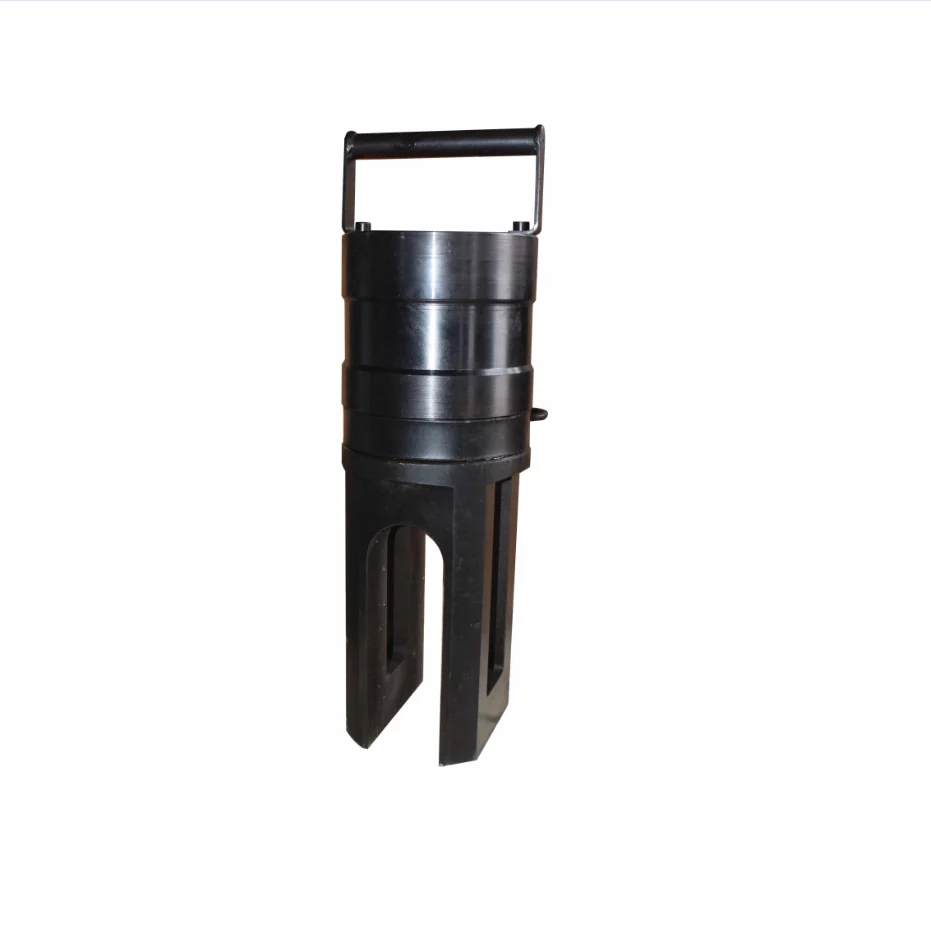

     Cold extrusion machine is to need to pick up two reinforced in cold extrusion sleeve, and through the cold extrusion machine to squeeze of steel sleeve, with reinforced tightly, connect the two root reinforcement for the integration of equipment.



    Construction steel cold extrusion machine is currently in construction projects, construction of reinforced concrete structures, high-rise frame buildings, roads, railways, tunnels, Bridges, airport construction, flood control levees, seismic shock construction, Marine breakwater dam etc for all kinds of building cold extrusion bar connection application.



motor power	4KW	Working pressure	63Mpa
rated voltage	380V / 50hz	Crimp size	12mm-32mm
Working stroke	45mm	Weight	125kg





Technical advantages:

1. Good connection reliability and 100% connection rate.

2. Quick construction speed.

3. The construction is not affected by the weather.

4. Can connect reinforcing bars in all directions.

5. The inspection is convenient, and only the extrusion trace can be measured to determine whether it is qualified or not.
