Wall cladding sheet making machine siding panel cold roll forming machine

Share on (60813378483):


Price:$17,600.00 - $18,000.00

Quantity:


Product Overview

Description



Product Description








Product Application




This machine takes GI/PPGI as raw material, through a series steps and can produce the metal roofing sheets. The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.












































































































TECHNICAL Data for roof panel machine



Serial Number


Item


Parameter


Remark





Applicable material



Type


GI/PPGI



Thickness


0.3-0.7MM



Yield strength(Mpa)


G245-550






Main performance parameters



Forming speed(M/MIN)


15-20m/m



Machine size(L×W×H)


9*1.5*1.5


base on machine design


Power supply(KW)


7.5+2.2


Main Motor &Hydraulic Motor



MACHINE COMPONENTS FOR METAL ROOFING SHEETS PANEL ROLL FORMING MACHINE



Name


Model/name


Quantity


Technical description





1.Decoiling system





Hydraulic decoiler or Manual





1 set


Capacity: Max. 5Ton,hydraulic control steel coil inner bore expanding, shrinkage and stop.









2.Forming machine


Material Guiding System


1 set


For feeding in a right position no Deviation.


Precutting Device


1 set


Pre-cutting or motoraized cut


Main Roll Forming Machine


1 set


About 18 steps base on the design


3.Cutting system


Hydraulic Cutting


Precutting and postcutting both.


4.Hydraulic system


Hydraulic Station


1 set


Providing the power of cutting.





5.Control system





PLC Control System






1 set


PLC control system, encoder positioning and cut-to-length automatically, touch screen operating.


6.Racking system


Exit rack


3 PC


no power.

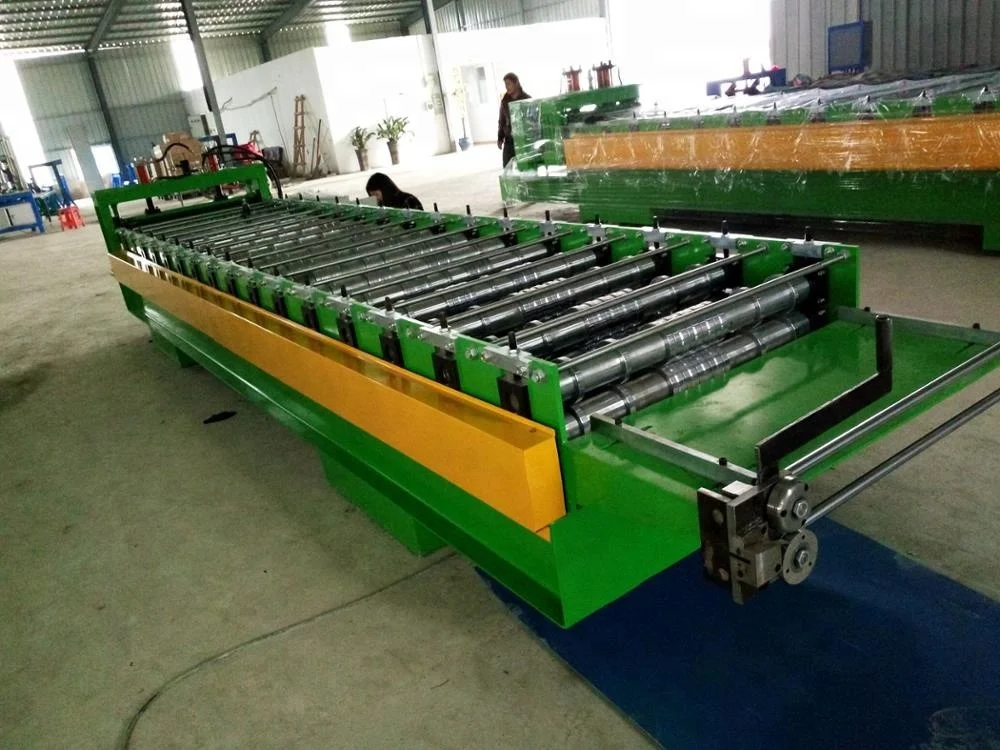

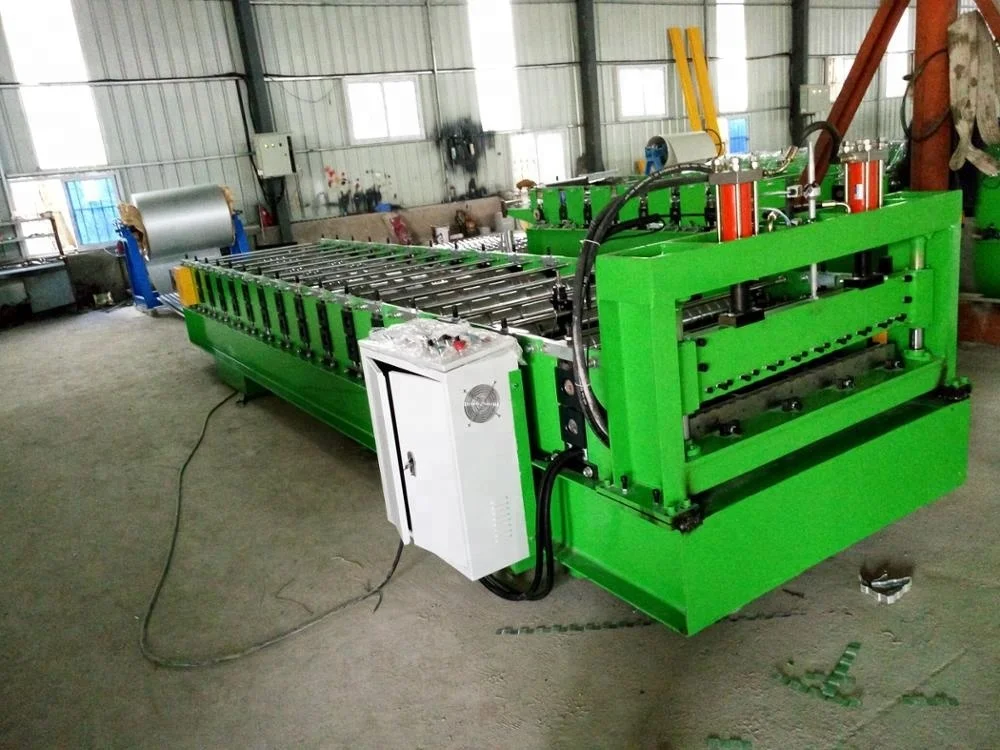

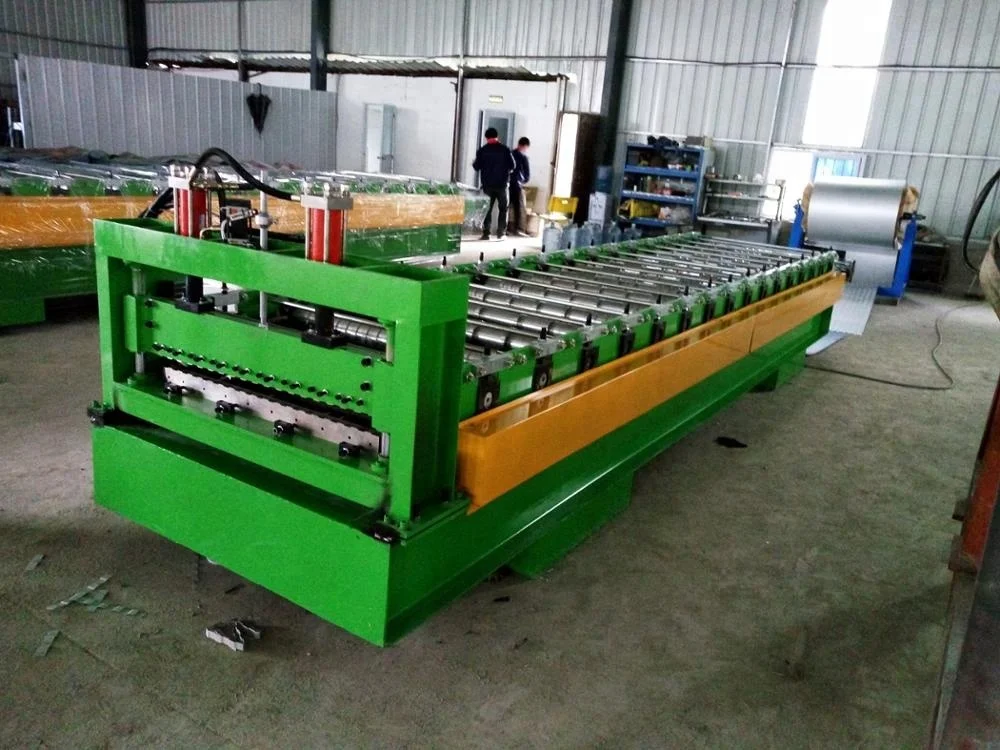

Product Show

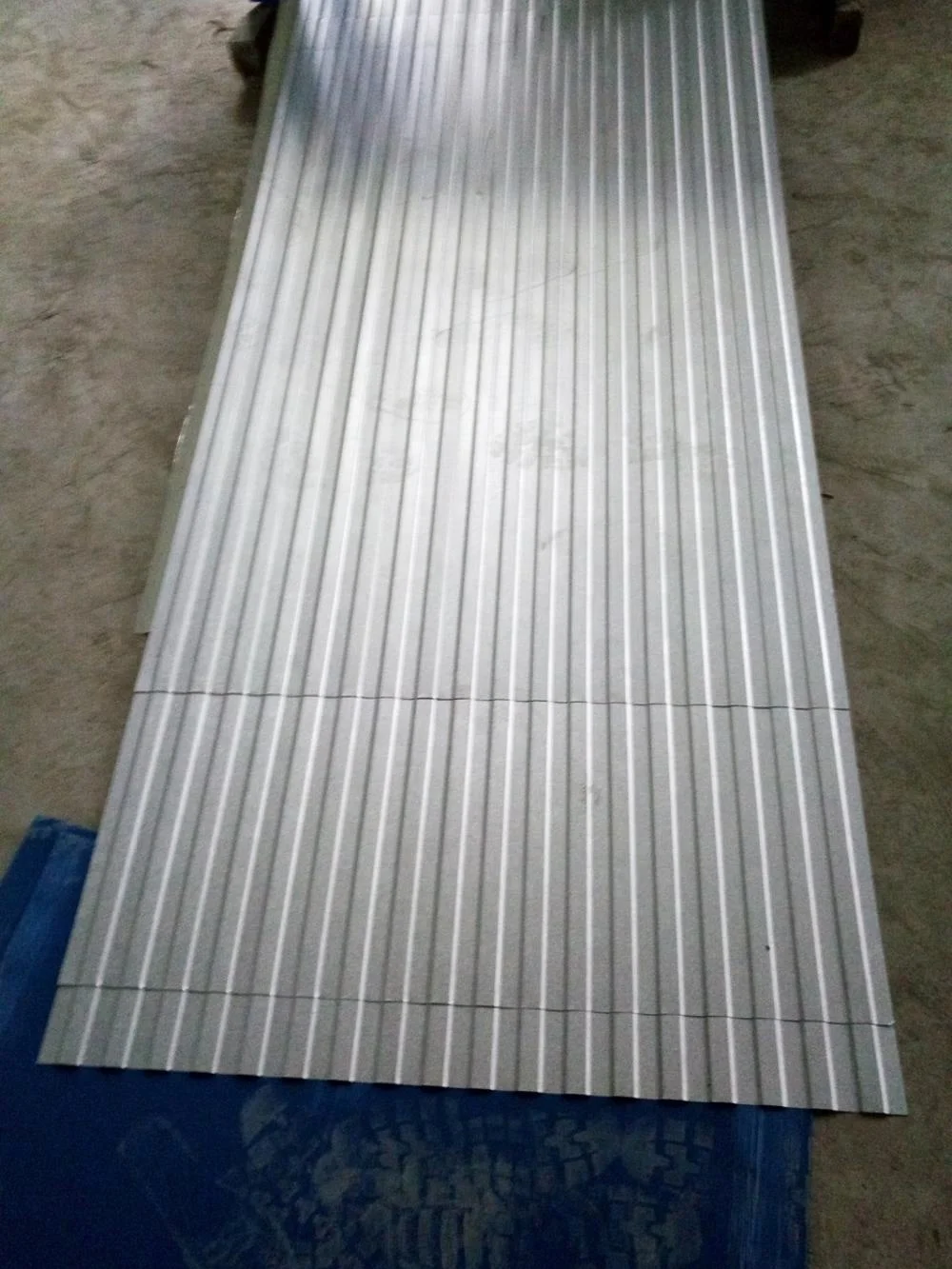

 small corrugated.jpg


QQ20170706154617.jpgYX17-5- (3).jpg
