Product Overview

Description

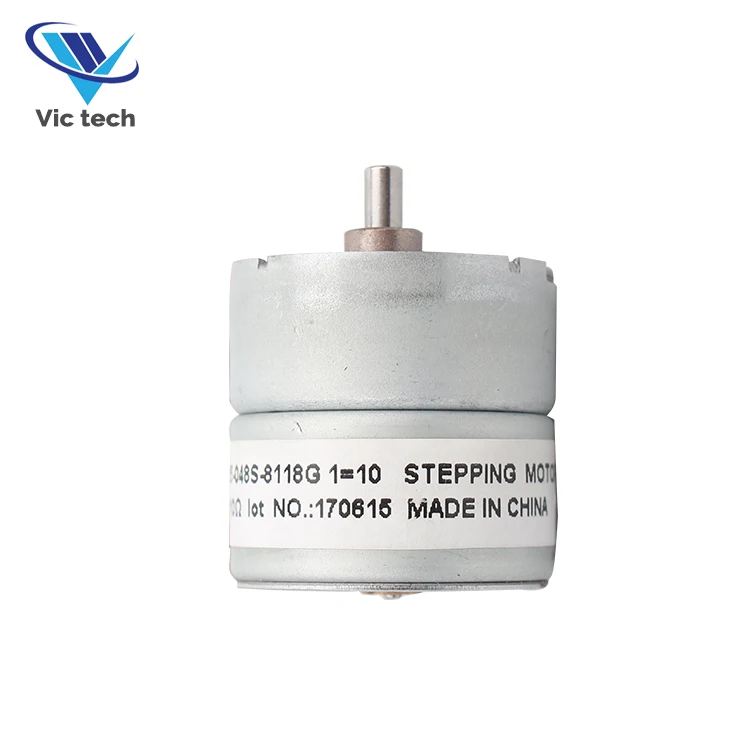

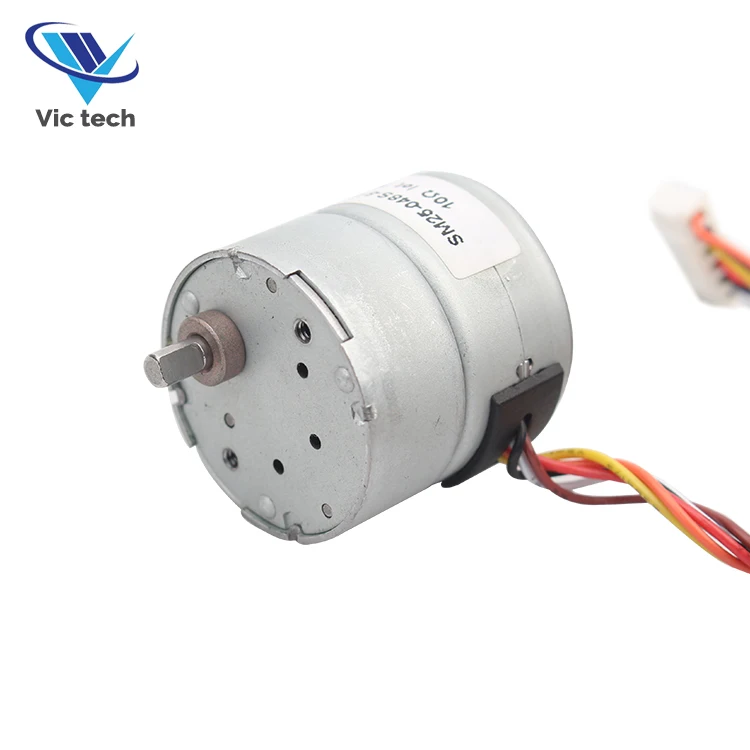

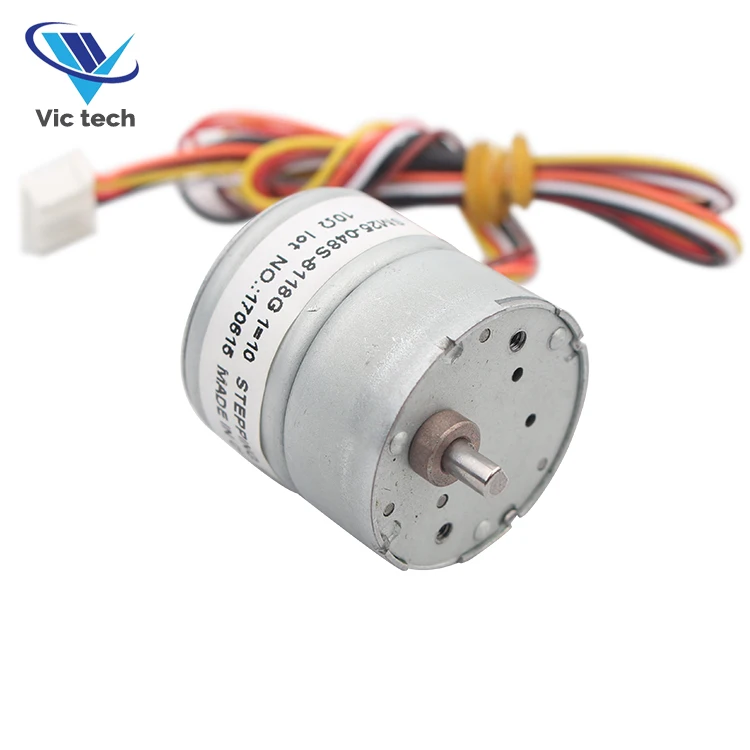

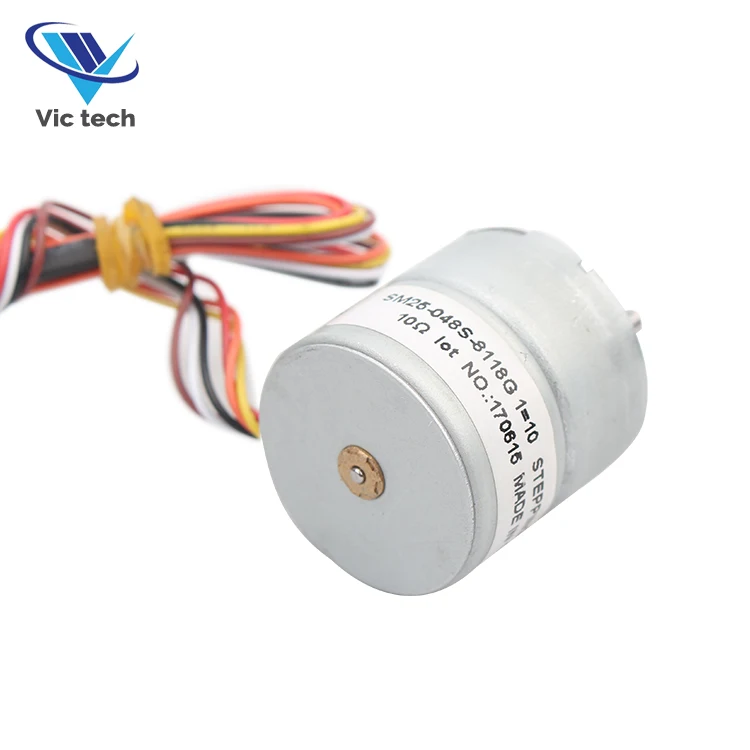

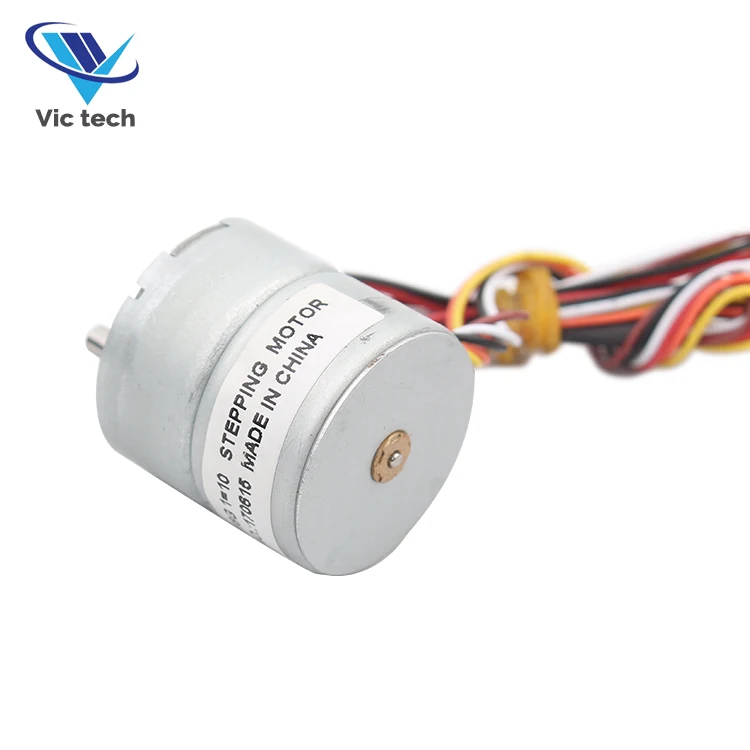

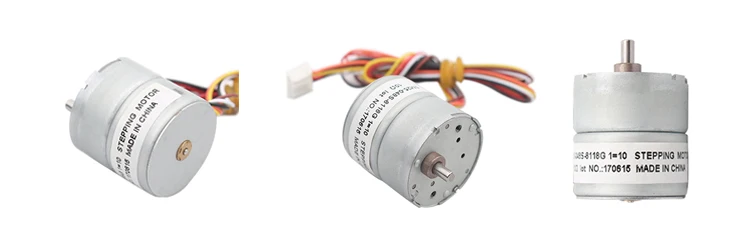

SM25-048S-8118G SM25 Micro Geared Stepper Motor



These specification applies to the Permanent Magnet STEPPING MOTOR, Model name is SM25-048S-8118G.This motor stepper  is a dia 25pm type stepper motor stepper, fixing a gear box.so that the torque can higher

for mounting we have two type standard.



NOTED:

Transmission Shaft can be  made  according to customer's requirement.

 APPLICATIONS:

Home Applience            Air-conditioning

Refrigerator                   Intelligent Sanitary

Automatic Door Lock    CCTV Monitor

Electronic Instrument





PRODUCT NAME	SM25-048S-8118G Micro Geared Stepper Motor
MODEL	SM25-048S-8118G
RATIO	1/10
STARTING FREQUENCY	720PPS min. (AT 24V DC)
RESPONCE FREQUENCY	900 PPS min. (AT 24V DC)
DETENT TORQUE	300gf.cm
RESISTENCE	10Ω±7%/phase
RATATION	CW/CCW
CUSTOMIZED	AVAILABLE

25mm 2-phase 4-wirer Bipolar stepping motor









Changzhou Vic-Tech Motor Techology Ltd. is a professional  manufacturers and scientific research institution, dedicated in brushless motor development, motor application overall solutions, and motor processing and manufacturing. Our company is located in ‘City of Chinese Micro Motor’ Changzhou, Jiangsu Province. With beautiful scenery and convenient traffic, only 1 km away from expressway, 2 km away from railway station, 15 km away from airport. Changzhou is between two cosmopolises, Shanghai and Nanjing, only 100km away from both cities. Convenient logistics and timely information provide conditions for our high efficient and satisfying service. Our company has experience of researching and developing motor over sereval decades, and we have our own developing team with experienced professional engineers and electric experts. With capacity to design new products, provide ralted solutions based on customers’ specific requirements (including mechanical structure, drive control, motor parameters etc.) At the same time, we have 4 manufacturer in Shenzhen, Changzhou and Dongguan to produce stepper motors, permanent-magnet motors, micro motors, and DC motors, and all of them have passed ISO9001:2008 international quality system authentication. We have enough capability for your big orders.

1. How about the quality of products in your company?

We have high and best quality products and our products get some good feedbacks from clients over the world. Once you got our peoducts with some questions under guarantee, we will provide helps at first time. at the usual time we keep our records about products complaints as low as 1%.

2. Are you a manufacturer?

Yes, we are a manufacturer, not agent. We have own factory, which is located changzhou, CHINA. We have a leading power in producing and exporting galvanized steel pipe etc. I promise that we are what you are looking for. and Welcome you to contact us !
