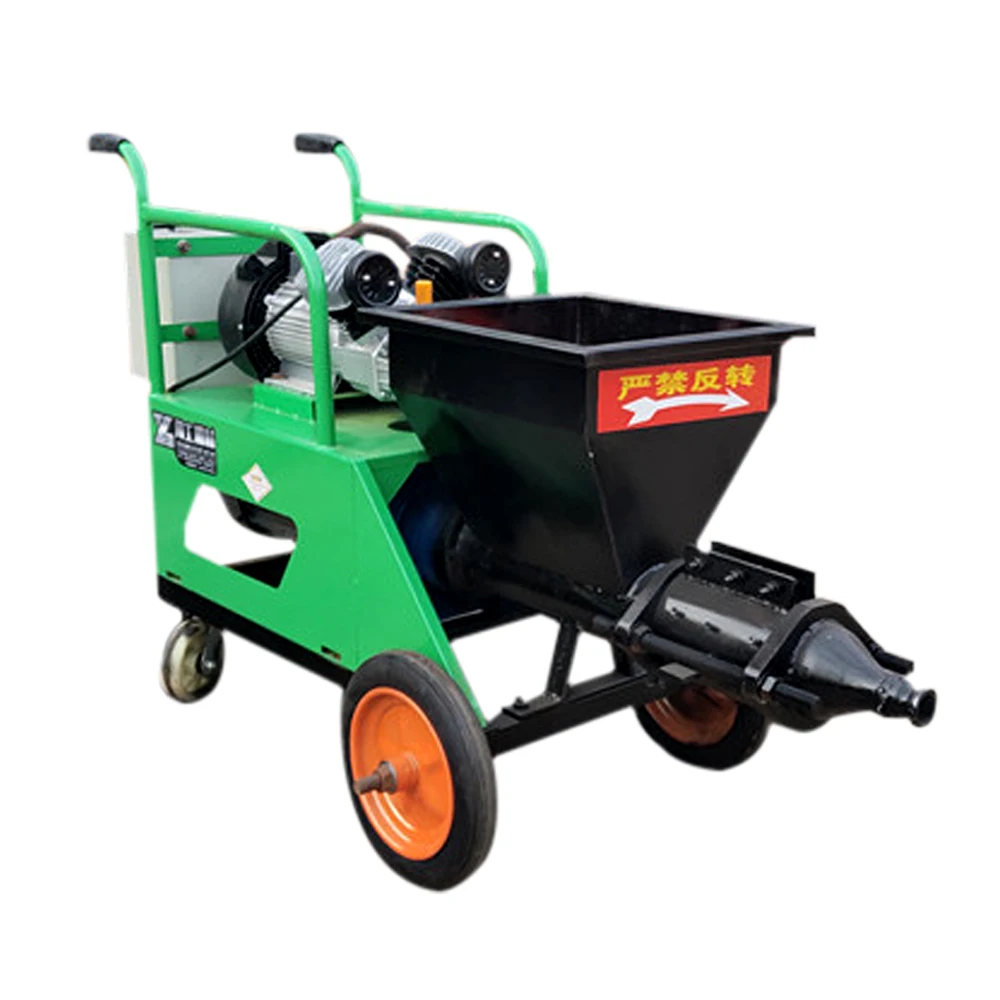

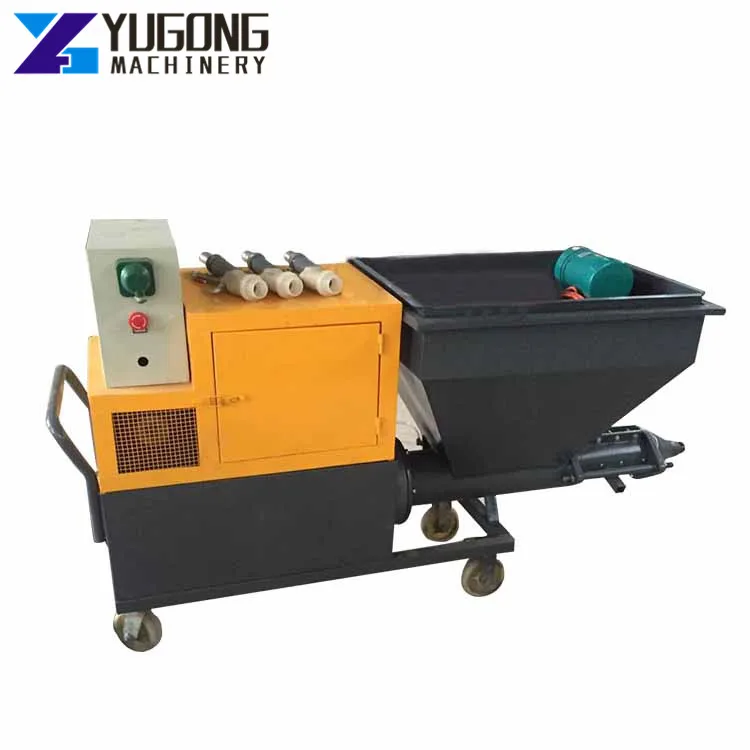

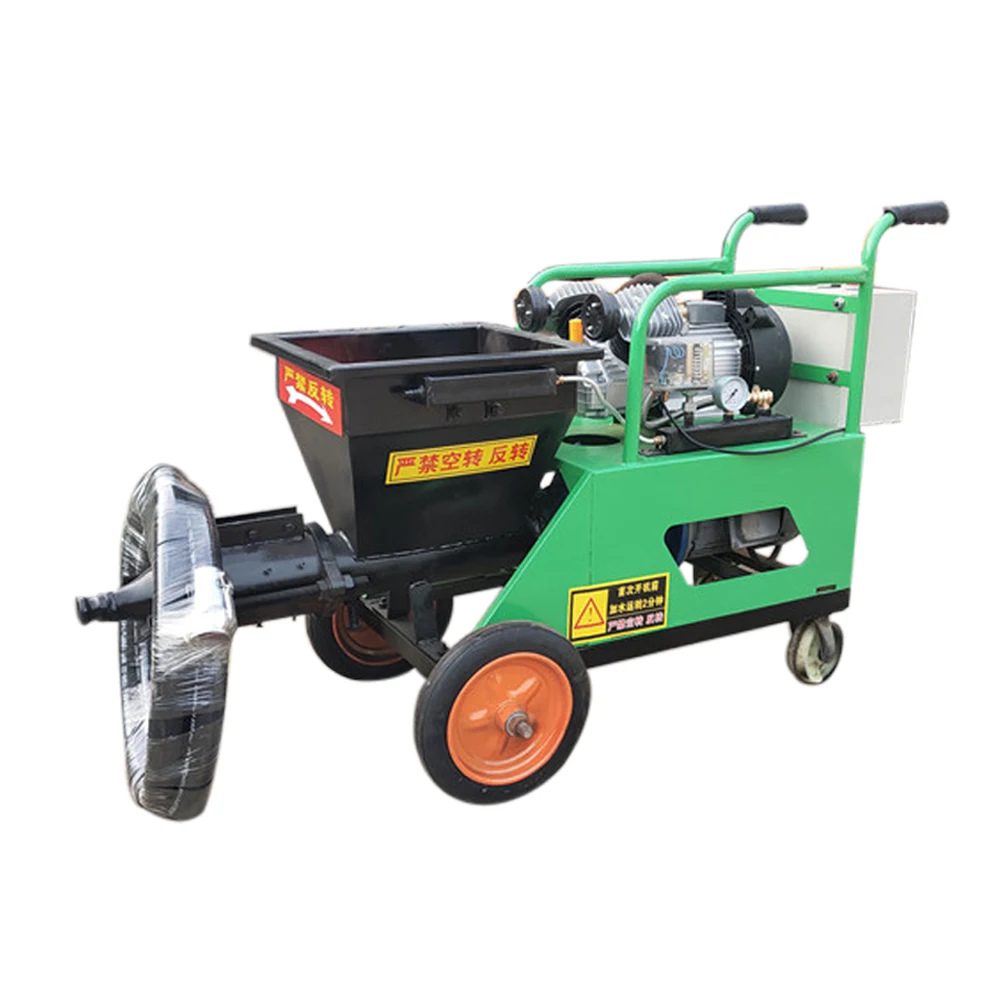

Wall Cement Plastering Mortar Spraying Machine Sand Plaster Mortar Spraying Machine For Sale



Product Description

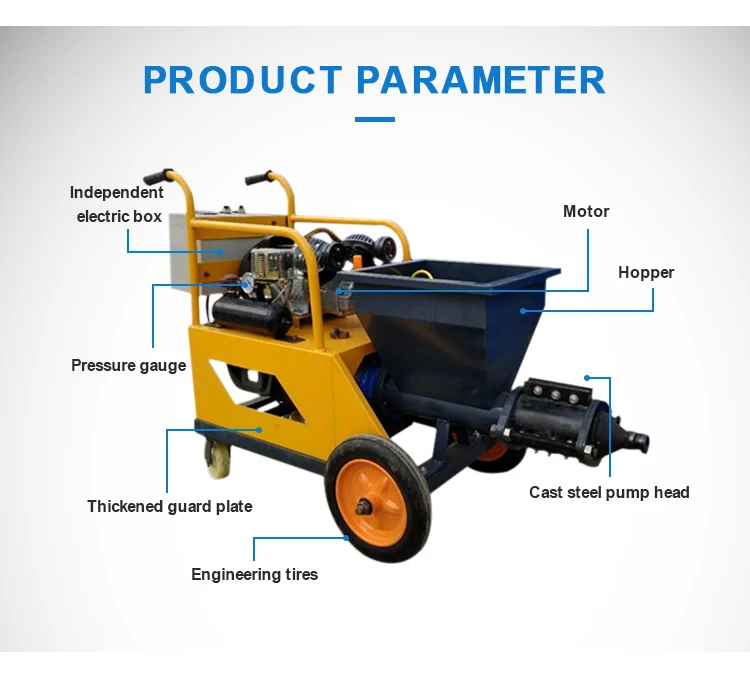

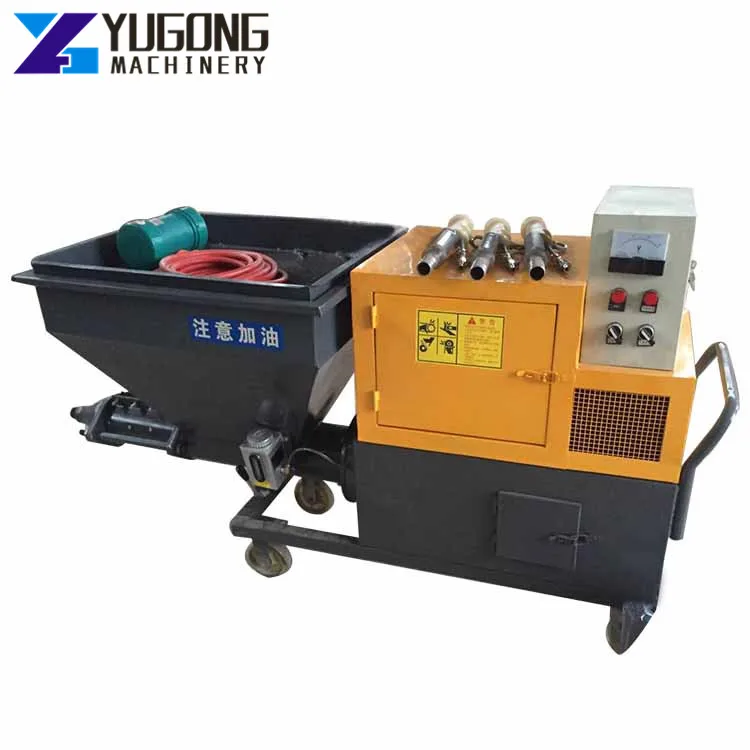

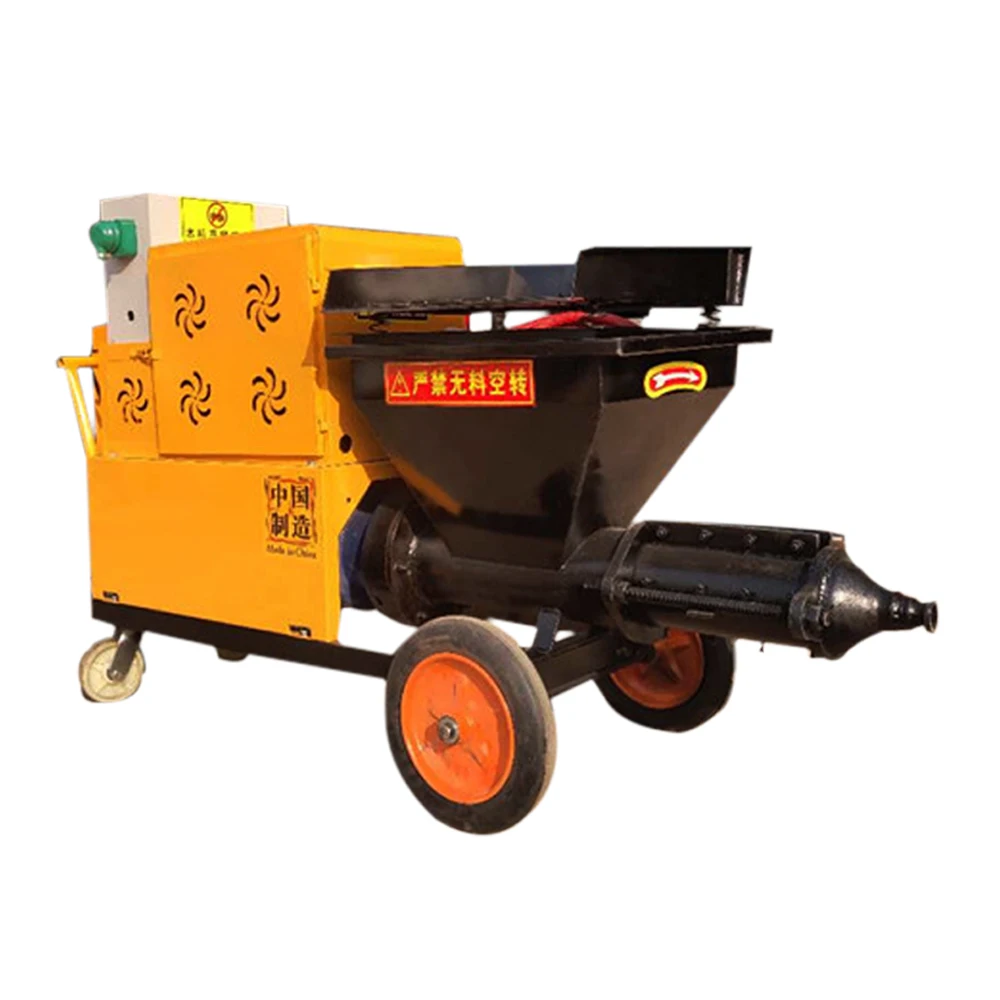

Introduction of mortar spraying machine


The cement mortar spraying machine is a high pressure screw pump mortar spraying machine.It can output uniformity flow, to overcome the existing deficiencies of uneven flow about piston pump and plunger pump.The cement mortar spraying machine is widely used in construction industry.()_02.jpg


Spraying material:
Cement, mortar, putty powder;
Paint, latex paint, powder paint;
Waterproof material, fireproof material;
Thermal insulation, sound-absorbing material,etc.

































































Type



Electric



Diesel



Out put



3m³/h



4m³/h



Power



220v-380v/7.5kw



Diesel



Pressure



3Mpa



3Mpa



Conveying tube



32mm



32mm



Max. Aggregate size



≤8mm



≤8mm



Hopper volume



80L



80L



Air consumption



0.3m³/min



0.3m³/min



Weight



320kg



320kg



Applicable material proportion



1:1:3



Conveying disance



Horizontal:50m  Vertical :30m



Horizontal:50m  Vertical :30m





Feature of mortar spraying machine
1.Screw pump,high working pressure, flow stability.
2.Pump and air compressor integration, easy to move
3.High efficiency,save material,low labor intensity.
4.Spray dry powder, mortar and ordinary mortar.
5.Uniform spraying, strong adhesion.
6.Easy to operate,work reliably,long service life.







Packaging & Shipping


()_15.jpgPackage





Package


Packing


1. The normal package is wooden box(Size: L*W*H). If export to european countries, the wooden box will be fumigated.
2. If container is too tigher,we will use pe film for packing or pack it according to customers special request.
