Product Overview

Description

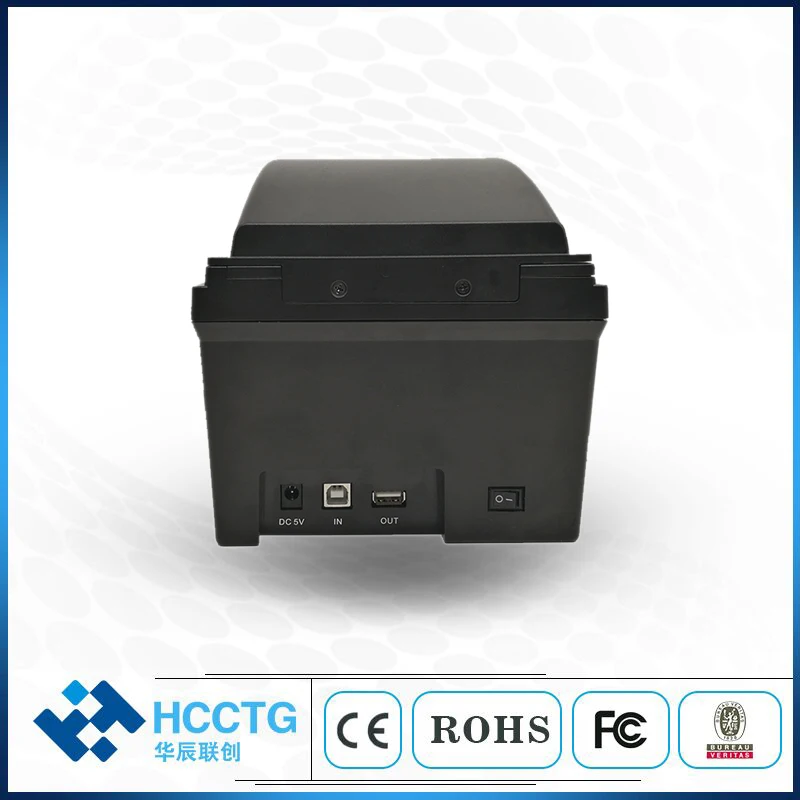

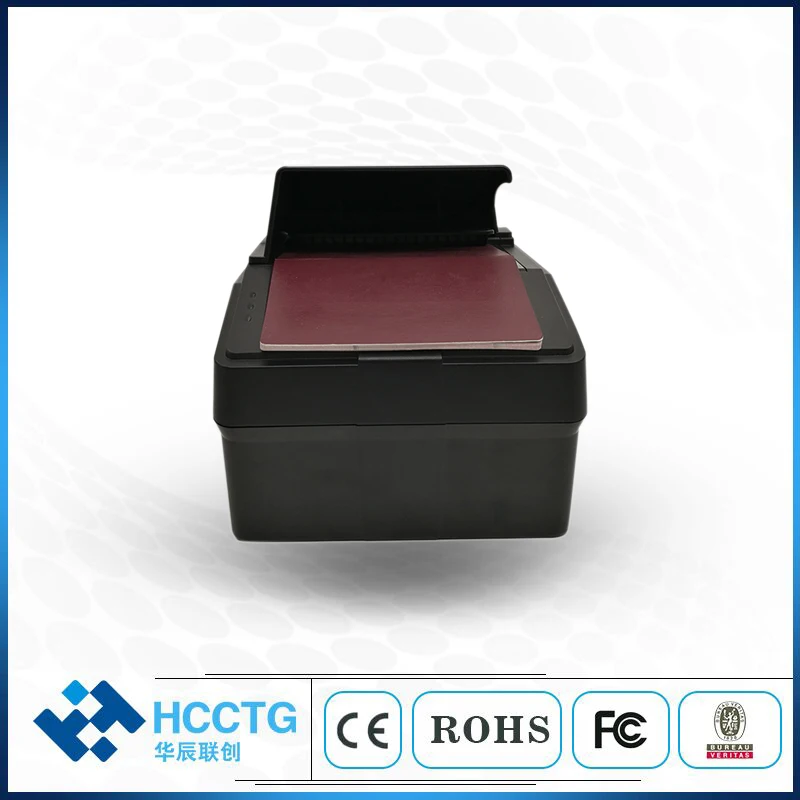

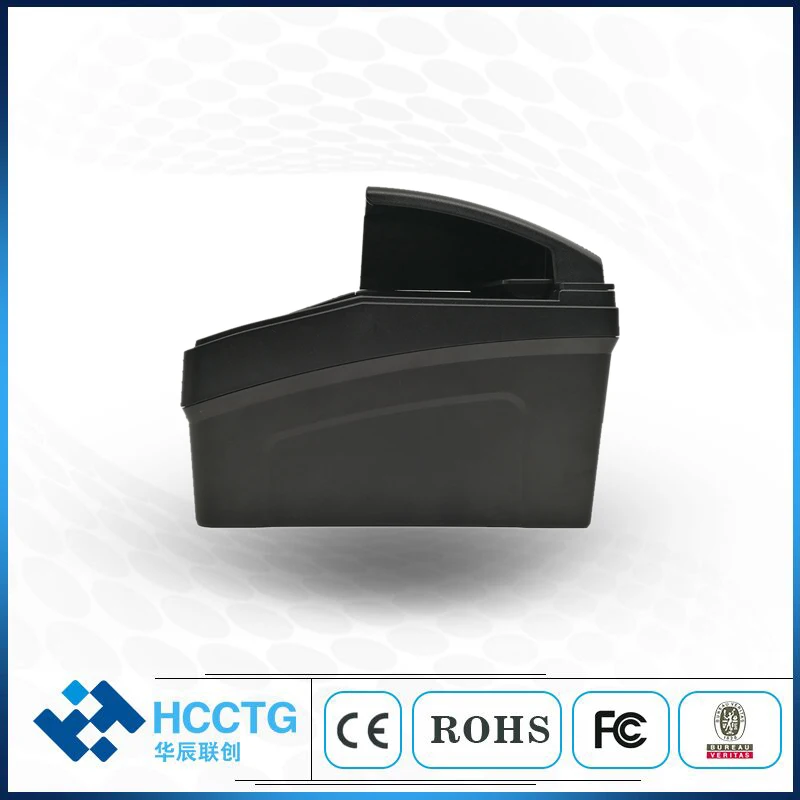

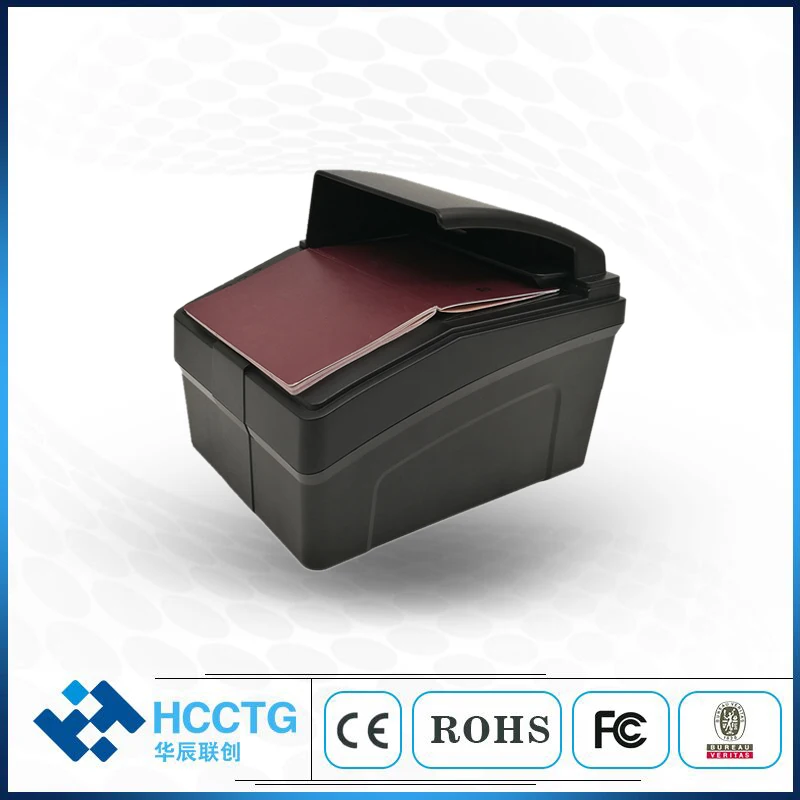

Table Rfid Contactless NFC Passport Barcode Reader PPR100

General

PPR-100A is a full-page, mufti-illumination e-Passport reader. Contactless reader. It provides perfect solutions for scanning passport, e-passport, visa and other Electronic Documents & Paper Documents, ISO14443 TYPE A/B/C & NFC smart card, which make it can be applied to variety of industries.



Features

Ø PPR-100A: Epassport Reader, with the declining platform;

Ø Support the compliance of ICAO9093 standard Part1-4 specification documents and efficient OCR recognition capabilities;

Ø High-speed RFID reader, read and write speed <3s (depending on the card);

Ø A variety of light sources-visible light, infrared light, ultraviolet light, a variety of light source image acquisition, easy to identify the authenticity of a variety of licenses;

Ø Reads 1D/2D barcodes from smart phones, tablets, smart watches and paper-based documents;

Ø Easily control: automatically trigger;

Ø Support Firmware Up gr addable, SDK offered.

Specification



Imaging	Scan area: L125mm*W92mm Sensor: 3Megapixels,CMOS, RGB 24bit Color Resolution: 400DPI With the declining platform
Illuminations	IR 860nm Visible 430-680nm UV A 365nm
Indicator	3 status indicator LED(for Power Ready and Error)
Host	Full speed USB 2.0 Power Supply 5V DC DC JK5.5
Size (L * W * H)	204*170*126mm
Weight	<1kg
Environmental	Temperature[°C]: 0 to 40 Humidity [%]: 20-80 (non- condensing)
Approvals	IP54(Dust Proof) WEEE/ROHS
Recommended Computer Configuration	CPU:2 GHz Memory: 2G DRAM Hard Disk: 100G OS: above Windows 7



Applications

Customs

Border crossings

Electronic ID

e-Passport

e-Banking

e-Commerce

Duty-Free Shop

Travel agency

Hotel

Consulate
