HK B3 Online Air Quality Monitoring System WiFi RS 485 Enabled Used for School Healthy Building Public Area Air Quality Monitor

Share on (60819147912):


Price:RUB 13,007.25

Quantity:


Product Overview

Description

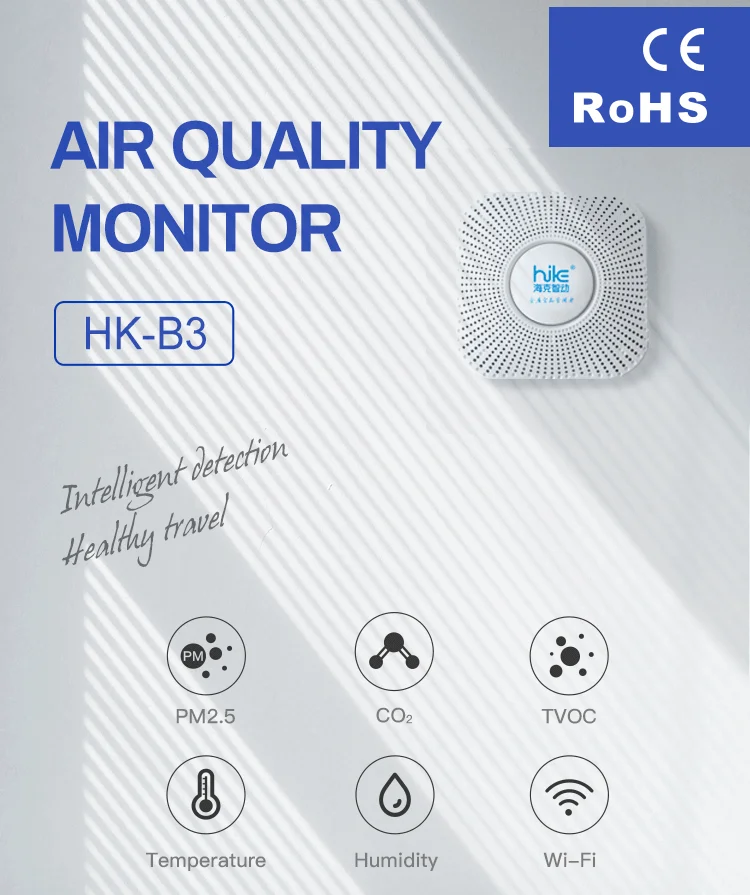

1. Industrial Air Quality Monitor (Model B3 ) is a comprehensive index of intelligent air monitoring instrument.

2. B3 can detect the air PM2.5 , temperature, humidity, carbon dioxide (CO2), TVOC

3. WiFi enabled, support user can remotely track the indoor air quality in real time through phone APP. Also support access the data via API.

4. B3 adopts RS-485 communication interface and integrates ModBus RTU protocol, which is very convenient for users to integrate the data into existing systems quickly.


Main Applications
Indoor air quality monitoring
 School classrooms

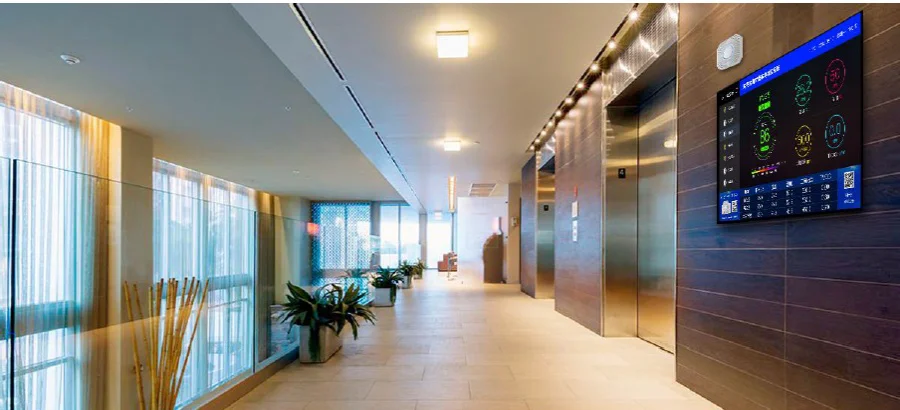

 Healthy building air quality monitoring
 Exhibition hall display
 Fitness club
Product name
Wall mount air quality monitor
Detect
PM2.5 , CO2, TVOC, Temperature Humidity
Life time
>5 years
Data display method
Phone application,  PC screen,  TV screen.
Calibration
Self calibrate.
Power supply
AC 180V~240V, DC 7~32V. ( No battery, Need power connection to use )
Working current
≤250mA
Dimension
134*134*35mm
Installation
Wall mount, easy to install
Wireless Type:
Wi-Fi 2.4GHz.       Wireless standard:  IEEE 802.11 b/g/n
Data interface:
RS-485

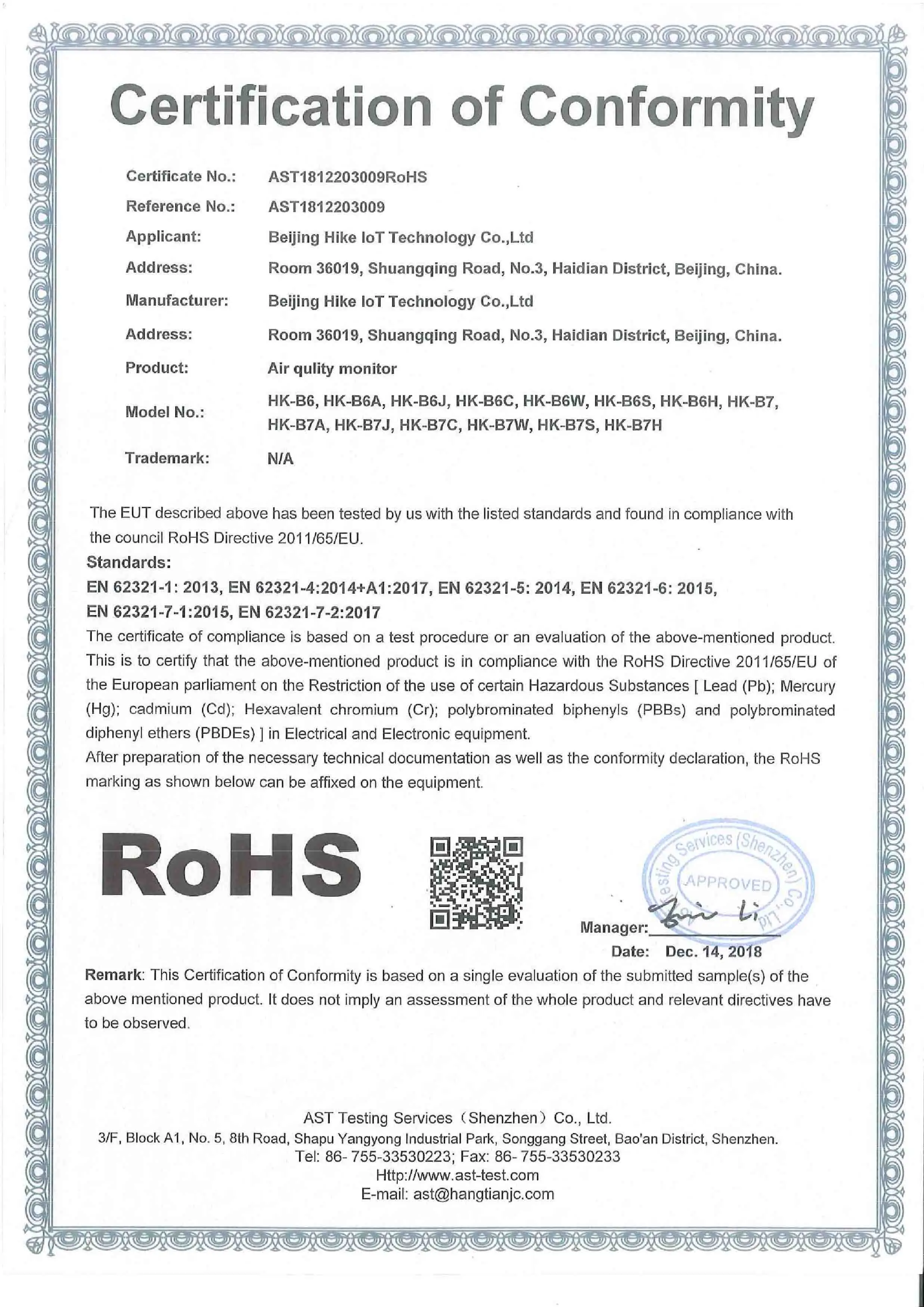

Certificates
CE, ROHS, ISO9001
Delivery
DHL, UPS, FedEx, Sea, Air. Express Shipping time 4~7 days

Product Paramenters

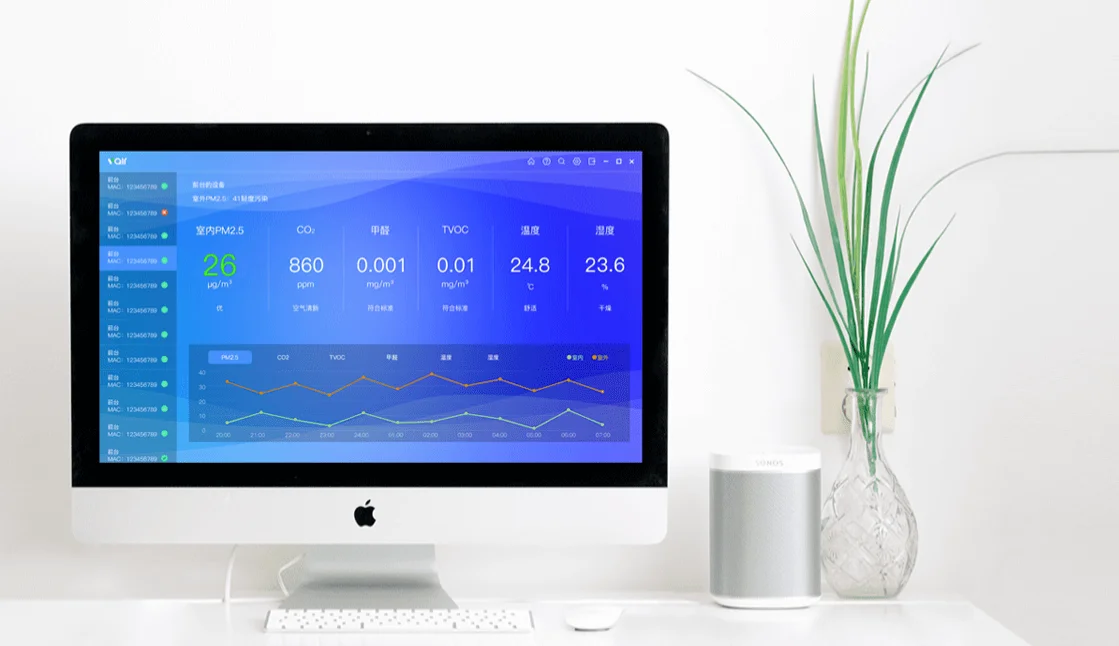

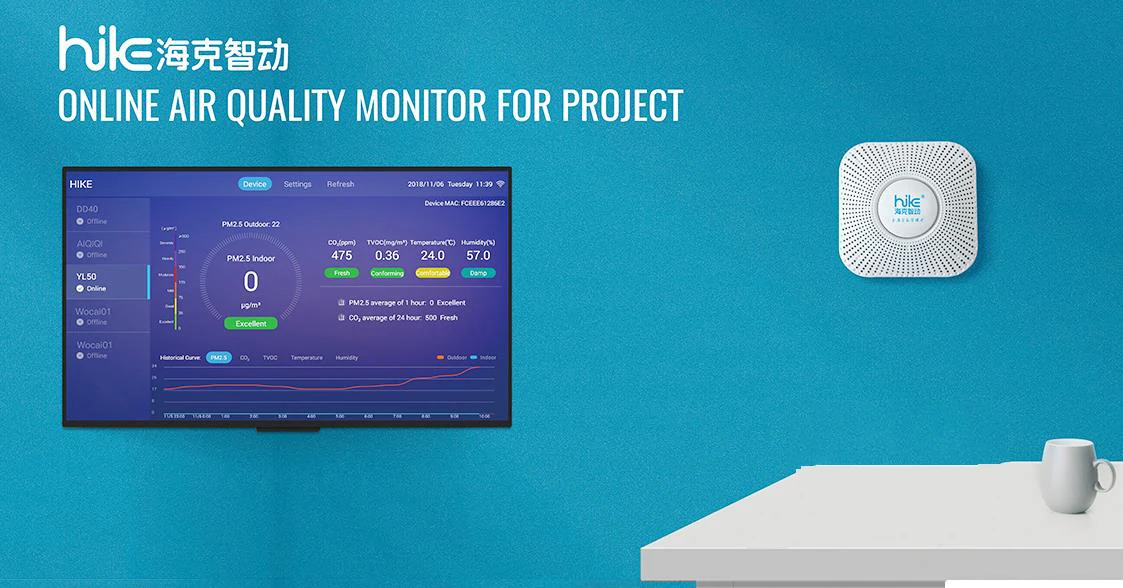

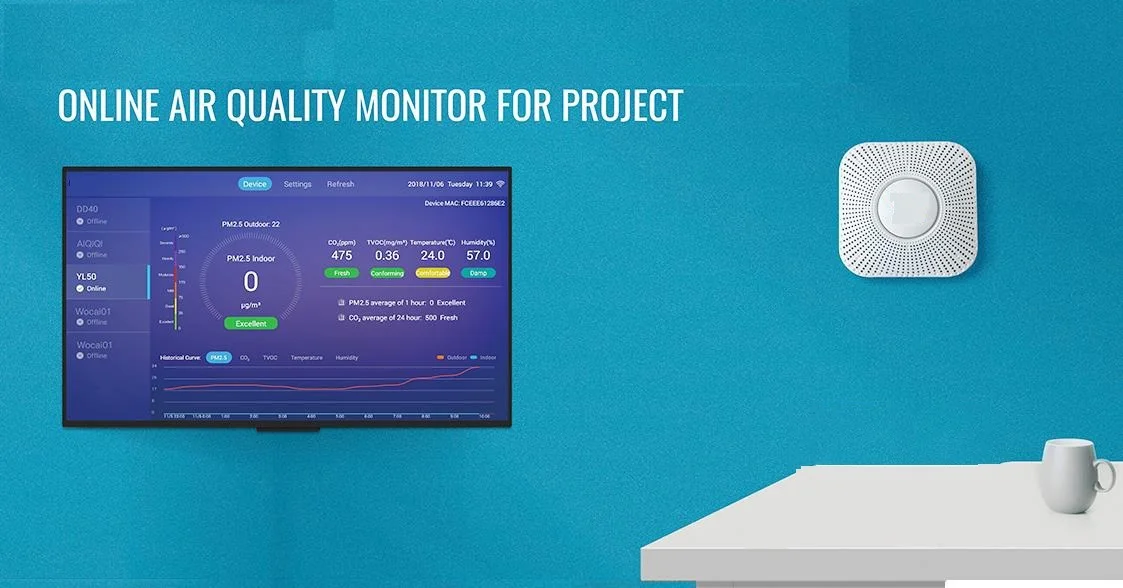

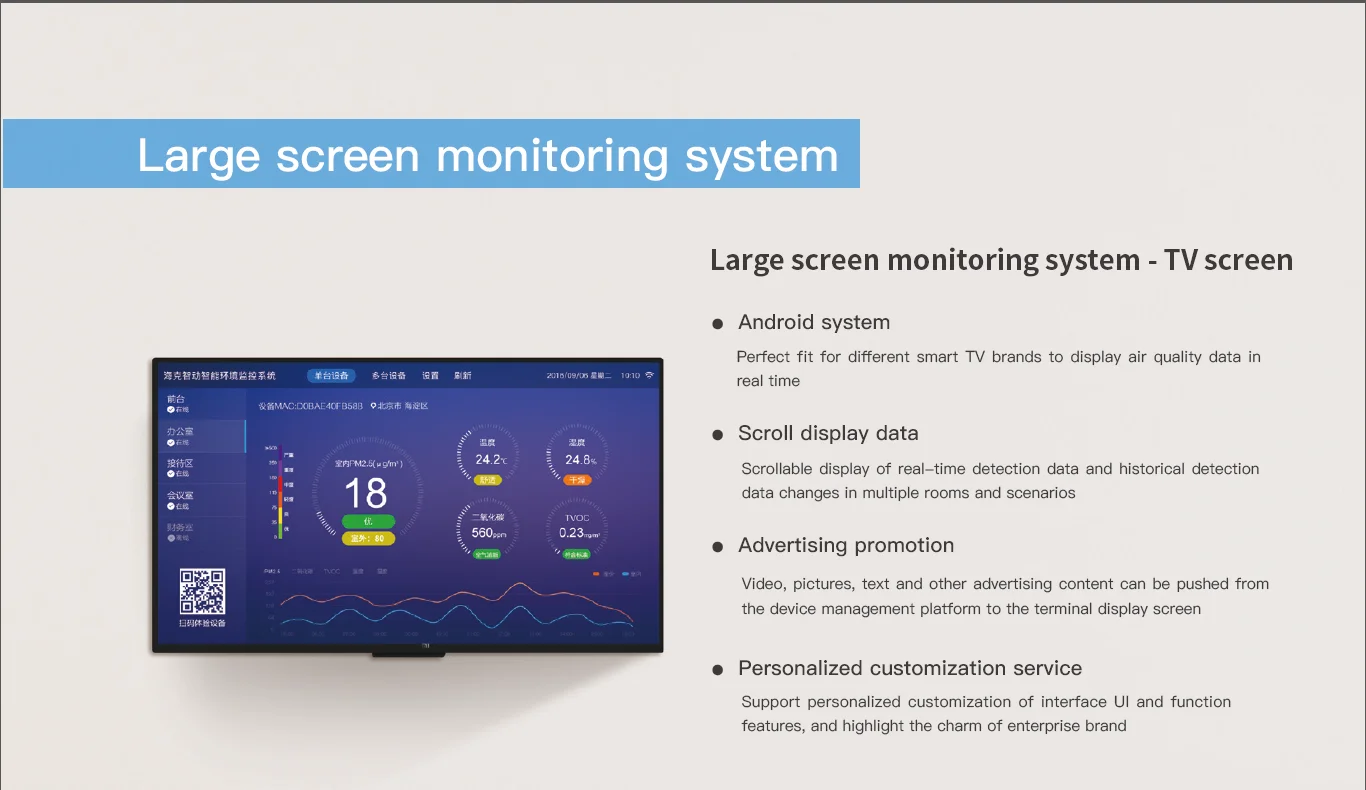

Big Screen Display
No limits of the devices quantity.

You can name for the device, and easy to distinguish the air quality in different place.

Know the air quality at glance, let you buildings looks more technical, smart.

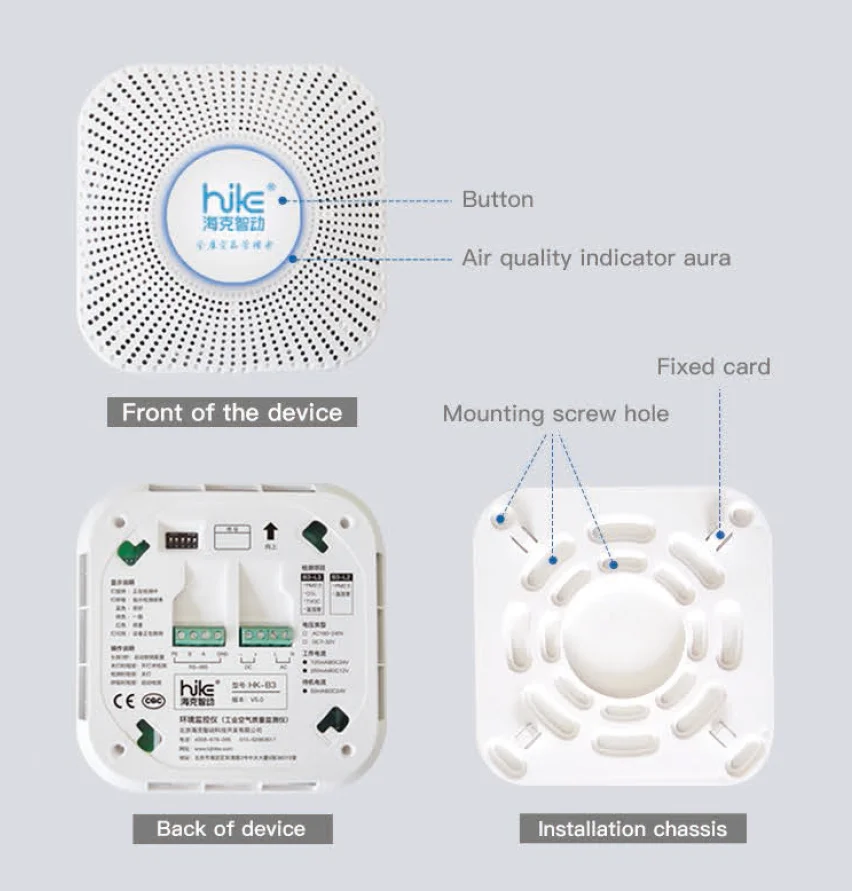

Installation Instructions

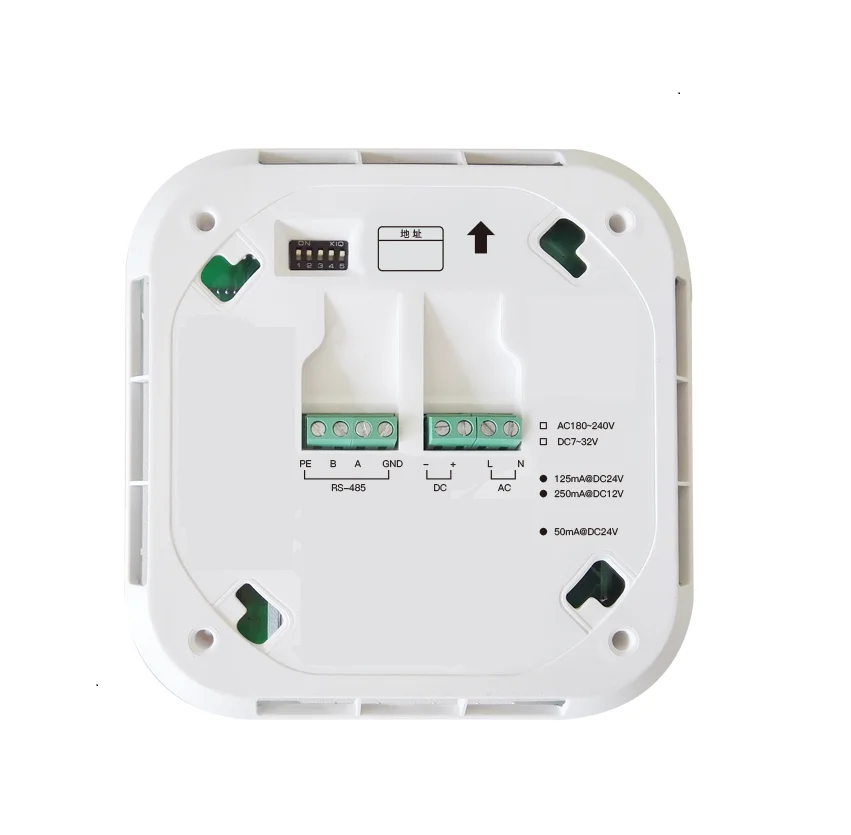

1.Firstly, use the screws to fix the mounting plate on the wall. 2. After the device is connected to the cable, fix it on the mounting plate and turn it clockwise to lock it.
Product packaging

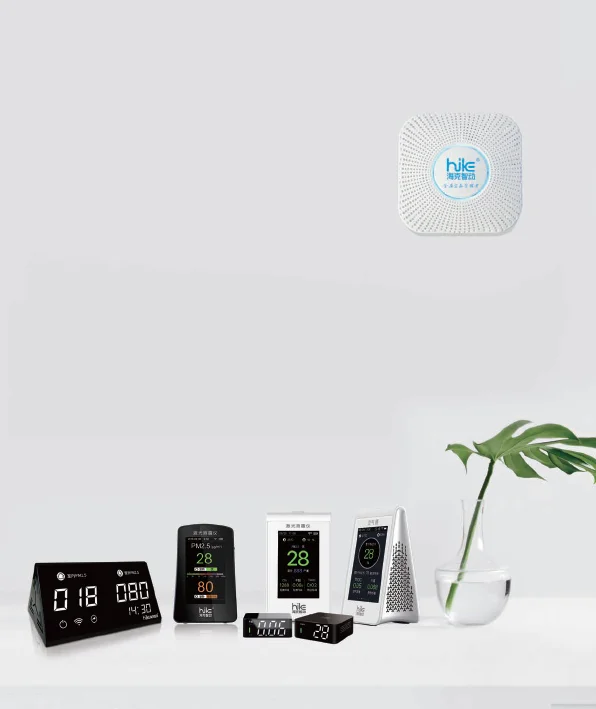

Recommend Products

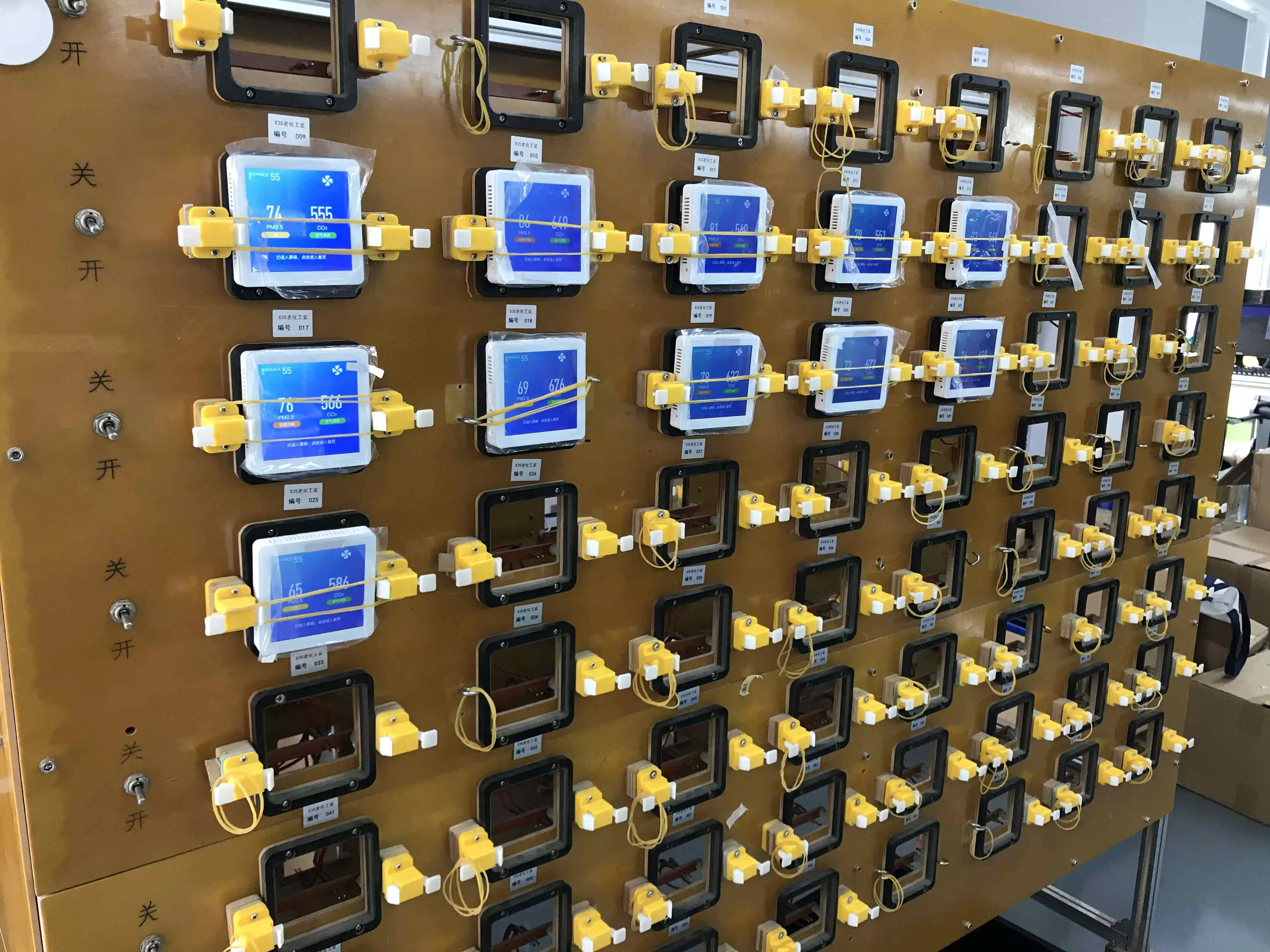

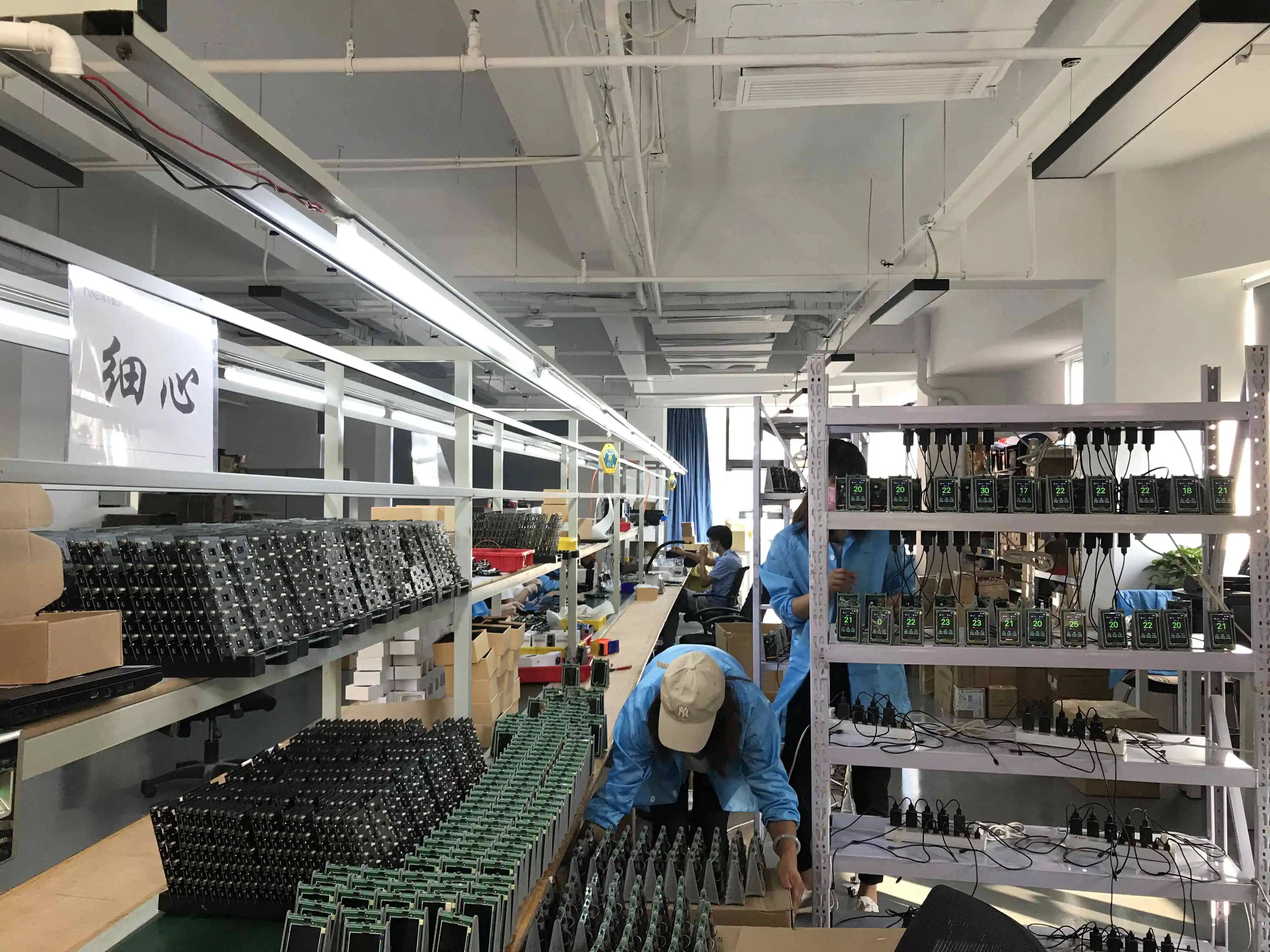

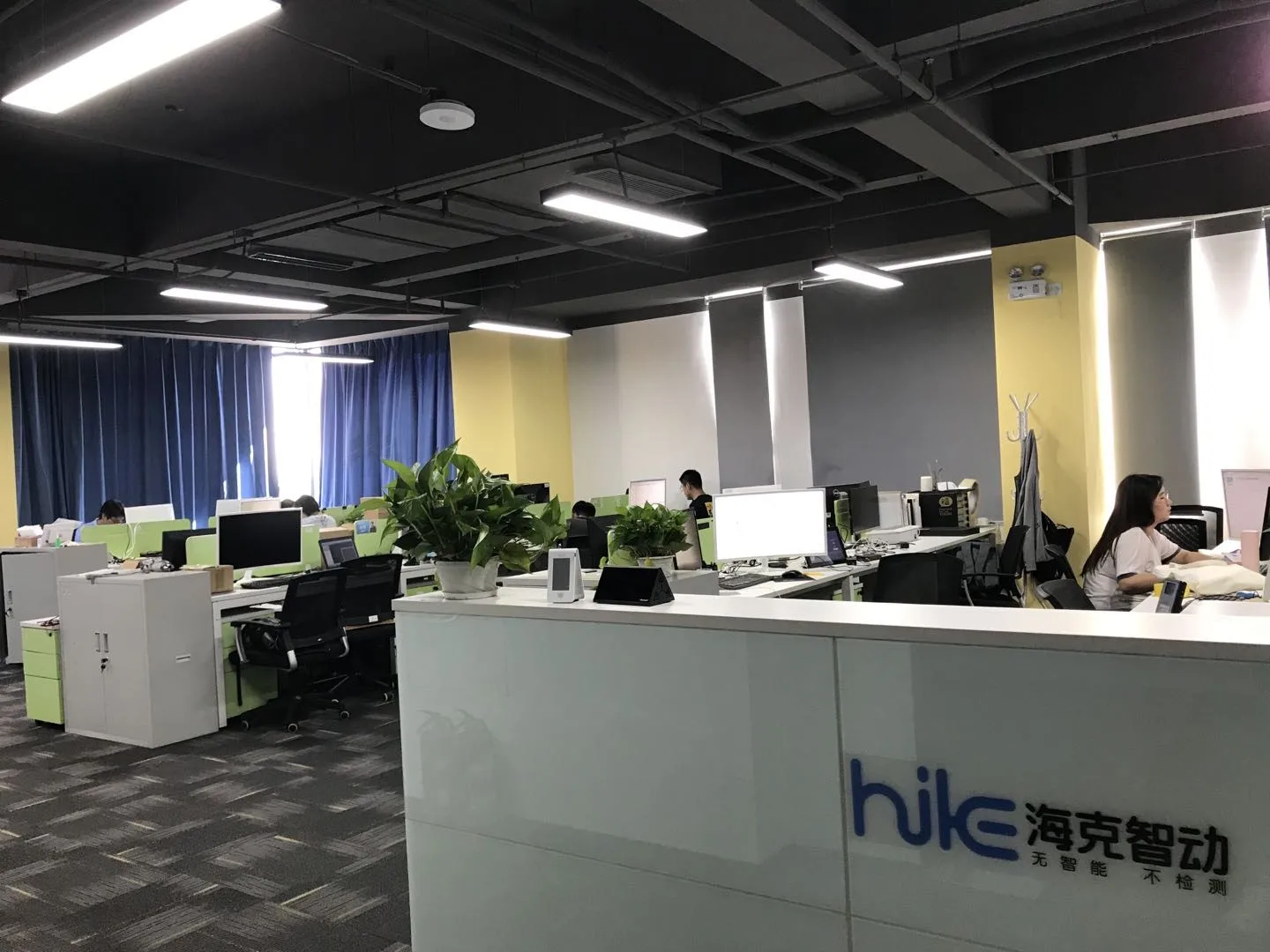

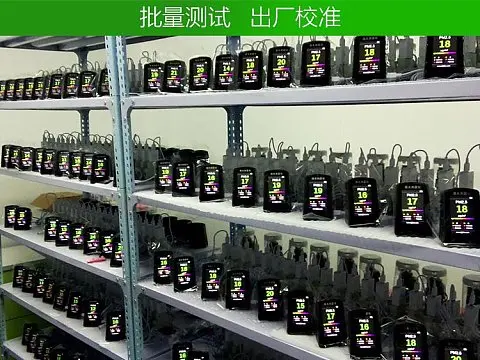

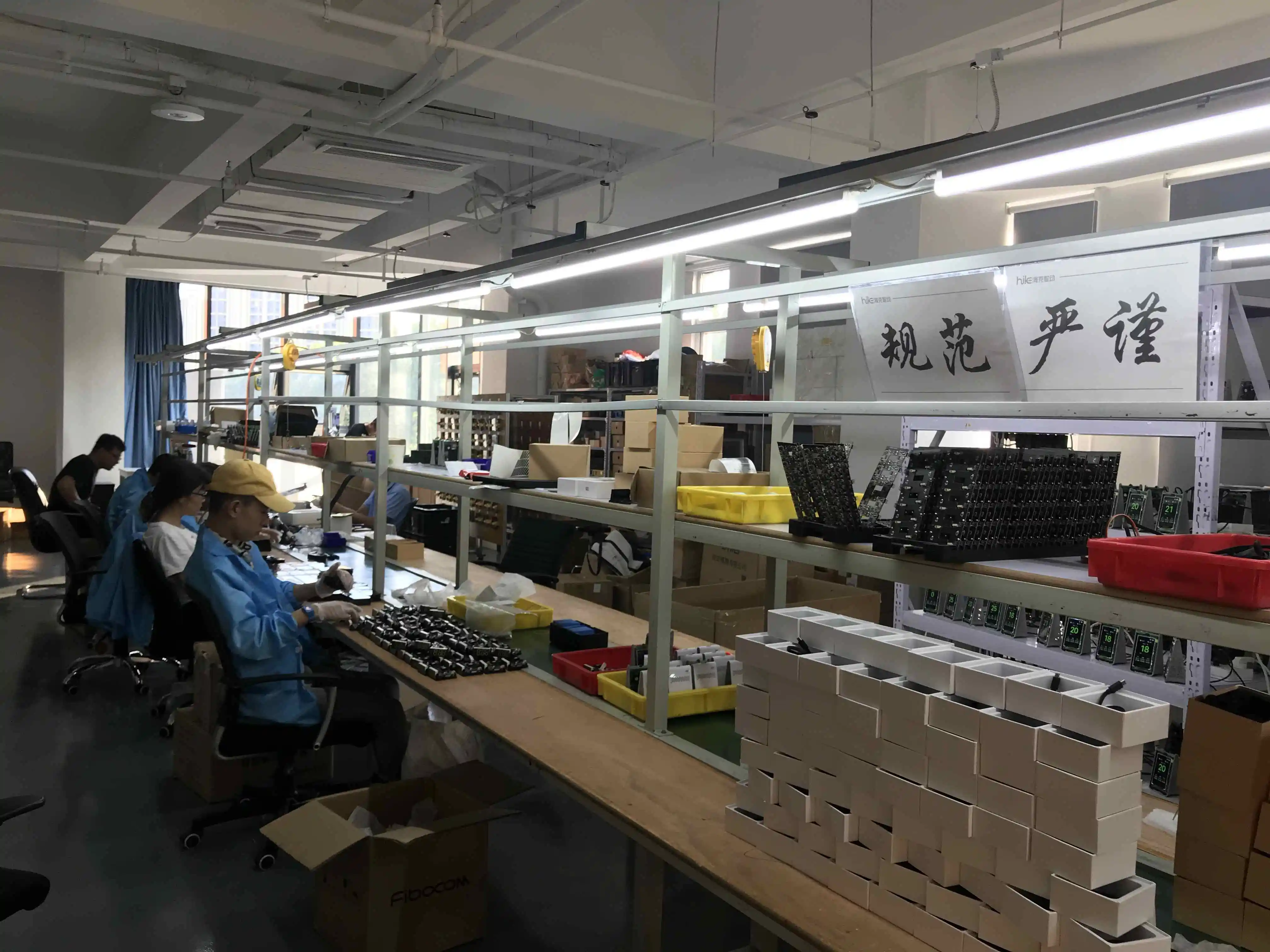

Company Profile & Certification & Factory& Exhibition

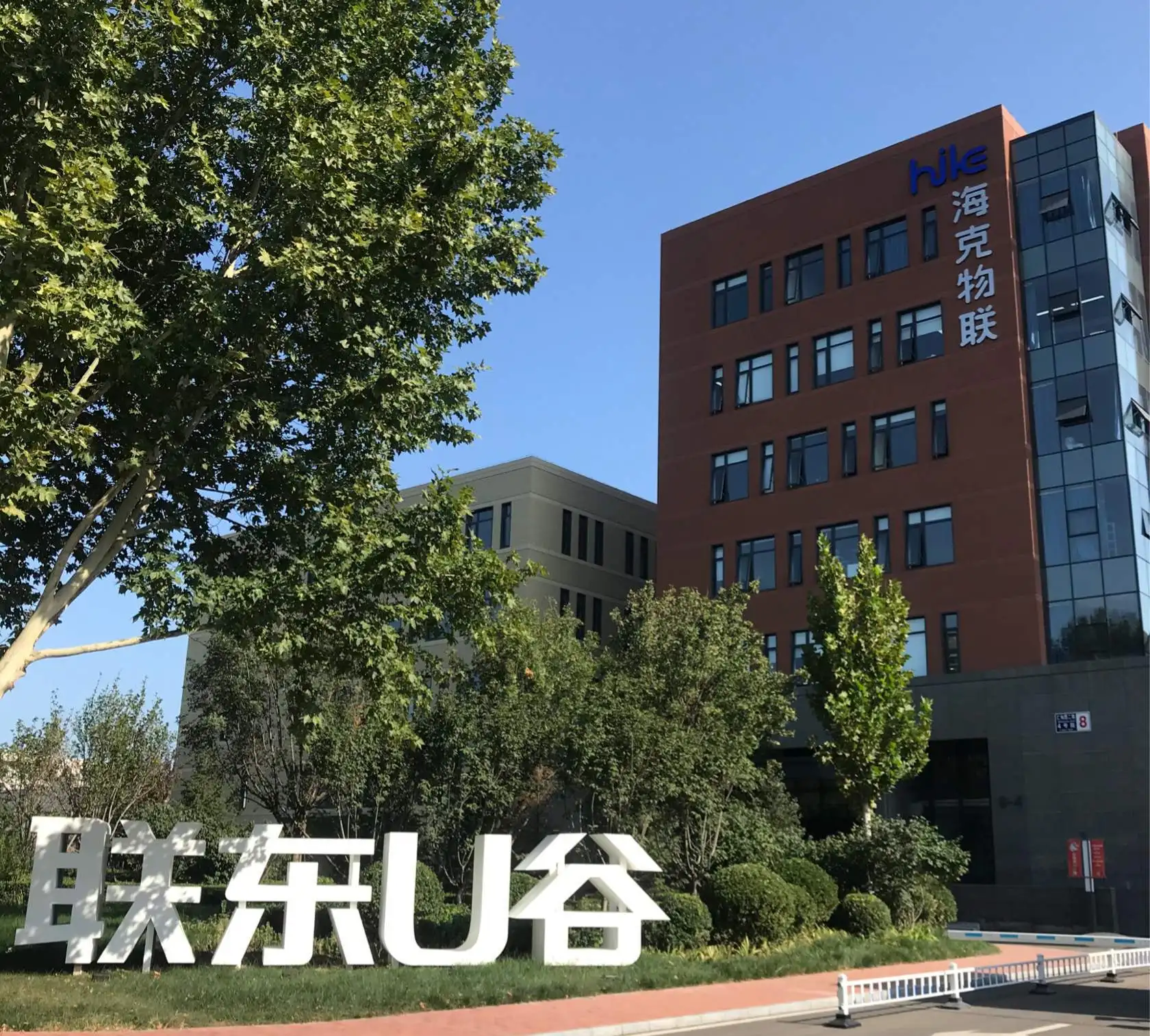

Beijing Hike IoT Technology Co., Ltd. was established in 2012 and is headquartered in Beijing, located in LianDong Science and Technology Industrial Park, own a whole office building with a total area of 1200 square meters.

Hike is a high-tech comprehensive enterprise integrating R&D, production, sales and service, our main products and services are air quality detectors and provide IoT Artificial Intelligence Control System Solutions. Hike has the world's leading PM2.5 detection core technology and rich project experience in air quality monitoring, Mobile Internet of things, cloud platform construction and intelligent management services. Meanwhile we can provide users with perfect, flexible customization solutions.

We are manufacturer, our main products: air quallity monitor, smart controller for fresh air ventilator / air purifier/ air conditioning, etc.

Most products have passed ISO9001: 2008 international quality system certification, CCC, CE, and obtained more than 30 invention or utility model patents. After years of operation, many of the company's high-quality products have been exported to more than 50 countries and regions in the world.

We welcome:
OEM/ ODM order,
Distributor,
Small MOQ.

Contact:
Wechat & WhatsApp:+8617611399161
