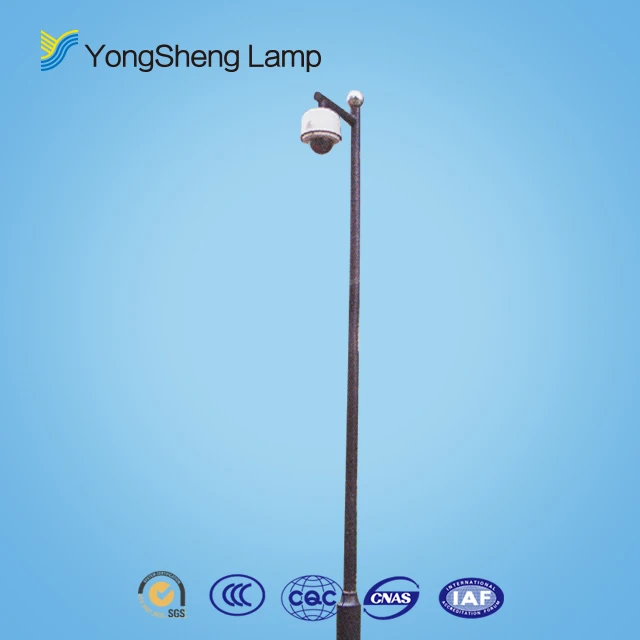

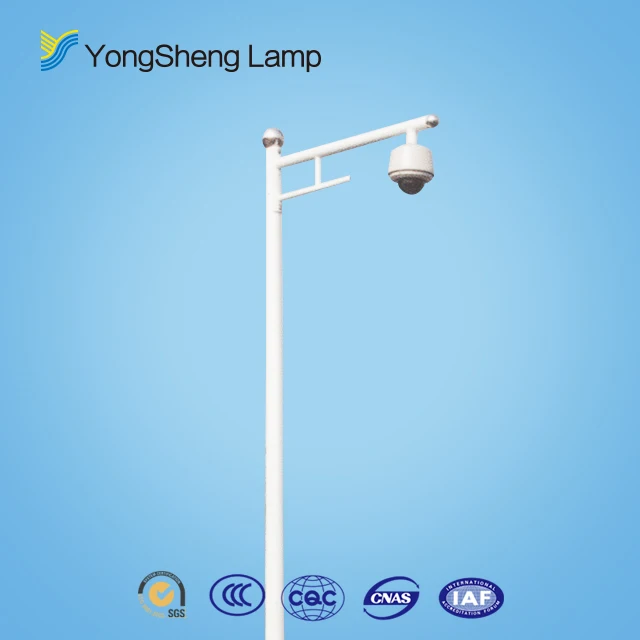

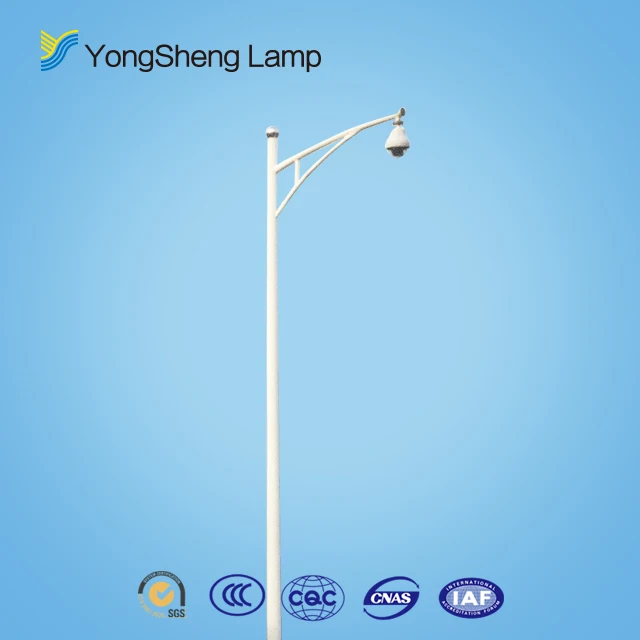

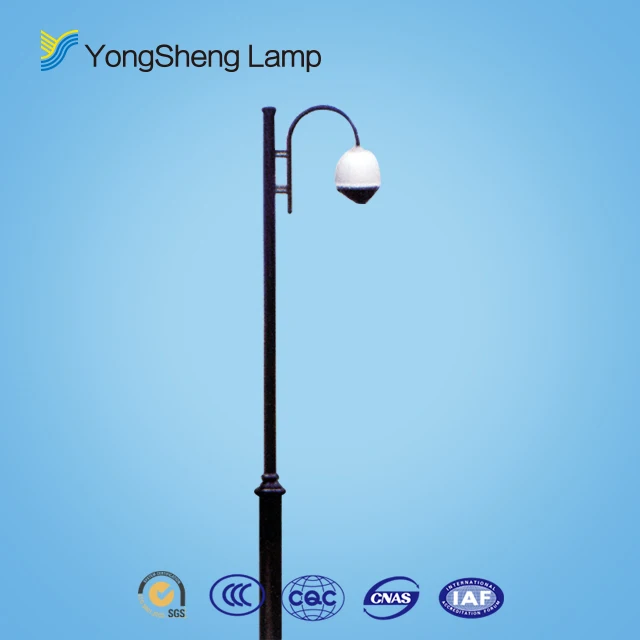

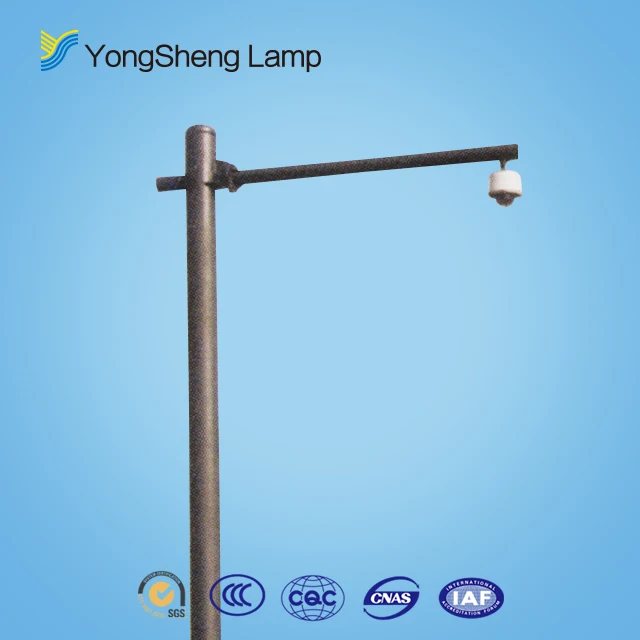

6.0M 6 meter Camera Pole Fixed Cylindrical/galvanized Monitor Light Pole
- Category: >>>
- Supplier: Shijiazhuang Economic And Technological Development Zone Yongsheng Lamp Manufacturing Co. Ltd.
Share on (60819237474):
Product Overview
Description
Monitor rod size comparison table
Pole height (m) | Lower caliber (mm) | Upper caliber (mm) | Wall thickness (mm) | arm (m) | Lower calibe r(mm) | Upper caliber (mm) | Wall thickness (mm | weight (kg) | Chassis size (mm) | Foundation size (mm) |
| 6~6.5 | 240 | 180 | 3.75 | 2 | 140 | 90 | 3.0 | 173 | 400x400x16 | 700x700x1000 |
| 6~6.5 | 240 | 180 | 3.75 | 3 | 140 | 90 | 3.0 | 182 | 400x400x16 | 700x700x1000 |
| 6~6.5 | 240 | 180 | 3.75 | 4 | 140 | 90 | 3.0 | 190 | 400x400x16 | 700x700x1000 |
| 6~6.5 | 240 | 180 | 3.75 | 5 | 140 | 90 | 3.0 | 200 | 400x400x16 | 700x700x1000 |
| 6~6.5 | 300 | 200 | 5.5 | 6 | 180 | 110 | 3.75 | 374 | φ600x18 | 800x800x1200 |
| 6~6.5 | 300 | 200 | 5.5 | 7 | 180 | 110 | 3.75 | 386 | φ600x18 | 800x800x1200 |
| 6~6.5 | 300 | 200 | 5.5 | 8 | 180 | 110 | 3.75 | 399 | φ600x18 | 1000x1000x1200 |
| 6~6.5 | 300 | 200 | 7.5 | 9 | 180 | 110 | 3.75 | 412 | φ600x18 | 1000x1000x1200 |
| 6~6.5 | 320 | 280 | 7.5 | 10 | 200 | 100 | 4.75 | 618 | φ600x20 | 1000x1000x1500 |
| 6~6.5 | 320 | 280 | 7.5 | 11 | 200 | 100 | 4.75 | 635 | φ600x20 | 1000x1000x1500 |
| 6~6.5 | 320 | 280 | 7.5 | 12 | 200 | 100 | 4.75 | 651 | φ600x20 | 1000x1000x1500 |
| 6~6.5 | 360 | 300 | 7.5 | 13 | 280 | 100 | 5.75+3.75 | 840 | φ650x20 | 1200x1200x2000 |
| 6~6.5 | 360 | 300 | 7.5 | 14 | 280 | 100 | 5.75+3.75 | 862 | φ650x20 | 1200x1200x2000 |
| 6~6.5 | 360 | 300 | 7.5 | 15 | 280 | 100 | 5.75+3.75 | 885 | φ650x20 | 1200x1200x2000 |
| 6~6.5 | 360 | 300 | 7.5 | 16 | 280 | 100 | 5.75+3.75 | 907 | φ650x20 | 1200x1200x2000 |
Product Description
The monitoring rod series are divided into: octagonal monitoring rod, round tube monitoring rod, equal diameter monitoring rod, variable diameter monitoring rod, cone monitoring rod,
The height is generally 3-8 meters, mainly for traffic roads, intersections, schools, government, communities, factories, border defenses, airports, etc. where surveillance cameras are required.
The use of monitoring facilities: improving urban safety and prevention, is an effective guarantee for residents' lives
The monitoring rod is divided into a vertical pole, a cross arm, a flange, a service port, and an accessory according to the structure.

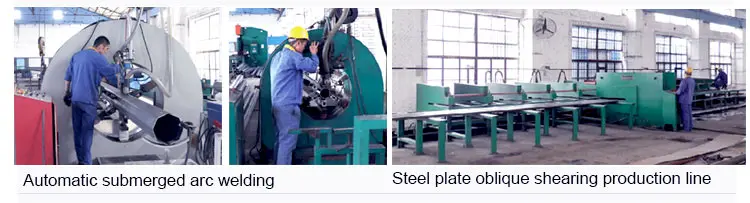

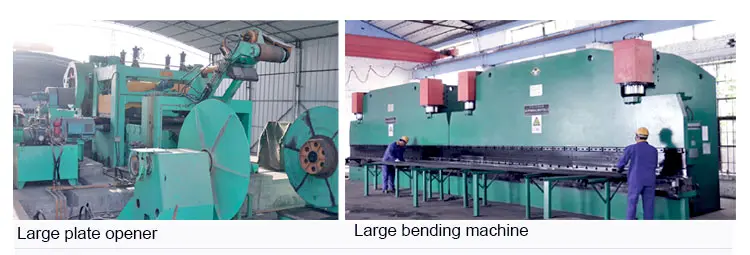

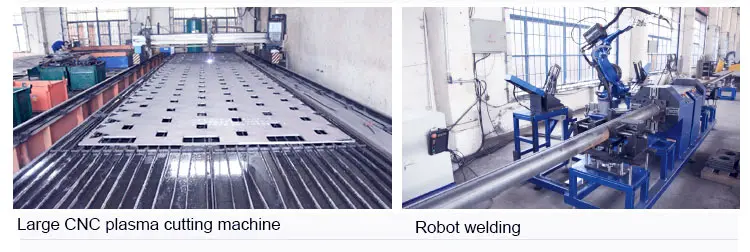

Monitor rod making equipment
The company has a full set of monitoring rod production equipment
After 30 years of development, Yongsheng Company has built nearly 50,000 square meters of production office space, with large-scale production such as opening machine, shearing machine, bending machine and automatic submerged arc welding.
equipment. In 2017, the company responded to national policies and invested heavily in increasing the intelligent production of laser cutting machines, laser cutting machines, robot welding, and large cyclone dust spraying.
Equipment has greatly improved the company's production capacity. Yongsheng has the strength to design and produce various outdoor lamps and LED energy-saving lamps.
