500 тонн 4 колонны гидравлический пресс Металл штамповки глубокой вытяжки машина

Product Overview

Description

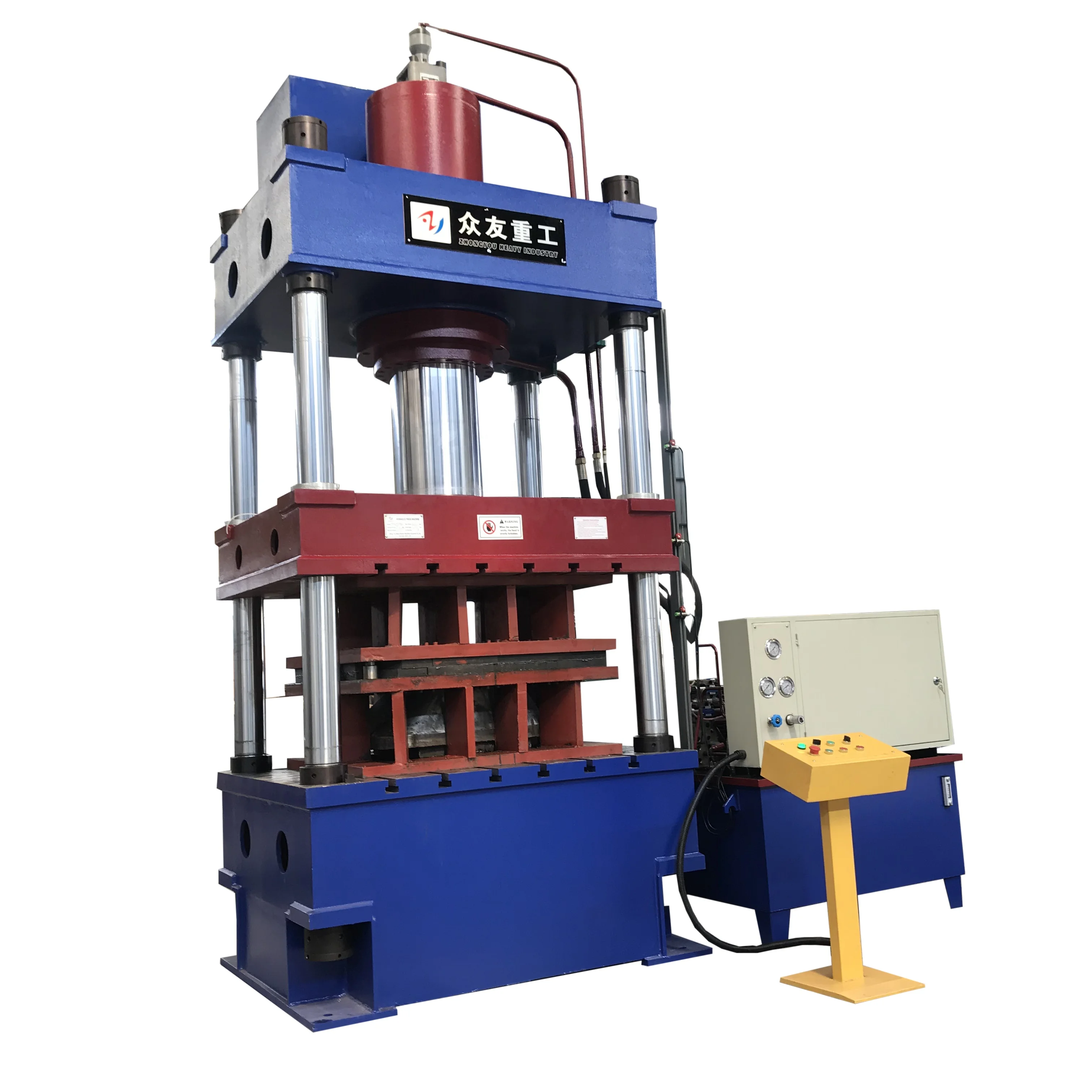

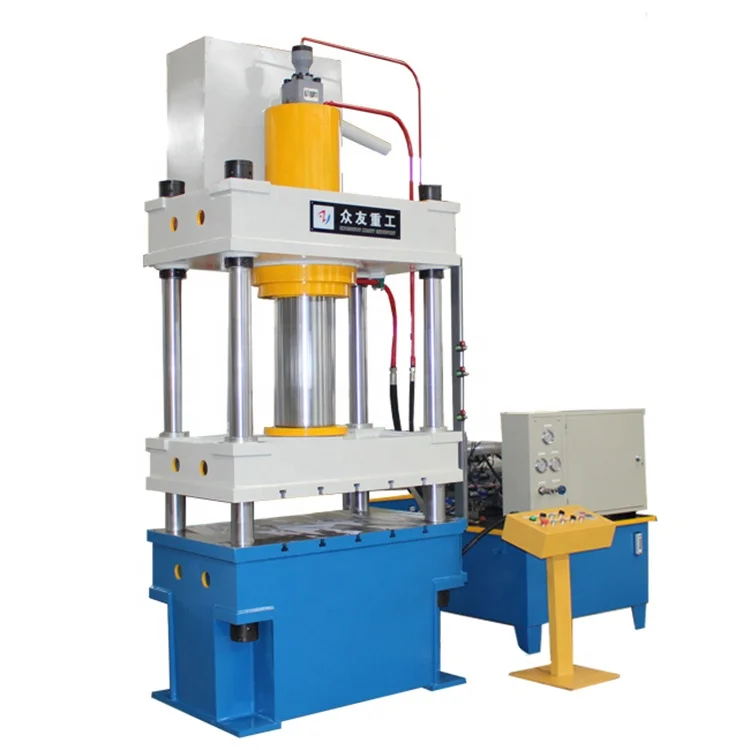

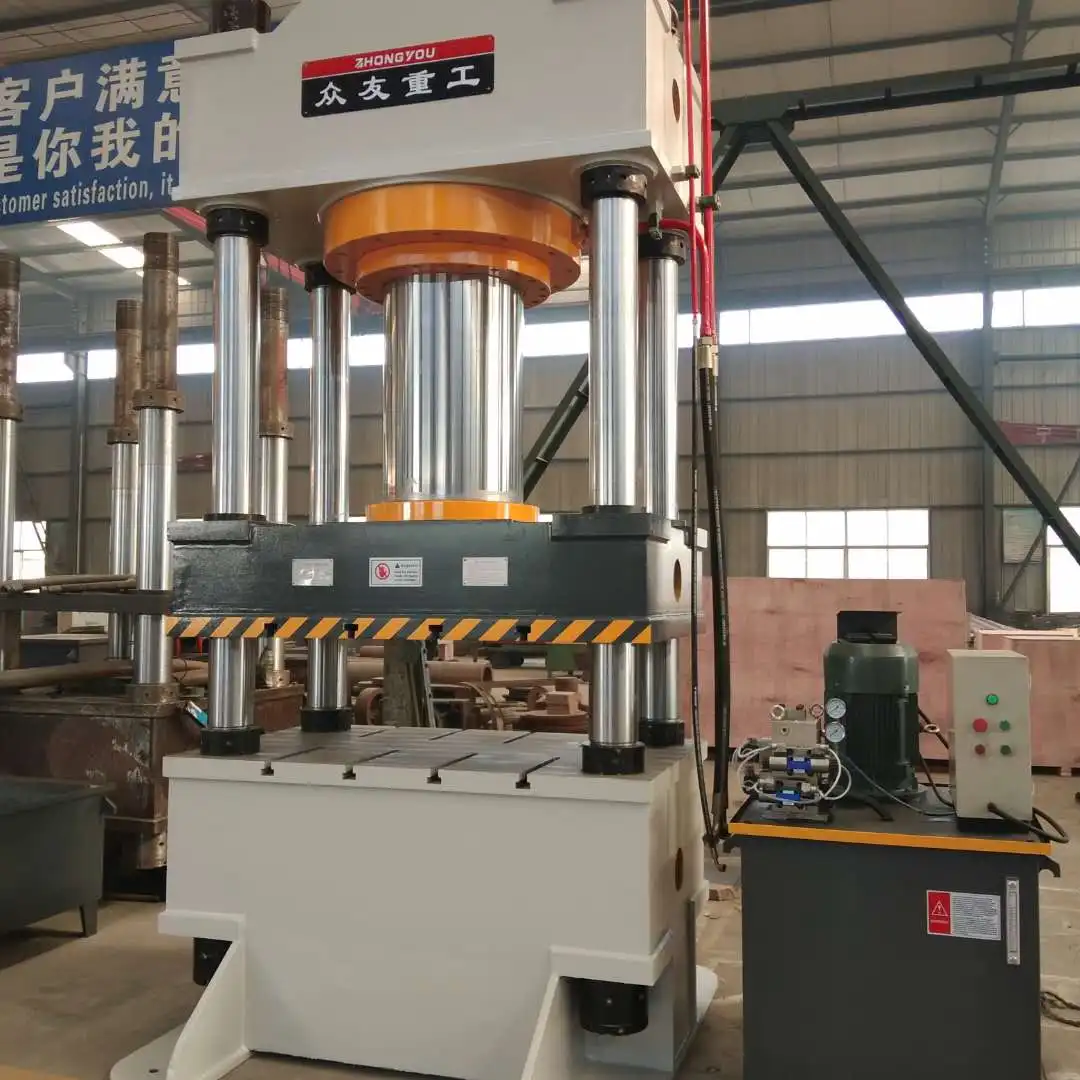

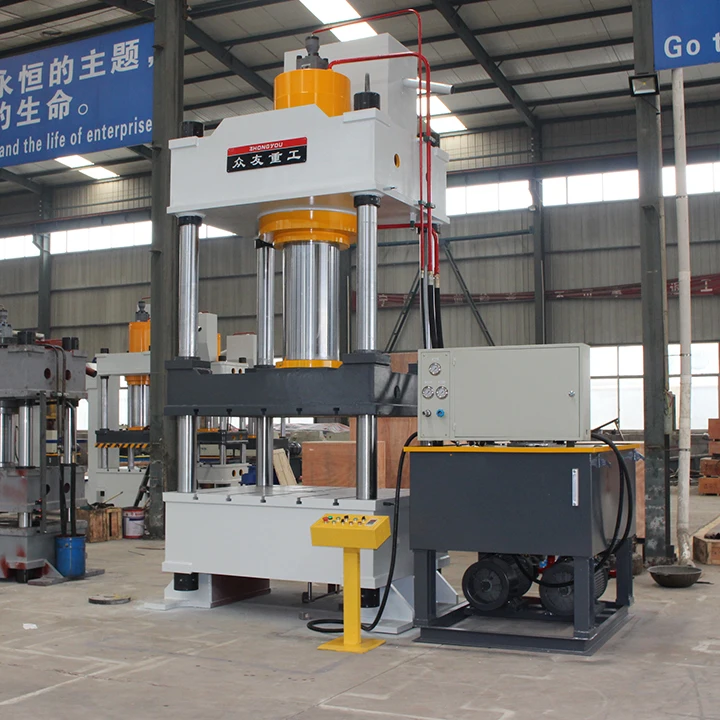

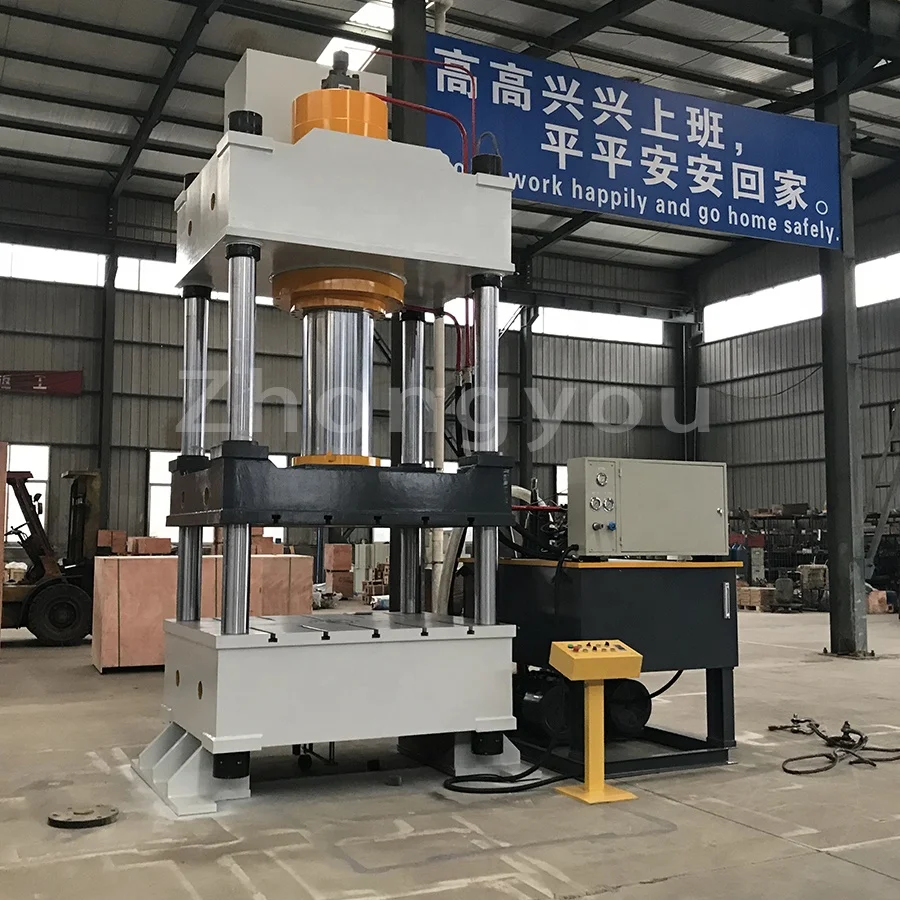

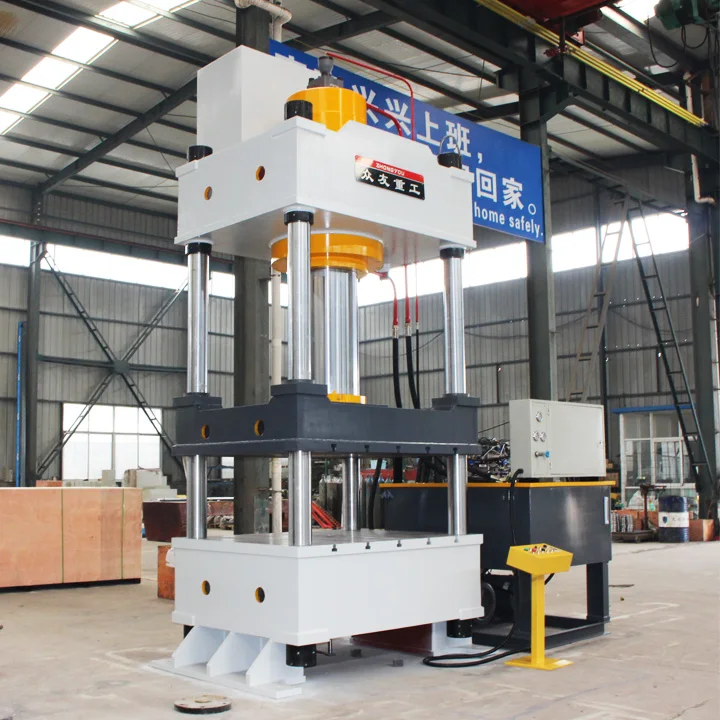

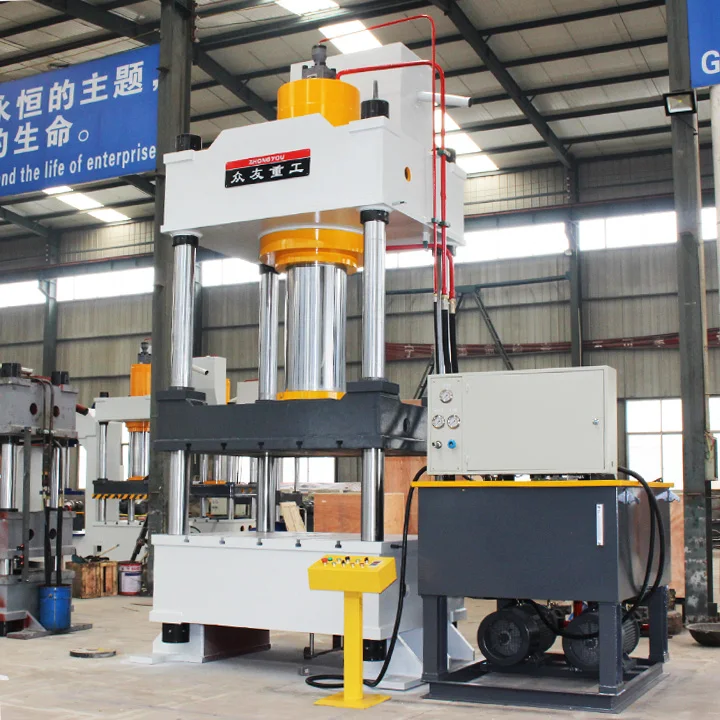

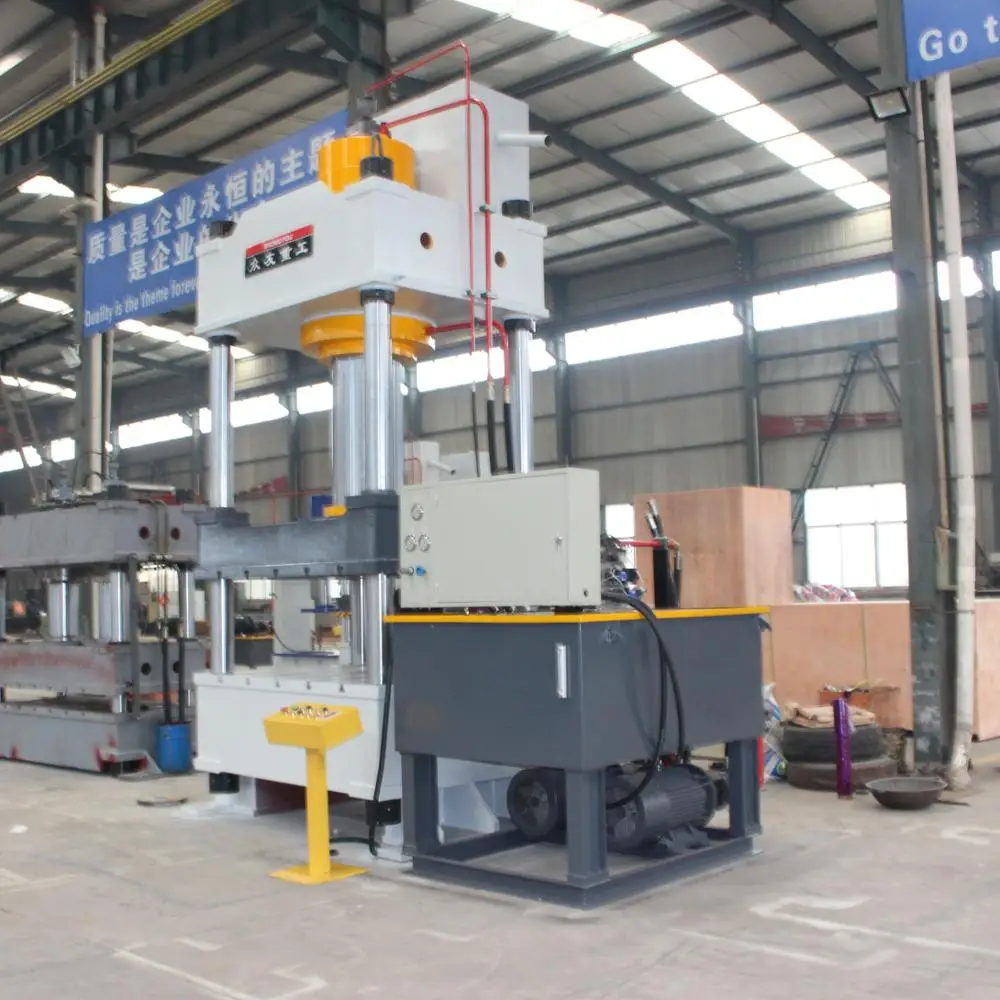

500 tons 4 columns hydraulic press metal stamping deep drawing machine







Y32 Series 500 tons Four-Column Hydraulic Press is one of the new generation of plate process.Three-beam and four-pole structure design for large operating spaces - suitable for sheet metal forming, punching, bending,straightening and multi-press assemblies to form automatic production line







Parameters	Unit	YQ32-200B	YQ32-250	YQ32-315A	YQ32-315B	YQ32-400	YQ32-500
Nominal Force	KN	2000	2500	3150	3150	4000	5000
System Pressure	Mpa	25	25	25	25	25	25
Max. Opening Height	mm	1200	1200	1250	1250	1250	1500
Slider Effective Stroke	mm	700	700	800	800	800	900
Effective Worktable Size (L.R×F.B)	mm	1000×1000	800×800	1260×1160	1000×1100	1260×1160	1400×1400
Slider Descending Speed	mm/s	100	100	120	120	120	150
Slider Pressing Speed	mm/s	5-10	5-10	8-15	8-15	8-15	10-22
Slider Return Speed	mm/s	90	90	90	90	90	120





 Main features of 500 tons hydraulic press:

1.The three-beam four-column structure is economical and practical.

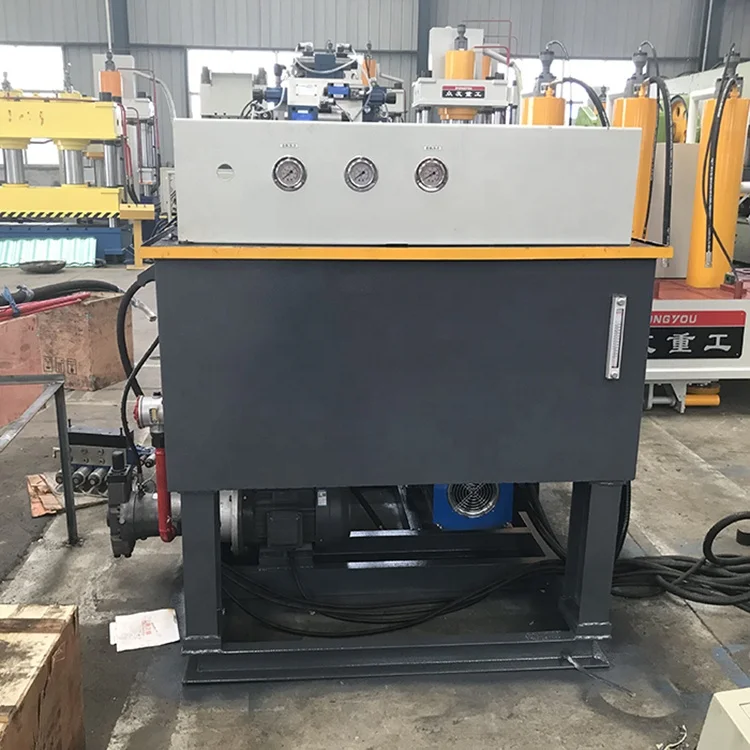

2. The hydraulic control adopts an integrated cartridge valve integrated system, which reduces leakage points, ensures reliable operation and long service life.

3. The machine can realize two molding processes of constant pressure and fixed stroke, and has the function of holding pressure delay, and the delay time is adjustable.

4. The working pressure and stroke can be adjusted within the specified range.

5. It adopts button centralized control and has three operation modes: adjustment, manual and semi-automatic.

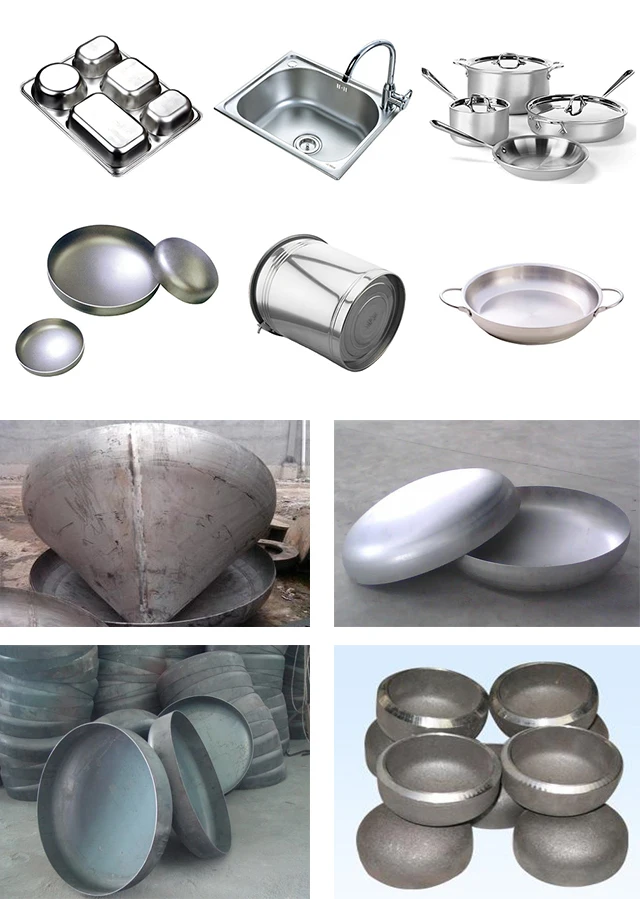

The hydraulic press machine 500 ton is mainly used for the process of stretching, bending and forming of thin plates, and can also be used for plastic pressing, cold extrusion bending, forming correction and press fitting.

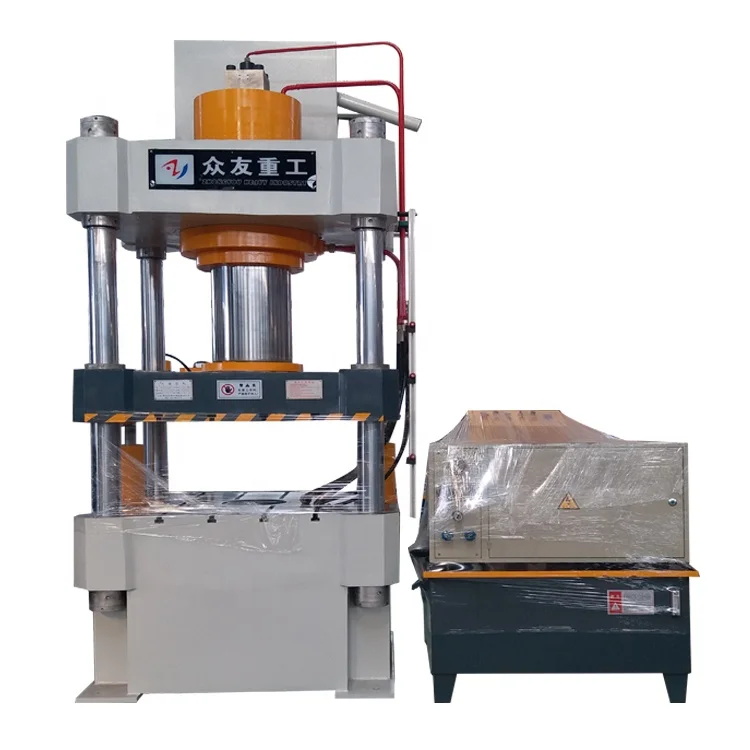

Internal plastic moisture-proof anti-rust packaging,
External wooden packaging,
Exclusive container transport.
Delivery Time for 500 ton 4 Column Hydraulic Press Machine for Oil Filter:
Shipped in 30 days after payment



Zhongyou Heavy Industry Machinery Equipment Co.,Ltd is professional manufacturer of various hydraulic press machines in Tengzhou City,Shandong Province,China.Established in 2006,we have been a famous China brand in domestic and overseas with 13 years experience of only producing hydraulic presses.



Pre-sales Service

1. Inquiry and consulting support
2. Sample testing support
3. Recommend the most suitable machine according to customer's purpose
4. Factory visiting welcomed

After-sales Service
1. Training how to install the machine
2. Training how to use the machine
3. Warranty 1 year
4. Engineers available to service machinery oversea
