YHCHEM 6 inch continuous working wiped thin film molecular evaporator with only 2 weeks fast delivery
- Category: Evaporator >>>
- Supplier: Shanghai Yuanhuai Industrial Co. Ltd.
Share on (60823654599):
Product Overview
Description
Product Description
Vacuum wiped thin film molecular evaporator
YHCHEM vacuum wiped thin film molecular evaporator, it is a process of separation, purification and concentration of natural products, complex and thermally sensitive molecules for example vitamins and polyunsaturated fatty acids. This process is characterized by short term exposure of the distillate liquid to high temperatures, by high vacuum pressure (around 1024 mmHg) in the distillation column and a small distance between the molecular distillation and the condenser around 2 cm, where fluids are in the free molecular flow regime, i.e. the mean free path of molecules is comparable to the size of the equipment. This process has the advantages of avoiding the problem of toxicity that occurs in techniques that use solvents as the separating agent, and also of minimizing losses due to thermal decomposition.
Vacuum wiped thin film molecular evaporator process description
Feed liquid is admitted into still under high vacuum, immediately spread into a very thin film and forced quickly down the evaporation surface. Heated walls and high vacuum drive the more volatile components (distillate) to the external condenser as the less volatile components (residue) continue down the cylinder. The resulting fractions, thus separated, exit through individual discharge outlets. Depending on application, the desired product is either the distillate or the residue fraction. Small amounts of condensable low MW compounds collect in cold trap upstream of vacuum system. For high solvent loads, an optional external condenser may be installed immediately downstream of the still.
Technical drawing of the main machine of vacuum wiped thin film molecular evaporator
Specifications
Advantages of YMD series vacuum wiped thin film molecular evaporator
1) Low operating pressures
2) Short residence time
3) High distillation rates
4) Low fouling on distiller wall
5) Grease-less magnetic sealed bearing, valves and joints
6) Perfect for heat sensitive materials
Technical specifications of our vacuum wiped thin film molecular evaporator
| \t | \t | \t | \t | \t | \t |
| \t | \t | \t | \t | \t | \t |
| \t | \t | \t | \t | \t | \t |
| \t | \t | \t | \t | \t | \t |
| \t | \t | \t | \t | \t | \t |
| \t | \t | \t | \t | \t | \t |
| \t | \t | \t | \t | \t | \t |
| \t | \t | ||||
| \t | \t | \t | \t | \t | \t |
| \t | \t | \t | \t | \t | \t |
| \t | \t | ||||
Detailed Images
Details images about vacuum wiped thin film molecular evaporator
Feeding system
* Apply constant pressure dropping funnel
* Multiple entry of material
* High borosilicate glass 3.3
* Feed insulation system available

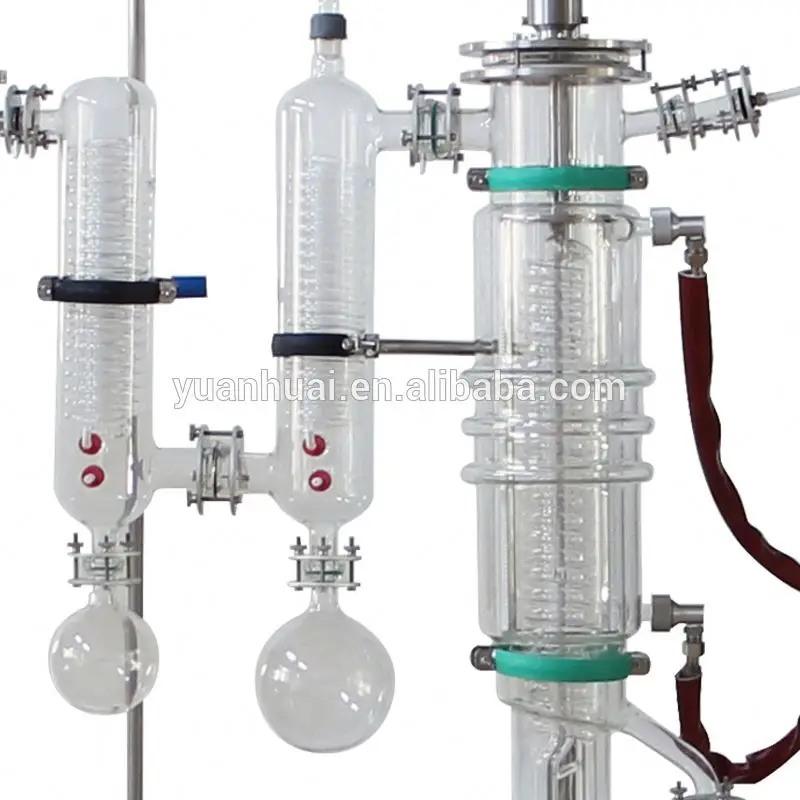

Jacketed evaporation barrel with internal condenser
* Made of high borosilicate glass 3.3 easy for viewing
* PTFE blades, which is high temp resistance and anti-corrosive
Cold trap
* The main components are fabricated in Borosilicate glass to enable observation of product properties like foaming, fouling and film distribution on the heated shell during molecular distillation.
Motor
* High quality certified motor
Heating zone
* For isolation of non-jacketed parts
Customization
Factory Strong Customization Ability
As a professional manufacturer of wiped film molecular distillation with years of experience, we can customize according to clients' requirement, to help you optimize your distillation process and maximize output.
YMD-080
- External condenser for collecting Terpenes

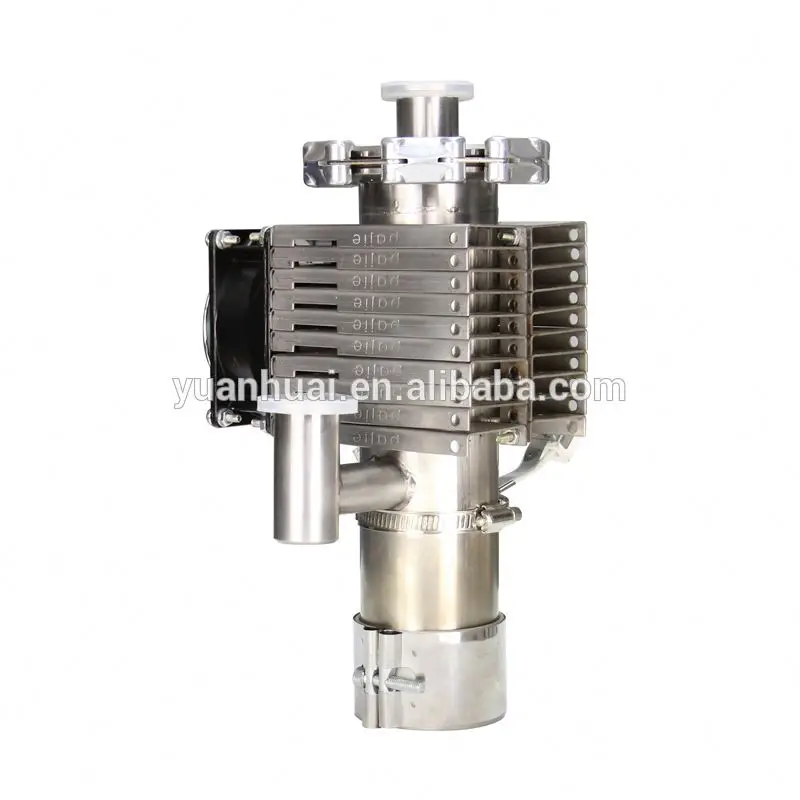

- Diffusion pump to maximize the vacuum degree
YMD-150 with all upgrades:

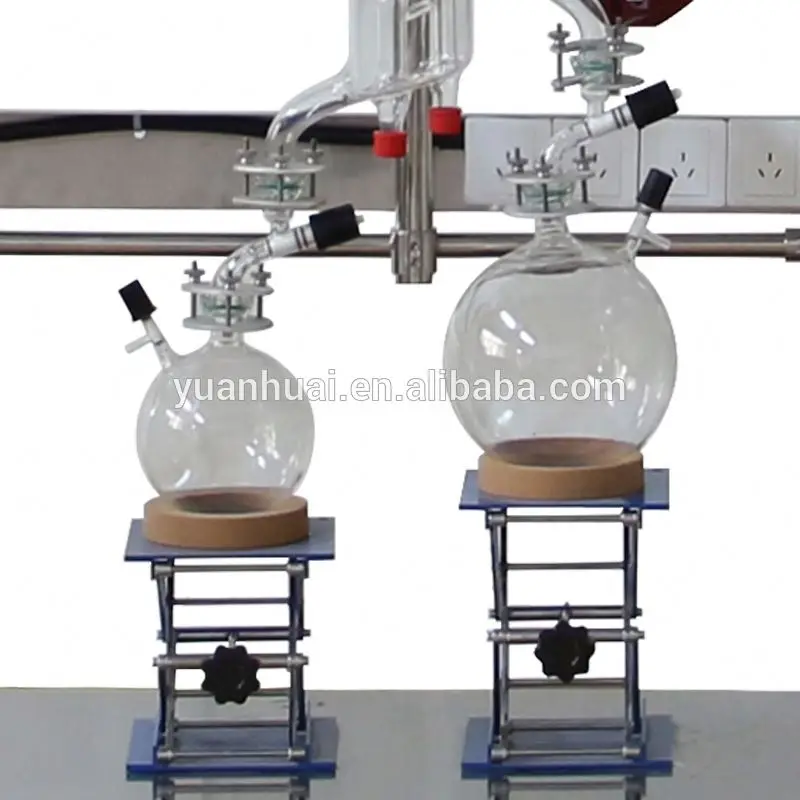

- Continuous collection module (Distillate and Residue)

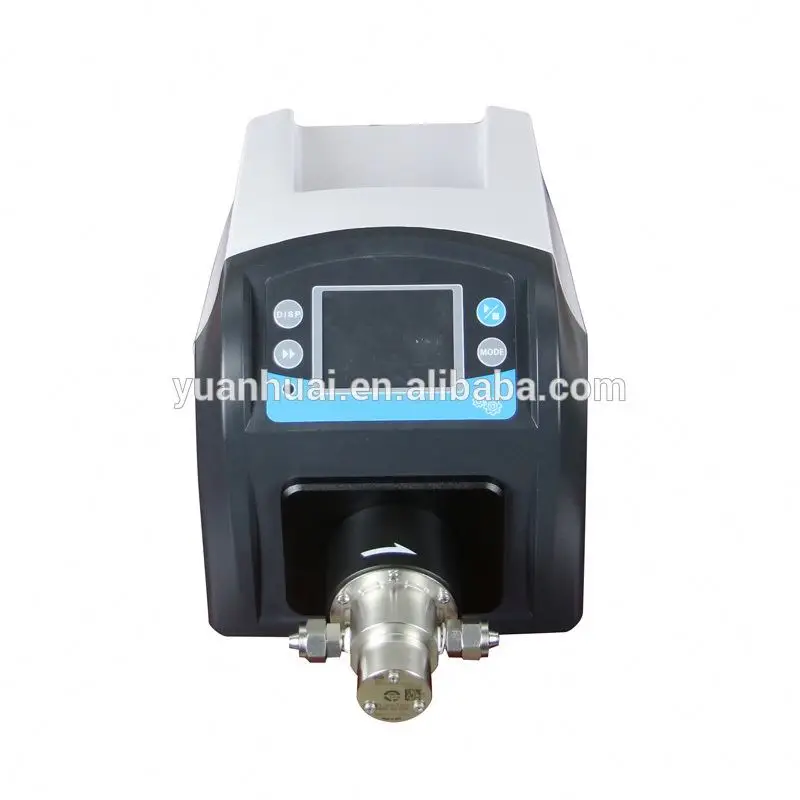

- Feed pump for automatic feeding
- External condenser for collecting Terpenes
- Cooling coils cold trap to replace traditional dry ice cold trap
- Diffusion pump to maximize the vacuum degree
YMD-200
- Continuous collection module (Distillate and Residue)
- External condenser for collecting Terpenes
YMD-150 Customized according to clients' need
- Continuous collection module (Distillate and Residue)
- Feed pump for automatic feeding- External condenser for collecting Terpenes, with continuous collection.
- Cooling coils cold trap to replace traditional dry ice cold trap, with continuous collection.
- Jacketed residue collection flask and jacketed distillate collection flask
Related Products
Supporting chiller, heater and vacuum pump for vacuum wiped thin film molecular evaporator
Vacuum pump
Model: YHX-16
Pump speed: 9CFM
Rotating speed: 1420r/min
Ultimate.partial pressure: ≤4X10-4 mbar
Oil consumption: 1.5Ltr

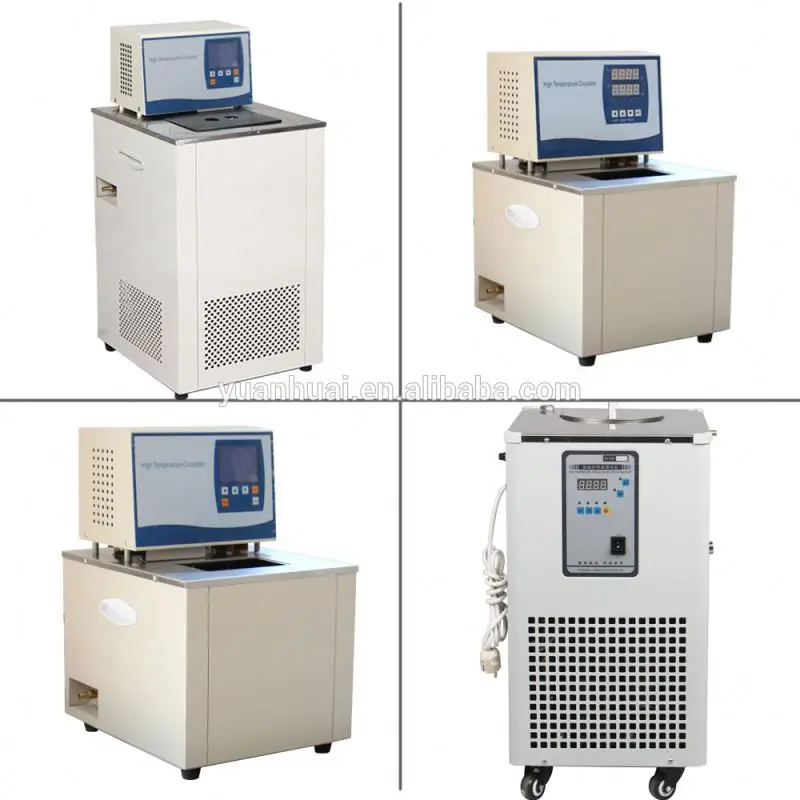

Circulating chiller for external condenser
Model: YHDC-2015
Bath Volume: 15L
Temperature Control Range: -20℃~95℃
Temperature Accuracy: ±0.5℃
Cooling Capacity: 650W
Flow Rate: 15L/min
Circulating heater for feeding system
Model: GX-2005
Bath volume: 5L
Temperature Control Range: RT~300 ℃
Heating Power: 1.6KW
Circulate Flow Rate: 8L/min
