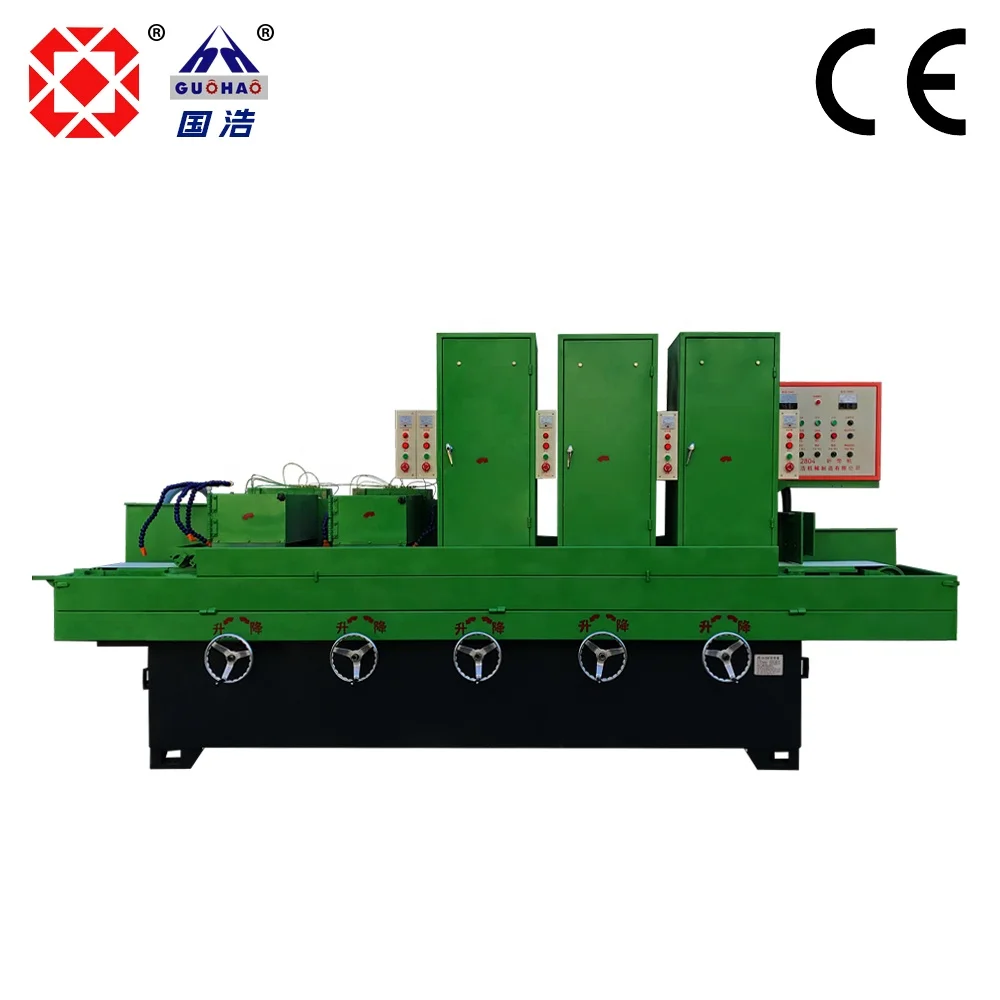

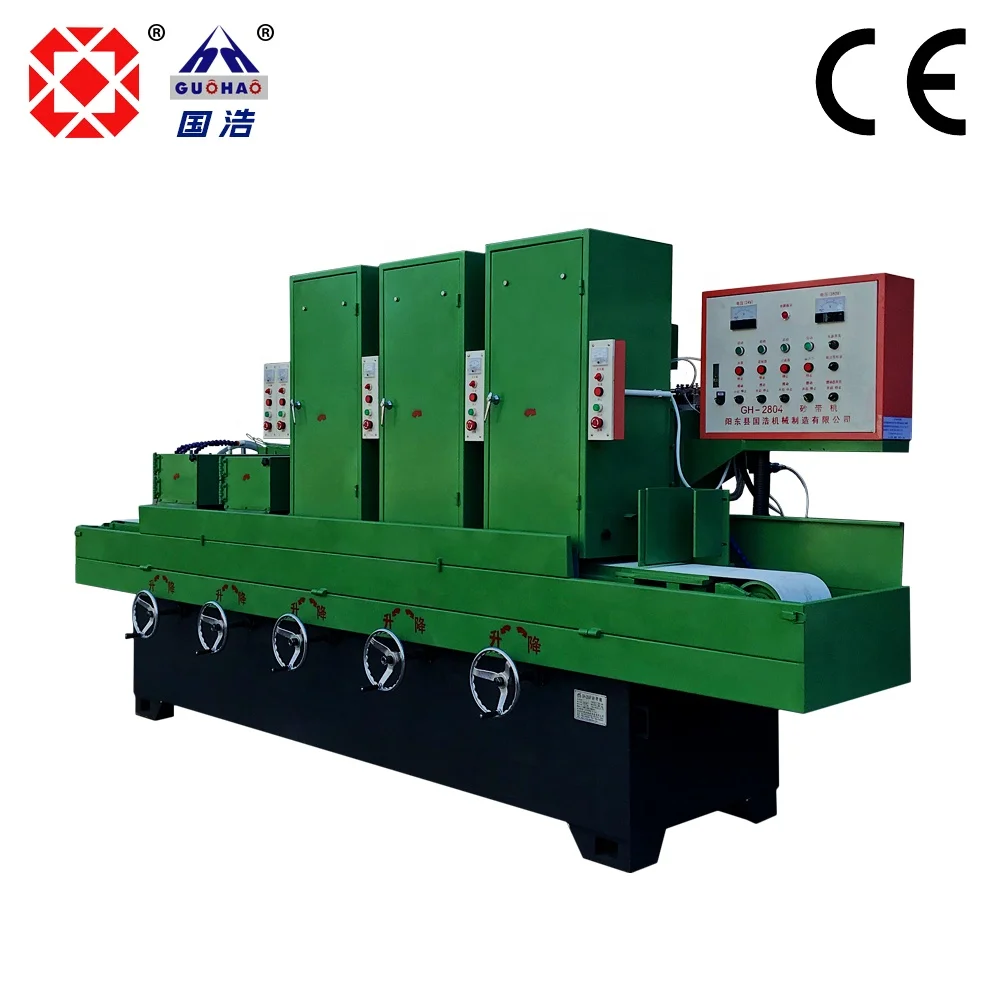

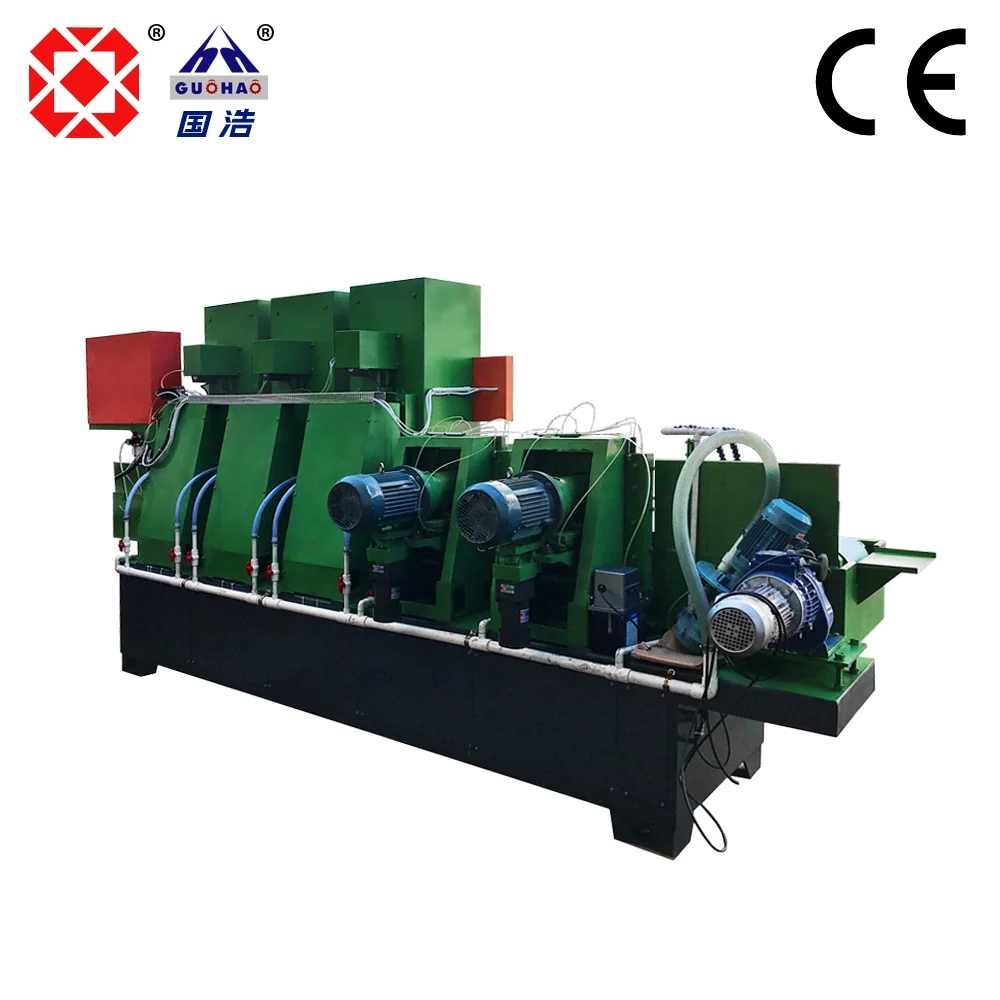

GH 2852P Abrasive belt machine Abrasive belt grinder
- Category: Other Grinding Machines >>>
- Supplier: Yangjiang Yingjuan Industrial Co. Ltd.
Share on (60823939342):
Product Overview
Description

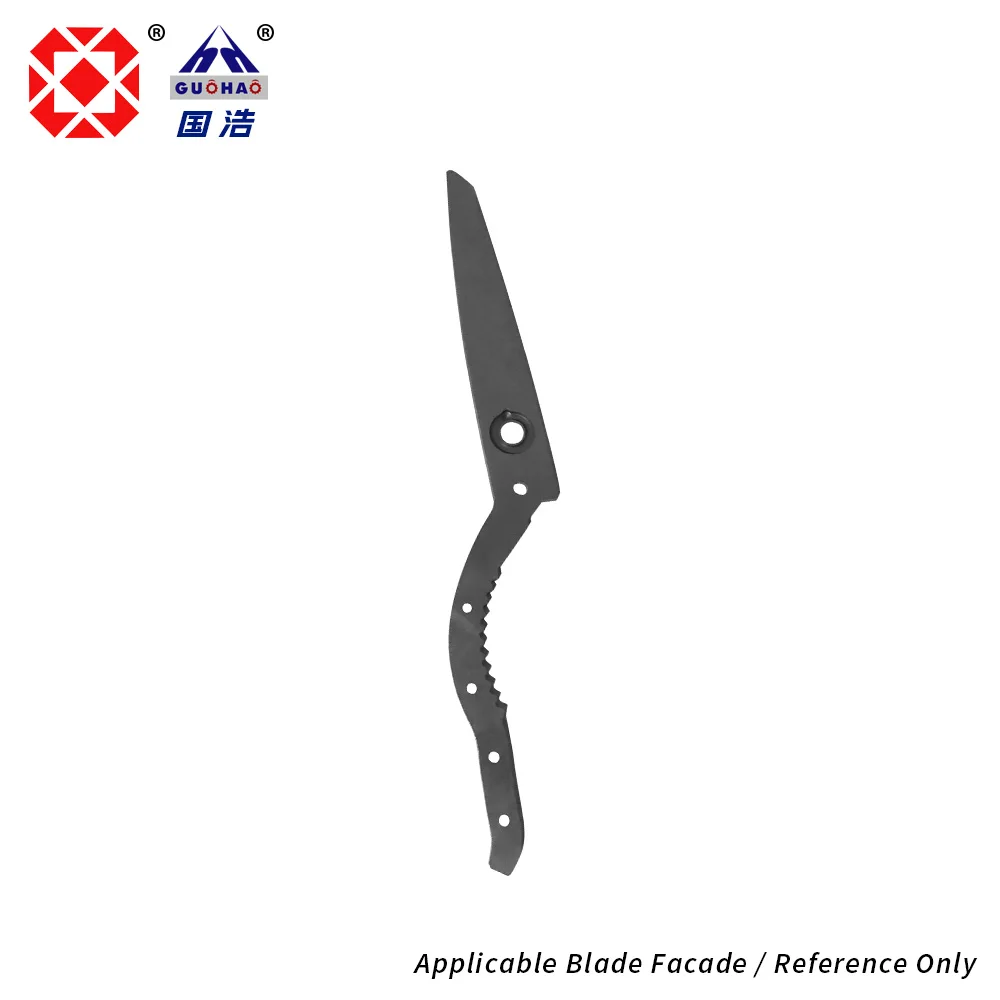

Applicable to surface of various stamping parts, kitchen knives and scissors, automobiles brake disks, various knife blades, knife handle, various metal products.
Around 4 to 6 times faster than manual polishing/buffing.
Product name | Abrasive belt grinder | |
Model no. | GH-2852P | |
Surface-finish | Sand-finish | |
Motor power of grinding head | 5x7.5KW 380V 50HZ 3-PHASE / CUSTOMIZE | |
Motor power of convey belt | 1.5KW 380V 50HZ 3-PHASE / CUSTOMIZE | |
Max grinding length | 270mm | |
Max grinding width | 80mm | |
Scope of bleed pressure | 0.4-0.6Mpa | |
Any technical information not refer in the table please feel free to consult us yingjuan2017@163.com | 5000kg | |

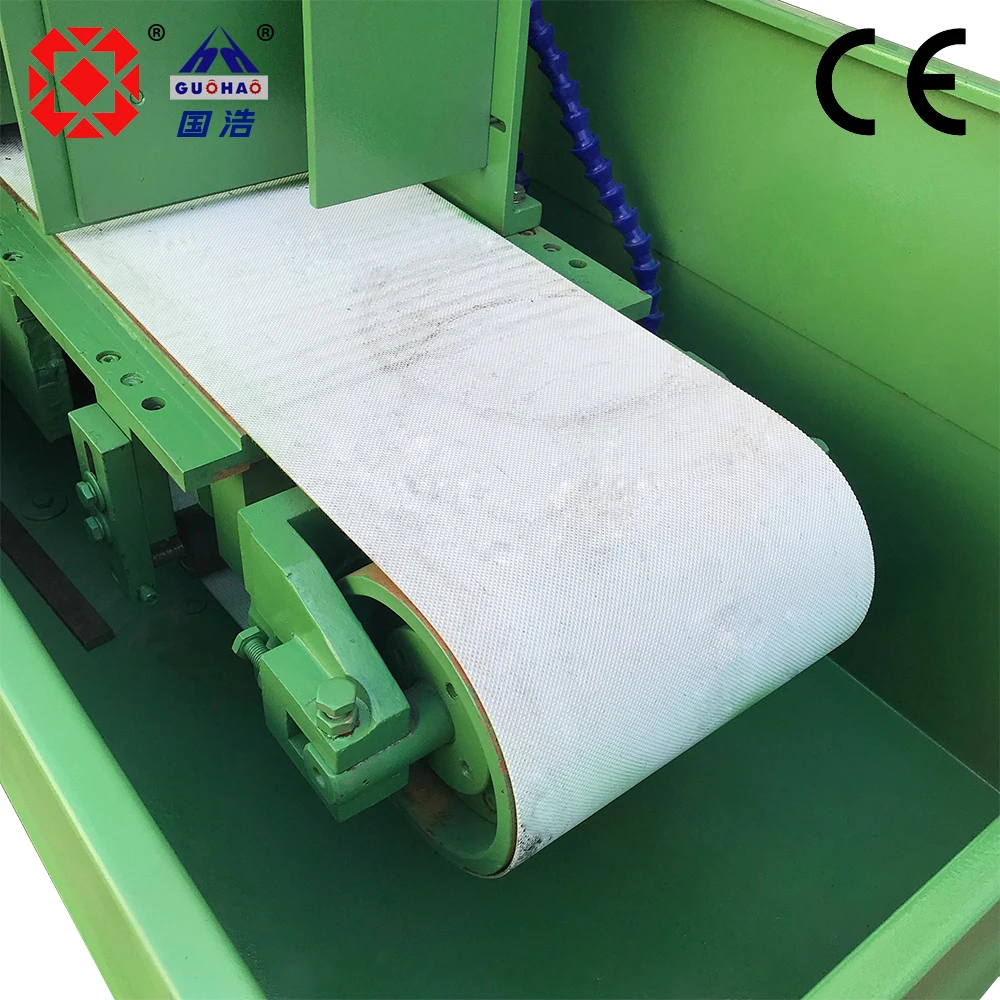

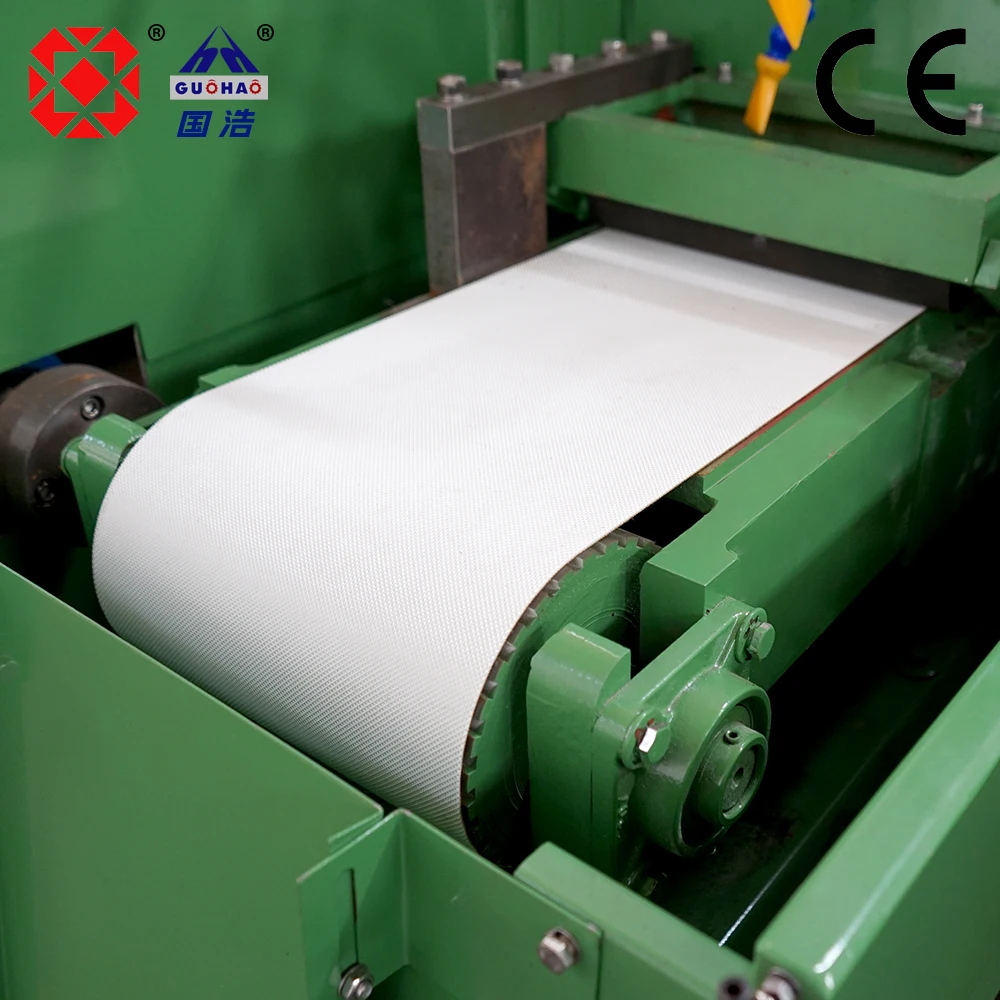

The main shaft box and worktable are high-strength castings. Worktable and machine rack processed by the CNC gantry machining center, ensure absolute parallelism between worktable and grinding wheels. The elastic of abrasive belt is automatically controlled by the air cylinder.
Machine equipped with two abrasive belt grinding heads and a nylon abrasive grinding head, which can complete three processes of roughen, refine and smooth process by one time, shortening process turnaround time and improving production efficiency. The surface roughness polish by the machine up to 0.8mm.
Detailed Images
Certificates
P1. ROHS 2.0
P2-3. CE Certificates Machinery Instructions. LVD 2014-35-EU, EMC 2014-30-EU, MD 2006-42-EC
P4. IEC Machinery Instructions. IEC 60204-1
P2-3. CE Certificates Machinery Instructions. LVD 2014-35-EU, EMC 2014-30-EU, MD 2006-42-EC
P4. IEC Machinery Instructions. IEC 60204-1
Related Products

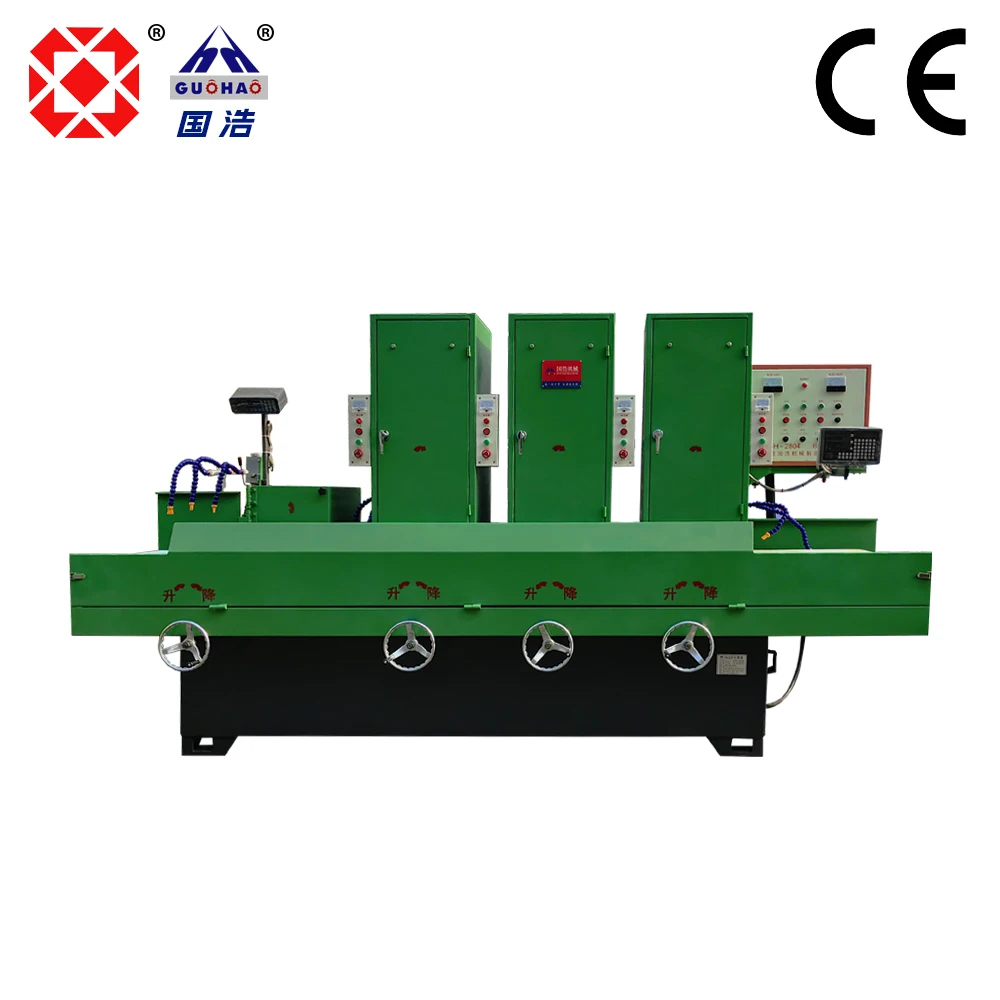

GH-2804P Abrasive belt grinder
