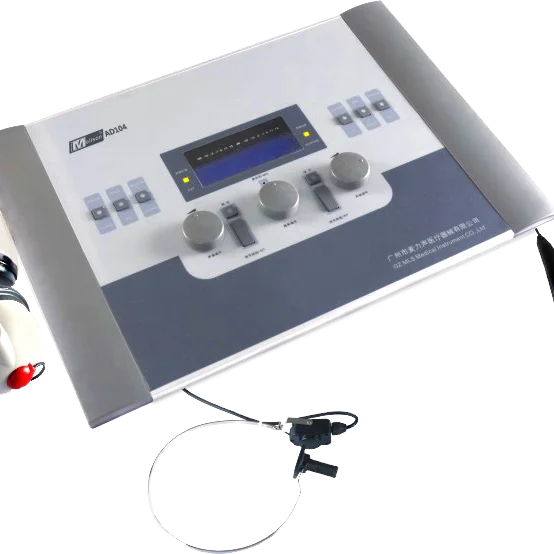

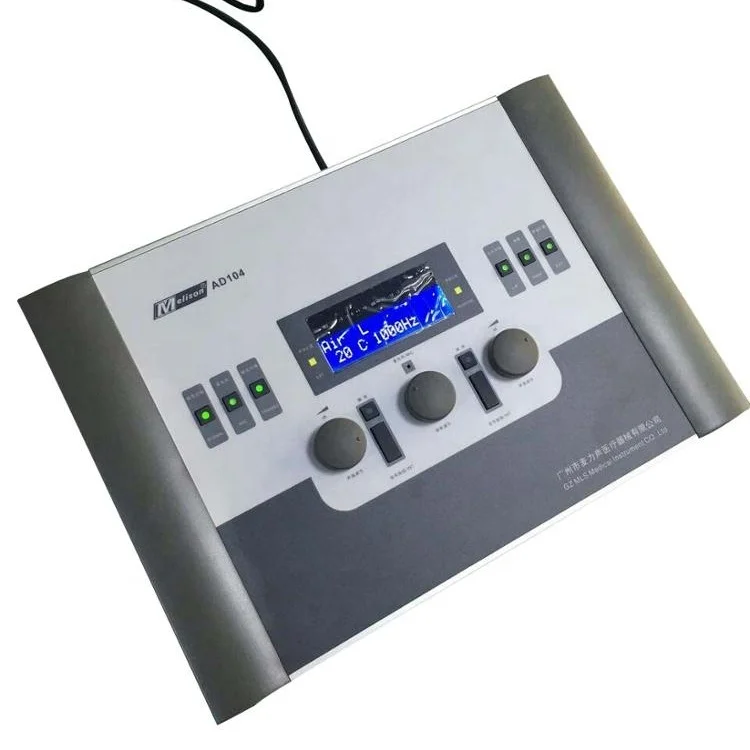

Diagnostic Audiometer AD104 For Hearing Test
- Category: Conference System >>>
- Supplier: Guangzhou Melison Medical Instrument Co. Ltd.
Share on (60824010789):
Product Overview
Description
Product Description
There are two versions of AD104:
AD104-II is superior to 104-I in two ways:
1) 104-II has the software for Bone Conduction function while 104-I doesn't.
2) 104-II can be connected to a computer directly while 104-I can not.
Product Description
Extended range function: If haven’t select, AC output restrictions smaller than maximum output 20 dB
Input : pure tone, warble tone ±5%, 5Hz Sine wave frequency modulation.
Masking : Both air conduction and bone conduction can do masking
Computer Interface: USB data transfer interface, can transfer data to computer, and also can set up personalized print reports.
Output : Air conduction earphone(L/R), Bone conduction earphone(L/R), Insert earphone, Insert masking.

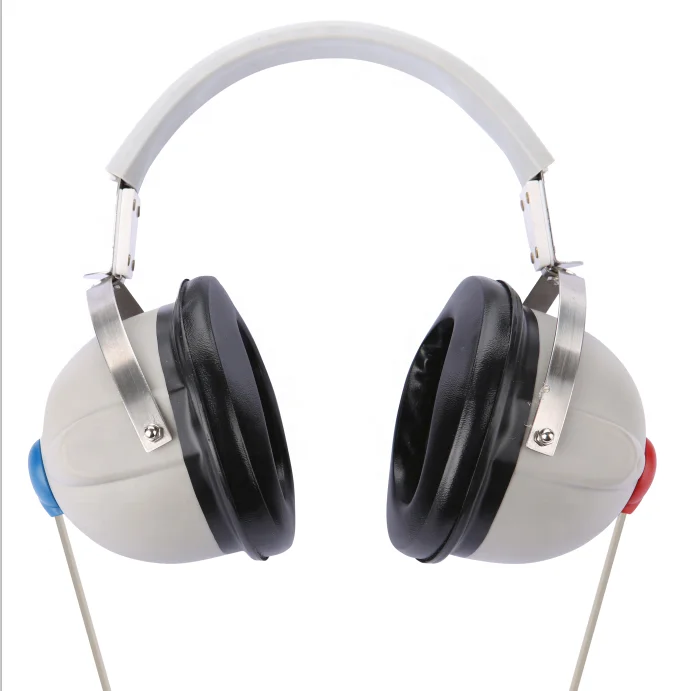

Transducer : TDH 39 earphone (standard configuration)
Ear~Tone 5A Insert earphone (Optional)

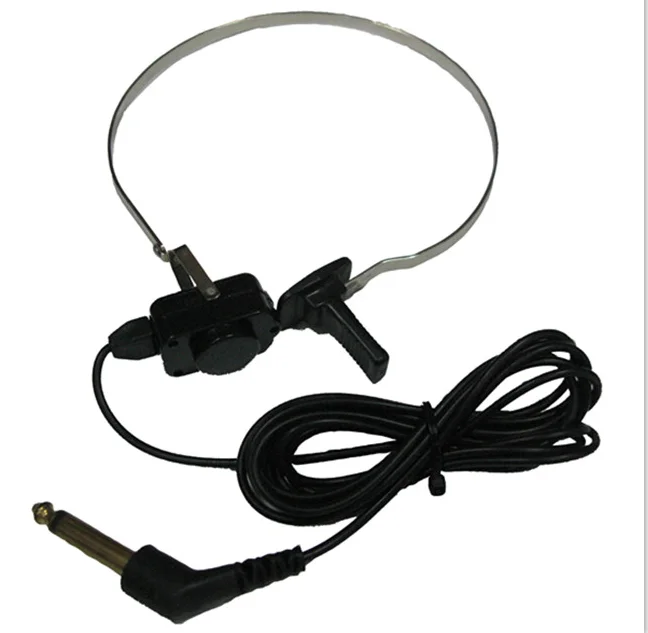

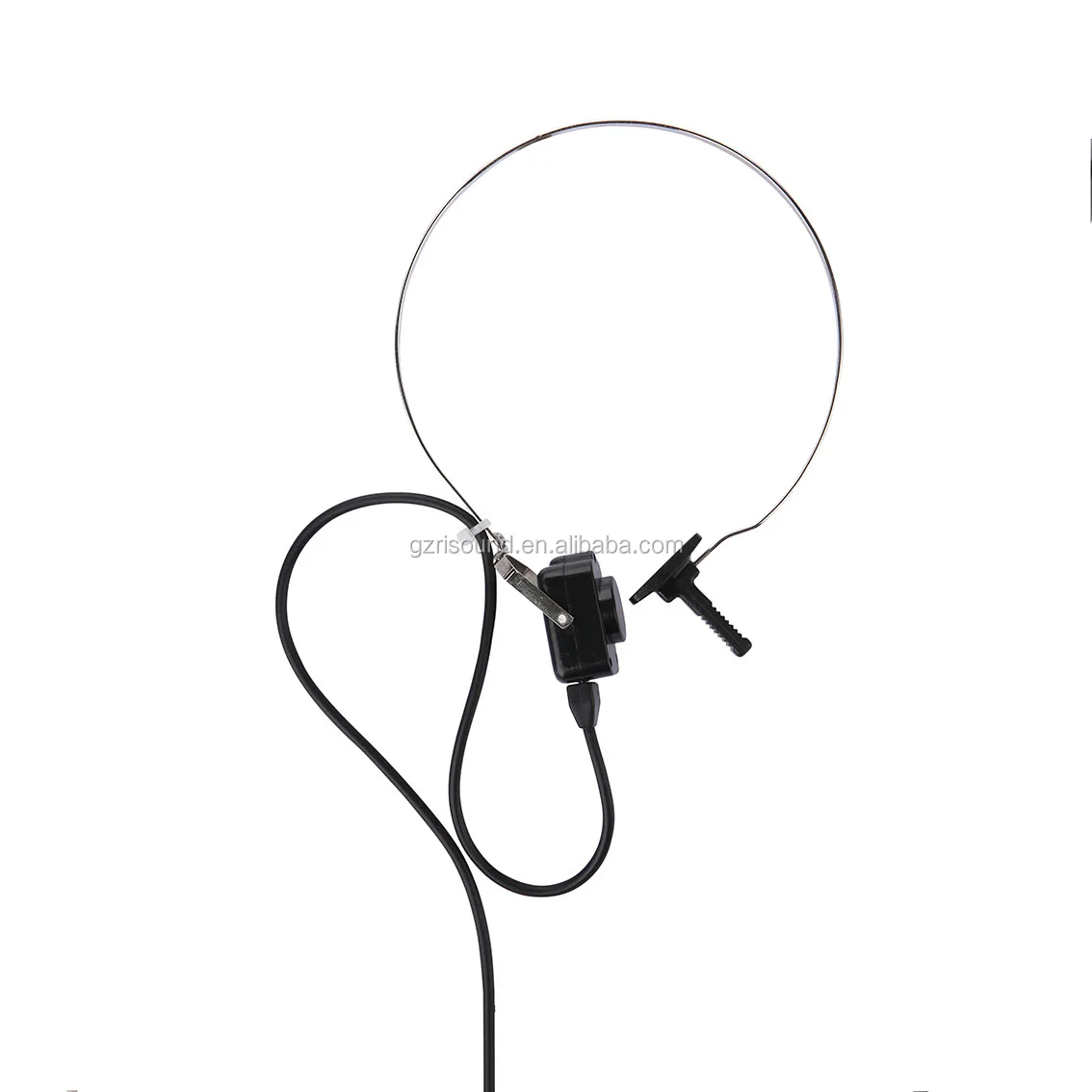

B71 bone conduction earphone (standard configuration)
Monitor function: Optional
Feedback words : Built-in feedback words microphone. 50-90 dB SPL can be continuous adjust in panel.
Send test voice: Manual or automatic/ Monopulse/ Multiple-pulse
Frequency selection :If you need to fast test, you can select 250 Hz,750 Hz,1500Hz, 4k Hz or 6k Hz.
Display : Letter-figure

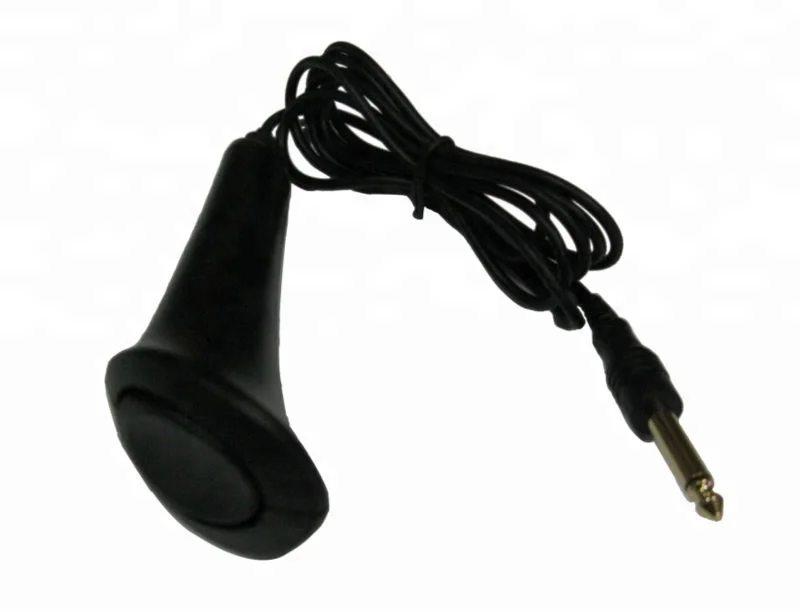

Patient signal: Responser
Structure : Engineering plastic shell
Attenuator control : Standard rotary switch (can choose Push-button switch)
Power supply: Outer type regulated power supply (standard configuration), 220-230V,50-60 Hz
Fuse : T2A Built-in fuse
Input : pure tone, warble tone ±5%, 5Hz Sine wave frequency modulation.
Masking : Both air conduction and bone conduction can do masking
Computer Interface: USB data transfer interface, can transfer data to computer, and also can set up personalized print reports.
Output : Air conduction earphone(L/R), Bone conduction earphone(L/R), Insert earphone, Insert masking.
Transducer : TDH 39 earphone (standard configuration)
Ear~Tone 5A Insert earphone (Optional)
B71 bone conduction earphone (standard configuration)
Monitor function: Optional
Feedback words : Built-in feedback words microphone. 50-90 dB SPL can be continuous adjust in panel.
Send test voice: Manual or automatic/ Monopulse/ Multiple-pulse
Frequency selection :If you need to fast test, you can select 250 Hz,750 Hz,1500Hz, 4k Hz or 6k Hz.
Display : Letter-figure
Patient signal: Responser
Structure : Engineering plastic shell
Attenuator control : Standard rotary switch (can choose Push-button switch)
Power supply: Outer type regulated power supply (standard configuration), 220-230V,50-60 Hz
Fuse : T2A Built-in fuse
Standard accessory: TDH39 Air conduction earphone, B71 Bone conduction earphone, responder, power line, USB line, CD software
audiometric leaves.
Our Services
Warranty for the host device: One years
After sales service is always available.
FAQ
1. Are you a manufacturer?
Yes , we are manufacturer and exporter, we have our own factory for more than 10years.
2. What’s the warranty for the products?
As usual, it should be 1year guarantee.
3. Can I got the free sample?
Sample is available, but not free, the client have to pay for it.
4. What’s the payment term for orders?
We accept the payment as T/T, Western union, Paypal.
5. What’s the lead time for the order?
As usual, the order should be delivery in 1 week after the payment received.
6. Do you accept the OEM order?
Yes, OEM is available, but the mini order should be 200sets.
7. Do you have CE certificate?
Yes, we have the ISO13485 and CE certification.
8. What are your shipping ways?
By sea, by air and by Express(DHL, Fedex, UPS, TNT, EMS etc)
9. Will you provide the after-sale service?
Yes, of course, we offering the professional maintenance service and ensure the quality.
