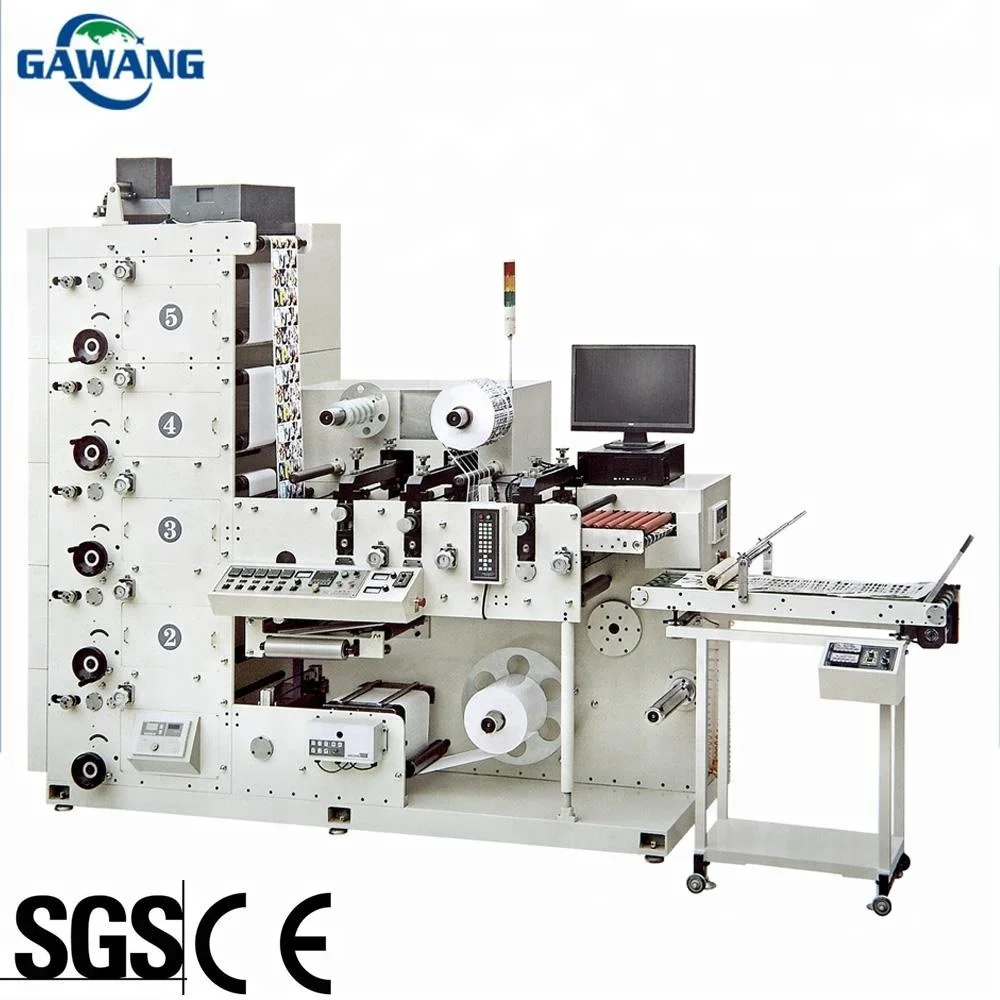

Full Auto Adhesive Paper With UV Dryer Flexo Label Printing Machine
- Category: Flexographic Printers >>>
- Supplier: Ruian Maoyuan Machine Co. Ltd.
Share on (60825920799):
Product Overview
Description
Description
Adopt high quality ceramic anilox cylinder to transfer the ink.
The machine can finish material-feeding, printing, varnishing, drying, laminating, rewinding and die-cutting in a lump.It is an
ideal machine for printing note and top-grade adhesive label.
ideal machine for printing note and top-grade adhesive label.
Printing Speed | 10-60 m/min |
Max.Web Width | 320mm |
Max.Printing Width | 320mm |
Max. Unwinding Diameter | 600mm |
Max. Rewinding Diameter | 600mm |
Printing Length | 177.8-355.6mm |
Voltage | 3 Phase , 4 Wire , 380V , 50HZ |
Precision | ±0.5mm |
Overall Dimensions | 2000*1100*2200mm |
Weight | 3000Kg |
Unwinding is controlled by magnetic powder brake and rewinding is controlled by magnetic power clutch.
Unwinding adopts auto tension controller.
Each printing unit adopts 360° adjustment, it can independently gear and loosen,so other printing units can continue to print.
This machine with one die-cutting station ,which makes printing and die-cutting can be finished in one process.
The ink rollers will be separated from the printing rollers,and keep running when the machine stops.
It equipped with 3'' air expanding shaft on unwinding/rewinding section.
All the rollers are deal with thermal treated.
Unwinding adopts auto tension controller.
Each printing unit adopts 360° adjustment, it can independently gear and loosen,so other printing units can continue to print.
Each printing unit equips with IR dryer.
Equipped with web guide for tracking.
Equipped with web guide for tracking.
This machine with one die-cutting station ,which makes printing and die-cutting can be finished in one process.
The ink rollers will be separated from the printing rollers,and keep running when the machine stops.
The main machine inverter is imported.
It equipped with 3'' air expanding shaft on unwinding/rewinding section.
All the rollers are deal with thermal treated.
1. 1year guarantee, 1Year spare parts packing together with the machine,the whole life technician support.
2. With professional engineers, you can go to the world for on-site mechanical maintenance
3. Have a large number of overseas service sites to meet all kinds of on-site viewing
4.Operation Manual, Operation or repair Video,
5.24-hours Email technical support, we will do our best to help the clients solve any question or problems.
6.Available to send our engineer to clients factory, to install the machines, train the workers, repair the machines.
2. With professional engineers, you can go to the world for on-site mechanical maintenance
3. Have a large number of overseas service sites to meet all kinds of on-site viewing
4.Operation Manual, Operation or repair Video,
5.24-hours Email technical support, we will do our best to help the clients solve any question or problems.
6.Available to send our engineer to clients factory, to install the machines, train the workers, repair the machines.
