Машина для выдувания пленки

Share on (60825996918):


Price:8 200,00 $

Quantity:


Product Overview

Description



Product Description

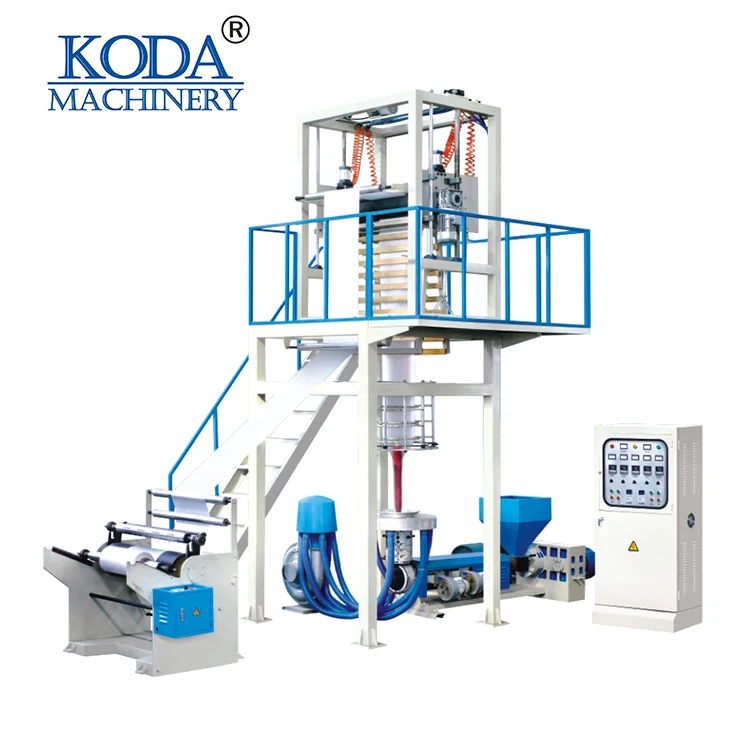

Product Name:




High & low-pressure mini pp/pe/pvc Film Blowing Machine wxtruder







Use:


Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.


OPTIONAL EQUIPMENT:


1) AUTO LOADER
2) AIR SHAFT
3) ROTARY DIE DEVICE
4) DOUBLE SIDES WINDER
5) UP AND DOWN
6)PNEUMATIC DEVICE
7)AIR COMPRESSOR





















































































Model


A50


A55


A65


A65-1


Diameter of screw


Φ50


Φ55


Φ60


Φ65


Reduced diameter of film(mm)


100-600


200-800


300-1000


400-1200


Single-face thickness of

film(mm)


0.01-0.10


0.01-0.10


0.01-0.10


0.01-0.10


Max. Extrusion(kg/h)


35


50


65


80


L/D


28:1


28:1


28:1


28:1


Power of main motor(kw)


7.5-11


11-15


18.5-22


22


Power of Traction motor(kw)


1.1


1.1


1.5


1.5


Heating Power(kw)


11


13


19


21


Outline diameter(L*W*H)(mm)


4800*1900*3500


5500*2100*3800


6500*2300*4200


6500*2500*6000


Weight(T)


1.5T


2T


2.3T


2.6T
