Product Overview

Description



 Lanstar New POE electric fence system energizer for detect and alarm , generates high voltage pulse of 4KV-7KV to intruders touching the fence,which establishes a physical and psychological barrier to prevent invasion,it has a "anti-cut "special detect functions by used a anti-cut module .

Model	LX-2018C4C-E
Power supply	AC 85v~265v
Peak current of pulse	<10A
Output peak voltage	4.0KV~7.0KV
Output low voltage	0.6kV~1.5kV
Max quantity of electricity of pulse	2.5mC
Output energy	5J
Stored energy	6.4J
Consumption	15W
Max output voltage	4-7KV
Max distance	150M
Recommended distance	100M





• Shell level of protection achievedIP55;

• Remote control the Arm/Disarm;

• DC12V, NC/NO dry contact alarm output, can work with other modern security products;

• Function of query the alarm records and arm/disarm records;

• Touch alarm, Communication failure, power failure, Short circuit, break and tamper alarm, Self-inspection System for equipment fault;

• LCD indicate the arming mode,alarm state,and the voltage on every wire of fence,etc. ;

• Backup battery power supply system ,the backup battery life >8H;

• Differential voltage output technology: every wire has voltage, have the differential voltage between the two adjacent wires;

• High/low voltage switch manually via software or hardware, long-distance equipment auto switch function;

• With high/low voltage, time, zone,alarm delay, Anti-cut sensitivity and other settings functions;

• RS 485 bus control, keypad, computer, network and multiple long distance management solution.

• Lanstar Anti-cut electric fence energizer for perimeter security  with CE,ISO certificate







Lanstar POE  electric fence system energizer

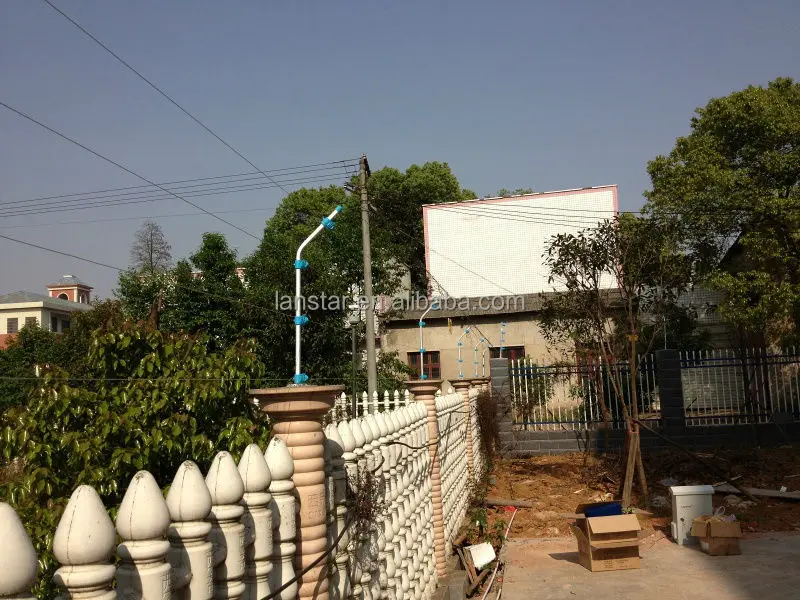

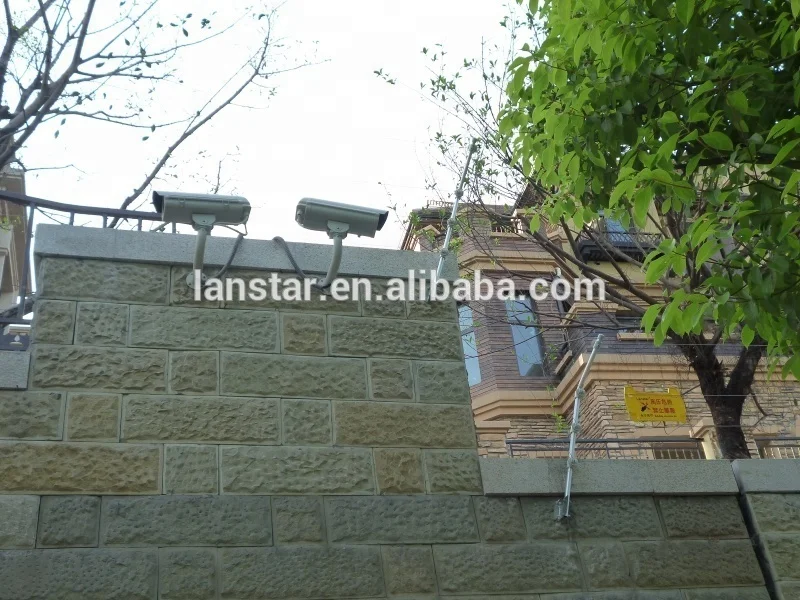

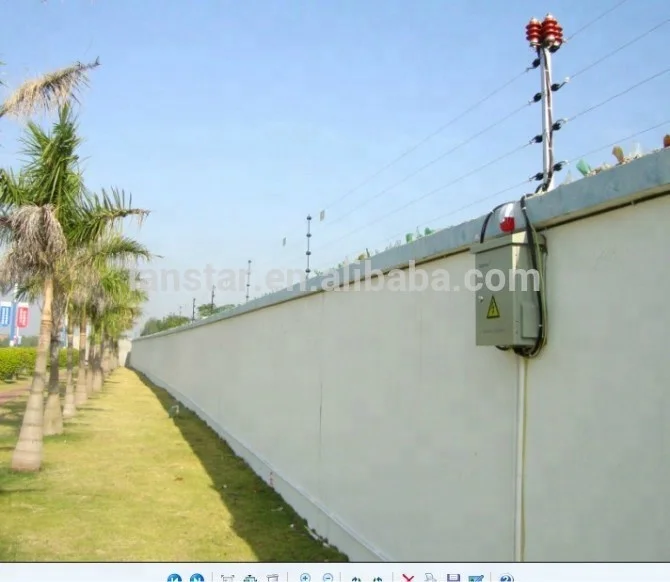

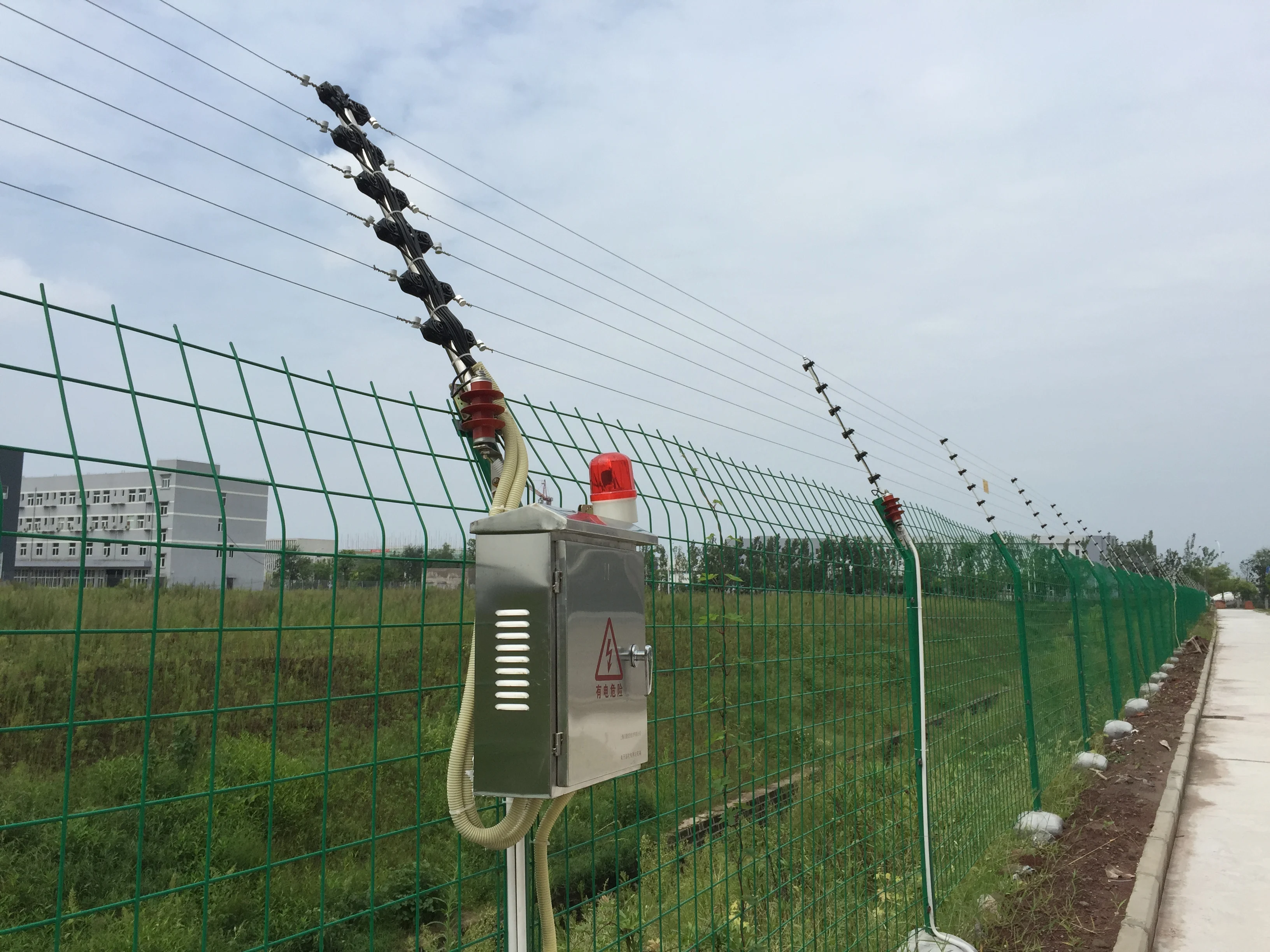

Exihibition pictures:



Technique specification:



1.Power supply :AC180V-240V50Hz
2.System power consumption : 15 Watt
3.Temperature:-25 to +55°C
4.Relative humidity :≤95%
Output parameter:
Output peak voltage: 4KV~7.5KV
Output low voltage:<1.0KV

Peak current of pulse: <10A
Pulse duration: ≤0.1s
pulse interval time: 1s~1.5s

Max quantity of electricity of pulse: 2.5mC
Max energy of pulse: ≤5.0J







Packing details:



Demension: 430x320x230(mm)
Net Weight: 4.6kg(Without battery)
Color: Gray
Packaging Details: Carton package
