China Factory Drilling And Tapping CNC Machine Tool
US $1500-$32000
High efficiency well drilling machine bore
- Category: Drilling Machines >>>
- Supplier: Henan Yugong Machinery Co. Ltd.
Share on (60829905906):
Product Overview
Description
Product Description

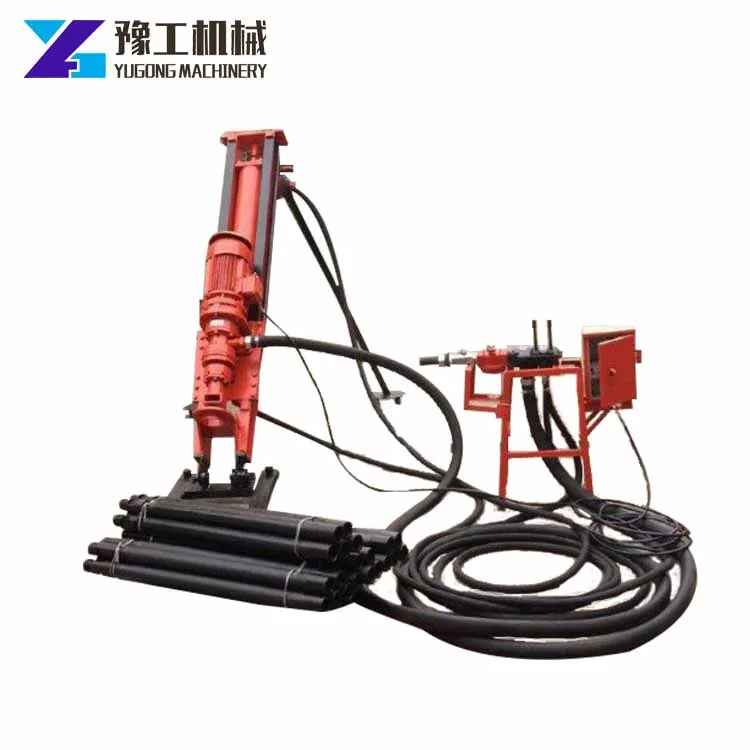

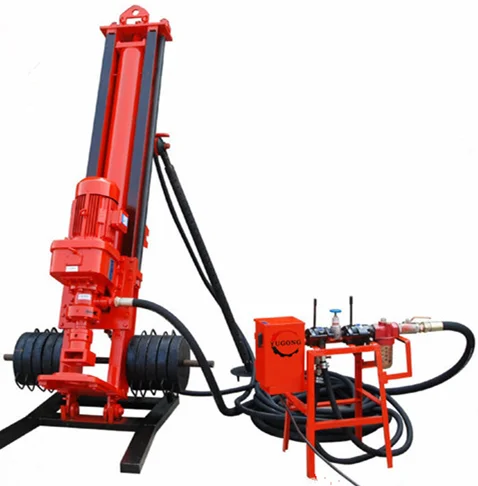

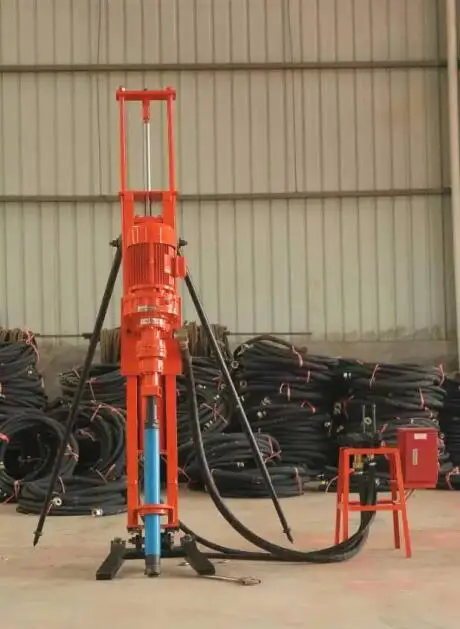

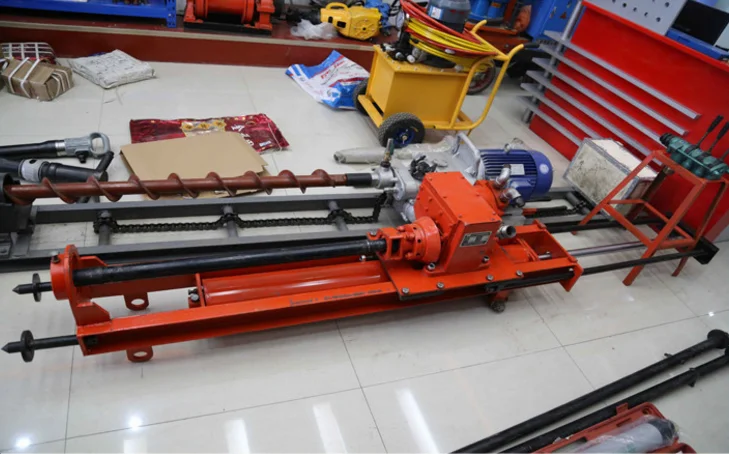

High efficiency well drilling machine bore
DTH Drilling Rig is mainly used to drill rocks, stones, floor, etc. in mining and road construction, water conservancy, national defense and other projects. It can work well in rugged terrain.
Product details
| product name | drilling rig machine |
| Drilling diameter (mm) | 50-90 |
| Rock ruggedness coefficient | >20 |
| Drilling depth (m) | 15 |
| Working air pressure (Mpa) | 0.5-0.7 |
| Air comsumption (m3/min) | 4 |
| Propulsion stroke (mm) | 90 |
| Max propelled force ( N) | 3600/8000 |
| Electric motor power (kw) | 3 |
| Drilling rod (mm) | 42 |
| Product Keywords | well drilling machine,bore well drilling machine price,core drilling machine |
Product Description

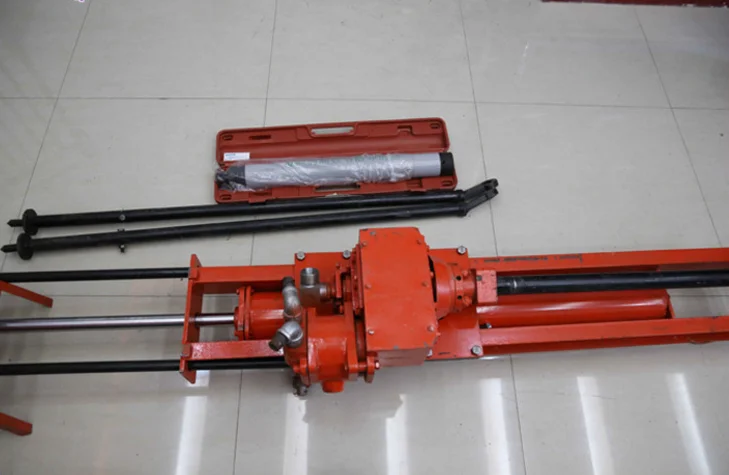

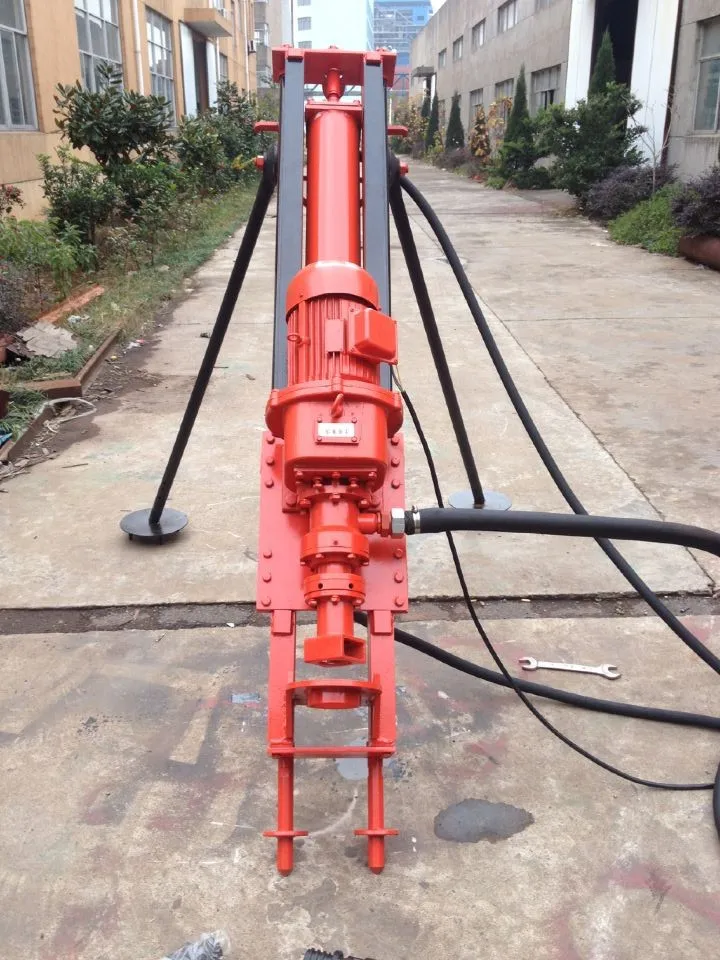

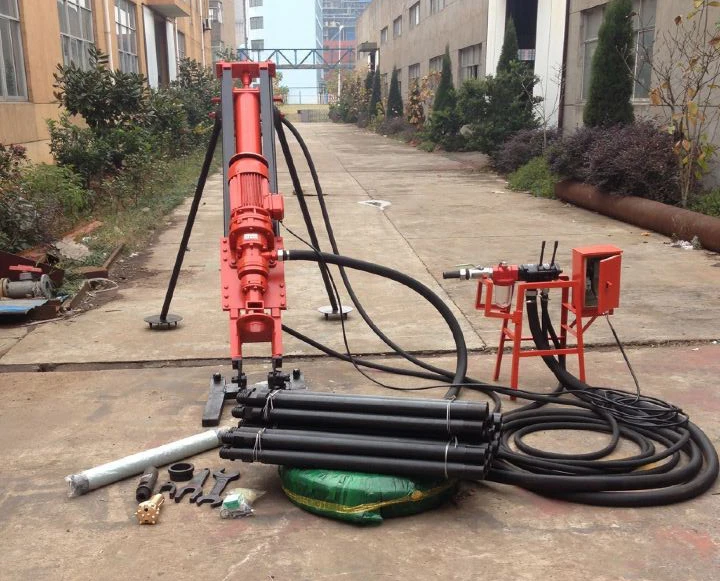

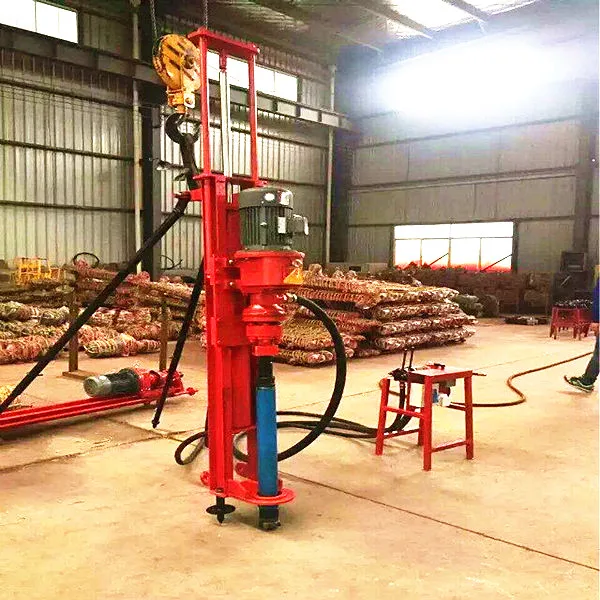

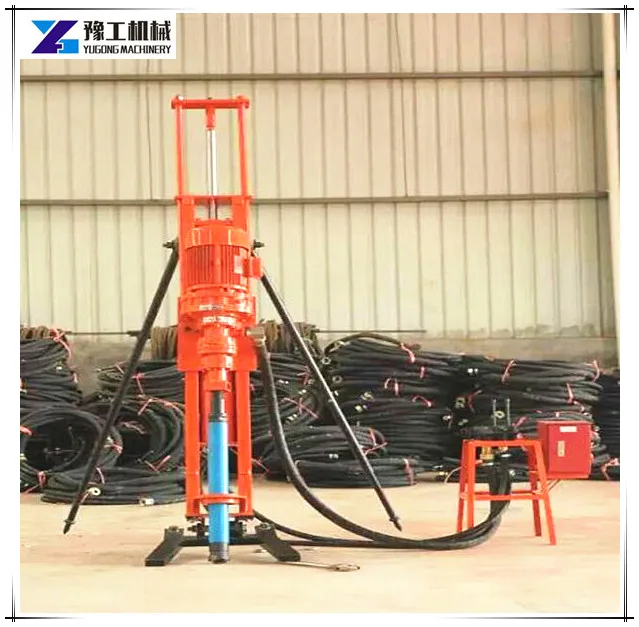

DTH Drilling Rig is mainly used to drill rocks, stones, floor, etc. in mining and road construction, water conservancy, national defense and other projects. It can work well in rugged terrain. It’s your necessary and ideal machine in drilling work.
Product Features
1. Compact Structure and Easy Operation.
2. High Efficiency and Stable Performance.
3. Low Noise and High Speed Drilling while Working.
4. Easy to Install and Disassemble in Working Sites.
5. Small and Light, suitable to drill in all kinds of environments.
Technical Parameter
Model | YGD 70 YGD80 | YGD 100 | YGQ 100 | YGB100-4 YGB120-5.5 |
Drilling diameter (mm) | 50-90/90-120 | 90-130 | 90-130 | 90-130 |
Rock ruggedness coefficient | >20 | >20 | >20 | >20 |
Drilling depth (m) | 15 | 25 | 25 | 30-40 |
Rotate speed (r/min) | 110 | 110 | 110 | 110 |
Working air pressure (Mpa) | 0.5-0.7 | 0.5-1.0 | 0.5-1.0 | 0.5-1.0 |
Air comsumption (m3/min) | 4 | 6 | 12 | 10 |
Propulsion stroke (mm) | 90 | 140 | 140 | 140 |
Max propelled force ( N) | 3600/8000 | 9600 | 9600 | 9600 |
Electric motor power (kw) | 3/4 | 4 | ----- | 4/5.5 |
Electric Motor Voltage( V) | 380 | 380 | ----- | 380 |
Rated speed (r/min) | 1440 | 1440 | 3200 | 1440 |
Drilling rod (mm) | 42 | 50/60 | 50/60 | 60 |
Drilling rod length (mm) | 1025 | 1025 | 1025 | 1025 |
Dimension (mm) | 1740*260*420 | 2280*440*550 | 2230*380*550 | 2230*380*550 |
Weight (kg) | 280/320 | 470 | 450 | 460/480 |
Packaging & Shipping
PACKAGE:
1. Packaging: 1)Wrapped by proctective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
Company Information
ABOUT US
CUITURE
Henan Yugong Machinery Co., Ltd. is a large machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipments and so on.
We believes that good quality can give us survival, thus we only provide you top products. All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.
All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment. Every machine will be strictly examined before delivery.
Any question about the machine will be replied within 24 hours. Welcome you to be our new client!
