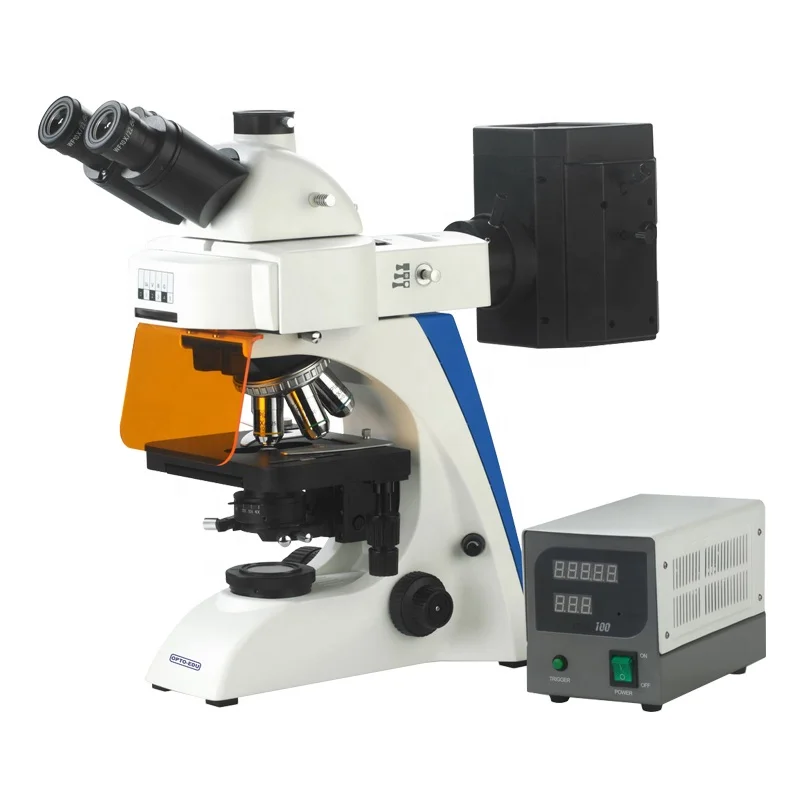

OPTO EDU A16.2603 LT4 6 Holes Disc Fluorescence Illuminator Professional Fluorescence Microscope

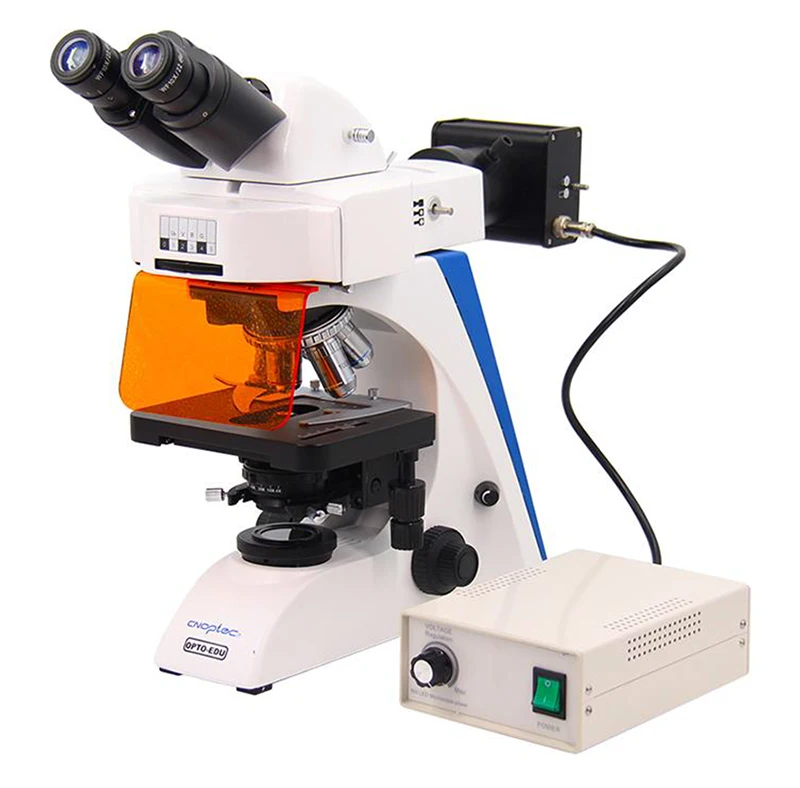

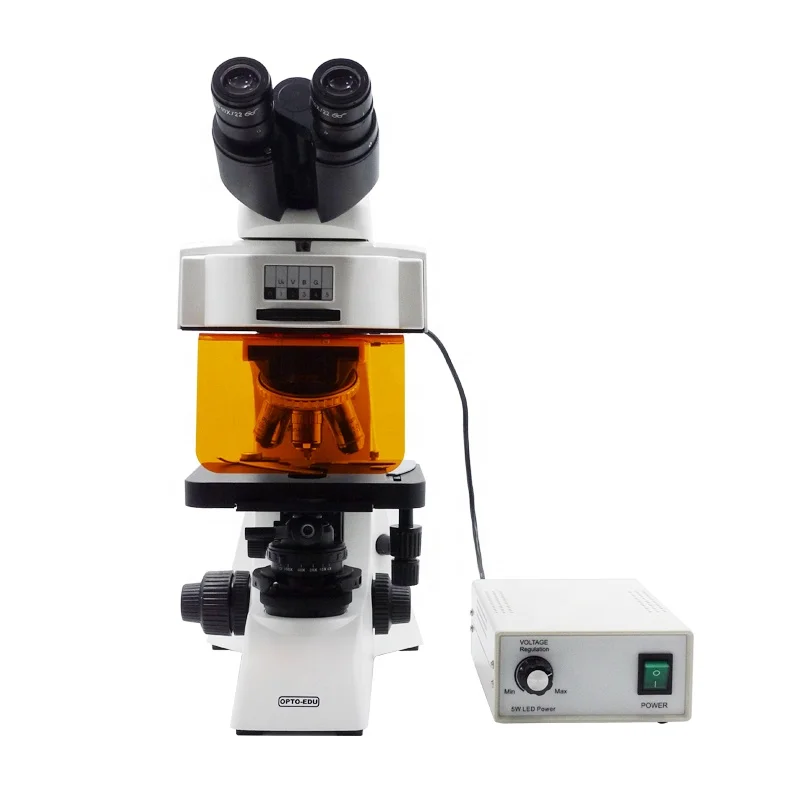

OPTO-EDU A16.2603-LT4 6 Holes Disc Fluorescence Illuminator Professional Fluorescence Microscope
OPTO-EDU A16.2603-LT4 6 Holes Disc Fluorescence Illuminator Professional Fluorescence Microscope
OPTO-EDU A16.2603-LT4 6 Holes Disc Fluorescence Illuminator Professional Fluorescence Microscope

OPTO EDU A16.2603 LT4 6 Holes Disc Fluorescence Illuminator Professional Fluorescence Microscope

Share on (60830403624):


Price:$1,892.86 - $2,355.56

Quantity:


Product Overview

Description

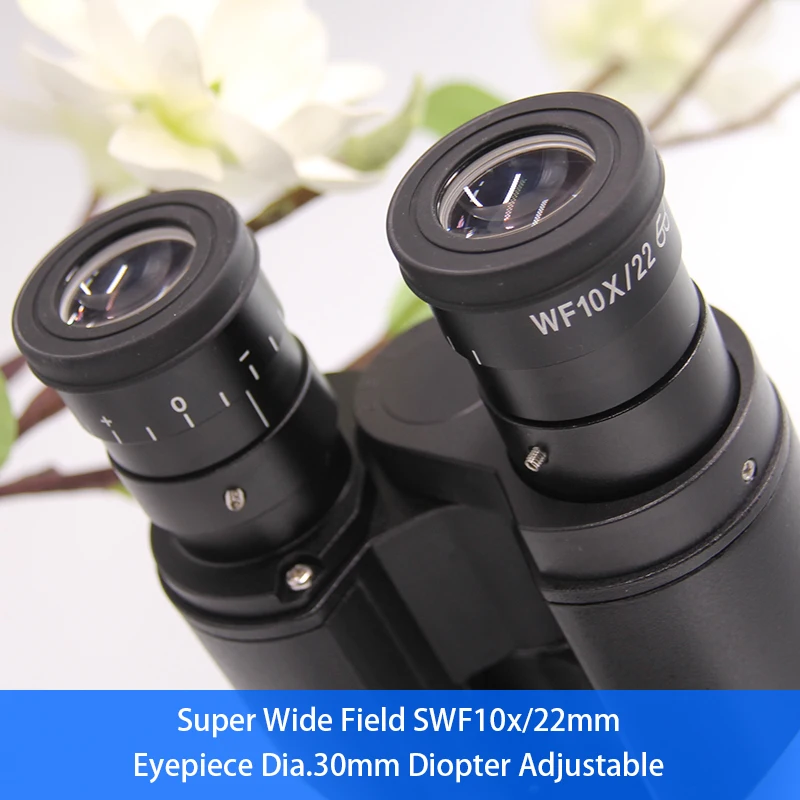

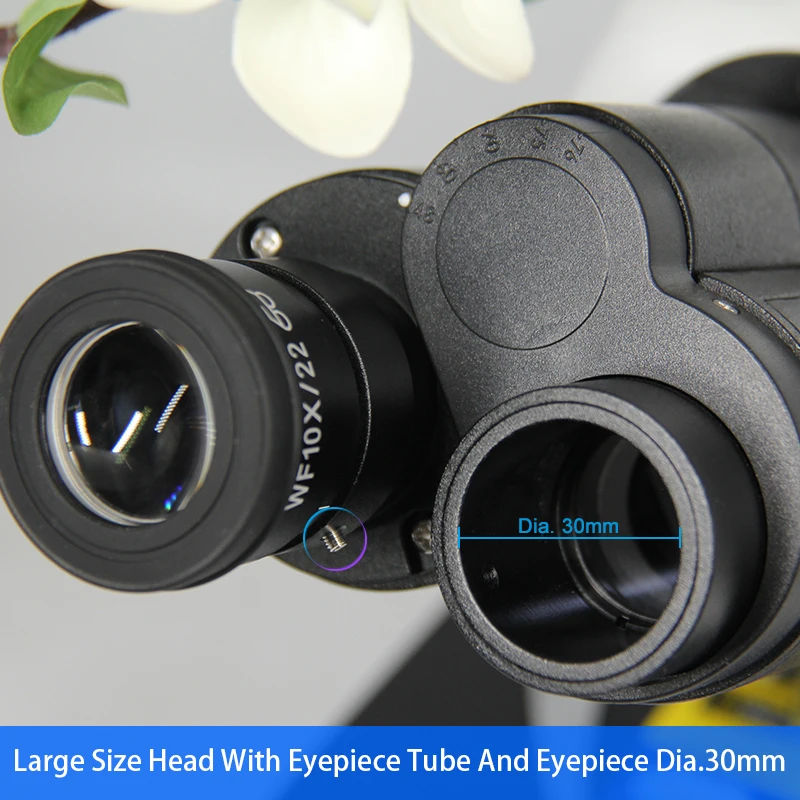

Super Wide Field Eyepiece
SWF10x/22mm
Eyepiece Dia.30mm Diopter Adjustable


The Eyepiece Tube Has Fix Screw
To Prevent Eyepiece Falling Damage During Move

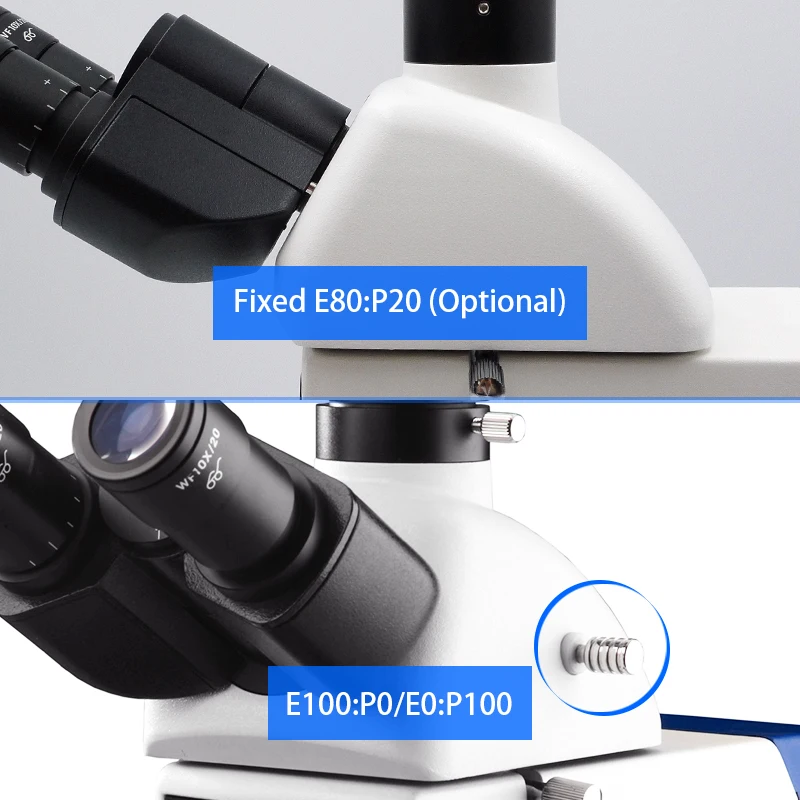

Trinocular Head Light Split Optional Between Switch E100:P0/E0:P100 & Fixed E80:P20
In Fixed Light Split, Eyepiece 80% : Photo 20% User Can View Image At Same Time In Both Path
In Switch Light Split, Eyepiece 100%:Photo 0% / Eyepiece 0%:Photo 100%, Camera Can Have 100% Light For Photo Capture.


Large Size High Precision Quintuple Nosepiece, With Polarizing Analyzer Slot

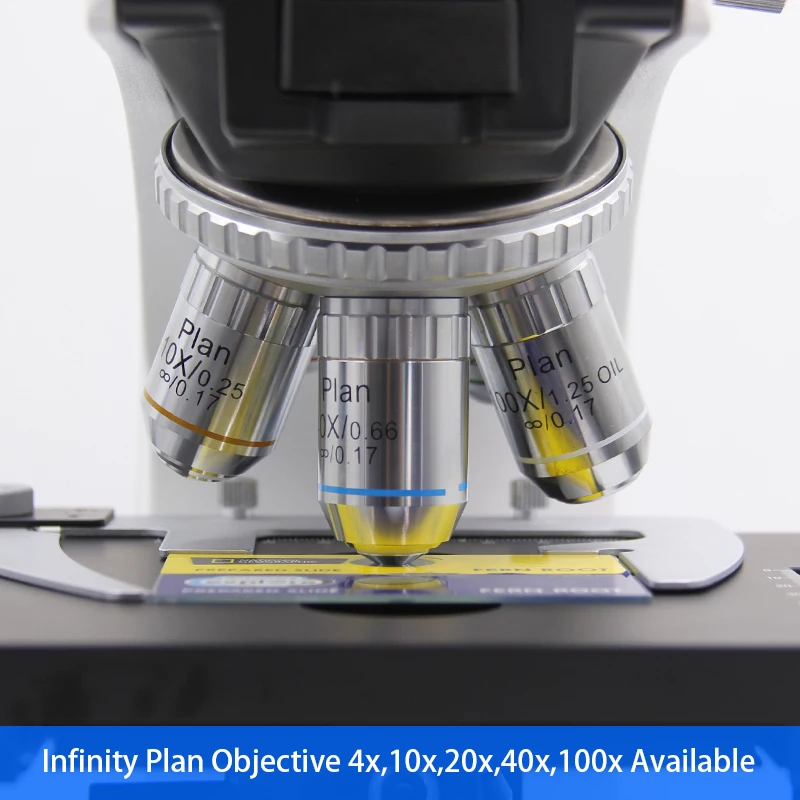

Infinity Plan Objective 4x,10x,20x,40x,100x Available
Creative 100X Water Objective (Optional) Instead Of 100X Oil Objective, More Convenient For Using & Cleaning After Use

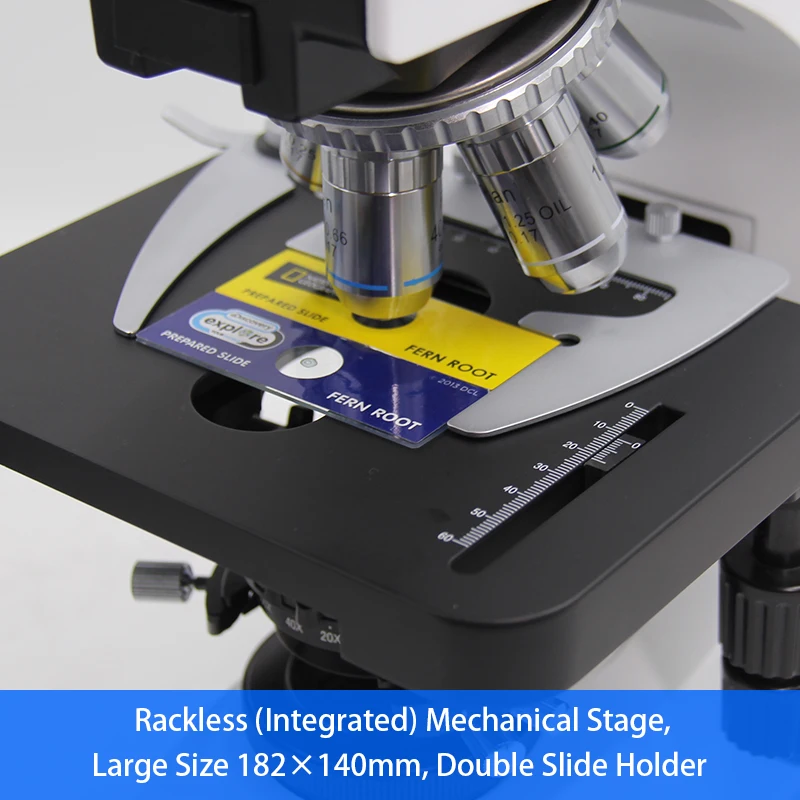

Rackless (Integrated) Mechanical Stage
Large Size 182×140mm, Double Slide Holder
Travel Range 77×52mm

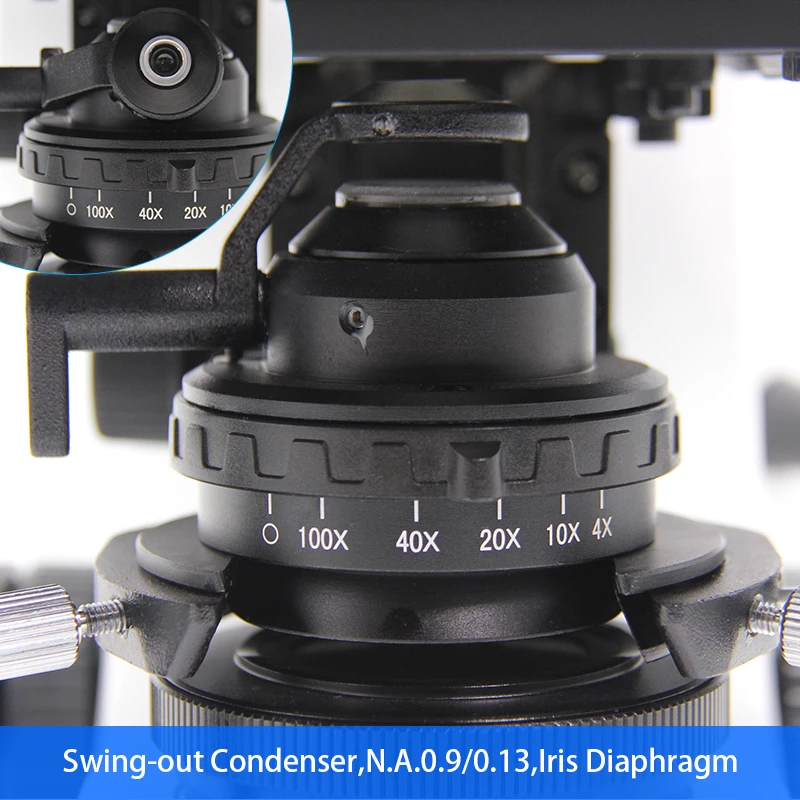

Swing-out Condenser,N.A.0.9/0.13,Iris Diaphragm
Control The Amount Of Light According To Demand, The Effect Is More Perfect.

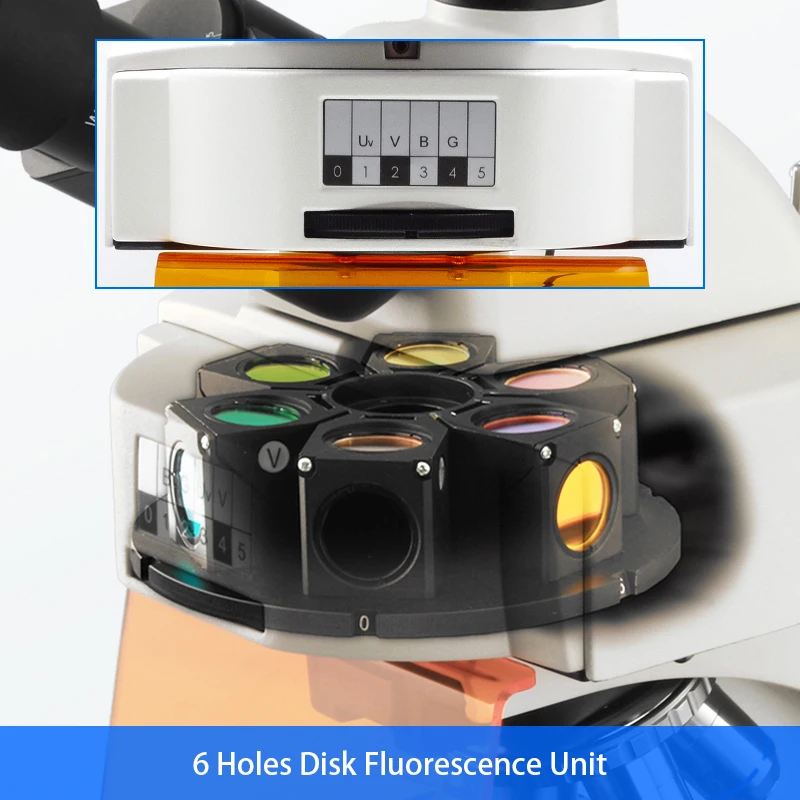

6 Holes Disk Fluorescence Unit
Can Load Up to 5 Fluorescence Filters + 1 Hole For Bright Field View

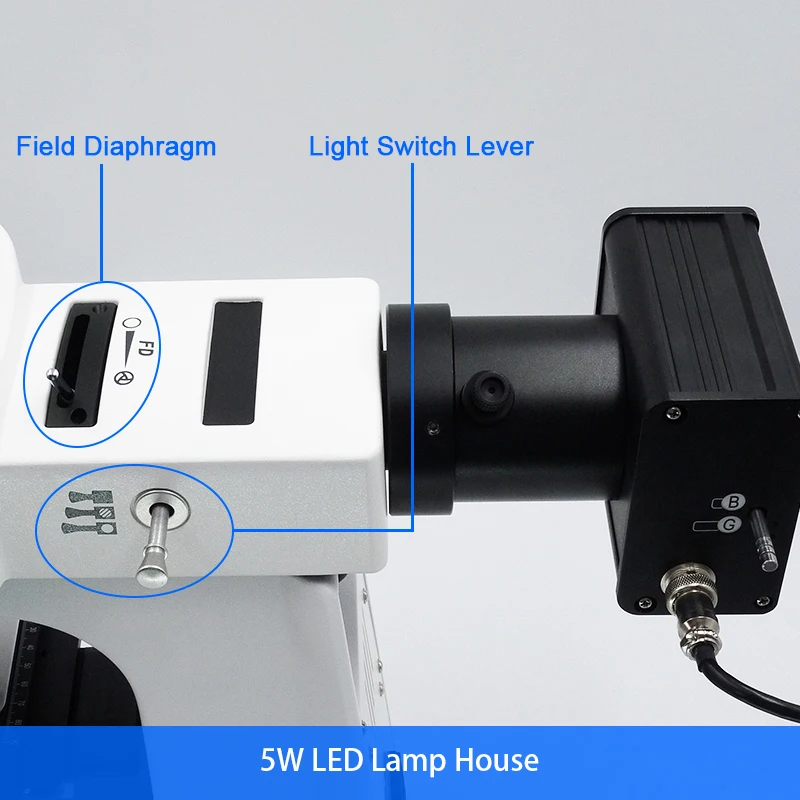

5W LED Lamp Fluorescent
Illumination Unit, With Field Diaphragm, Light Switch Lever.


Items
A16.2603-L LED Fluorescent Microscope Specification
B2
T2
B4
T4
Cata. No.
Head
Seidentopf Binocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-76mm,
Eyepiece Tube Dia.30mm
●
○
●
○
A53.2623-B
Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-76mm, Light Split Switch E100:P0/E20:P80,
Eyepiece Tube Dia.30mm
○
●
○
●
A53.2623-T
Eyepiece
WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable
●●
●●
●●
●●
A51.2621-1022
Nosepiece
Quintuple
●
●
●
●
A54.2610-N01
Infinity Plan Objective
PLAN 2.5X/0.07,W.D.=8.47mm
○
○
○
○
A52.2606-2.5
PLAN 4X/0.10,W.D.=12.10mm
●
●
●
●
A52.2606-4
PLAN 10X/0.25,,W.D.=4.64mm
●
●
●
●
A52.2606-10
PLAN 20X/0.40(S),W.D.=2.41mm
●
●
●
●
A52.2606-20
PLAN 40X/0.66(S),W.D.=0.65mm
●
●
●
●
A52.2606-40
PLAN 60X/0.80(S),W.D.=0.33mm
○
○
○
○
A52.2606-60
PLAN 100X/1.25(S,Oil),W.D.=0.12mm
●
●
●
●
A52.2606-100
PLAN 100X/1.15(S,Water),W.D.=0.19mm
○
○
○
○
A52.2606-100W
Infinity Plan
Semi-APO Fluorescent Objective
UplanFLN 4x, N.A.0.16，W.D.=17.151mm
○
○
○
○
A5F.2611-4
UplanFLN 10x, N.A.0.30，W.D.=7.68mm
○
○
○
○
A5F.2611-10
UplanFLN 20x, N.A.0.50，W.D.=1.96mm
○
○
○
○
A5F.2611-20
UplanFLN 40x, N.A.0.75，W.D.=0.78mm
○
○
○
○
A5F.2611-40
UplanFLN 100x(Oil), N.A.1.30，W.D.=0.15mm
○
○
○
○
A5F.2611-100
Working Stage
Rackless (Integrated) Mechanical Stage, Size 182×140mm, Travel Range 77×52mm, Double Slide Holder
●
●
●
●
A54.2601-S10
Mechanical Stage Size 175 mm×145mm, Travel 76mmX52mm, Scale: 0.1mm, Double Slide Holder
○
○
○
○
A54.2601-S01
Focusing
Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 22mm, Fine Focusing Div. 0.002mm
●
●
●
●
Condenser
Swing-out Condenser,N.A.0.9/0.13,Iris Diaphragm
●
●
●
●
A56.2614-07a
Illumination
Transmit Light 6V30W Halogen
Koehler Illumination, Wide Voltage 100V~240V, Field Diaphragm
●
●
●
●
A56.2650-30W
Field Diaphragm
For Kohler Illumnation
●
●
●
●
A56.2615-BK
Filter
Dia.45mm, Blue
●
●
●
●
A56.2616-45B
Dia.45mm, Green
○
○
○
○
A56.2616-45G
Dia.45mm, Yellow
○
○
○
○
A56.2616-45A
Dark Field
Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective
○
○
○
○
A5D.2610-BK
Dark Field Condenser, Immersion, N.A.1.3, For 100x Objective
A5D.2610-BKW
Polarizing
Analyzer + Polarizer Set
○
○
○
○
A5P.2601-BK
Phase Contrast
Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter
○
○
○
○
A5C.2602-10
Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter
○
○
○
○
A5C.2602-20
Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter
○
○
○
○
A5C.2602-40
Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter
○
○
○
○
A5C.2602-100
Turret Phase Contrast Attachment
Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter
○
○
○
○
A5C.2603-BK
Fluorescence
Upgrade From A12.2603-B/T Biological Microscope With
B,G China Fluorescent Set
6 Holes Disc Fluorescent Unit
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier
●
●
A5F.2602-2
Upgrade From A12.2603-B/T Biological Microscope With
B,G,U,UV China Fluorescent Set
6 Holes Disc Fluorescent Unit
5W LED Lamp House
5W LED Power Box
Ultraviolet Protection Barrier
●
●
A5F.2602-4
Adapter
C-Mount 0.5x, Focus Adjustable
○
○
○
○
A55.2601-05
C-Mount 0.75x, Focus Adjustable
○
○
○
○
A55.2601-75
C-Mount 1.0x, Focus Adjustable
○
○
○
○
A55.2601-10
Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm
○
○
○
○
A55.2610
Package
Carton Size 990×340×440mm, 1 pc / Ctn
Weight
Gross Weight: 23 kgs, Net Weight: 18 kgs
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories

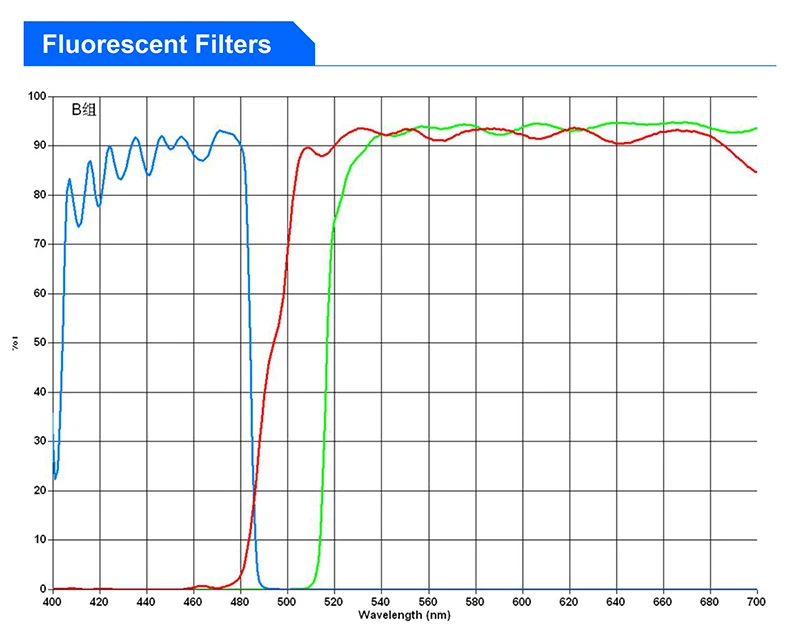

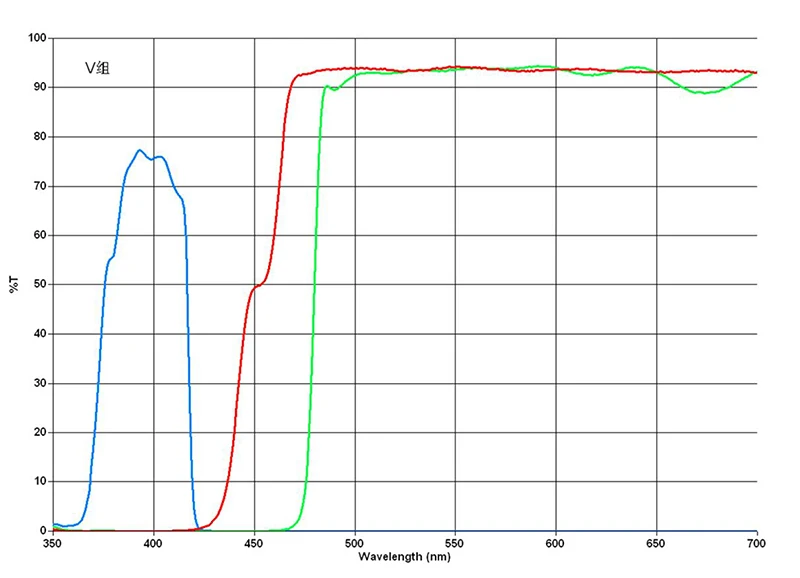

Fluorescent Filters
Exciter (nm)
Dichroic (nm)
Emitter (nm)

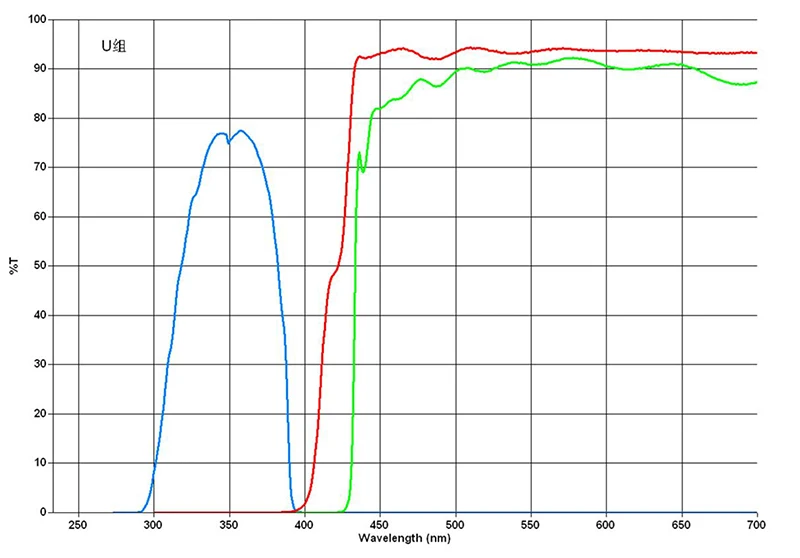

UV
330-380
400
435
V
380-420
430
460
B
420-490
505
520

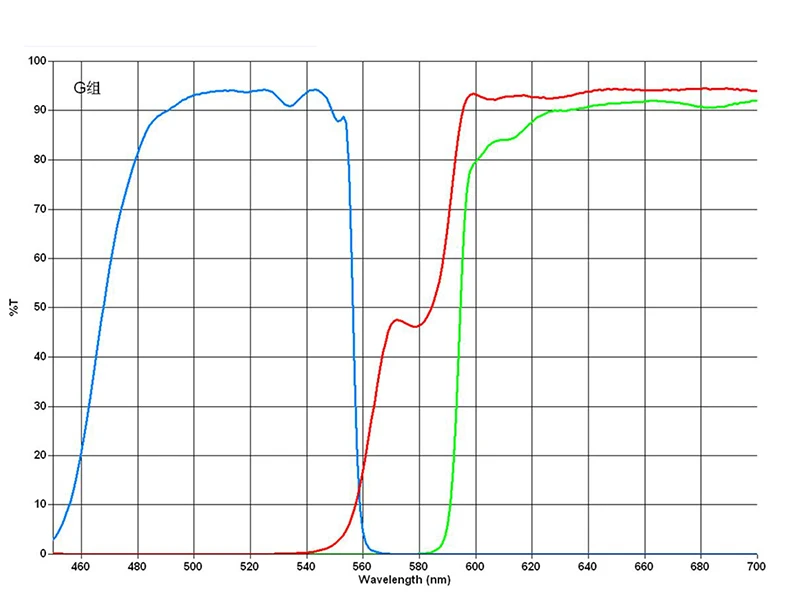

G
500-550
575
590
