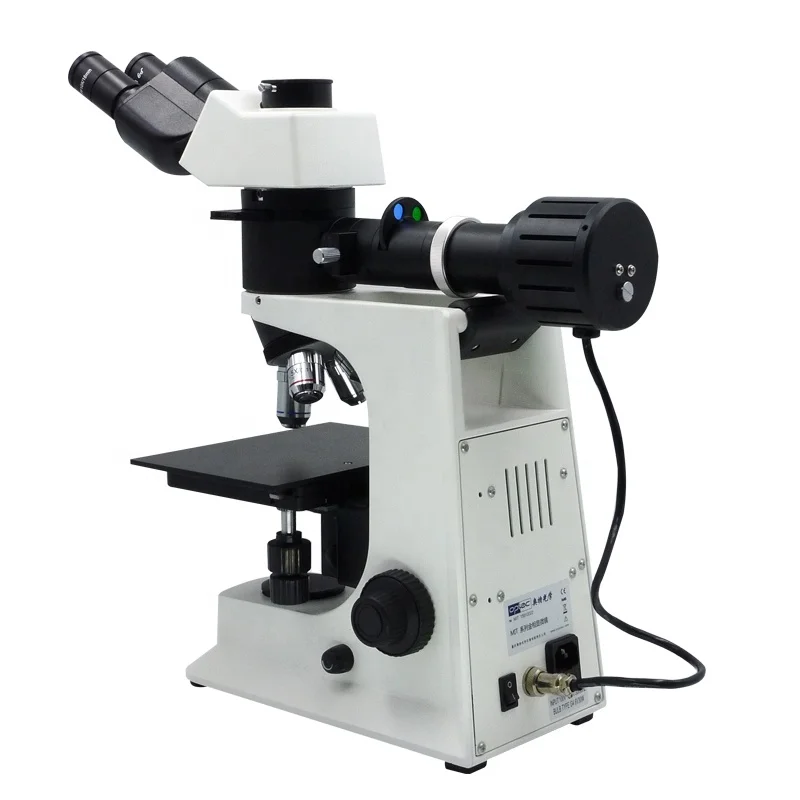

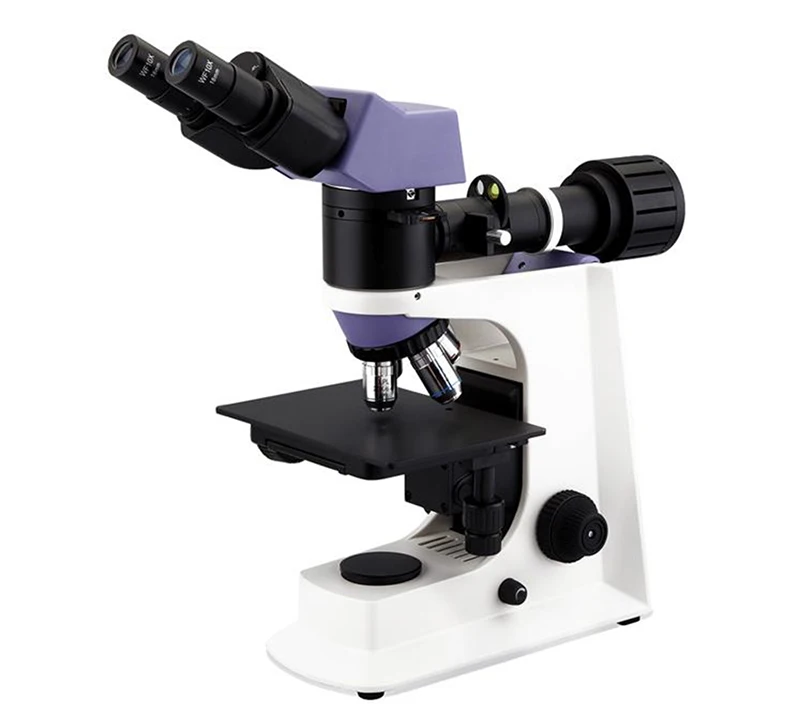

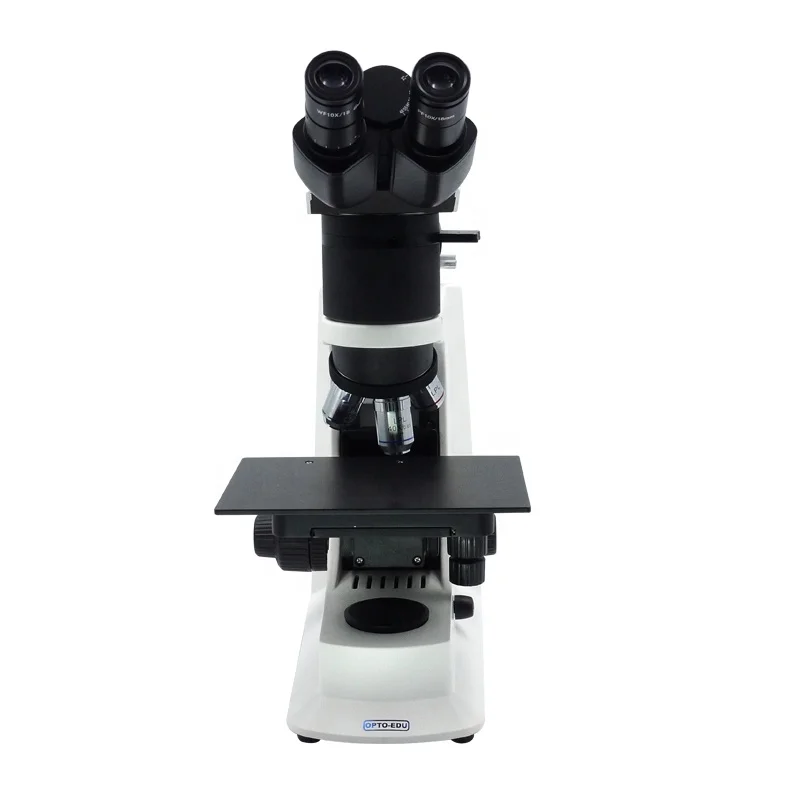

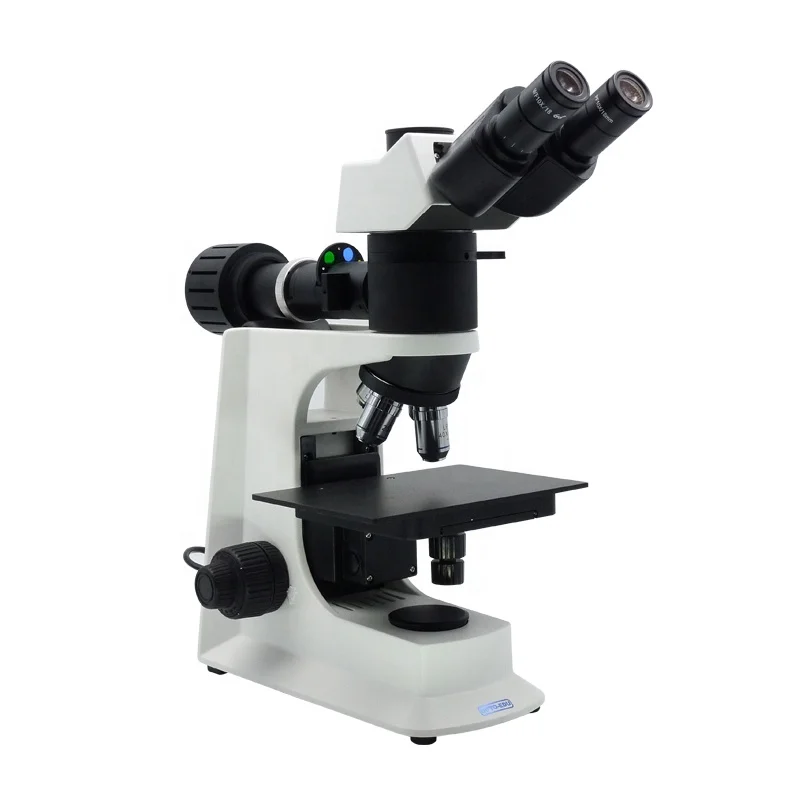

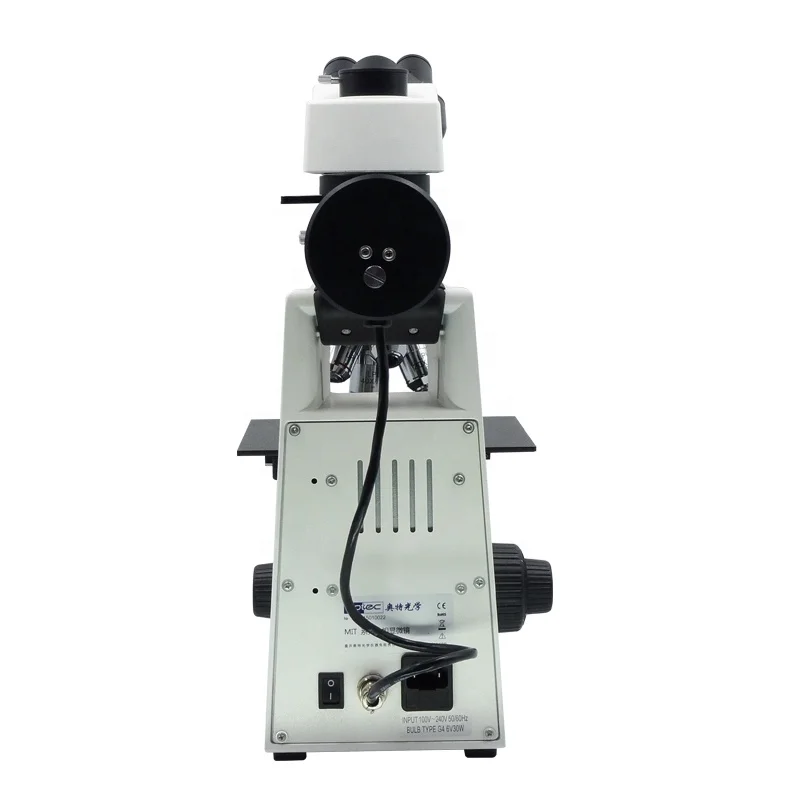

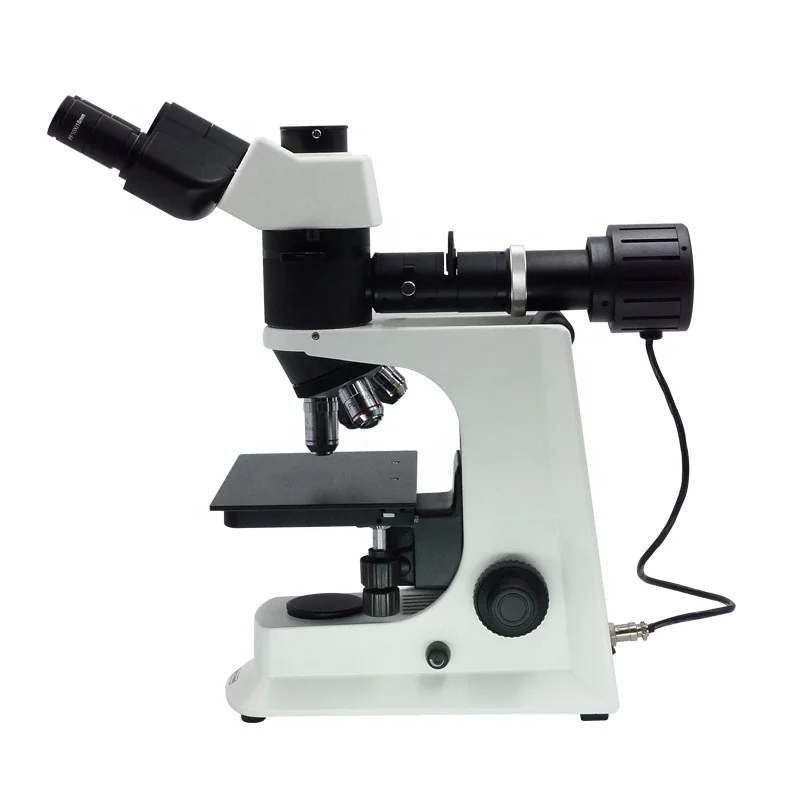

OPTO EDU A13.2605 B Trinocualr Metallurgical Optical Microscope

Head

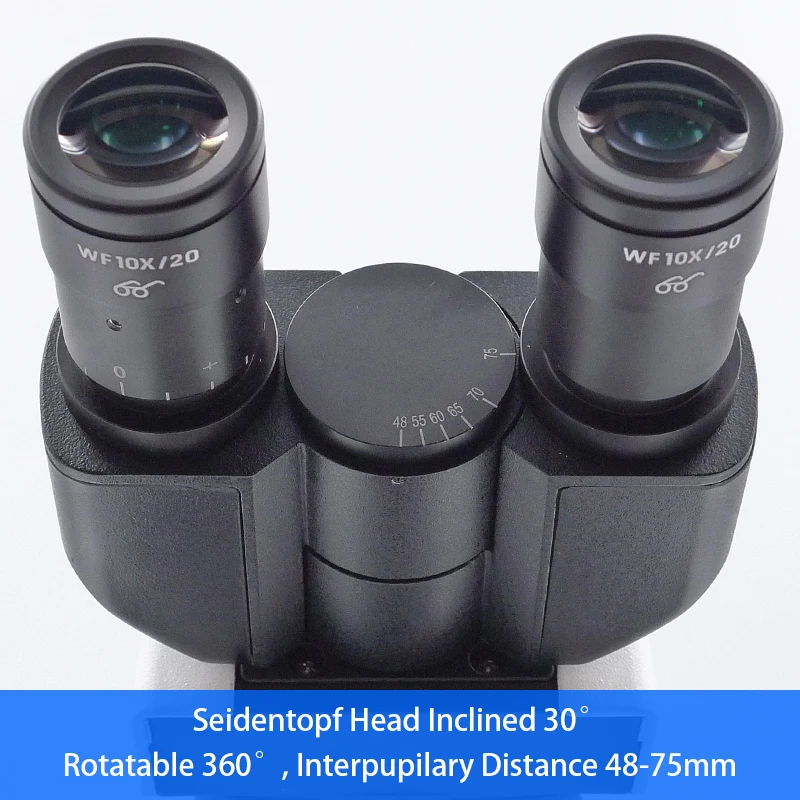

Seidentopf Binocular Head Inclined 30°, Eyetube Rotatable 360°, Interpupilary Distance 48-75mm

●

A53.2621-B

Seidentopf Trinocular Head Inclined 30°, Eyetube Rotatable 360°, Interpupilary Distance 48-75mm, Light Split Fixed P20/E80

●

A53.2621-T

Eyepiece

WF10x/20mm, High Eyepoint,

●

●

A51.2602-1018

WF10x/20mm, With Micrometer X-0.1mm*180 Div / Y-Single Line, Diopter Adjustable

●

●

A51.2605-1018D

Nosepiece

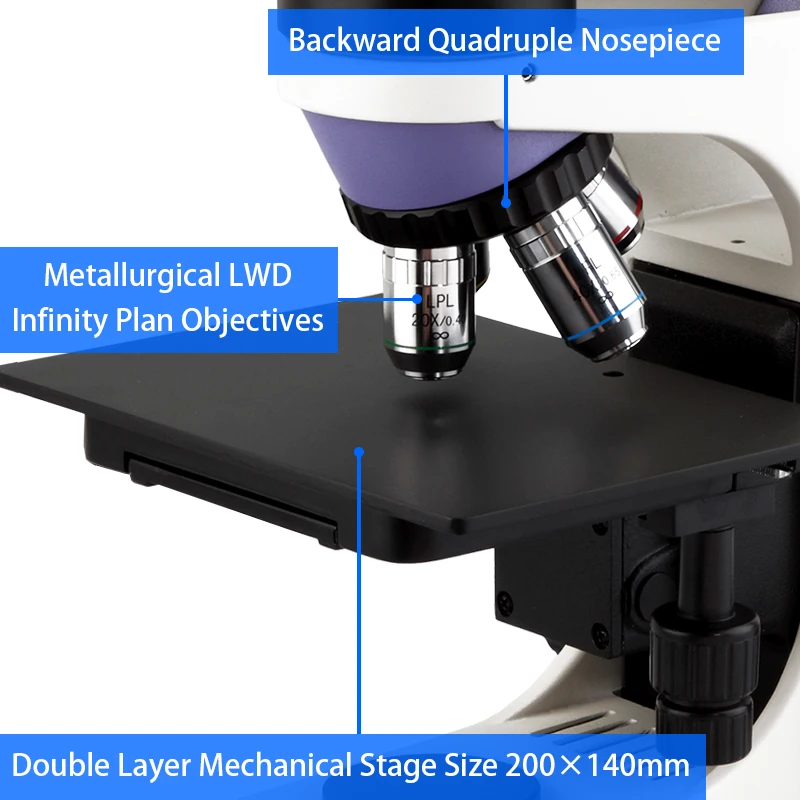

Quadruple, Backward

●●

●●

A54.2610-N734

Metallurgical LWD Infinity Plan Objectives

LPL 5x/0.13, W.D.=16.04mm

●

●

A5M.2633-5

LPL10x/0.25, W.D.=18.48mm

●

●

A5M.263310

LPL 20x/0.40, W.D.=8.35mm

○

○

A5M.2633-20

LPL 50x/0.70, W.D.=1.95mm

●

●

A5M.2633-50

LPL 80x/0.80, W.D.=0.85mm

○

○

A5M.2633-80

LPL 100x/0.90(Dry), W.D.=1.00mm

○

○

A5M.2633-100

Working Stage

Double Layer Mechanical Stage Size 200×140mm, Travel Range 76×52mm

●

●

A54.2601-S04T

Focusing

Coaxial Coarse And Fine Focusing Knobs,
Travel Range: 22mm, Scale: 2µm

●

●

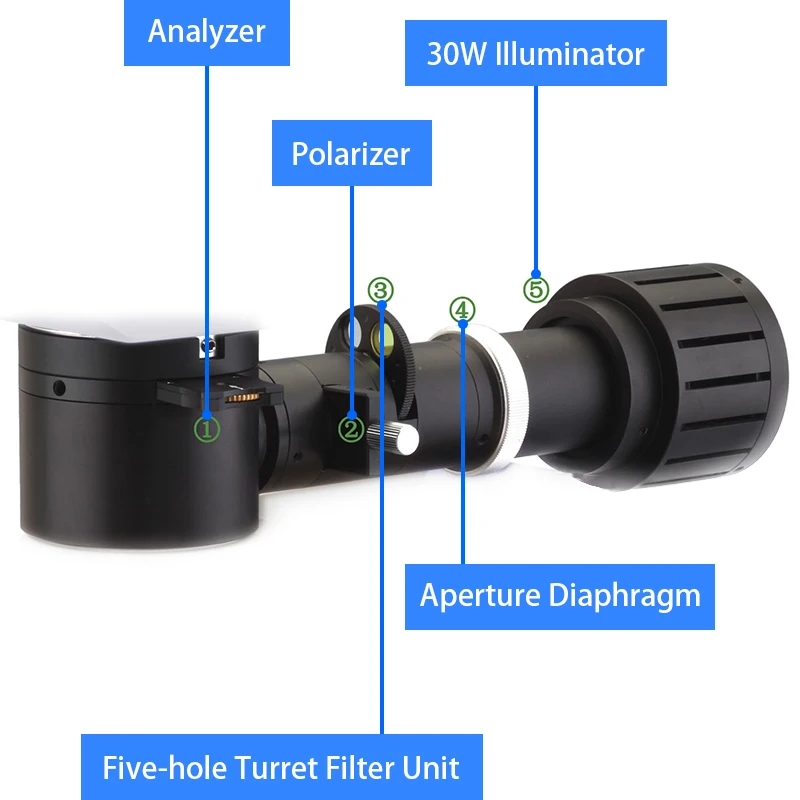

Illumination

Reflect Light Source, 5WLED Warm Lamp, With Five Holes Filter Disc (Blue, Green, Amber, Grey, Empty)

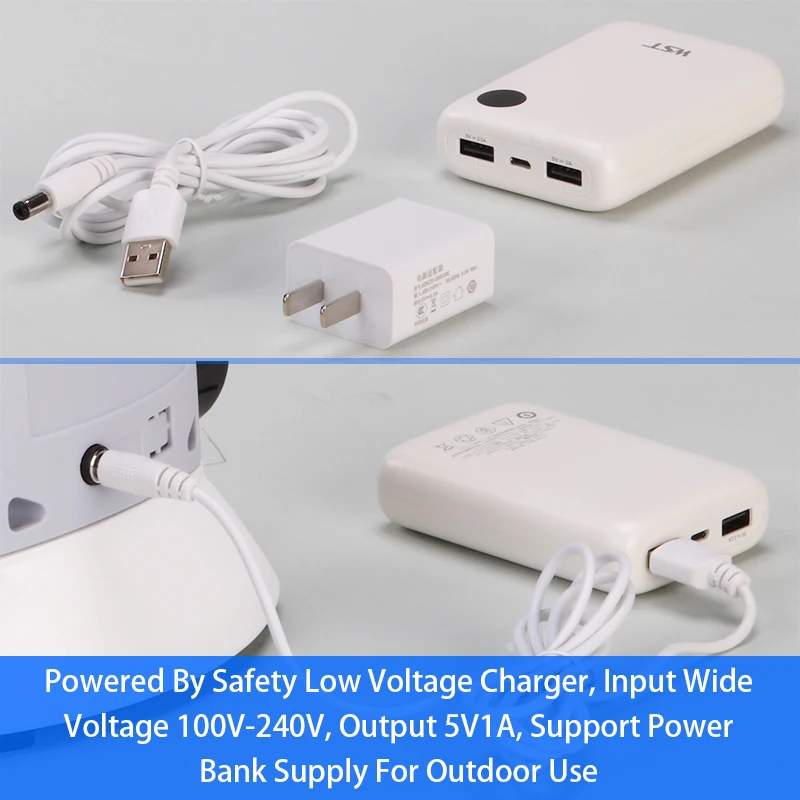

Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use

●

●

A56.2613-6V30W

Polarizing

Analyzer + Polarizer

○

○

A5P.2603-BS

Adapter

C-Mount 0.5x, Focus Adjustable

○

○

A55.2601-05

C-Mount 0.75x, Focus Adjustable

○

○

A55.2601-75

C-Mount1.0x, Focus Adjustable

○

○

A55.2601-10

Digital Eyepiece Camera Adapter, Dia. 23.2mm/25mm

○

○

A55.2610

Package

Carton Size 570*275*450mm, 1 Unit/Ctn

Weight

Gross Weight 10.5kgs, Net Weigth 8.0kgs

Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
