GENZO A505 IP65 Handheld Android PDA With 2D Honeywell Barcode Scanner Warehouse RFID pda data collector

Share on:

Price in USD:Details


Product Overview


IP65 Handheld Android PDA With 2D Honeywell Barcode Scanner Warehouse RFID pda data collector

Product Description



1.Support Android 11;
2.Support standard USB2.0 OTG connector;
4.Support NXP NFC(13.56M);
5.Support GPS navigation;
6.Rugged IP65 protection level;
7.Support high strength Glass Touch Panel;
8.Support Wrist Sling


MT6762 (8 cores octa-core)2.3 GHz

OSAndroid 11
LCD5 Inch 16:9  (720x1280 IPS)  400Nit
TP5 points Capacitive,G+G Corning Glass, Rigidity: 7H up, anti-scratch,TP thickness:1.1mm,COF,support glove and wet hand touch
Flash64GB             Support SDHC/SDXC   x1    Max:128G
Wi-FiWIFI 802.11(a/b/g/n/ac)   Frequency 2.4G+5.0G  dual band WIFI
CameraFront 5.0MP,Rear 13.0MP,with flash and auto-focus
BTBT5.0 (BLE) class1transmission distance:10m
Battery3.7V/4000mAH   Removeable Battery ,  7hrs(default50%volumn,default 200lumens brightness,play720PHD video)
Speakerbuilt in8Ω/0.8W waterproof speaker x 1
SensorG-sensor,Evironmental light sensor,Distance sensor,E-compass sensor


StrapsExtensible belt on the back case, convenient to hold
GPSsupport:GLONASS,QZSS,GPS;Capture sensitivity:-160 dBm;:Cold start time<30second,Hot start time:<28second,frequency:0.25 Hz … 10 MHz (configurable)
2D barcode scannerZeber 4710 Built-in,Honeywell6703 Optional
NFCBuilt-in NFC   Support 13.56mHz
Button KeyPower on/off,Volumn up/down, Scan(left and right) x2, System HOME key*1,BACK*1,CUSTOM*1
PortMicr usb2.0*1  OTG,charge and OTG  x1,3.5mm standard earphone  x1,SIM card connector  x1,(12pin back panel upside)extend back dock function x1,(4pin downside of unit)charging function  x1
Product ReliabilityDrop Height:1.2m composite wood floors, in operation status ,Operate Temperature:-10 °C to 50 °C (-20 °C to 60 °C  optional),Store Temperature:-30 °C to 70 °C ,Humidity: 95% Non-Condensing
Certificate System

IP65 Report: Water resistance:IP-X5,Dust resistance:IP-6X
a.Inner Nozzle diameter:6.3mm;

b. water speed:12.5±0.625L/min;
c. Water Pressure:adjust according to water volumn;
d.Central part of water volumn:diameter of 40mm, distance from nozzle: 2.5M
e.Spray time in surface of panel:about 1min

f.test time:at least 3min;
g.distance between nozzle and panel surface:2.5~3m.
After test,there is no water leakage in sample.

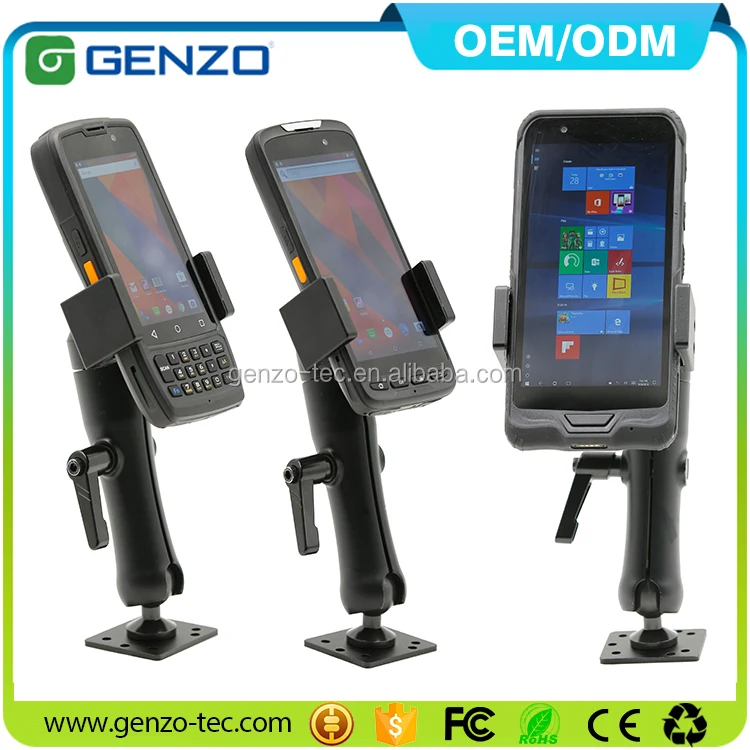

OptionalScan Trigger, Three-in-one Adaptor, Charging Docking

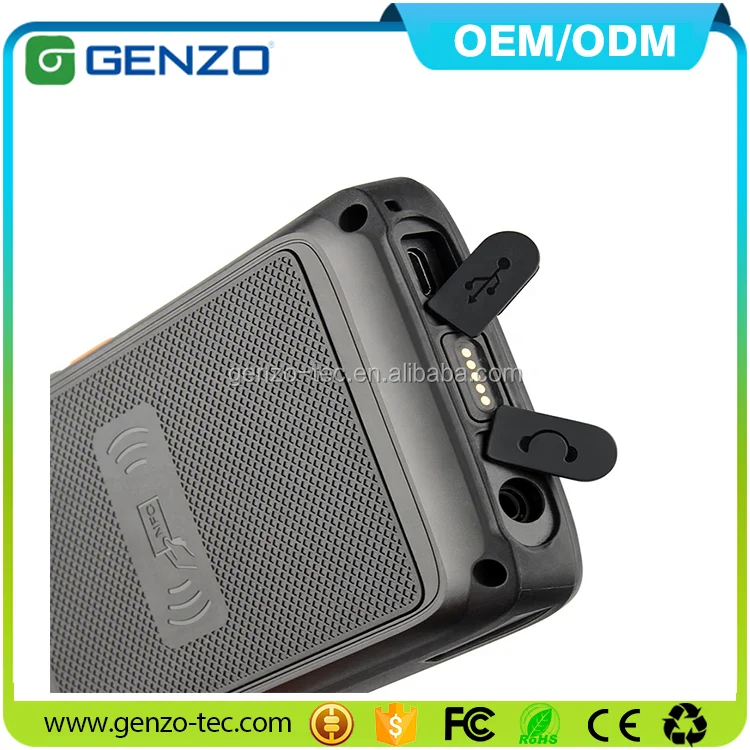

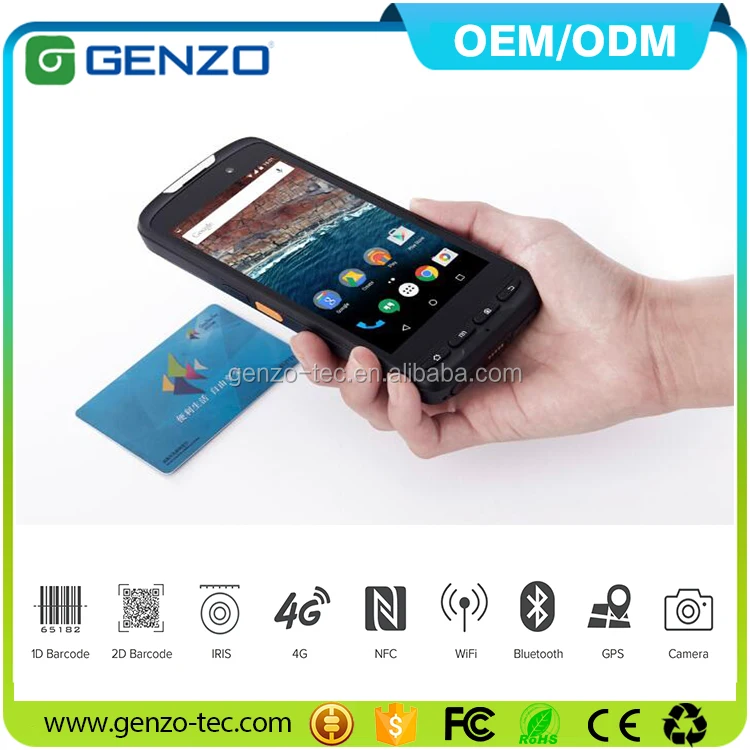

Product Pictures

CFG32232212232321121all HolderALL11JH21 Other Modles 3M3M-3M

Packaging Shipping




Company Pntroduction




Factory Pictures







Our Service



We accept OEM&ODM for customer's request. It includes:

1. Burn customer's logo name as Booting Animation name.


2.Print customer's logo on shell or do customer's logo sticker.

3. Do customer's giftbox, we can offer beautiful giftbox for customer's reference.or provide AI/CDR file for customer's own design.


4.Usuer Manual,customer can choice different languages and put them together.


5.Develop products for customers,including appearance and internal structure design, motherboard development and mold design and production.




For all our products,we offer 14 months warranty.
Usual,our Production line and QC department will test all the goods one by one for more than 3 times before send out.
So,there are almost no defective.if really have,you can send back us for repair or replacement.
You send back to us, you pay the shipping cost.
We send back to you,we pay the shipping cost.
But, all this warranty does not include accident, human fault or improper use.


Why choose us?

1. We are China leading Rugged Tablet & PDA manufacturer.

2. Alibaba Gold Supplier.

3. Inspected by the inspection of Bureau Veritas Certification.

4. 100% QC inspection before shippment.

5. Best quality & service with competitive price.




1.Q: Are you a factory or trading company?
    A: We are factory.

2.Q: Where is your factory located? How can I wisit there?
   A: Our factory is located in Shenzhen City, China. You can fly to Shenzhen airport directly, and            we will pick you up. Welcome to visit our factory.

3.Q: How can I get some samples?
   A: We are honored to offer you samples.

4.Q: How does your factory do regarding quality control?
   A: Quality is priority. We always attach great importance to quality controlling from to the end.              Our factory has gained CE, FCC, ROHS certification.
