ET1090 high- frequency desktop digital LCR bridge meter with TFT screen display


Basic features :


Measurement frequency up to 100kHz
Test level 100 ~ 2000mV
Support the measurement of DC resistance and electrolytic capacitance
Internal bias voltage output (1mV-1500mV)
Automatic identification of component measurement
3.5-inch TFT display, 5  bits display
Data recording (maximum and minimum values, average value)\t
Support SCPI communication protocol
Basic accuracy 0.2%
Be equipped with open circuit and short circuit correction

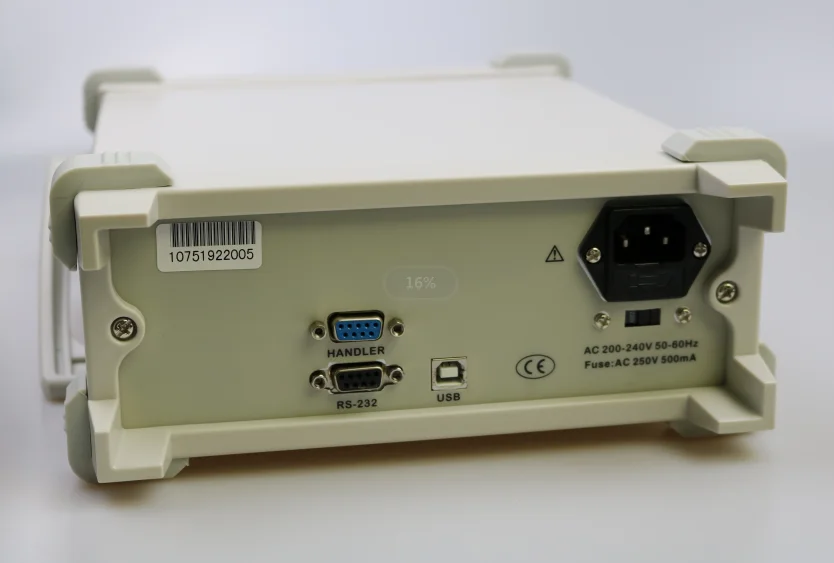

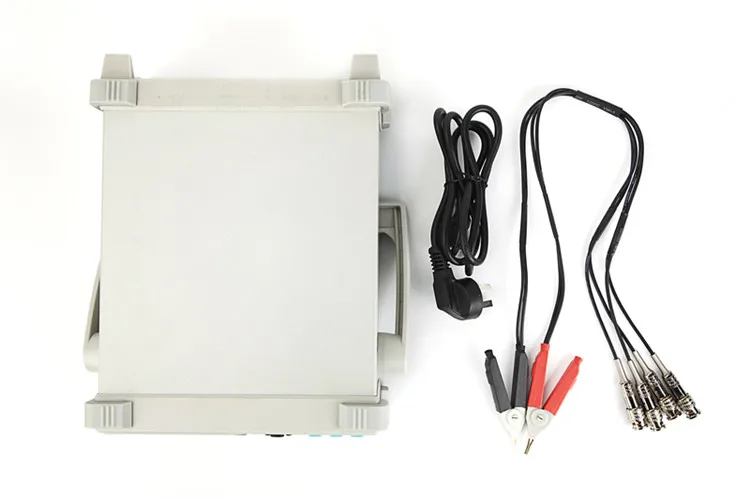

Provide a variety of test ports

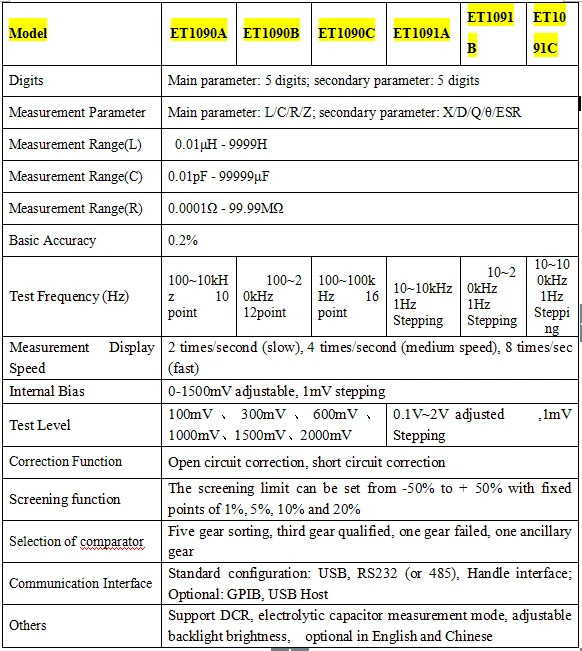

General Technical Specifications

Power supply voltage: 220V AC ± 10%, or 110V AC ± 10%, 45-65Hz
Working environment: 0 ~ 40 ℃, relative humidity <80%.
Storage environment: -10 ~ 50 ℃, relative humidity <80%.
Dimensions: 265mm * 105mm * 305mm (width * height* depth).
Mass: 2.3kg.

Detailed Images
Our Company

ODM and OEM factory with R&D department since 2003

Trademark: EASTTESTER
Certificate: ISO9001, CE, ROHS

The main products we are supplying are digital multimeter, process calibrator, function generator, LCR meter, programmable power supply, dry block temperature calibrator, combined multichannel calibrator and so on.

Exhibiton

 Now our products have been exported to many countries and regions all over the world, like America, India, Korea, Germany, Mexico.

Workshop

Production process

PCB (Printed circuit board) --soldering --Assembling -- Visual inspeciton --Testing --Packing --Shipping

We have devoted ourselves to the whole production including R&D, production, sales and after service with a professional and experienced R&D team and QC team.

Delivery and Payment

 Delivery


1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Hangzhou airport to customers' destination city air port.
3. By Sea: Delivery from Shanghai or Ning bo port.


Payment : Full payment as deposit before production

Warranty : 1 Year

Certifications

CE and RoHS certificate provided
