3d printer filament extruder machine plastic filament for 3D printing
- Category: Plastic & Rubber Machinery >>>
- Supplier: Nanjing Gs-Mach Extrusion Equipment Co. Ltd.
Share on (60831673099):
Product Overview
Description
3d printer filament extruder machine plastic filament for 3D printing
Product Description
3D printing is a revolutionary technology since it began, which has became more and more popular for all kinds of industries. With the rise of 3D printing technology, our company developed the filament machine for 3D printing, and sold them to a lot of developed countries, such as France, UK, USA, Russia, Australia, Holland, Argentina and so on, which had been very well received.
We have full experience in 3D printer filament making machine, we provide turnkey project and a perfect solution according to your materials and capacity or other requirements.
We have full experience in 3D printer filament making machine, we provide turnkey project and a perfect solution according to your materials and capacity or other requirements.
3D Printer Filament Making Machine: Neat line arrangement technology; Rainbow color filament rendering technology; Filament thickness, high precision technology.
333

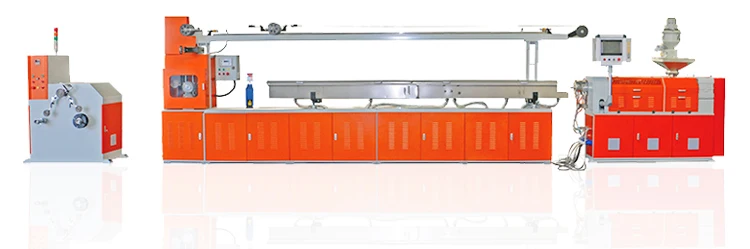

GSD Series - 3D Printer Filaments Extrusion Equipment Mode

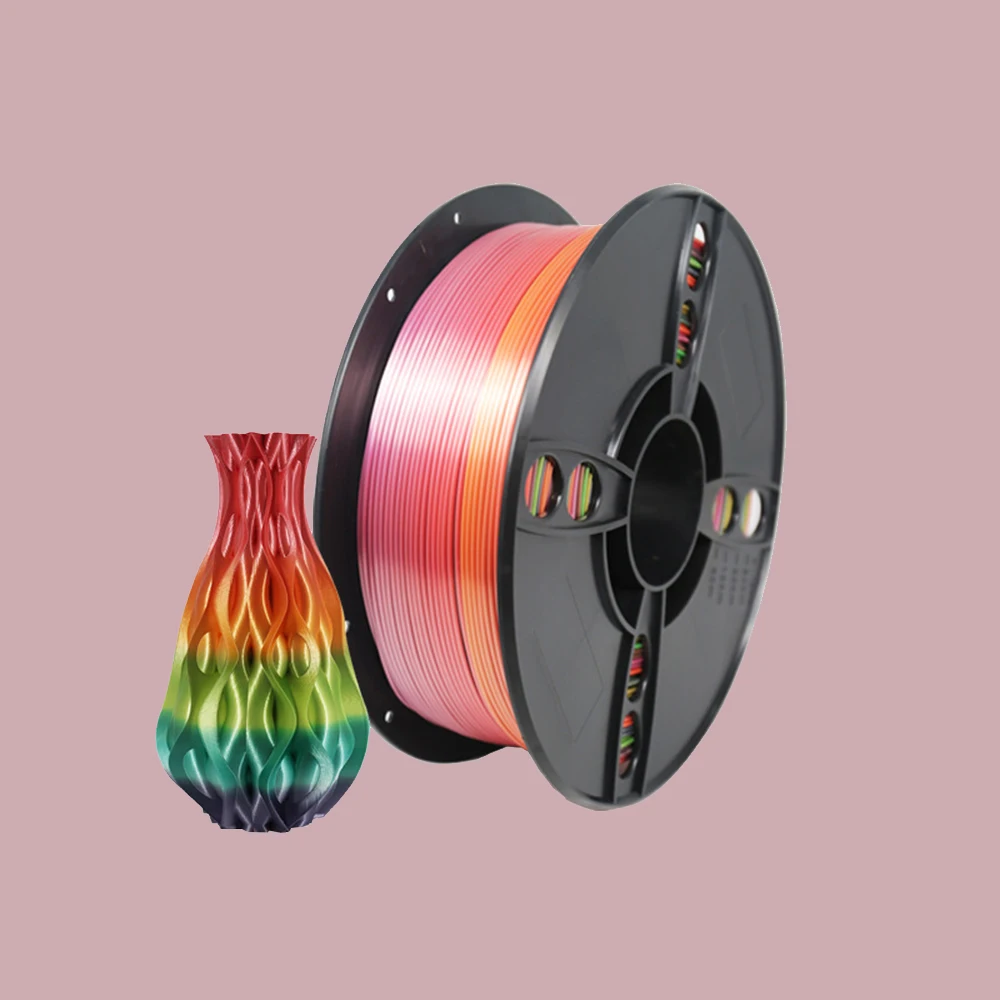

Final Filament Roll Products Display
Neat line arrangement technology
.
Rainbow color filament rendering technology
Machine specification
Model | Power | Diameter | Capacity | Tolerance | Material |
GSD20 Lab | 400W | 1.75-3mm | 1-2kg/h | +-0.04mm | PLA ABS PS HIPS PEEK PA PET PETG |
GSD35 | 4KW | 1.75-3mm | 8-15kg/h | +-0.02mm | PLA ABS PS HIPS PEEK PA PET PETG |
GSD45 | 7.5KW | 1.75-3mm | 15-30kg/h | +-0.02mm | PLA ABS PS HIPS PEEK PA PET PETG |
GSD65 | 15KW | 1.75-3mm | 30-50kg/h | +-0.02mm | PLA ABS PS HIPS PEEK PA PET PETG |

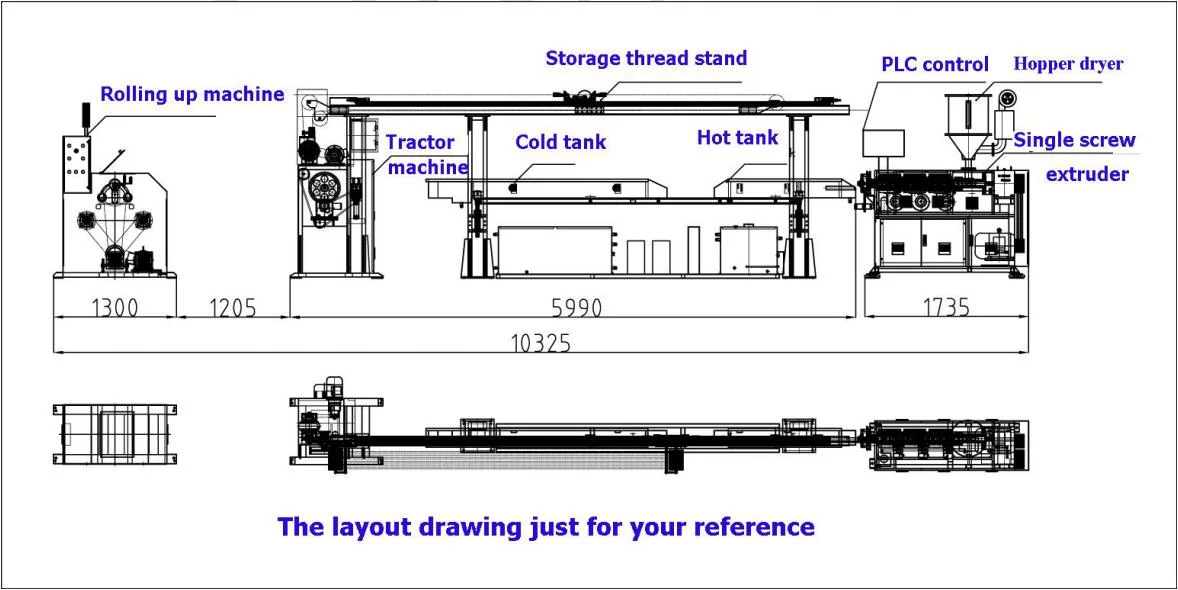

Mixer Machine-----Vacuum Loader-----Hopper Dryer-----ABS PLA Single Screw Extruder-----Die Head-----Hot & Cold Water Tank-----Tractor Machine-----Storage Thread Stand-----Laser Measuring Diameter Instrument-----Rolling Up Machine-----Vacuum Packaging Machine
Details Images
GSD Series 3D Printer Filaments Extrusion Equipment Advantages
1. Big Capacity Compared with Other Suppliers Using the Same Model.
2. Perfect Tolerance: +-0.03mm.
3. Can Produce the Different Diameter of Filament from 1.5mm-3.0mm.
4. Easy Operation: PLC Full-Automatically Control System.
5. Produce Different Raw Material: ABS PLA PA HIPS PET PEEK PETG and So On.
6. Low Maintain. We Don't Receive Any Complaint once the Machine is Running.
7. Help to Install up Oversea.

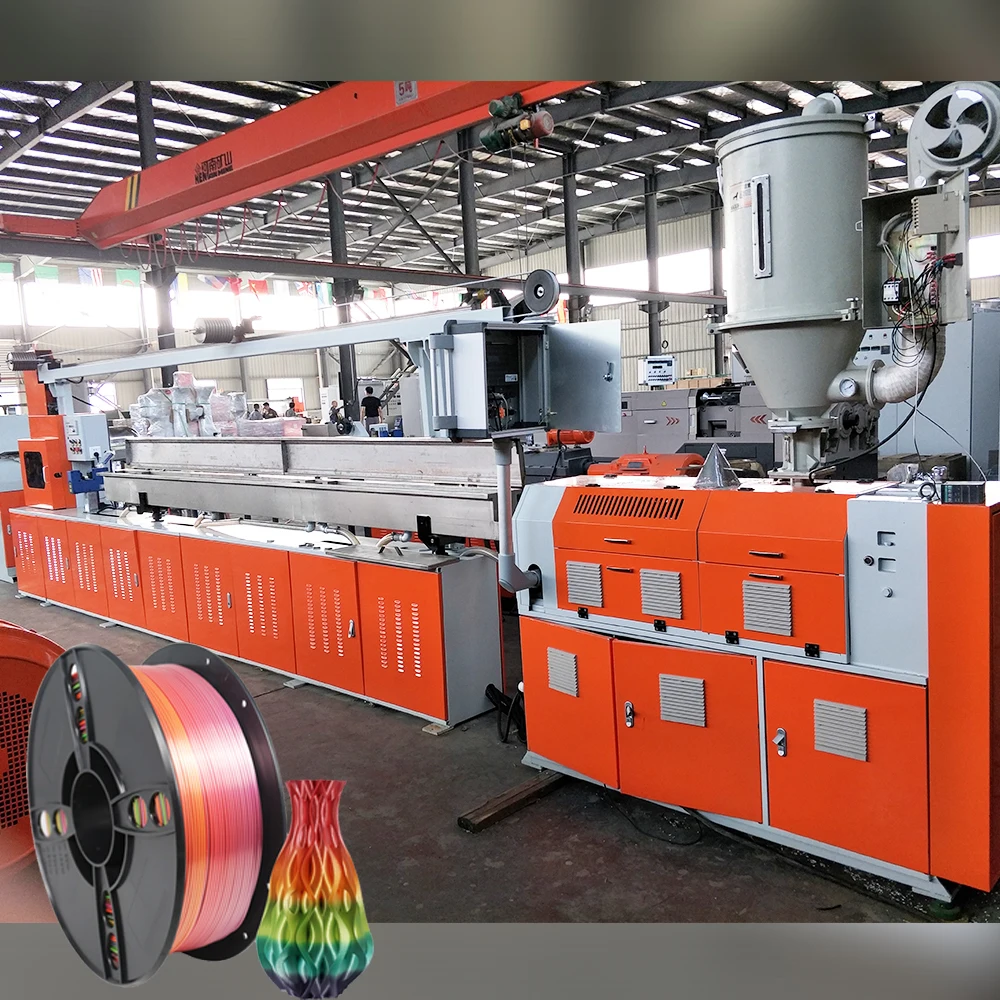

Factory Real Shot
Our Service
GS-Mach Services Provided
1. Introduce products and Applications details
2. Recommend suitable solution
3. Provide with reference in formation
4. Offer lab for test
In production
1. Provide with layout and engineering conditions
2. Inform the project processing status
3. Offer other documents
After-sale
1. Provide with installation, commissioning and training
2. Offer spare parts
3. Provide with necessary technical support for new application
2. Recommend suitable solution
3. Provide with reference in formation
4. Offer lab for test
In production
1. Provide with layout and engineering conditions
2. Inform the project processing status
3. Offer other documents
After-sale
1. Provide with installation, commissioning and training
2. Offer spare parts
3. Provide with necessary technical support for new application
