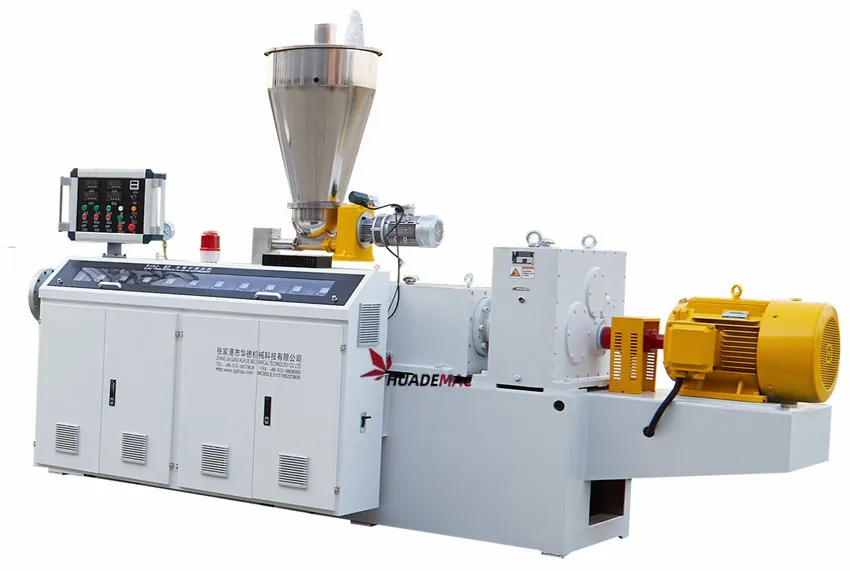

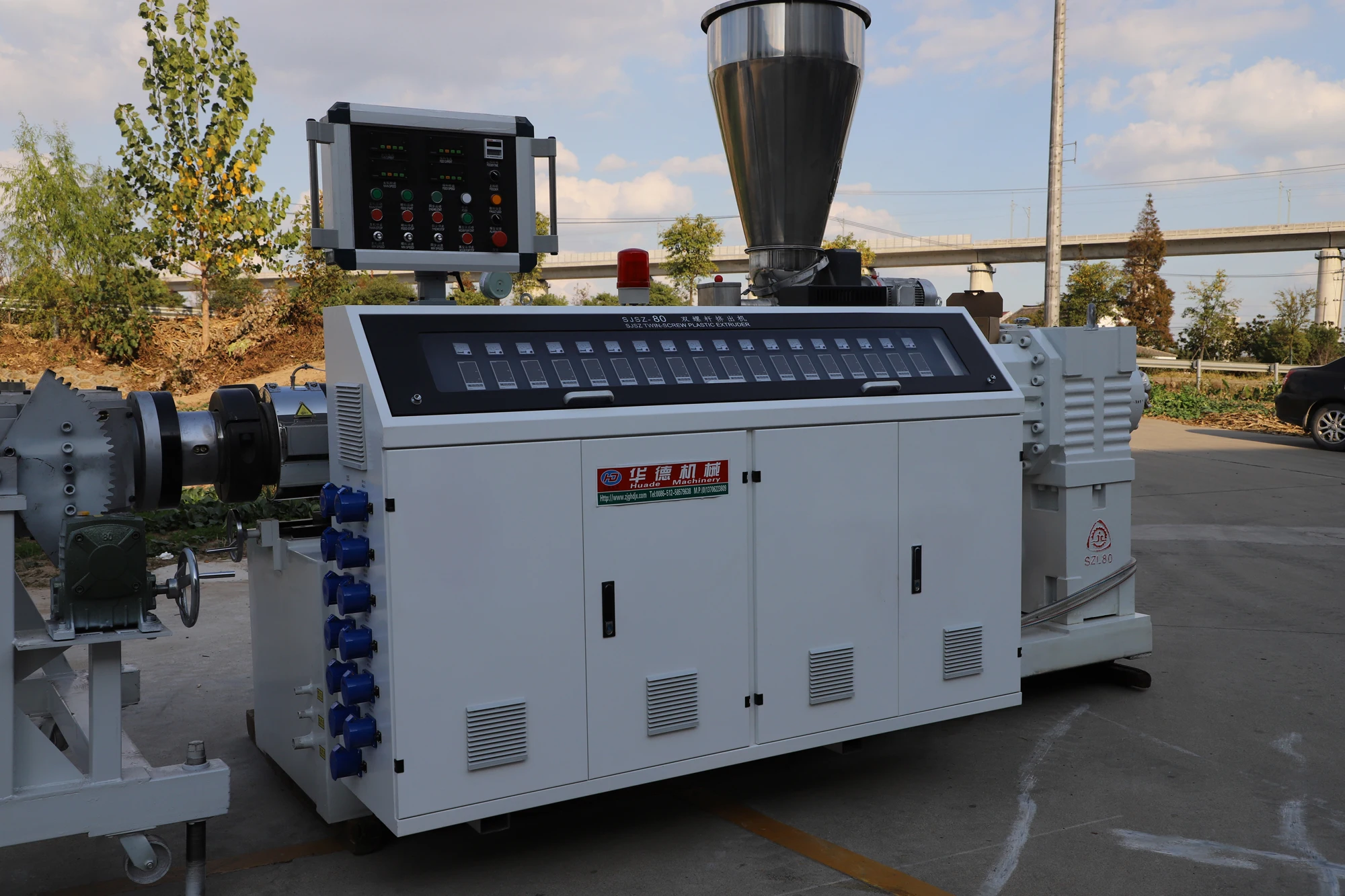

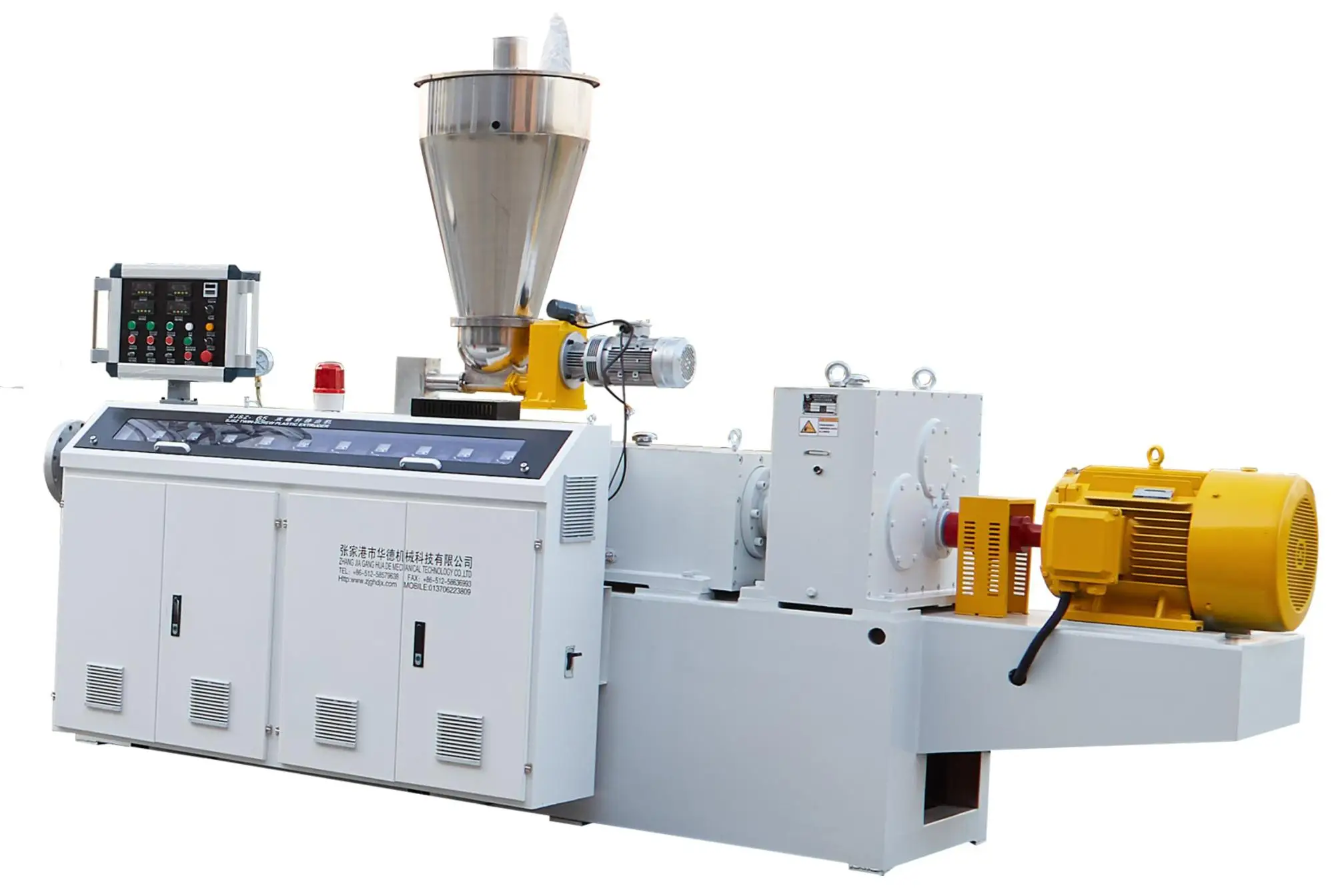

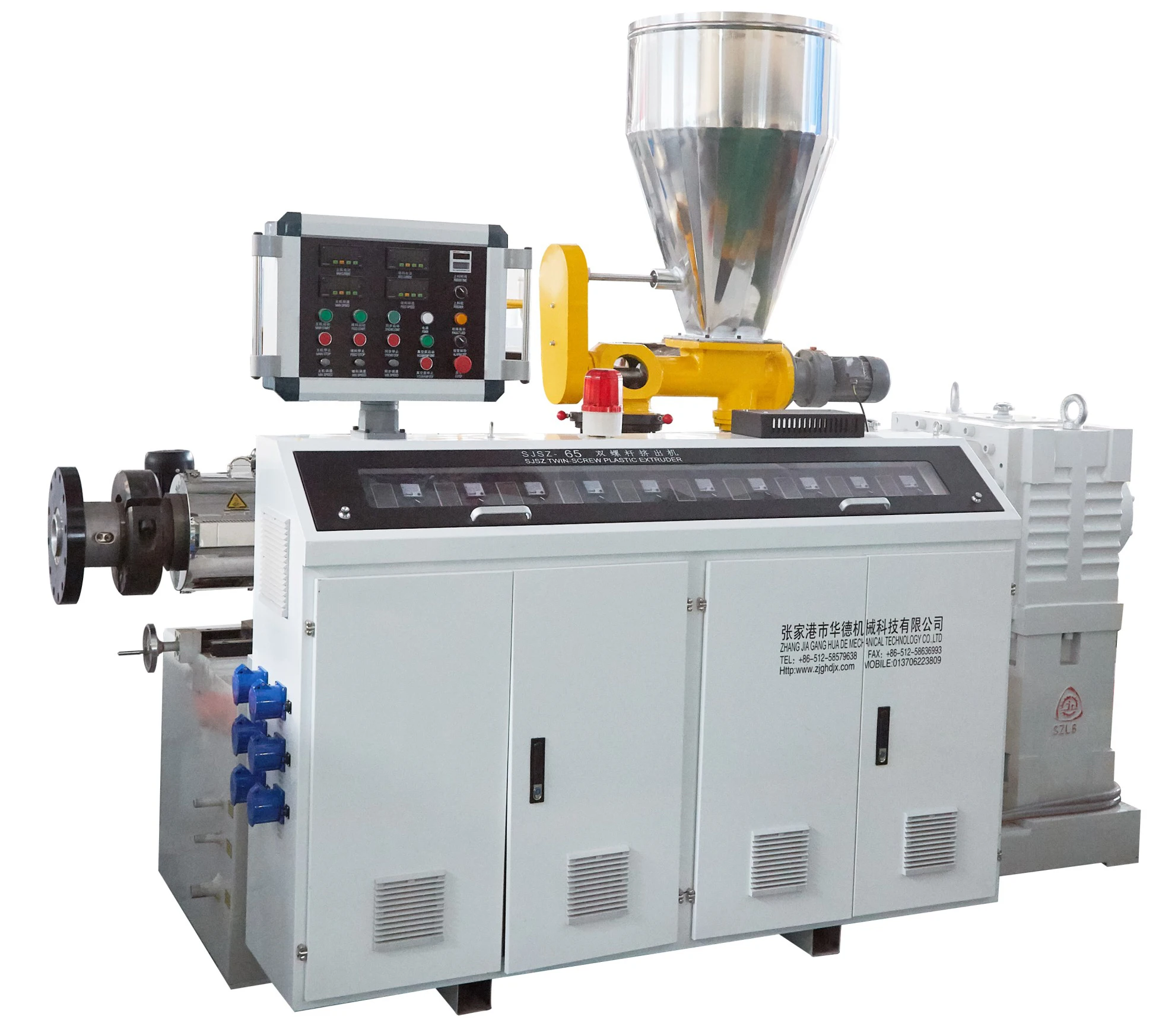

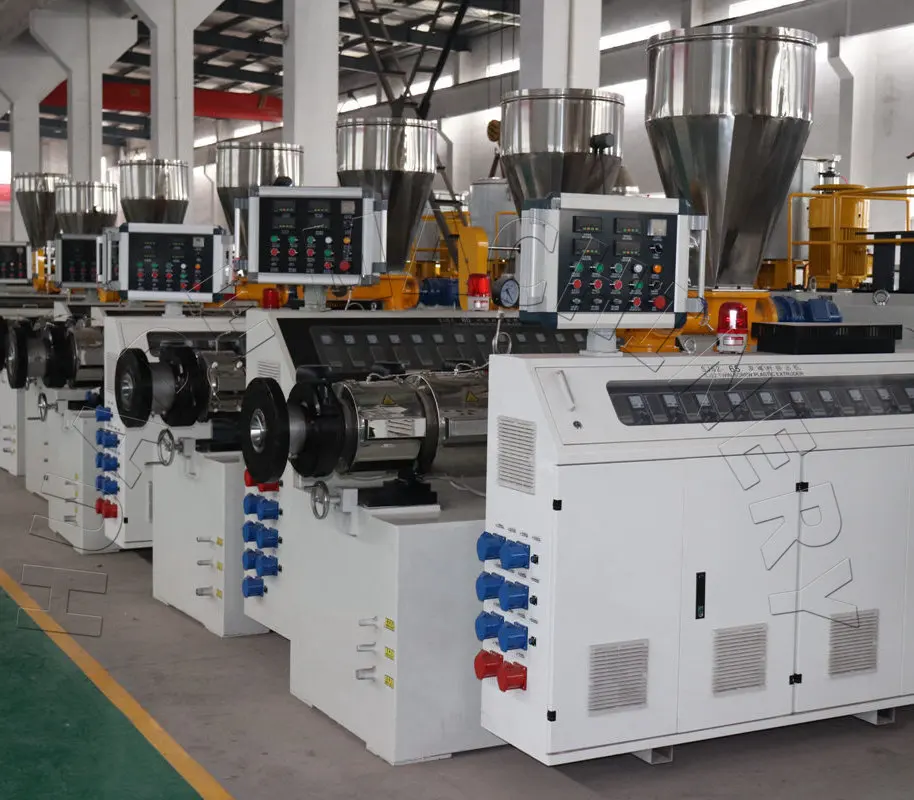

zhangjiagang Cleap PVC Conical Twin Screw Extruder UPVC PVC material double screw plastic extruder

Product Overview

Description

Brief Introduction :

SJZ series conical twin-screw extruder has advantages such as forced extruding, high quality, wide adaptability, long working life, low shearing speed, hard decomposition, good compounding& plasticization effect, and direct shaping of powder material and etc.



This extruder is suitable for matching with production line of plastic pipe, plate and profile and etc

This series of extruders are applied to PVC pipe extrusion line, PVC profile extrusion line, PVC modification pelletizing line, wood plastic composite product extrusion line.



Main Technical Parameters



Model	SJZ45	SJZ51	SJZ55	SJZ65	SJZ80	SJZ92
Screw Diameter (mm)	45/90	51/105	55/110	65/132	80/156	92/185
Speed Of Screw (R/Min)	1-45.5	1-42	1-40	1-38	1-36.9	1-34.7
Effective Screw Length (mm)	989	1070	1200	1440	1800	2500
Main Motor Power\\ (Kw)	15	18.5	22/30	37	55	110
Barrel Heating Power(Kw)	11.5	16	18	24	36	86
Capacity  (Kg/H)	80-100	100-120	150-180	250-300	320-400	600-800
Central Height (mm)	1000	1000	1000	1000	1000	1000
Net Weight (Kg)	2800	3000	3500	4000	5000	6000
Appearance Size  LXWXH (mm)	3300x1200x2127	3300x1400x2130	3620x1350x2157	4235x1520x2450	4750x1550x2460	6500x1600x2500

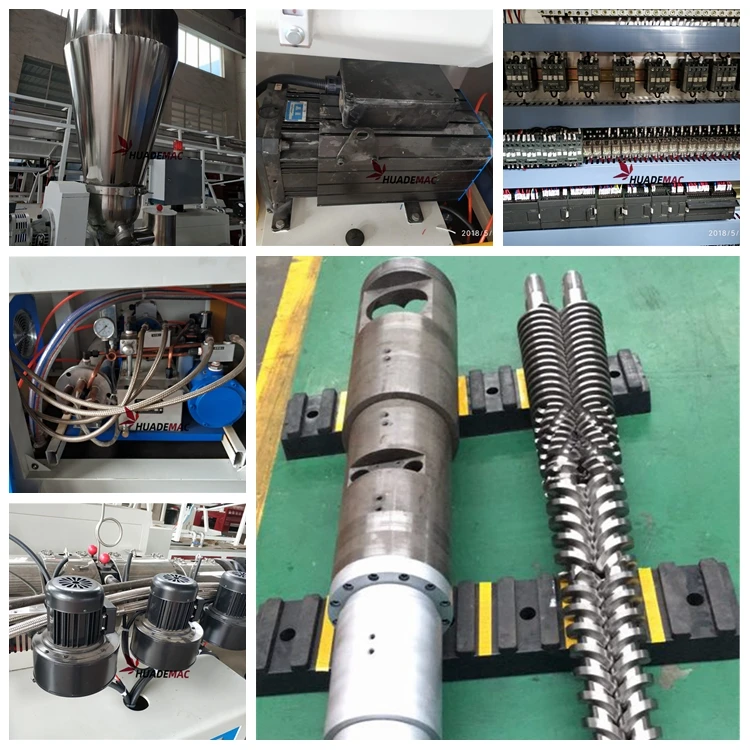

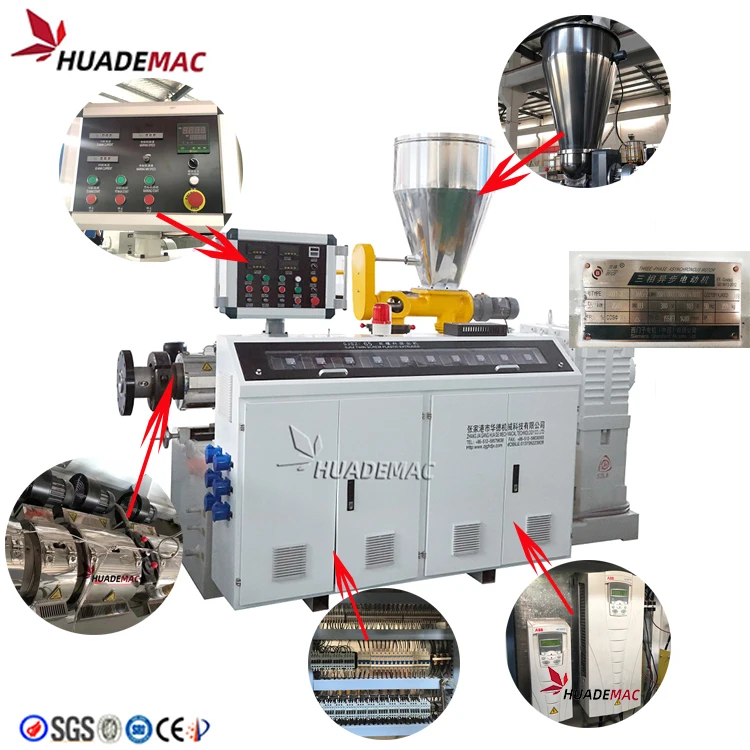

Features:

l  Nice looking,, compact structure, space-saving;

l  World class DC/AC control system and sectional malfunction alarming make measuring and maintenance easily;

l  High-performance reducing torque-distribution system guarantees reliable and quiet running;

l  Flexible air cooling/oil cooling system reduces running cost;

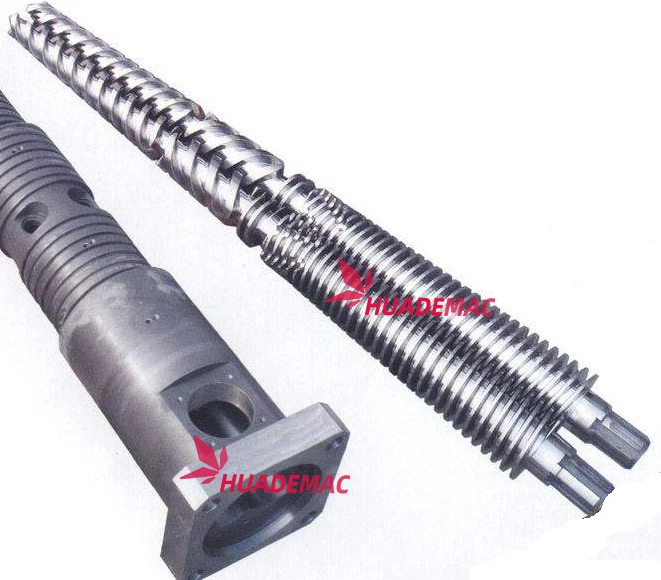

l  Optimized designed, carefully fabricated screw shafts and barrel bring an extremely good plasticization;

l  Under the prerequisite of keep a high melt quality, it realizes a maximum extruding ability.
