1200kw high efficiency natural gas generator,high power genset,for power plant

Product Overview

Description

Company brief introduction:

Tianjin Sinogas Repower Energy Co, .Ltd, is not only a Natural Gas Equipment supplier, but also a relevant natural gas project designer and executor. We have been into the business from 2008. We could provide high quality genset with a wide power range from 60KW to 6000KW.

Our products have exported to Middle East, South America, Africa and South-East Asia. We wish to cooperate with you and offer you best service.

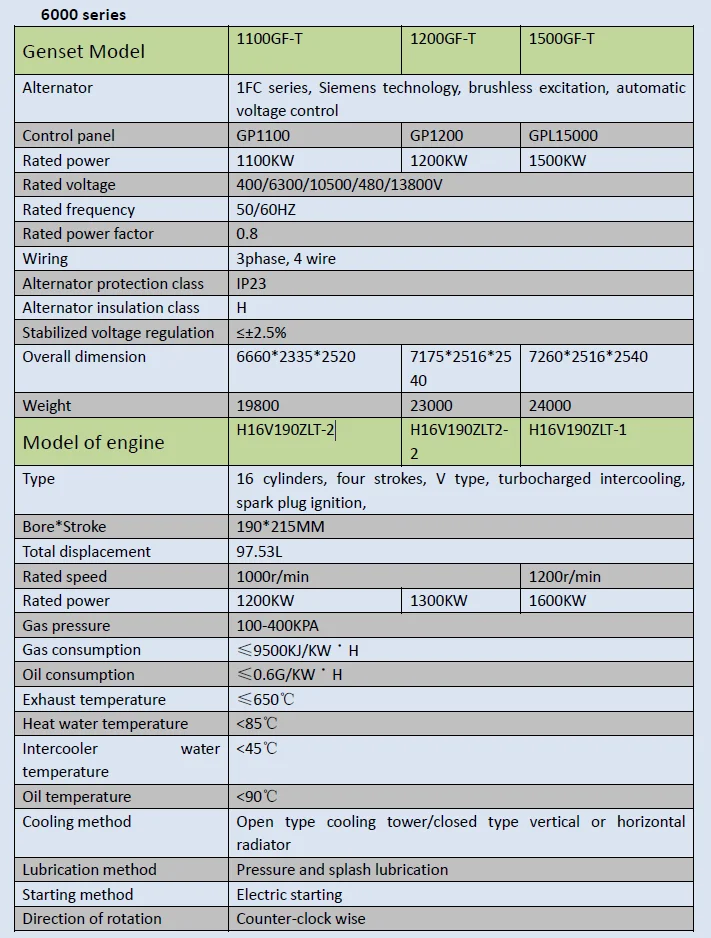

Technical data:



Main Features:

1 Engine design:

Intellectual Property belong to Jichai. Triaxiality Finite Element Analysis, to adjust the most suitable structure for engine. Longer Stroke, More displacement Low Speed (1200RPM), more reliable and increase the lifetime of engine.

2 Generator:

Brushless Excitation,no need for maintenance and more reliable. AVR technology to adjust the voltage. Better Insulation and Protection,with class F and IP23

3 Testing:

Strict Inspection and Factory Test for Each Engine and Gen-set, to ensure the quality.                     Start Performance Test,ro ensure the genset meet your need. Load Test, Synchronization Test and Safety System Test

4 Safety:

Low Oil Pressure Auto Stop Protection                                                Over Speed Auto Stop Protection  Explosion Proof High Coolant Temperature Alarm High Oil Temperature Alarm Complete Electrical Protection Emergency Stop Device

5 The Whole Equipment Supply

Standard Scope of Supply Optional Equipment List Repairing Tools Spare Parts Meet the Requirement for All Accessories of Project

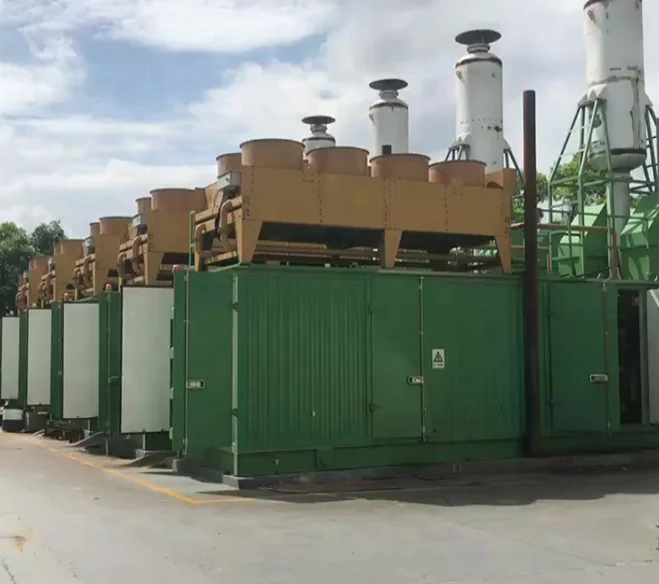

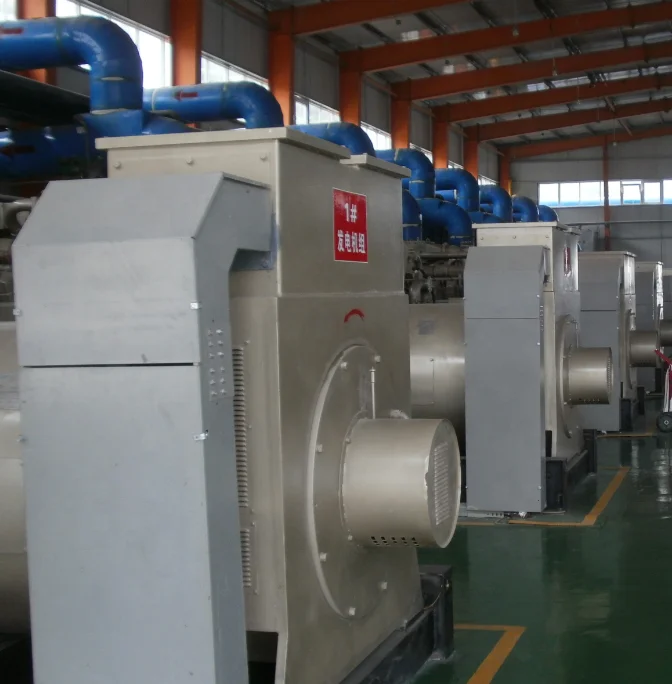

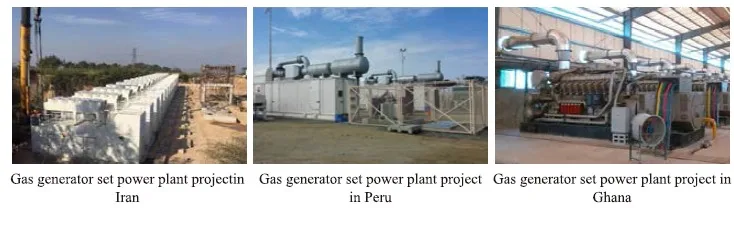

Application project :

 Our product has been used in worldwide and has proved it's quality.



Worksite requirements:

The worksite needs to meet following basic requirements:

a) ambient temperature between -45℃~45℃;

b) Relative humidity less than 95%(35℃);

c) Site elevation not higher than 2500m;

d) For outdoor installation of non-containerized genset, simple rain shelter is required.



Service:

Service guarantee



180 employees for worldwide market providing 24-hour service

Agents and service centers in Southeast Asia, South Asia, Middle East, Russia, CIS and Africa etc.

CNPC oversea company, repair center and overhaul workshop



Service content



Project feasibility analysis

Power station design (Layout and electric system design)

Comprehensive equipment supply

Installation guide

Debug and commissioning

2 years warranty

Spare parts supply the whole service life

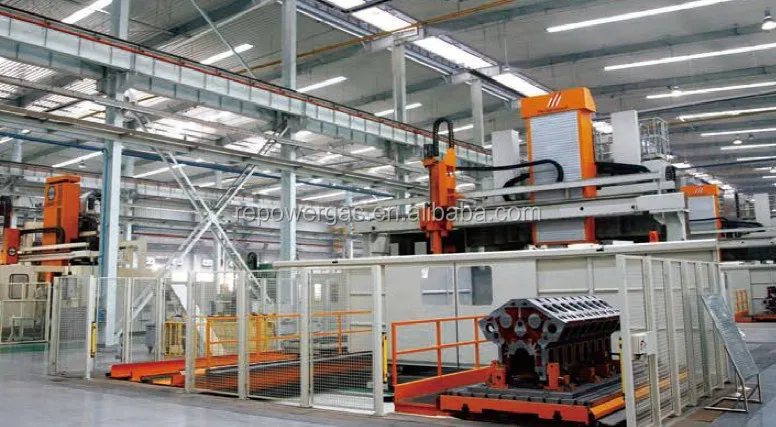

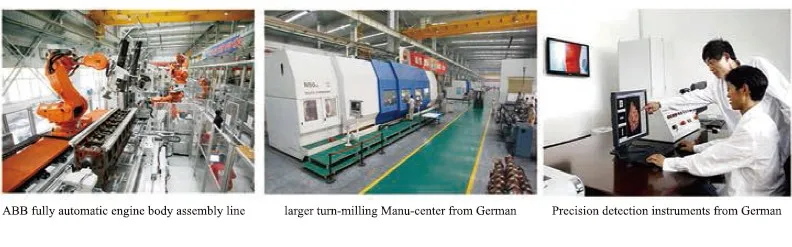

Workshop:

We adopt germany automatic assemble line







Certifications:
