Product Overview

Description

Product Description

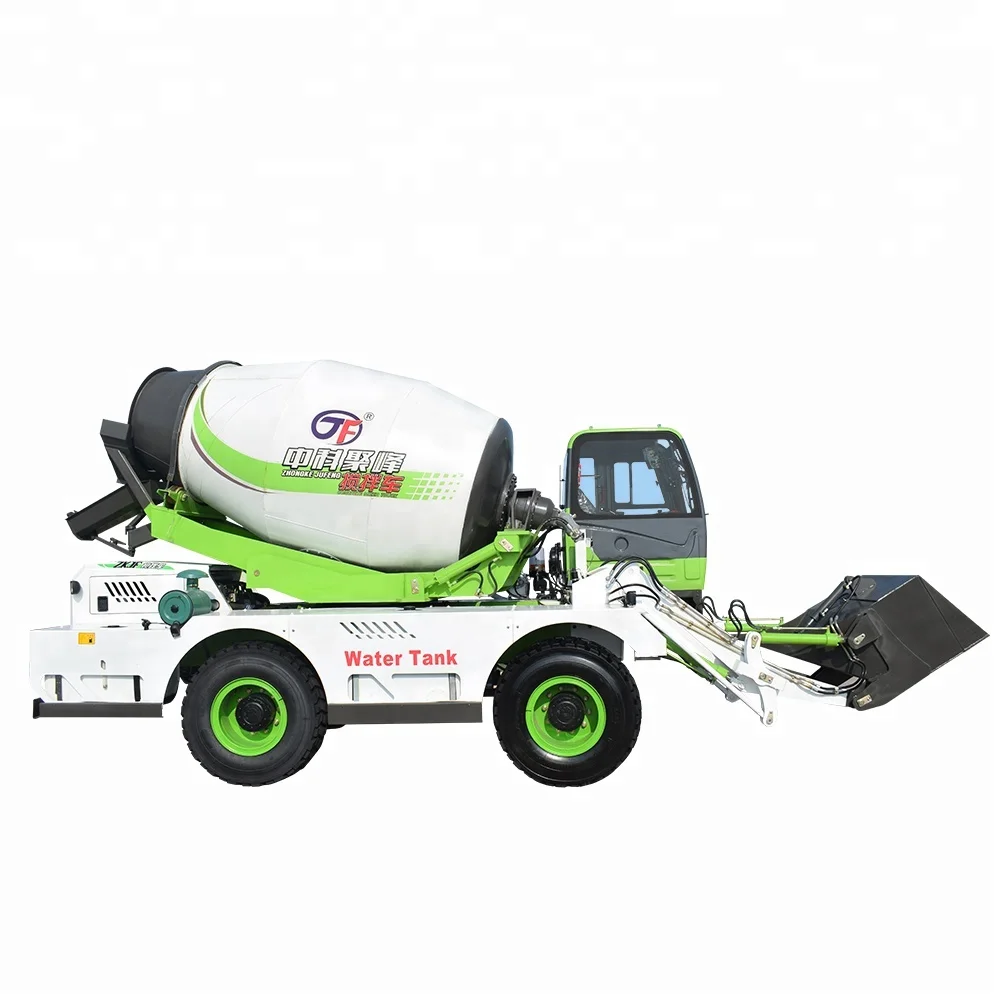

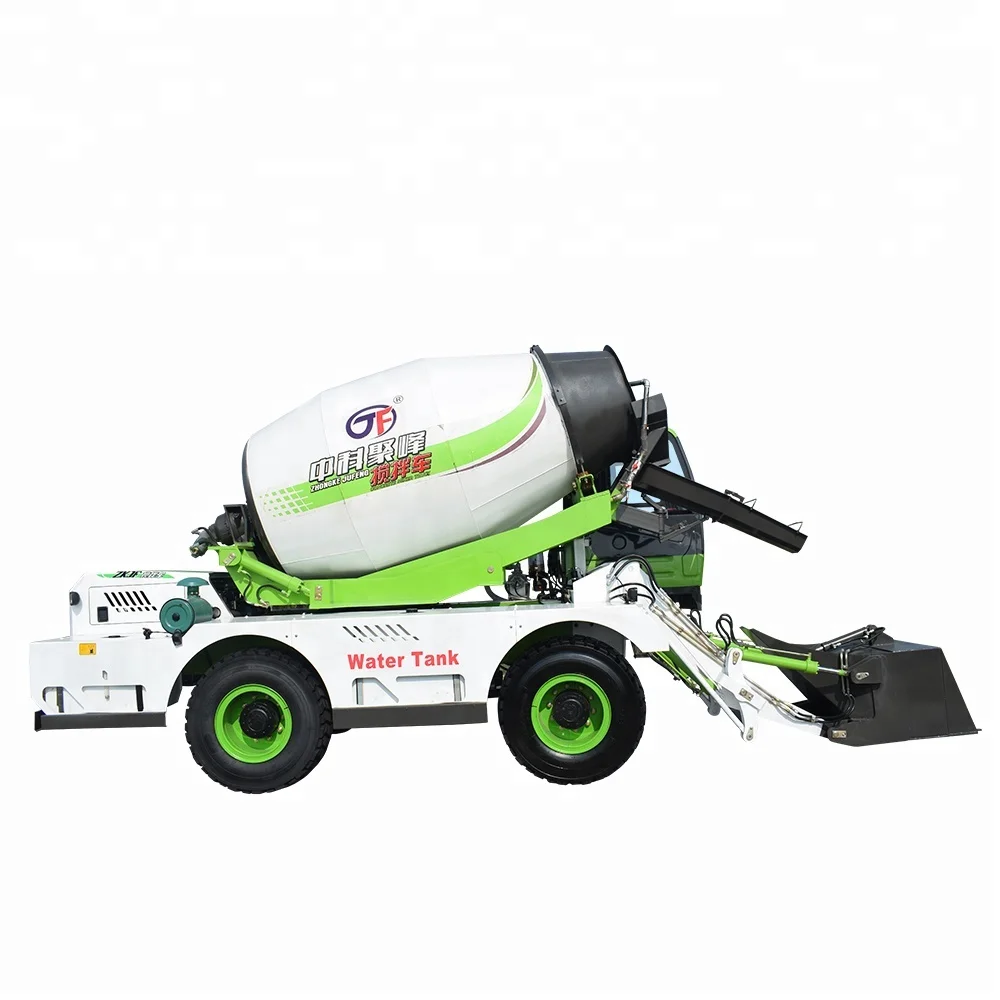

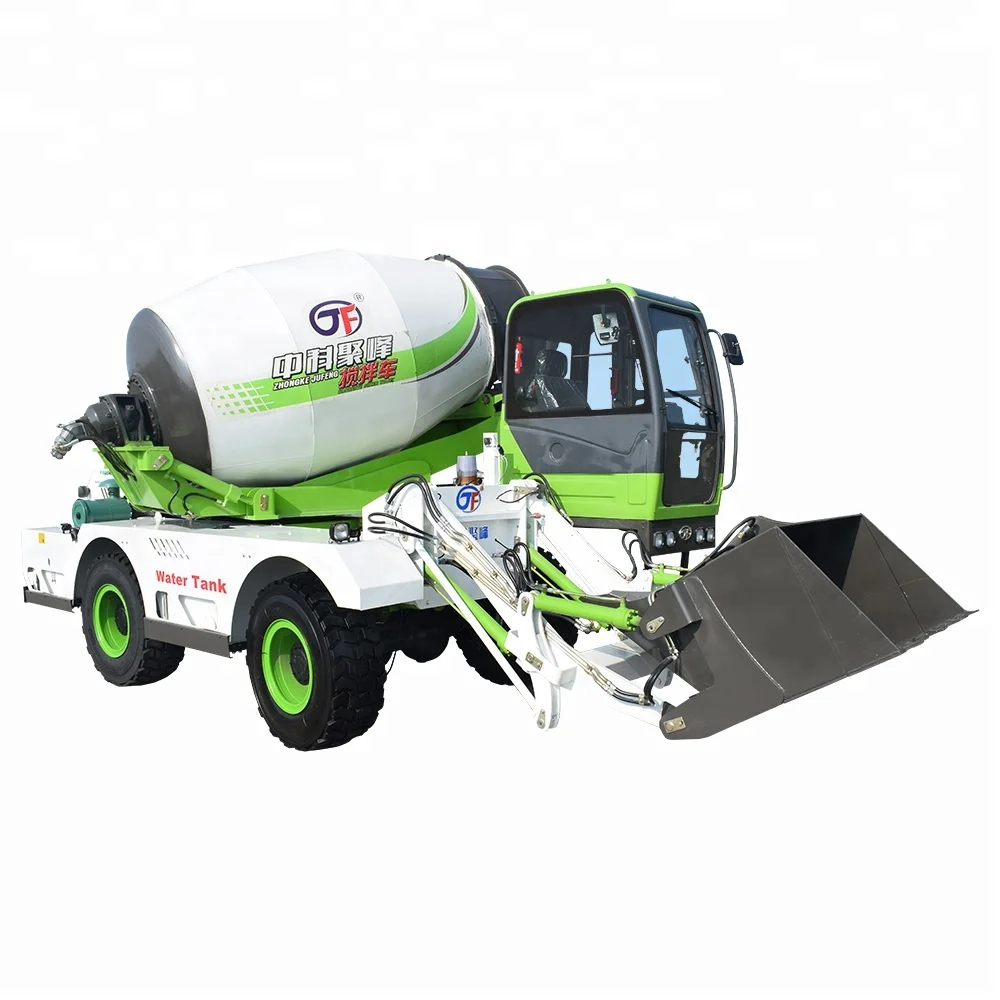

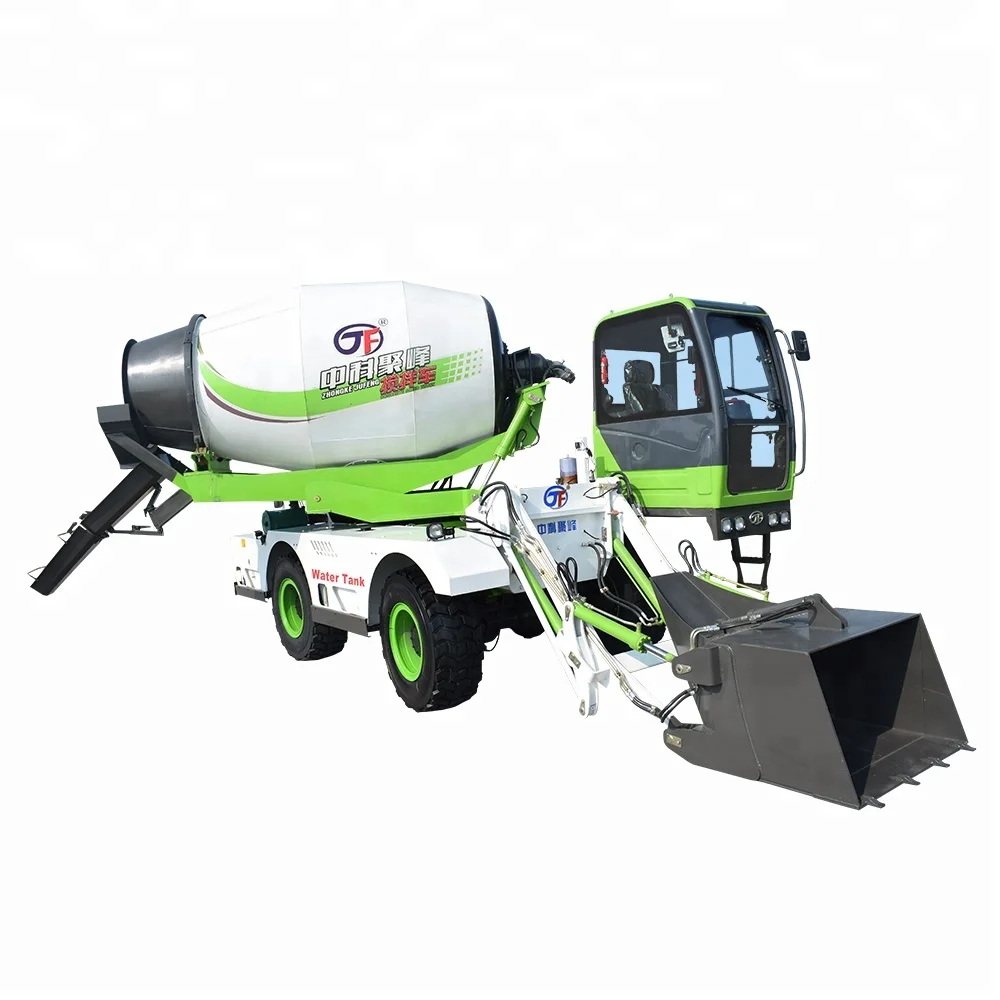

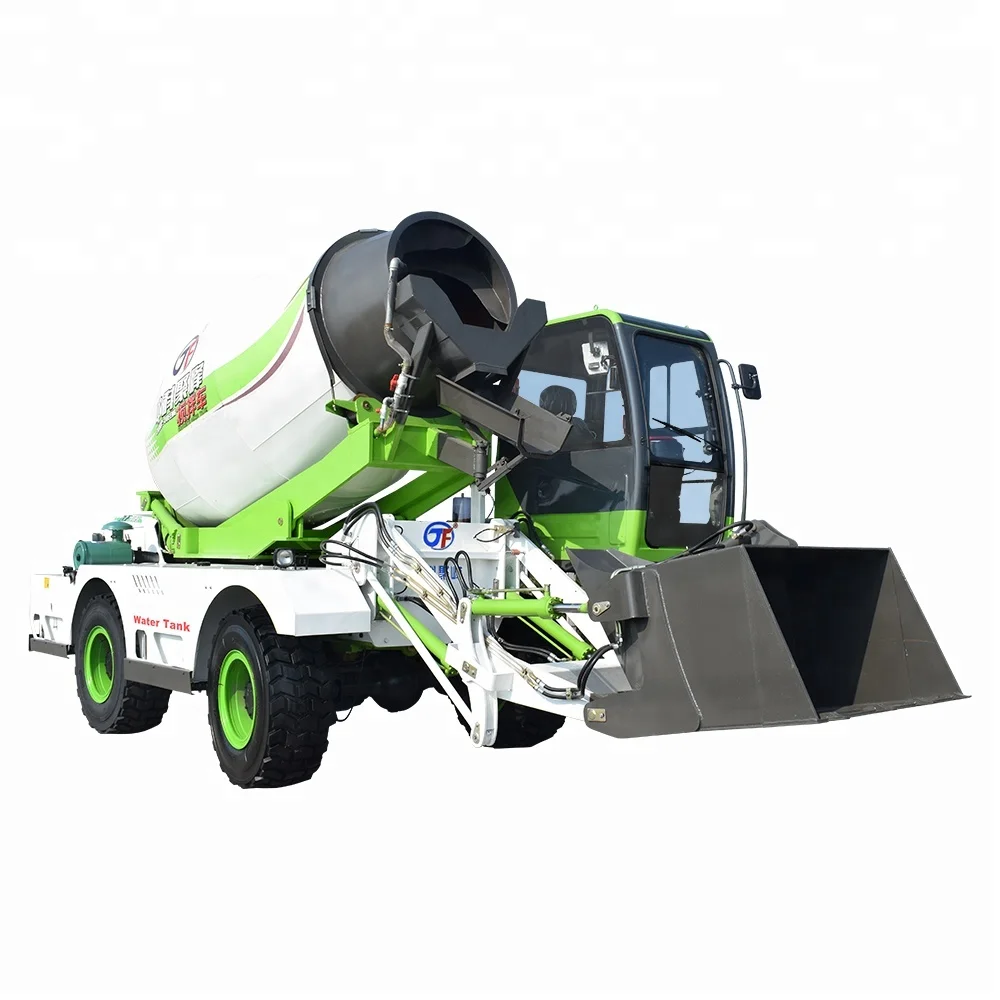

            Product Application  for  CMT4000R self loading concrete mixer truck

CMT4000R  Self Loading Concrete Mixer is  a kind of multifunctional machinery which combines the transit mixer, concrete mixer and wheel loader together. It can automatically load, measure, mix and discharge concrete mixture. Equipped with powerful YUCHAI ,85 kW Diesel engine and 4 wheel  drive plus 2 wheel steering,  the self loading concrete mixer is just like a truck and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The mixing unit is slewing hydraulically through 290° for high discharge over

2 m on the four sides of the vehicle.


The the Geometric Volume of Mixing Drum is 6.1 m³. Concrete output is 4 m³  per Batch.  The wide cabin windscreen and the specially designed loading arms dramatically improve visibility during casting operations. This high-productivity self loading concrete mixer is price-worth, easy to use, features excellent daily performance (it may reach even 128m³ of concrete) and reliability. Thanks to these characteristics, it is the ideal solution for rental purposes and for maintenance operations.

Specifications for CMT4000R self loading concrete mixer truck





Mixing Drum
Mixing Volume
4000 L
Geometric Volume
6100 L
Concrete Output
4000 L/ batch , 4 Batches/ hr
Inclination Angle
16°
Max. Slewing Angle
290°
Rotating Speed
0~21 rpm
Body /Bottom Thickness
5 mm/8 mm(Q345B)
Overall Size
Φ1920x 3206mm

 Chute
Max. Slewing Angle
180°
Tilting Method
Mechanically
Length
650mm +1500 mm (2 Sections)






Engine
Brand
YUCHAI ( Cummins Optional)
Model
YCD4J22G
Rated Power/Speed
116 HP /2400 rpm
Max.Torque/ Speed
390 N.m/2800 rpm
Bore x Stroke
105 mm x125 mm
Displacement
4.33 L
Type
4-Cylinder,In-line,
Turbo Charged, Water-cooled
Emission Standard
Euro II


Hydraulic System
 Reducer Model
HJ80-43
Hydraulic Pump Displacement
80/40 mL/r
Hydraulic Motor Displacement
63 cm3/rev

Water Supply System
Water Tank Volume
2 x 330 L
Water Supply Mode
Self-contained, Hydraulic
Driven water pump







  Chassis
Structure
Integrated Structure
Drive Type
4 X 4X4
Transmission
 2 Forward +2 Reverse Shift (Low+ High Speed)
Torque converter
YJ280 ( Split  Type)
Gearbox Mode
Counter Shaft,  Power-shift
Wheelbase
2400 mm
Tread
1820 mm
Loading Shovel Capacity
600 L
Brake Type
Air Brake
Tyre Size
16/70-20





 Vehicle
Drum and Shovel Control
By  Joystick
Driver's Cab
Air-conditioner Inside
Max. Drive Speed
30 km/h
Grade Ability
30 %
Mini Turning Radius
4000 mm
Max. Payload
9,500 kg
Operating Weight
8,500 kg
Overall Size
7500 x 2850x 3600 mm

Main Features


1) China TOP Brand YUCHAI Diesel Engine as standard Power,
    Cummins Engine  is Optional

2) The  Integrated Structure Chassis  and Four Wheel Steering

3) The mixing unit could slew hydraulically up to 290°

4) Centralized Lubricating System  for Easy Maintenance

5) Closed Circuit Hydraulic Rotation System

6) Spacious Driver's Cab with Shovel Loader Weigher, A/C and Fire Extinguisher inside


Main Features

China TOP Brand YUCHAI Diesel Engine as standard Power, Cummins Engine is Optional

The CMT4000R  Self Loading Concrete Mixer is driven by YUCHAI ,85 kW (115 HP),  Turbo-charged , Water-cooled Diesel Engine. The YUCHAI Diesel Engine is China Top Brand, which is featured by High Reliablity and Low Fuel Comsumption. The CUMMINS (130 HP) Engine is availabe upon request.


Integrated Structure Chassis

and Four Wheel Steering

The Chassis of this machine is kind of integrated structure, which is much more robust and stronger than that with articulated chassis.

The Drive Type of this mixer is Four Wheel Drive plus Four Wheel Steering (4x4x4), which makes the turning radius much more smaller than normal type.  The Turning Radius is only 4 M.


Mixing  Drum could slew hydraulically up to 290°

 The mixing Drum could slew hydraulically up to 290° for high discharge over 2 m on the four sides of the vehicle. The Bottom Hydraulic Lifting Mechanism could make material discharging more smooth and thorough. One  set of 1.2 m chute is standard equipment. The extra prolonged chute is availabe upon request.

Centralized Lubricating System



The centralized lubricating system get rid of the shortcoming of manual grease adding operation, and  it could deliver lubricating  grease to those luricating points in  fixed time and fixed quantity, which could ensure the friction points run durably and prolong the service time of machine.


Closed Circuit Hydraulic Rotation System


The Mixing Drum is rotated by means of planetary reducer and USA Brand Sunny hydraulic motor in closed circuit.


                                   Excavator Style Spacious Driver's Cab

Our driver's cab is much more spacious than other's. It is a kind of crawler excavator style cab.  The anatomic seat  is with function of flexible suspension and height adjustment .The electronic weighing system is available here. The Load cells are acting on the drum and technical data are  displayed on the shovel loader weigher inside  the cab.Two sets of joystick control system are situated on the two sides of driver's seat. The panoramic color monitor is near the steering wheel. The operation situation from the four sides of machine could be shown clearly on the Color Monitor, which increase the driving safety . Fire Extinguisher , Safety Hammer and Air Conditioner are also equipped inside the cab.


Packing & Delivery
Packaging
Size
11x2.3 x2.5 mm
Weight
8500 kg



Packaging Details
Nude Packing. 1 Set Per 40 HQ. The mixing drum and driver's cab have to be dismantled and put on the floor of container.
F A Q

Q1.: Are you trading Company or Factory?

A:  We are factory. We have been engaged in the production of  self loading concrete mixer

   for more than 27 years.


Q 2: How about the quality of your products?
A: We are factory with more than 27 years of construction machinery manufacturing experience. All of our machines are manufactured strictly according to the national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.


Q3: How about the price?
A: We are factory, not dealer, so we can give you a lower price than those trade companies can.

Q 4: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.

Q5 : Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.


Q6.: How long is your delivery time
A: Generally it is around 7 days if the goods in stock. If there is no goods in stock,

it will be about 20 days, subject to the quantity you ordered.


Q7.:  What is your acceptable payment terms.

  A: By T/T. 30% deposit in advance, balance to be paid before delivery.

   or By irrocable LC at Sight.
