Tektronix TBS1072B oscilloscope

Key Feature:

7 inch WVGA (800X480) Active TFT Color Display

34 automated measurements

Dual window FFT, simultaneously monitors both the time and frequency domains

Built-in waveform limit and TrendPlot™ testing

Dual channel frequency counter

Zoom Function

Automated, extended data logging feature

Autoset and auto-ranging functions

Built-in context-sensitive help

Multiple-language user interface

Small footprint and lightweight - Only 4.9 in. (124 mm) deep and 4.4 lb. (2 kg)

Positive display

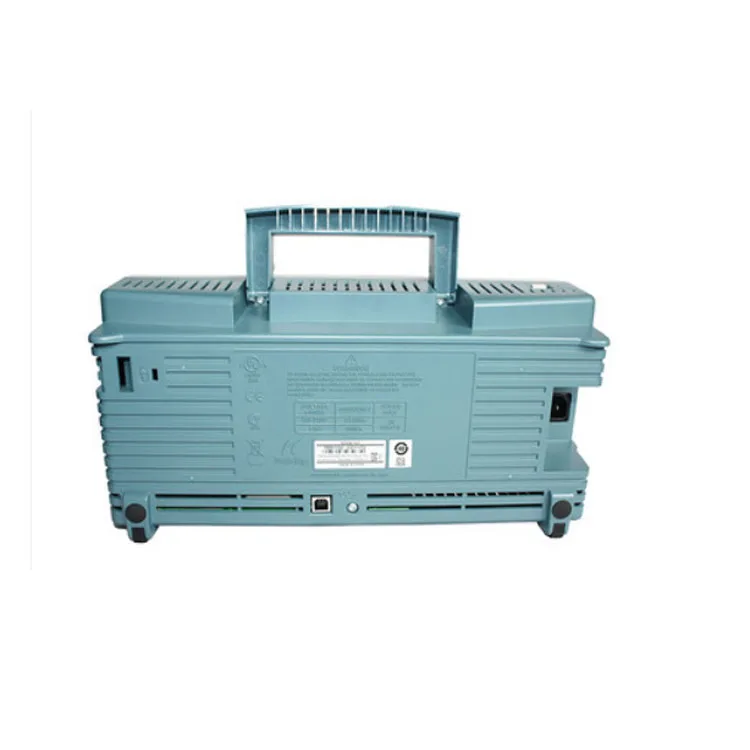

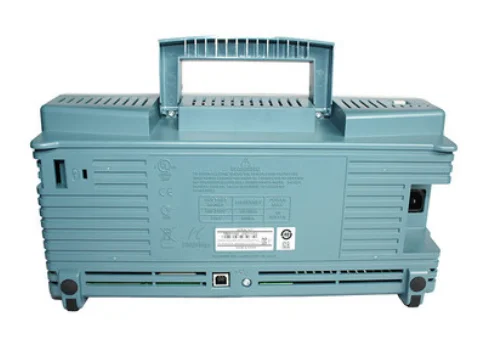

The back of the display

SPECIFICATION
Bandwidth	Channels	Sample rate on each channel	Record length
70 MHz	2	1.0 GS/s	2.5k points at all time bases
Vertical resolution	Input coupling	Time base accuracy	GPIB interface
8 bits	AC, DC, GND	50 ppm	Optional
Dimensions(H*W*D)	Width	Depth	Weight
158.0 *326.3*124.2mm	476.2 mm	228.6 mm	2.0 kg (Instrument only) 2.2 kg(with accessories)
