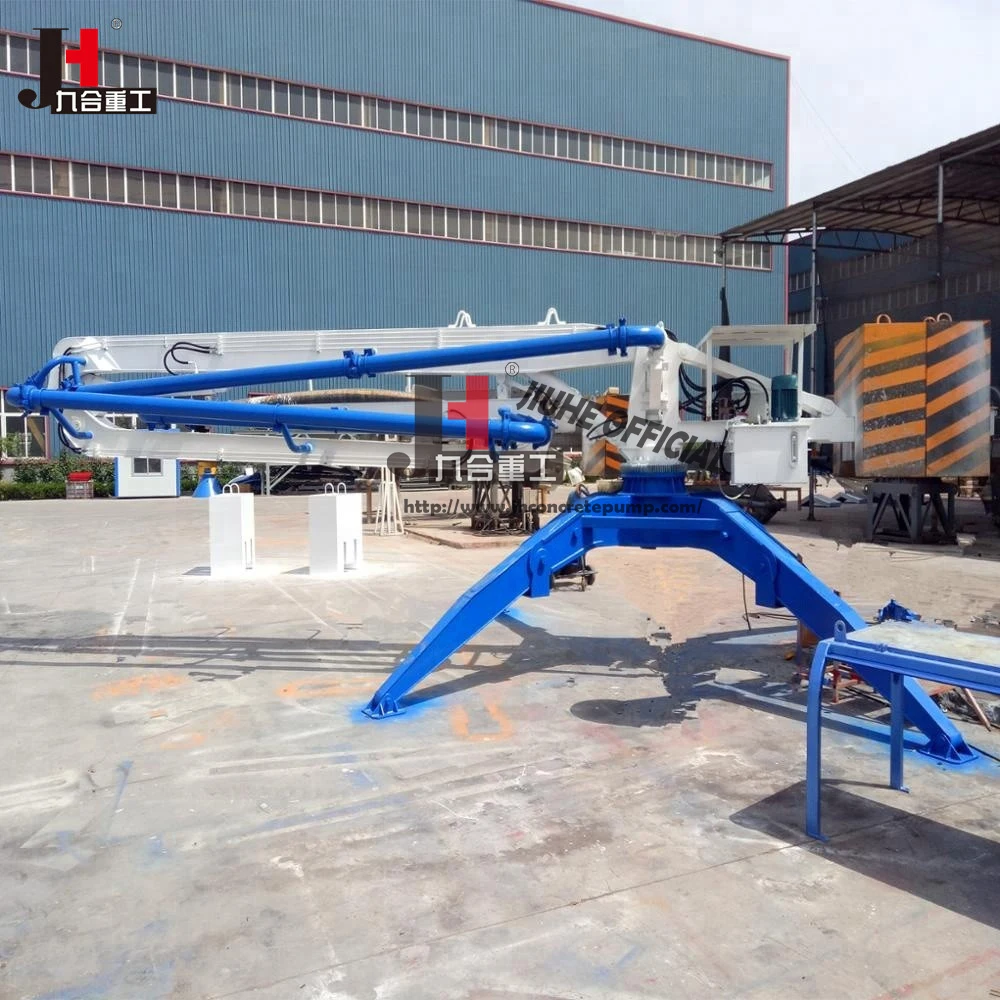

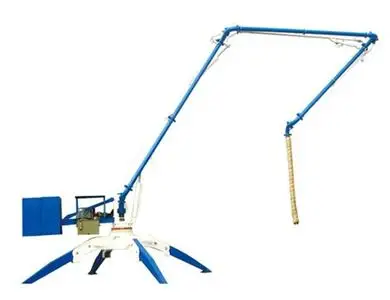

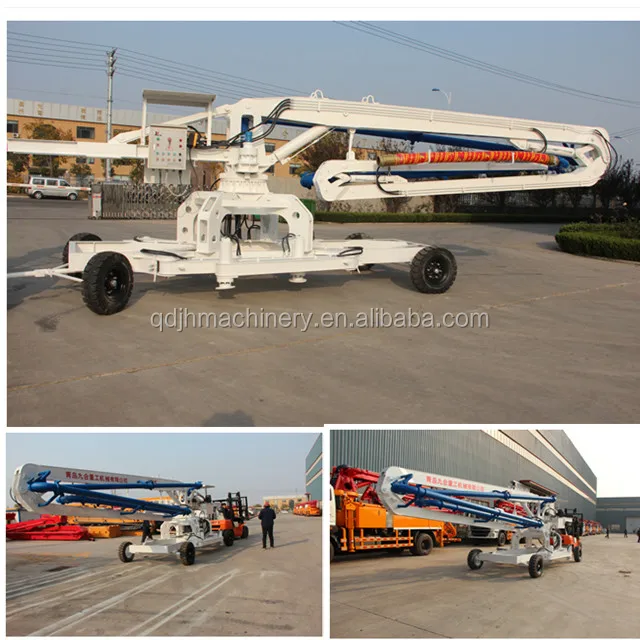

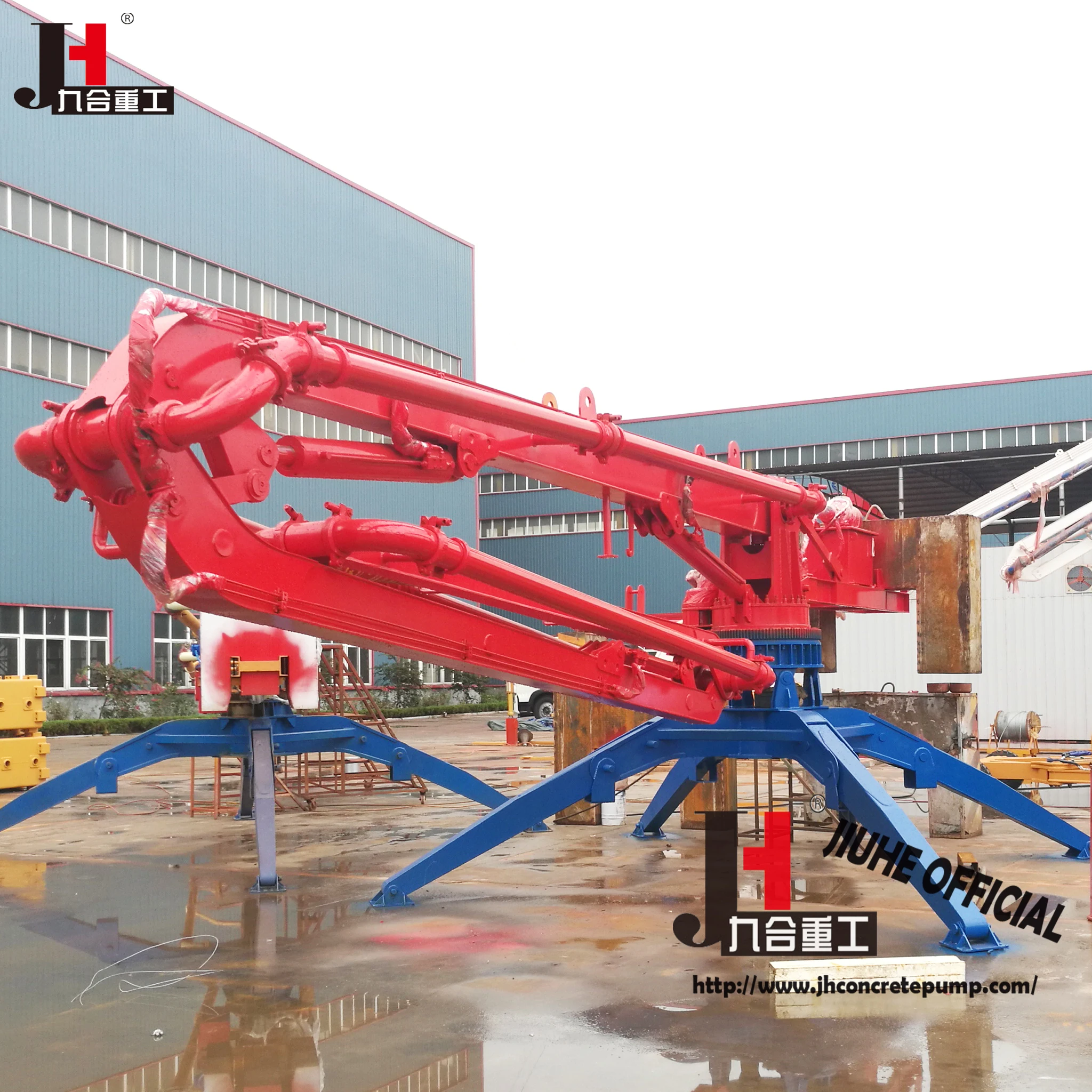

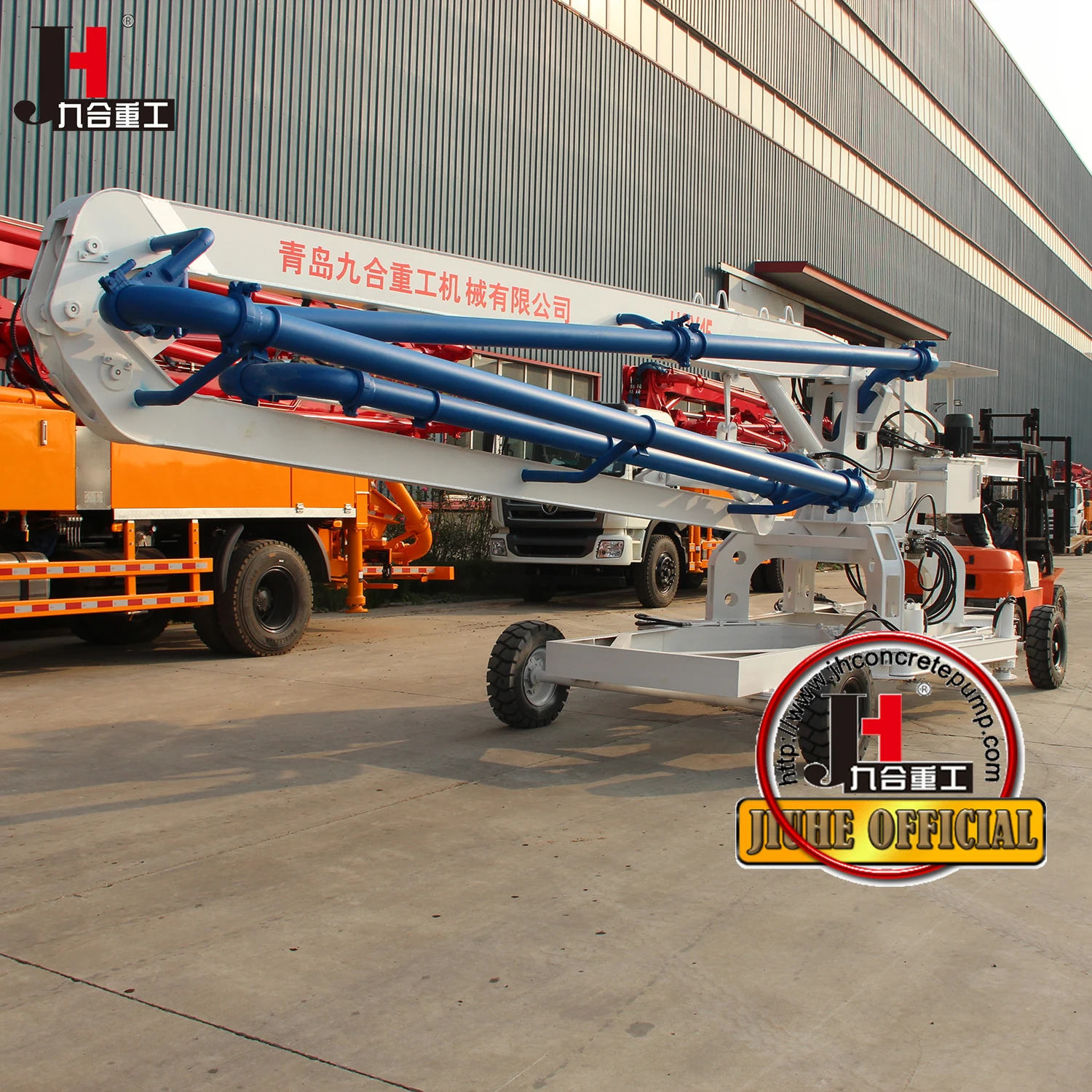

JH Brand 13m 15m 17m 18m 21m Mobile Concrete Placing Boom small mobile concrete boom pump work with concrete pump

Product Overview

Description

JH Brand 13m 15m 17m 18m 21m Mobile Concrete Placing Boom For Sale With CE&ISO

Product Introduction

1. It can be placed in suitable places required without being fixed.
2. It features compact,light weight and can be lifted as a whole by a crane.
3. With excellent maneuverability, it can meet the re-quirements fo concrete placement on different jobsites, and is ideal for concrete pumping and placing.
4. Easy operation,reliable safety and economical purchase.





ITEM	UNIT	MODEL
		HGY13	HGY15	HGY17	HGY18
Max. Placing radius	m	13	15	17	18
Rotation scope	°	0~360	0~360	0~360	0~360
Hydraulic system pressure	Mpa	24	24	24	24
Concrete delivery pipe inner diameter	mm	ø125	ø 125	ø 125	ø 125
Power	Kw	4	4	5.5	5.5
Supporting legs span	m	3.15×3.15	4×4	4×4	5×5
Height	m	3.9	2.6	3.2	3.75
Bare machine weight	Kg	2700	3230	5000	6700
Balance weight	Kg	2×900	2×1100	2200	2200

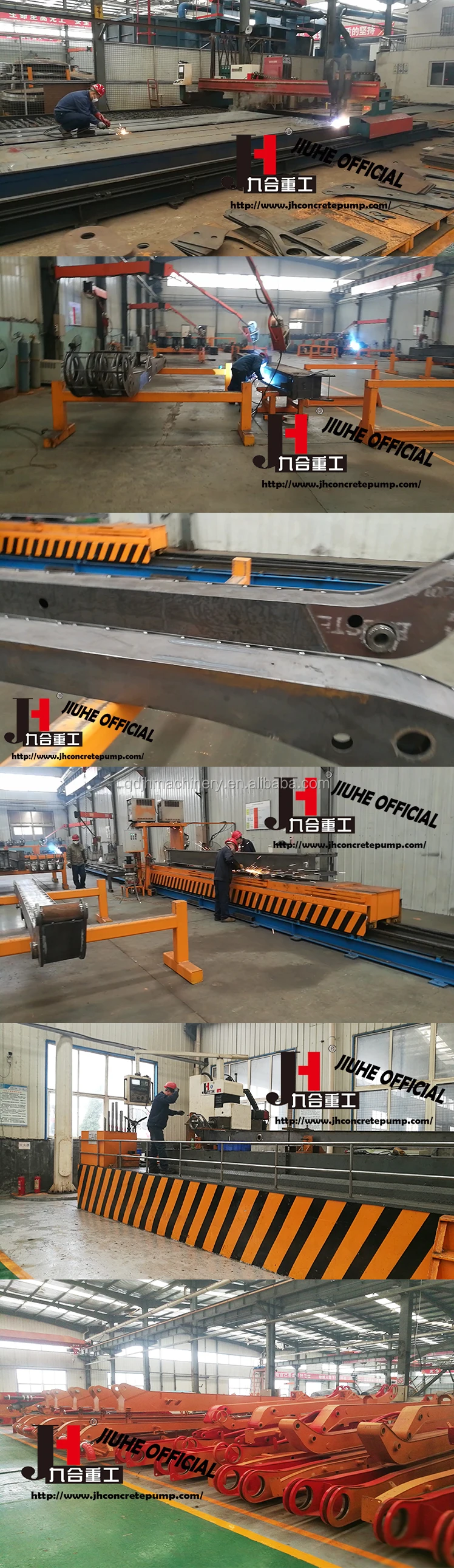

Production progress

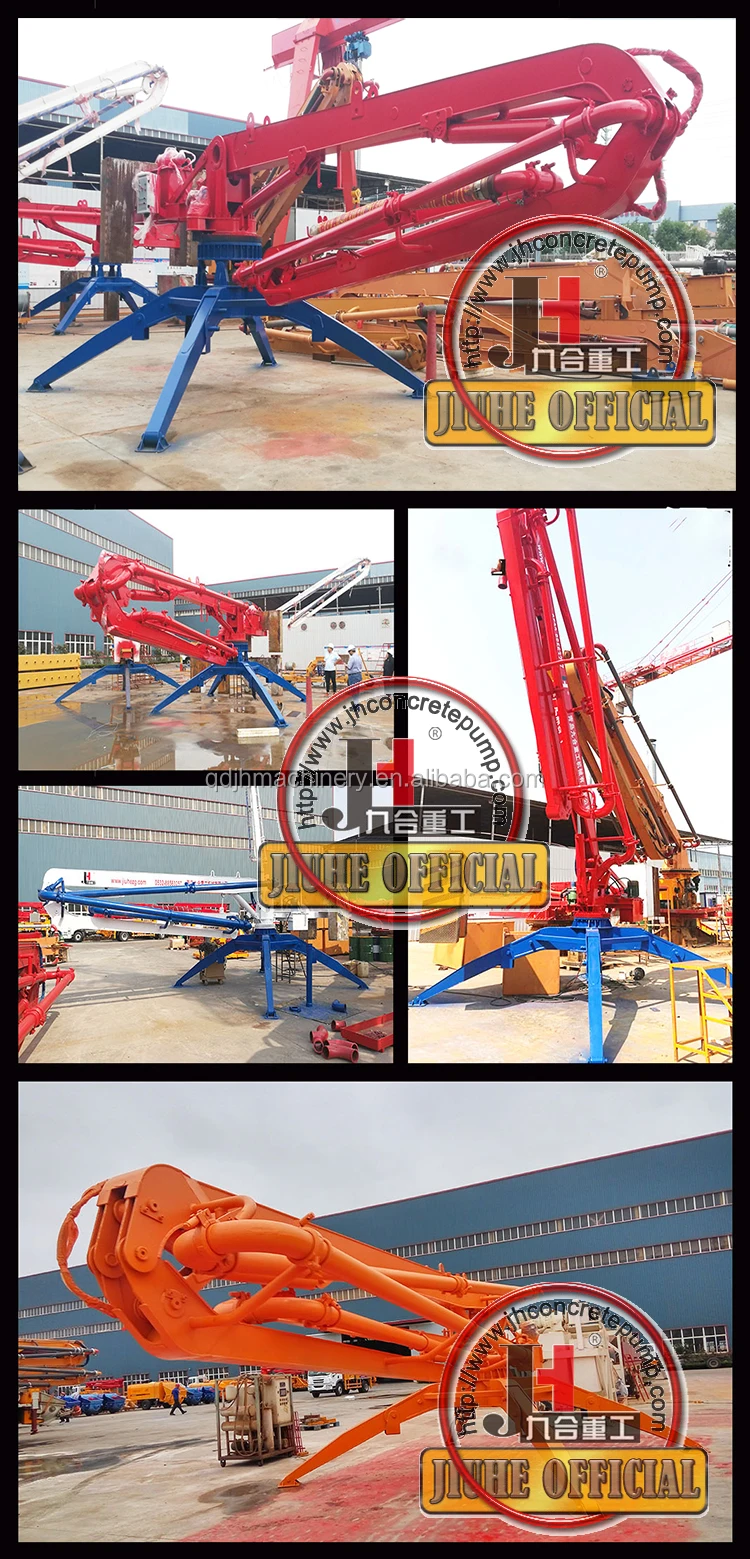

Products picture



Compnay Information

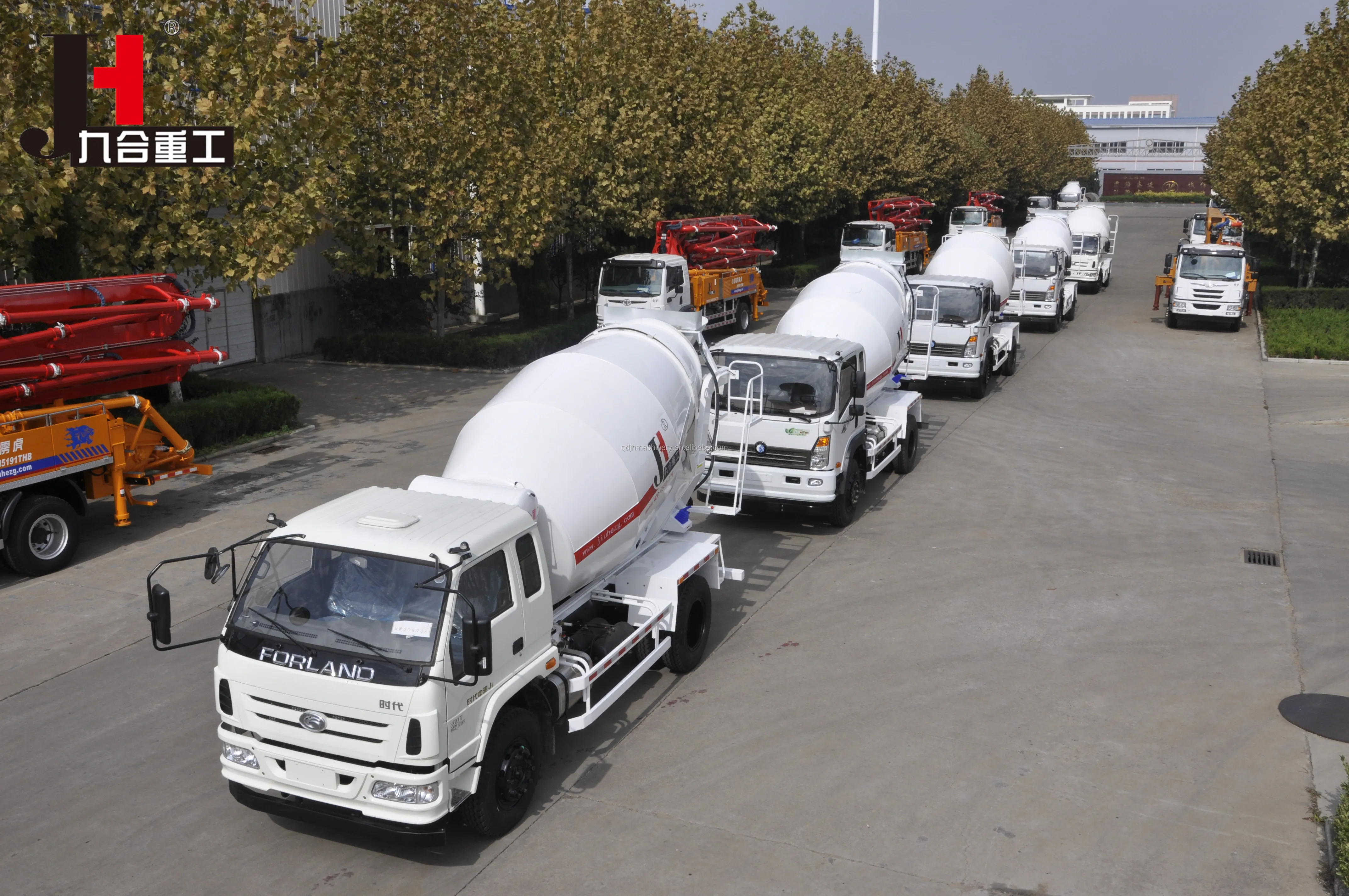

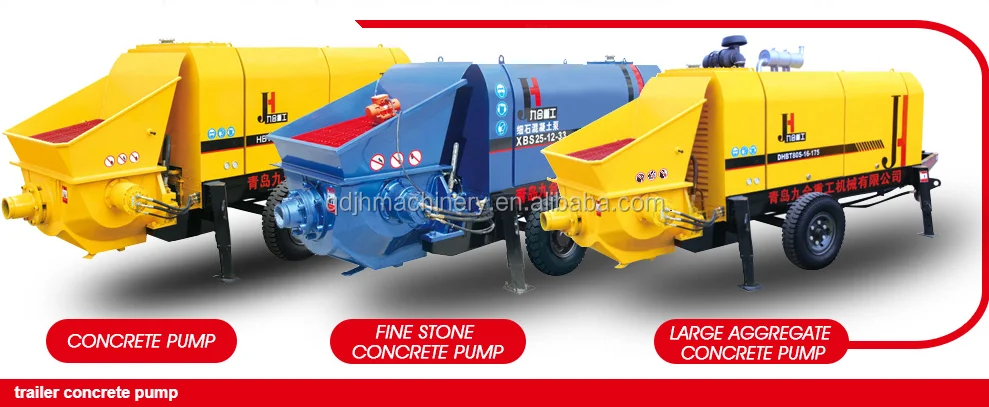

 Other products
