all sun EM3610 Battery Internal Resistance Tester Meter Battery Voltage Temperature Coefficient Automotive Tester
- Category: >>>
- Supplier: Zhangzhou Eastern Intelligent Meter Co. Ltd.
Share on (60834062726):
Product Overview
Description

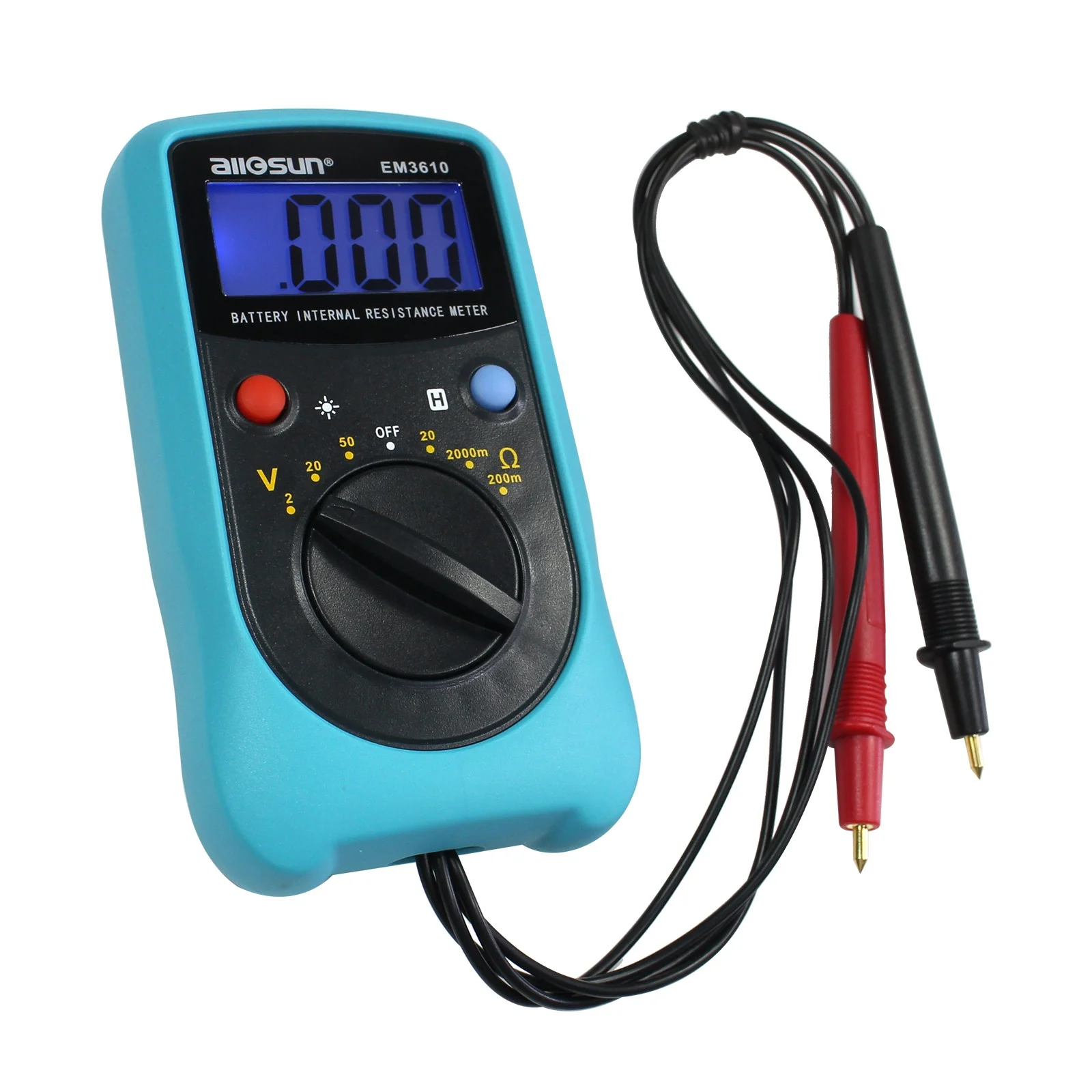

> This battery Internal Resisitance Meter is an interlligent instrument which can be
used for battery online measurements.

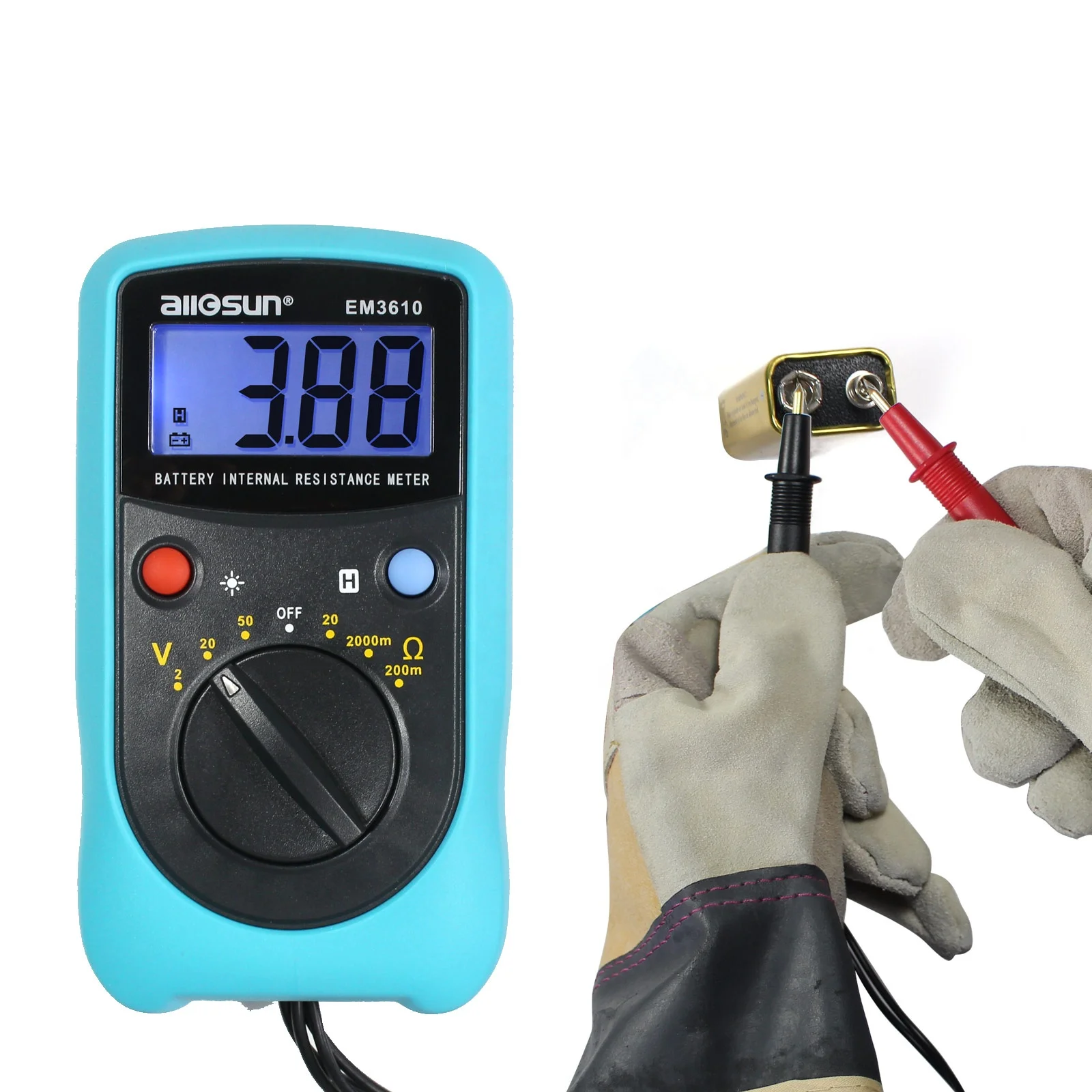

> It can be used to measure battery terminal voltage and internal resistance as
well as to make normal resisitance measurements.
> This internal resisitance is measured with the internaltional standard AC signal
(1000Hz ±10%) by means of four-wire method to eliminate the impact of the
resistance of the test leads on the measured valus, and the battery voltage can
also be measured by the same connection method.
> It is applicable for measurements of internal resistance of Lithium-ion, nickel-
hydroxide, lithium-mangance cells or assembled battery.
GENGRAL SPECIFICATION
Only figure"1" shown on the display.
Negative Polarity Indication:"-"shown on the display automatically
Operating Environment:temperature:0-40,relative humidity:<80% RH
Temperature Coefficient:
0.1x(specified accuracy)/degree(<18 or >28 degree)
Storage Environment:temperature:-10 to 45 degree,relative humidity:<85%RH
Battery:9V battery,6F22 or equivalent,1 piece
Size:150X83X44mm(only mainbody)
Weight:About 315g(including battery)
SPECFICATION
Accuracy is specified for a period of one year after calibration and at 18 degree to 28 degree,with relative humidity <75%,Accuracy specifications take the form of:+-(%of Reading)+(number of Least Significant Digits)
Battery Voltage
Range | Resolution | Accuracy |
0~1.999V | 1mV |
+-(1%+2) |
2.00~19.99V | 10mV | |
20.0~50.0V | 100mV |
Resistance/Battery Internal Resisitance
Range | Resolution | Accuracy |
0~199.9mΩ | 1.0mΩ | +-(3%+5) |
200mΩ~1999mΩ | 10mΩ | |
2.00Ω~19.99Ω | 100mΩ |
