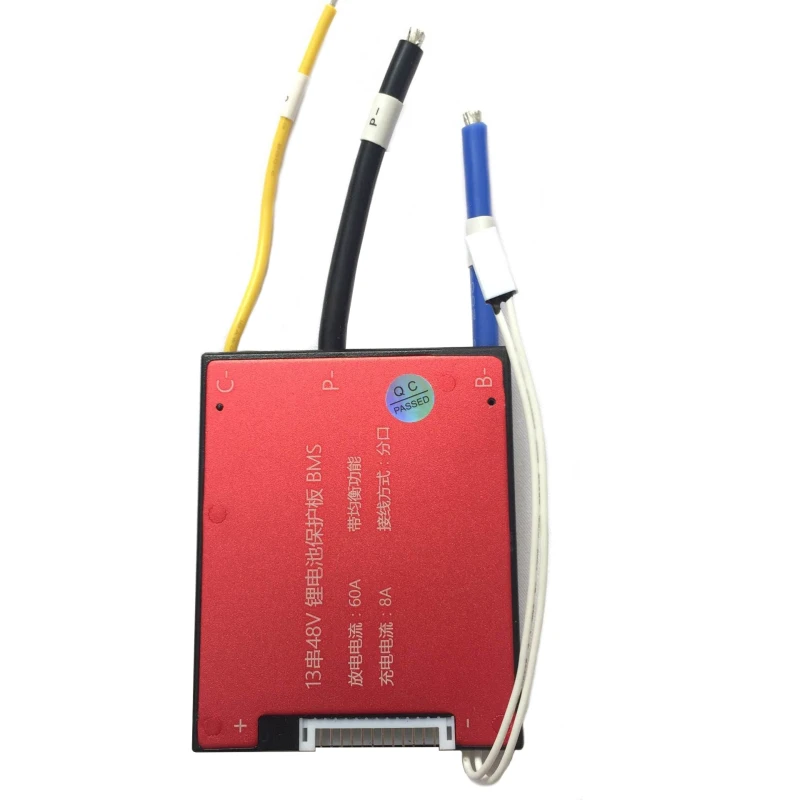

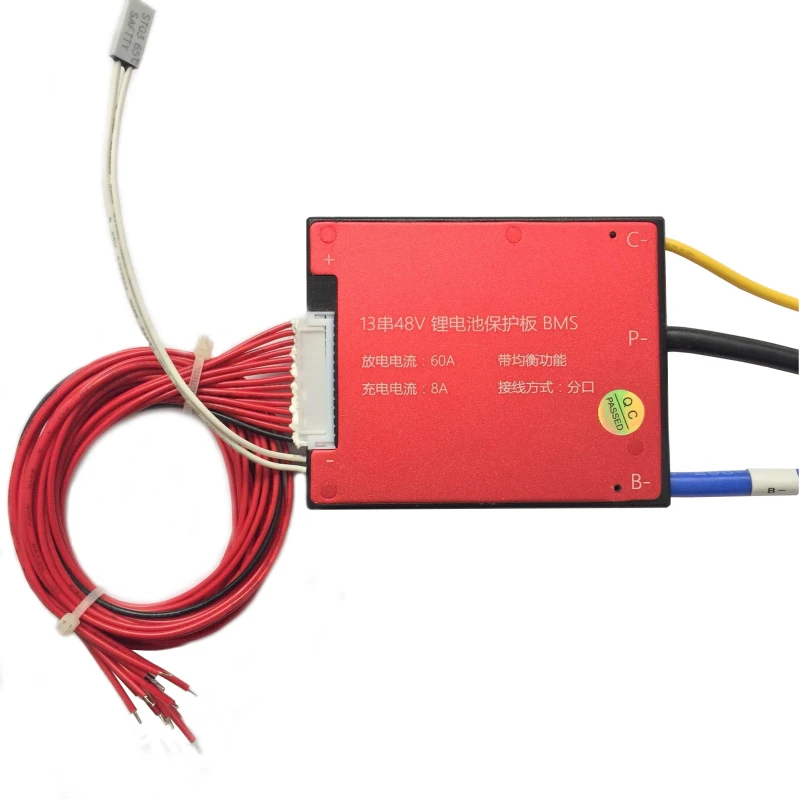

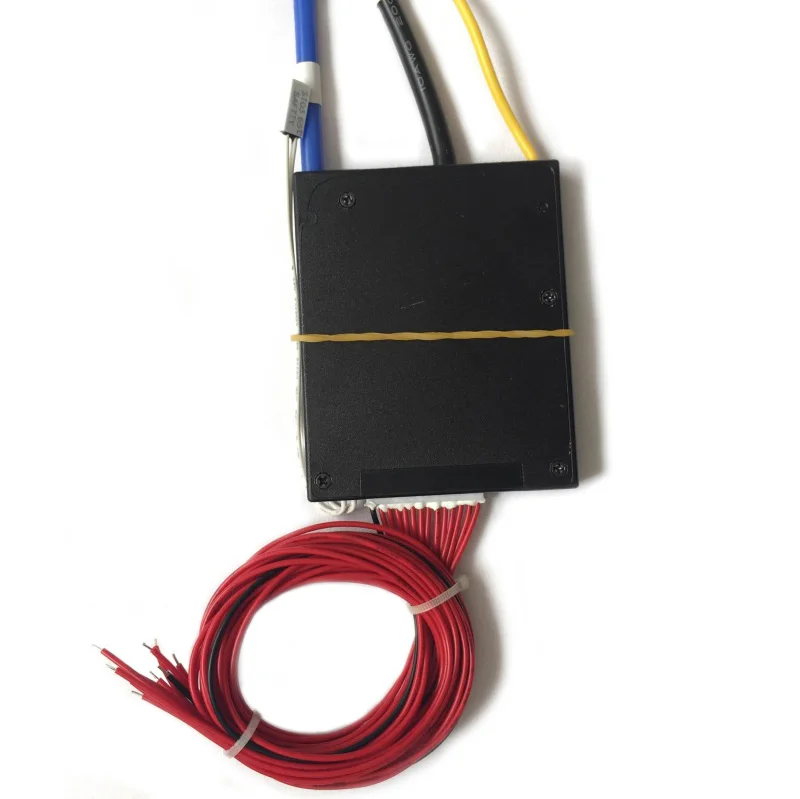

13S 48V 60A BMS For Lithium Battery Lifepo4 BMS Separate Port
- Category: PCB & PCBA >>>
- Supplier: Shenzhen E-Fire Technology Development Co. Limited
Share on (60834304808):
Product Overview
Description
Product Description
| 13S 48V | Detail | Spec | ||||
| Discharge | Maximal Continuous Discharging Current | 18A | 25A | 35A | 45A | 60A |
| Peak Discharging Current | 50A | 60A | 100A | 180A | 180A | |
| Over Current Protection Current | 50A | 60A | 100A | 180A | 180A | |
| Charge | Charging Voltage | 54.6V | ||||
| Charging Current | 18A | 25A | 35A | 45A | 60A | |
| Over charge protection | Over Charge Detection Voltage | 4.25±0.025V | ||||
| Over Charge Detection Delay Time | 0.5S | |||||
| Over Charger Release Voltage | 4.19±0.05V | |||||
| Cell balancing | Cell balancing Detection Voltage | 4.18V | ||||
| Cell balancing Release Voltage | 4.18V | |||||
| Cell balancing Current | 35±5mA | |||||
| Over discharge protection | Over Discharge Detection Voltage | 2.8±0.05V | ||||
| Over Discharge Detection Delay Time | 0.5S | |||||
| Over Discharger Release Voltage | 3.0±0.05V | |||||
| Over current protection | Over Current Detection Voltage | 150mV | ||||
| Over Current Detection Delay Time | 9MS | |||||
| Over Current Protection Condition | Disconnect the load | |||||
| Short Protection | Detection Condition | Exterior Short Curcuit | ||||
| Detection Delay Time | 250uS | |||||
| Release Condition | Disconnect the load | |||||

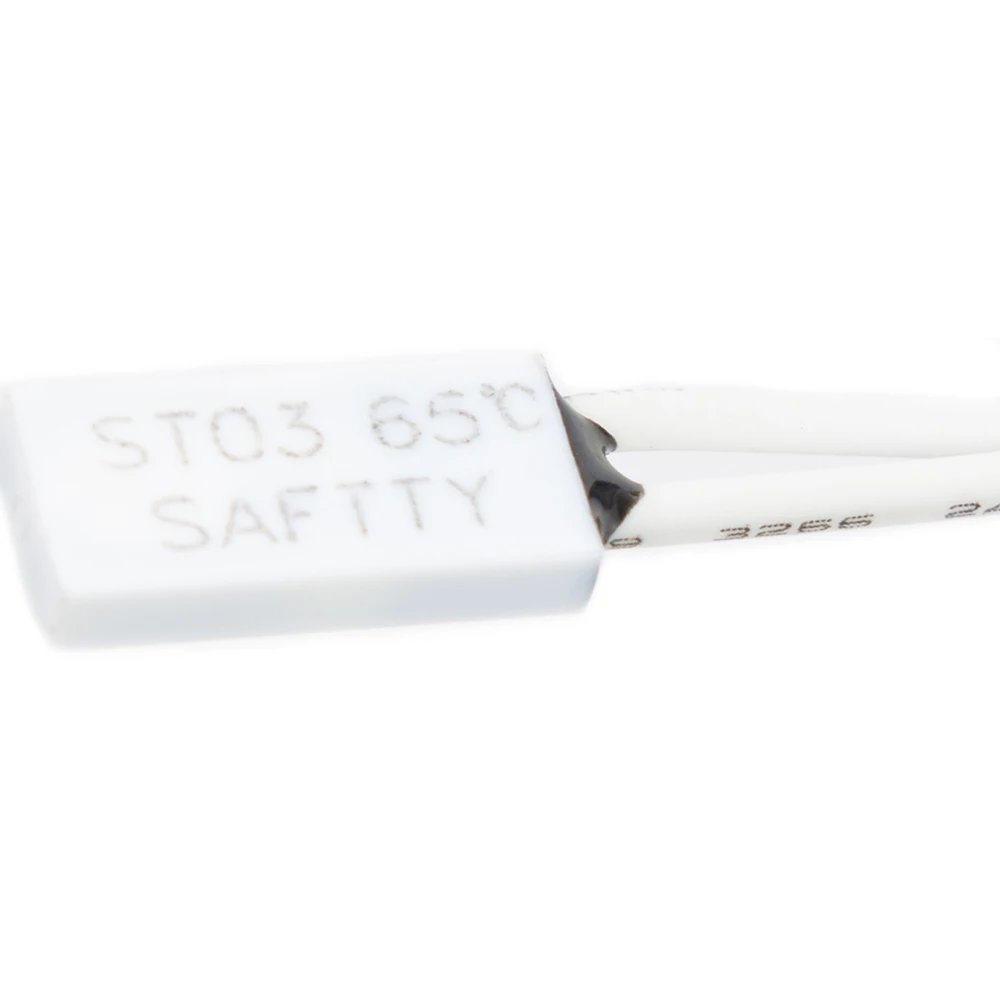

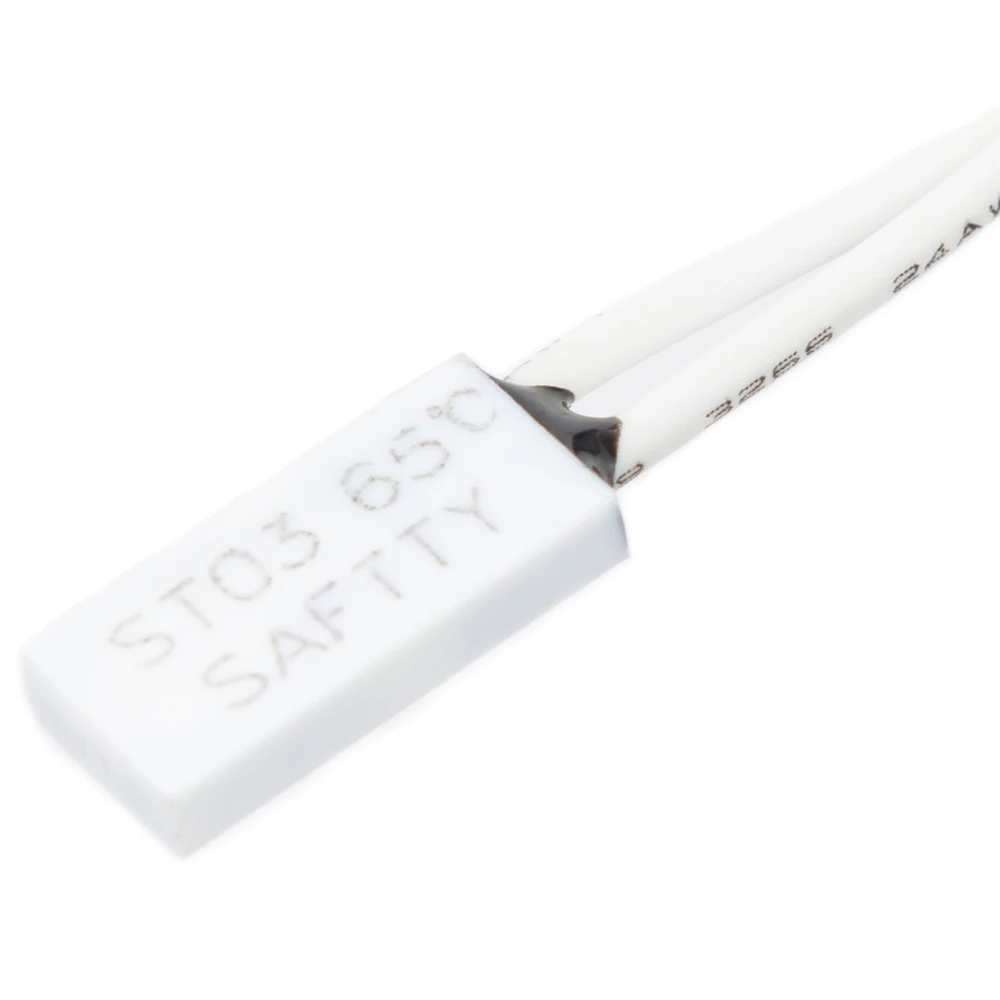

| Temperature Protection | 65℃ or 75℃ | |||||
| Internal Resistance | MOSPET | ≤10mΩ | ||||
| Size | 18A(63*36*9mm) 25A 35A(73*61*9mm) 45A(80*65*9mm) 60A(80*65*12mm) | |||||
