0.5 to 200m2 Industrial Food Freeze Dryer Fruit Dehydrator
US $25000-$28000

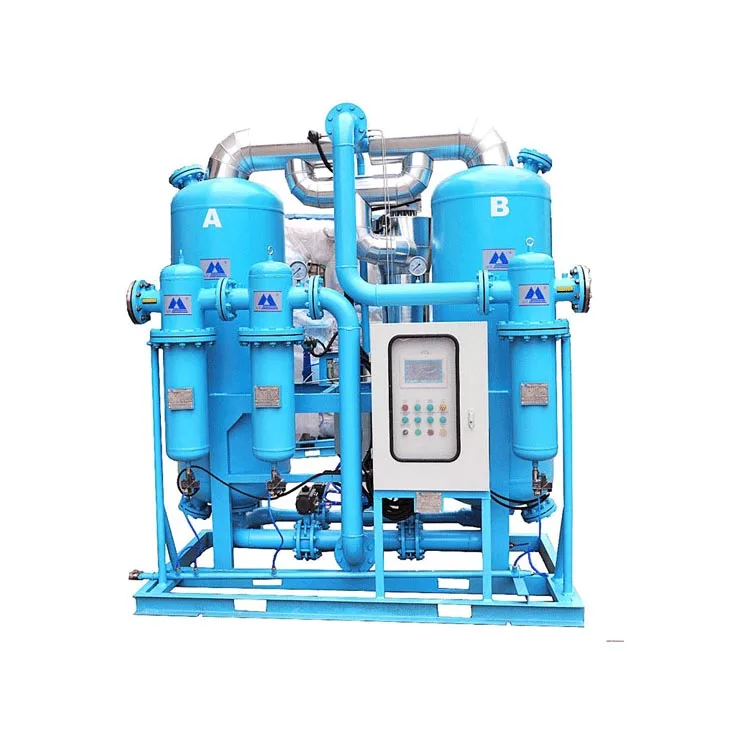

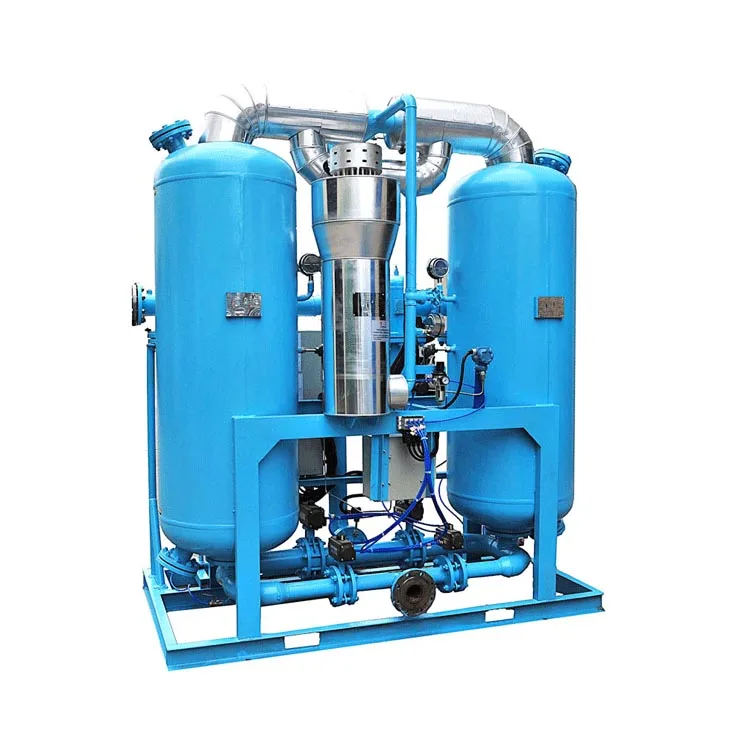

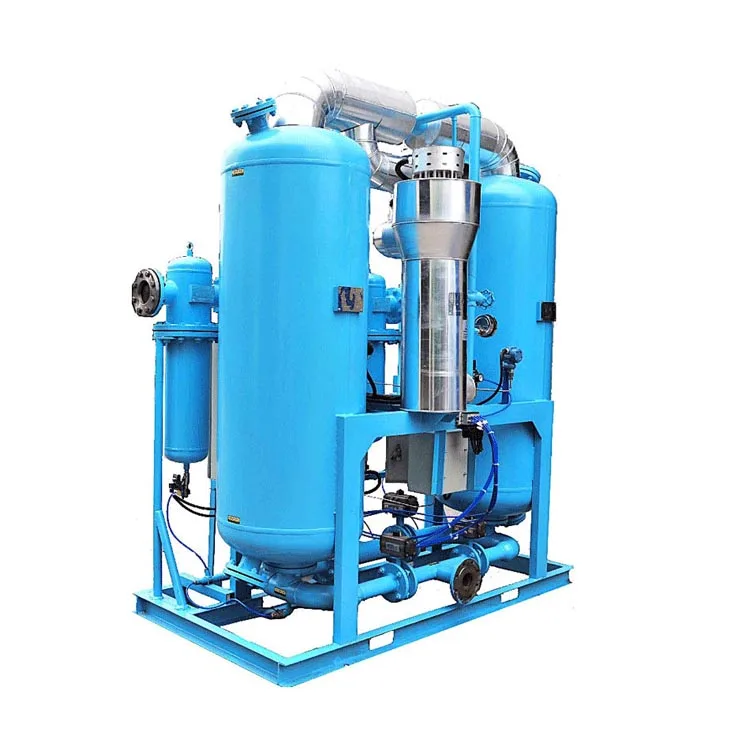

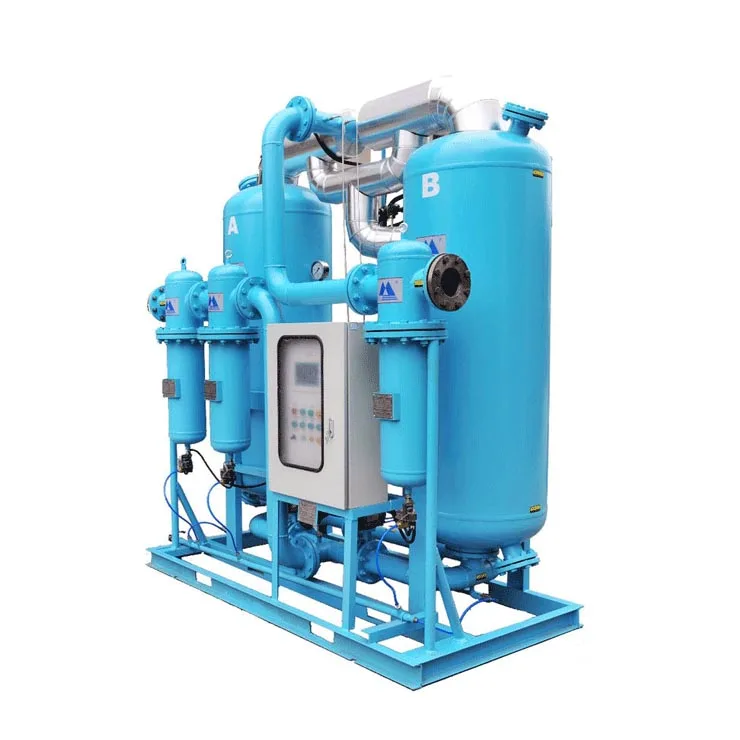

Shanli Factory Direct Supply SLAD 20MXF Heated Desiccant Absorption Compressed Air Dryer
- Category: Freeze Drying Equipment >>>
- Supplier: Hangzhou Shanli Purify Equipment Corporation
Share on (60834330218):
Product Overview
Description
Product Description
Features
1.Cycle time:2-6 hours.
2.Air Purge: <=7%.
3.Pressure dew point up to -40℃.
4.Stable and reliable high-quality switching valves ensure complete process of working and extend the working
life of components. Use high hygroscopic activated alumina. It has uniform shape and size, high intensity, good
output dew point, and produces less dust, but long service life.
Working Conditions And Technical Specifications | |
Air Inlet Temp. | 20-45℃ (Standard type) |
Air Inlet Oil Content | <=0.1ppm |
| Air Purge | 6%-8% |
Power Supply | AC380V/220V/50Hz |
Pressure Dew Point | -20~-40℃ |
Inlet air pressure | 0.6-1.0MPa |
Control Method | Microcomputer Automatic Control/ PLC Control |
Note: Other special standard can be customized.
Product Overviews
| Item | Capacity | Desiccant Weight (Kg) | Connection Dize | N.W(Kg) | L(mm) | W(mm) | H(mm) | |
| (Nm3/min) | (cfm) | |||||||
| SLAD-1MXF | 1.2 | 42 | 24 | G1" | 186 | 812 | 640 | 1417 |
| SLAD-2MXF | 2.5 | 88 | 40 | G1" | 256 | 732 | 586 | 2017 |
| SLAD-3MXF | 3.6 | 127 | 60 | G1" | 341 | 962 | 638 | 1711 |
| SLAD-4.5MXF | 4.8 | 169 | 85 | G1½" | 447 | 842 | 624 | 2225 |
| SLAD-6MXF | 6.8 | 240 | 120 | G1½" | 630 | 950 | 642 | 2105 |
| SLAD-8MXF | 8.5 | 300 | 158 | G2" | 678 | 1288 | 696 | 2231 |
| SLAD-10MXF | 10.9 | 384 | 190 | G2" | 810 | 1288 | 696 | 2331 |
| SLAD-12MXF | 12.8 | 451 | 190 | G2" | 810 | 1288 | 696 | 2331 |
| SLAD-15MXF | 16 | 564 | 310 | DN65 | 983 | 1743 | 735 | 2356 |
| SLAD-20MXF | 22 | 775 | 492 | DN65 | 1271 | 1933 | 736 | 2415 |
| SLAD-25MXF | 26.8 | 945 | 578 | DN80 | 1371 | 1903 | 823 | 2738 |
| SLAD-30MXF | 32 | 1128 | 600 | DN80 | 1550 | 2101 | 913 | 2462 |
| SLAD-40MXF | 43.5 | 1533 | 856 | DN100 | 1994 | 2200 | 1002 | 2576 |
| SLAD-50MXF | 53 | 1868 | 1002 | DN100 | 2127 | 2213 | 1002 | 2594 |
| SLAD-60MXF | 67 | 2361 | 1334 | DN125 | 2850 | 2513 | 1260 | 2799 |
| SLAD-80MXF | 90 | 3172 | 1608 | DN125 | 3060 | 2864 | 1340 | 2857 |
| SLAD-100MXF | 110 | 3877 | 2000 | DN150 | 4080 | 3460 | 1605 | 3048 |
| SLAD-120MXF | 130 | 4582 | 2435 | DN150 | 4600 | 3560 | 1675 | 3094 |
| SLAD-150MXF | 160 | 5639 | 2926 | DN200 | 5600 | 3960 | 1800 | 3332 |
| SLAD-200MXF | 210 | 7402 | 4070 | DN200 | 7300 | 4360 | 2055 | 3373 |
| SLAD-250MXF | 260 | 9164 | 4710 | DN250 | 9350 | 4424 | 2426 | 3697 |
| SLAD-300MXF | 310 | 10926 | 6160 | DN250 | 11500 | 4616 | 2650 | 3810 |
Advantages
Company Information

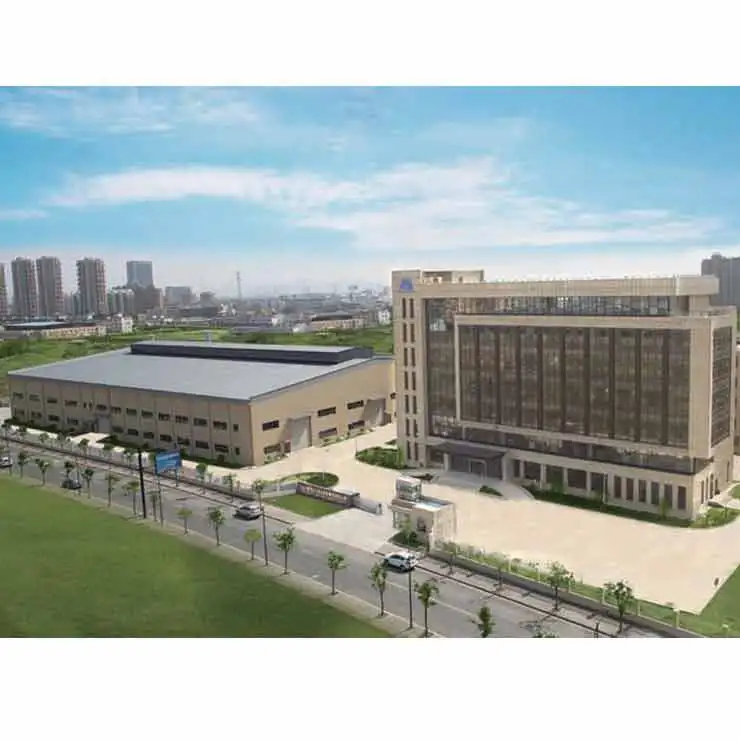

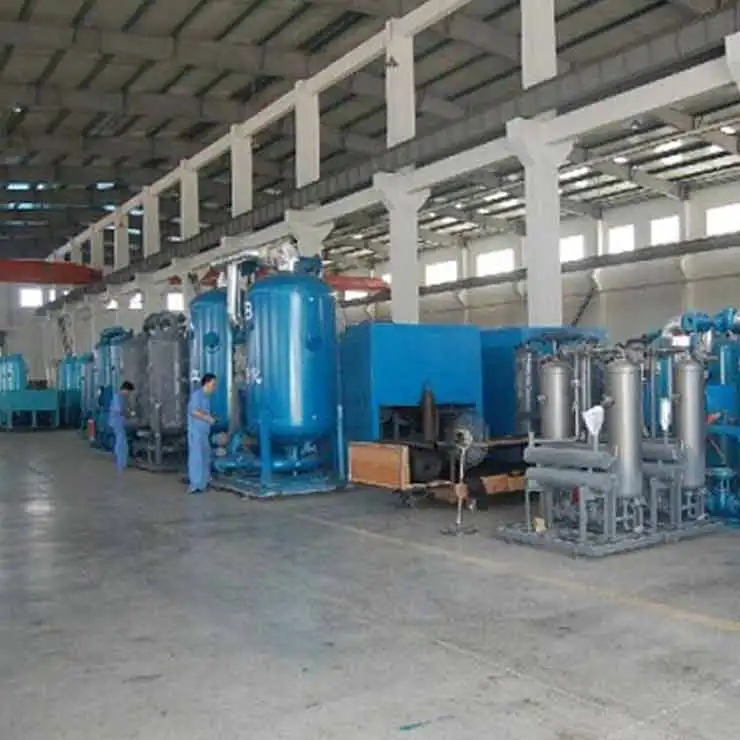

Established in 1997, Hangzhou Shanli Purify Equipment Corporation is an enterprise specialized in design,
development and production of compressed air dryers, filters and other purification equipments. Our compa
ny has a workshop of 30, 000 square meters and more than 300 staff. Shanli has become one of the largest
manufacturers in the Chinese purification industry with the top sales turnover.
Application
Shanli refrigerated air dryers are widely used in industry such as glass making,cement making,ship making,
car making,medician,power plant,aviation,food industry,textile industry,building material,oil and gas industry.
