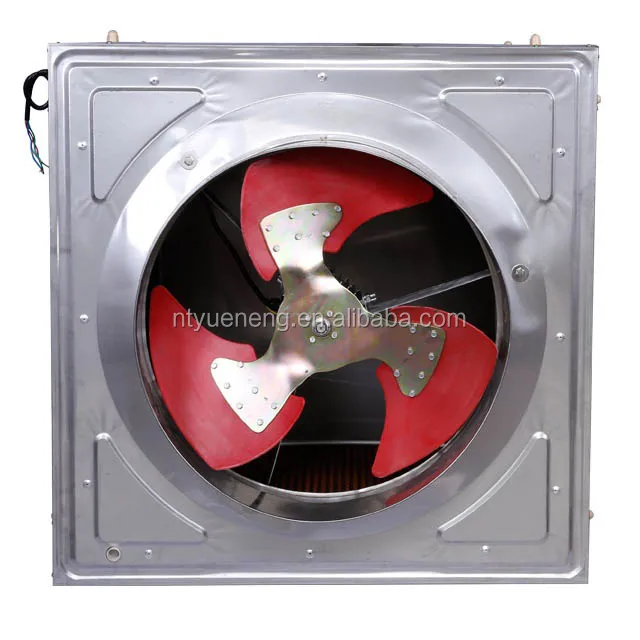

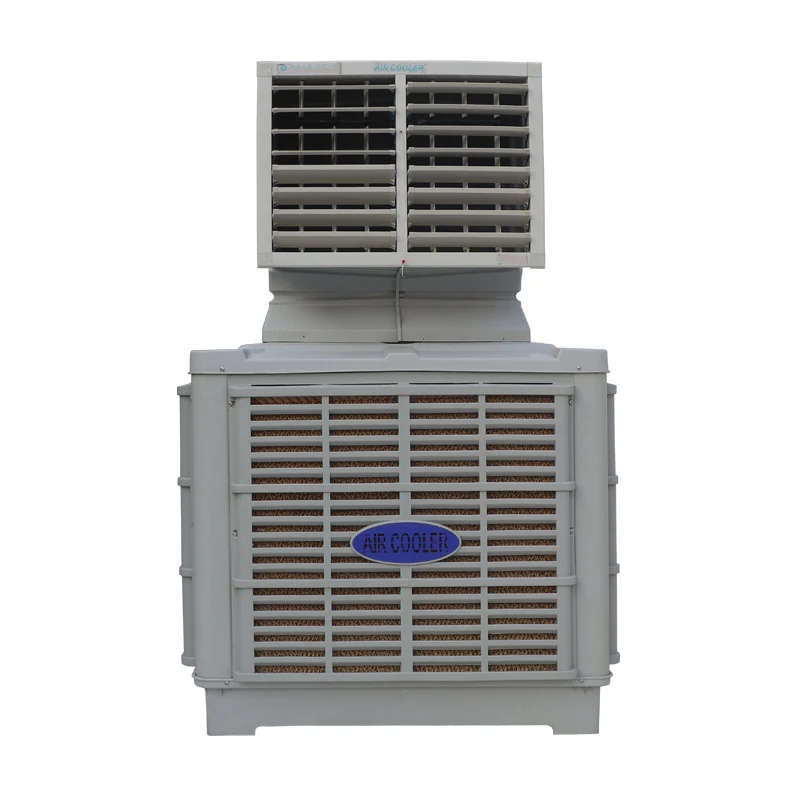

window air cooler with water for cooling ventilation, refrigeration equipment air cooler, industrial air conditioning system
- Category: Air Conditioners >>>
- Supplier: Nantong Yueneng Energy Saving Purification Equipment Co. Ltd.
Share on (60834482730):
Product Overview
Description
Product Describtion
1. Product Specification
Model (plastic) | YNC-180 | YNC-200 | YNC-220 | YNC-300 |
Air flow | 18000m3/h | 20000m3/h | 22000m3/h | 30000m3/h |
Power | 1.1KW | 1.5KW | 2.2KW | 3.0KW |
Noise | ≤75dB | ≤80dB | ≤80dB | ≤80dB |
Outlet Dimension | 670*670mm | 670*670mm | 670*670mm | 800*800mm |
Covering Area | 80-100m2 | 100-120m2 | 150-200m2 | 200-250m2 |
Water consumption | 20-25kg/h | 20-25kg/h | 25-30kg/h | 30-35kg/h |
Dimension(L*W*H) | 1080*1080*950mm | 1080*1080*950mm | 1080*1080*1150mm | 1300*1300*1180mm |
Part 1. Motor
High-performance motor, high-quality copper wire, good heat dissipation and safer. Motor protection rating: IP55. Supports voltage and frequency customized .

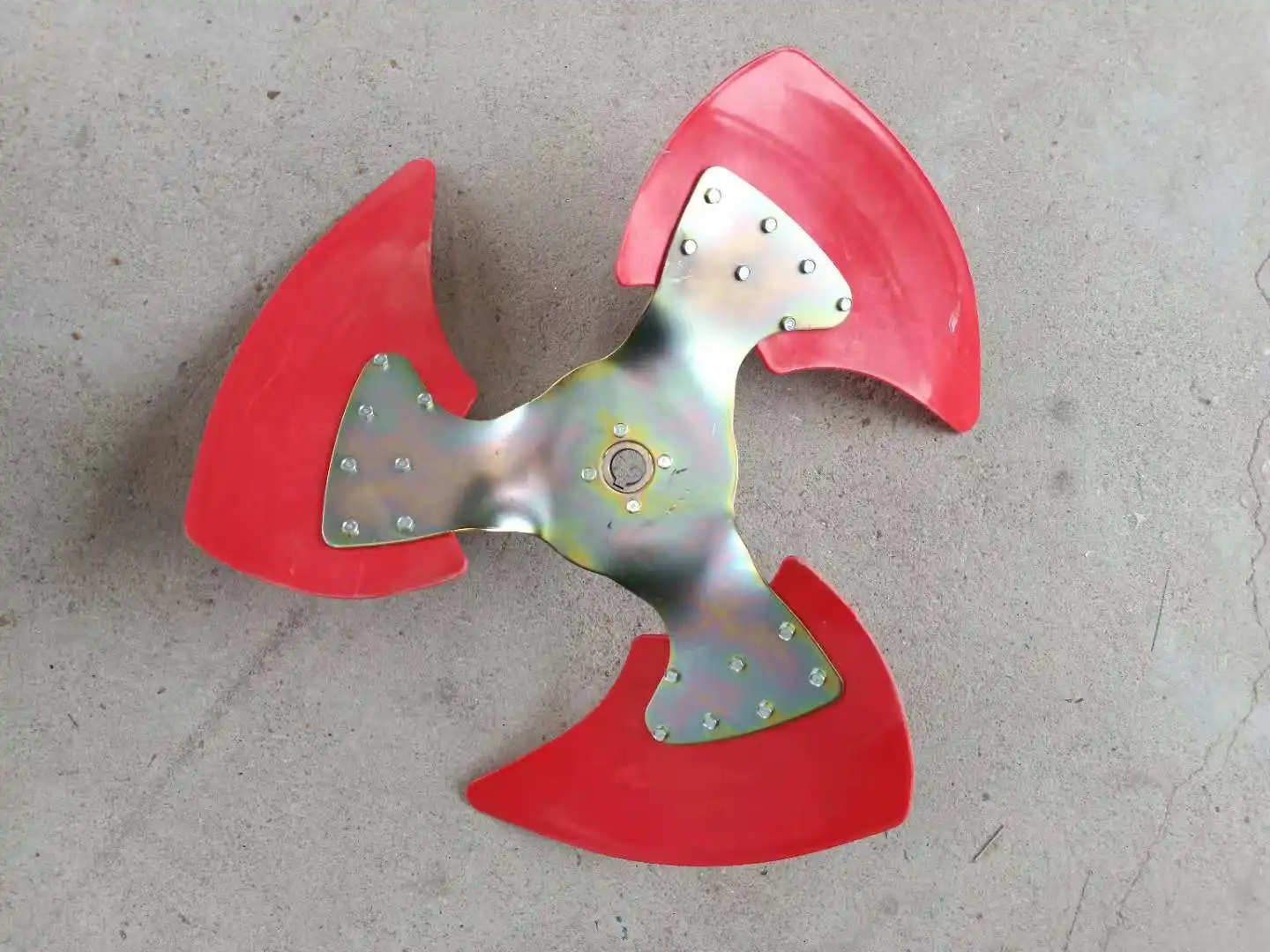

Part 2. Fan Blade
A variety of fan blade are aavailable, low noise, high air volume,stable operation.

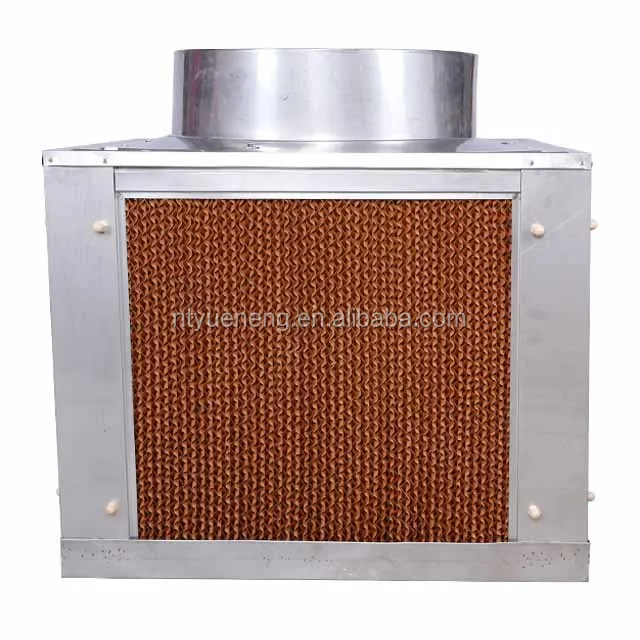

Part 3. Cooling Pad
Strong water absorption, good evaporation effect, fan outlet temperature is reduced by 6-8℃.
Part 4. Water Pump
Low noise, energy saving.

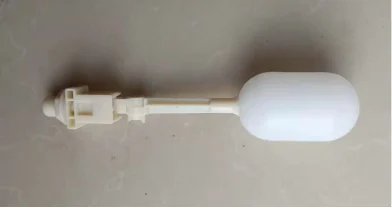

Part 5. Inlet Float
When the water level reach a floating level, it stops the water supply.

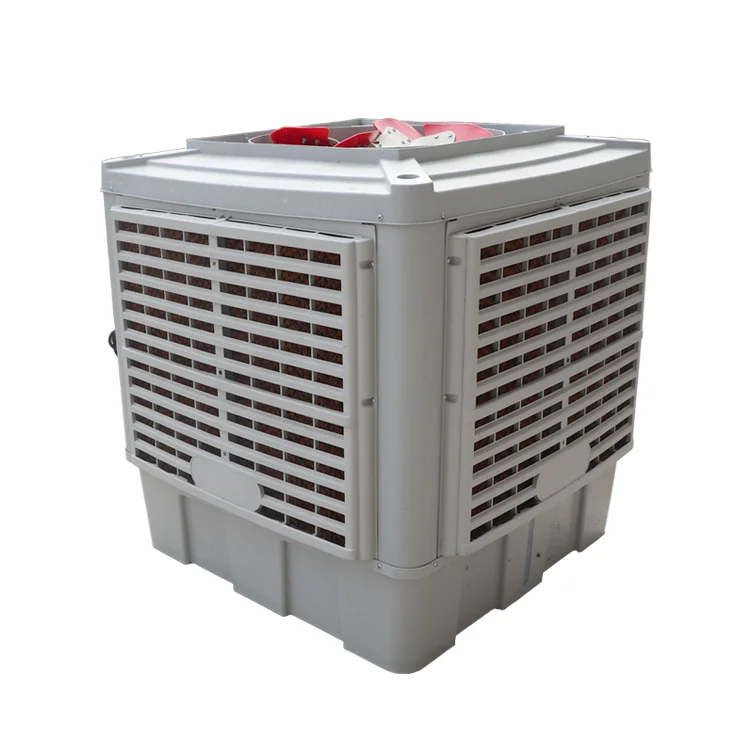

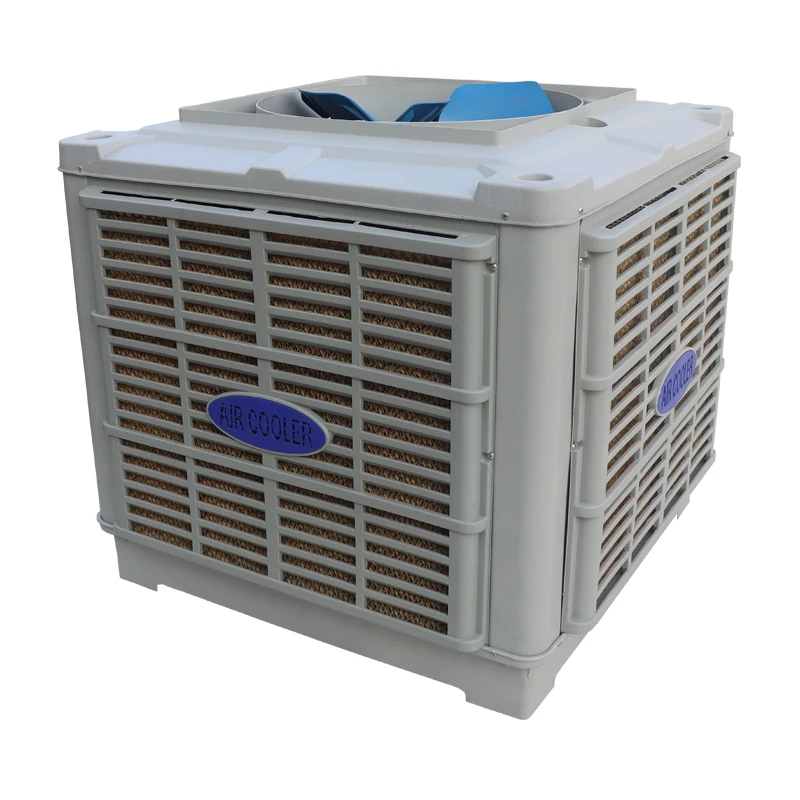

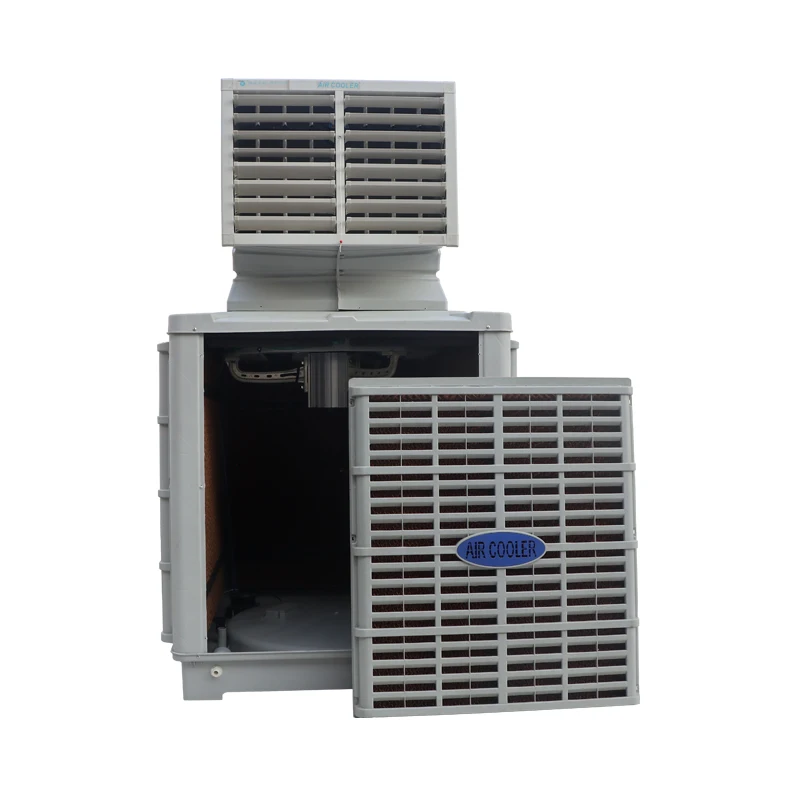

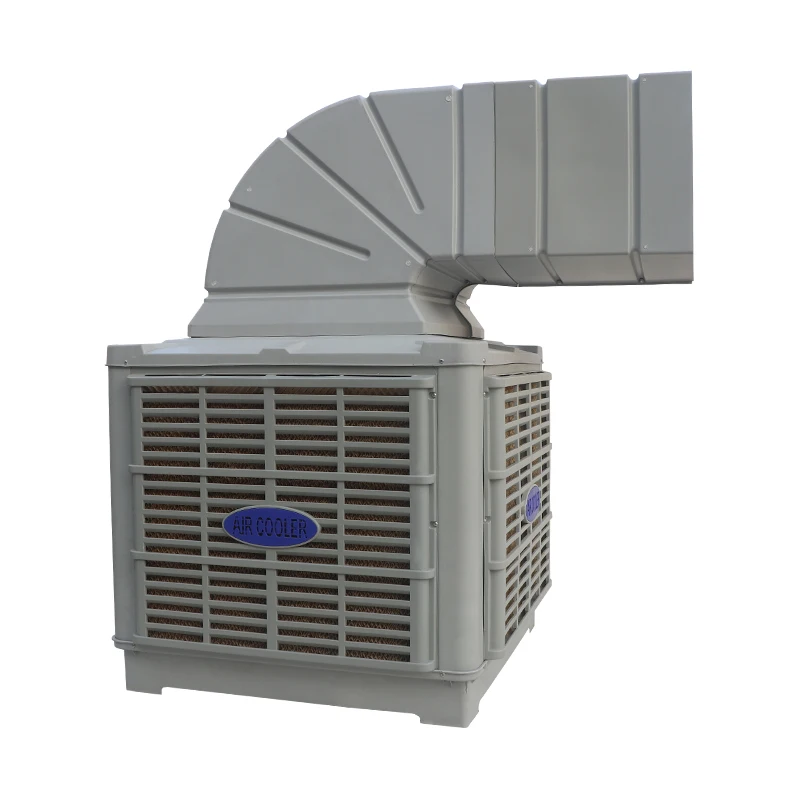

1.The machine body adopts ABS engineering plastics, anti-ultraviolet, anti-corrosion, anti-aging, anti-deformation.
2. The air volume is large, noise is small and energy consumption is low.
3. Adopts high quality national standard copper wire motor, good heat dissipation and high protection grade.

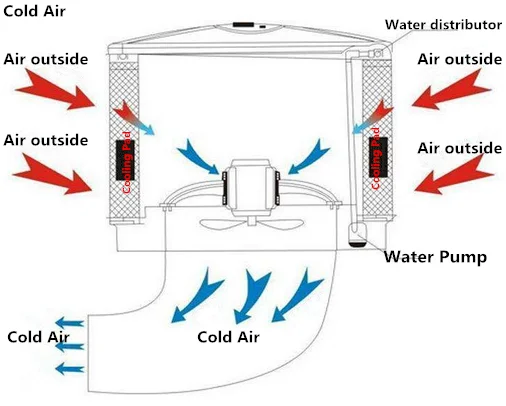

4. The evaporative air cooler is made up of special fiber corrugated honey comb cooling pad with large surface area, high efficiency energy-saving motor, water circulation system, float ball value water replenishing device, housing and electrical components.
2. The air volume is large, noise is small and energy consumption is low.
3. Adopts high quality national standard copper wire motor, good heat dissipation and high protection grade.
4. The evaporative air cooler is made up of special fiber corrugated honey comb cooling pad with large surface area, high efficiency energy-saving motor, water circulation system, float ball value water replenishing device, housing and electrical components.

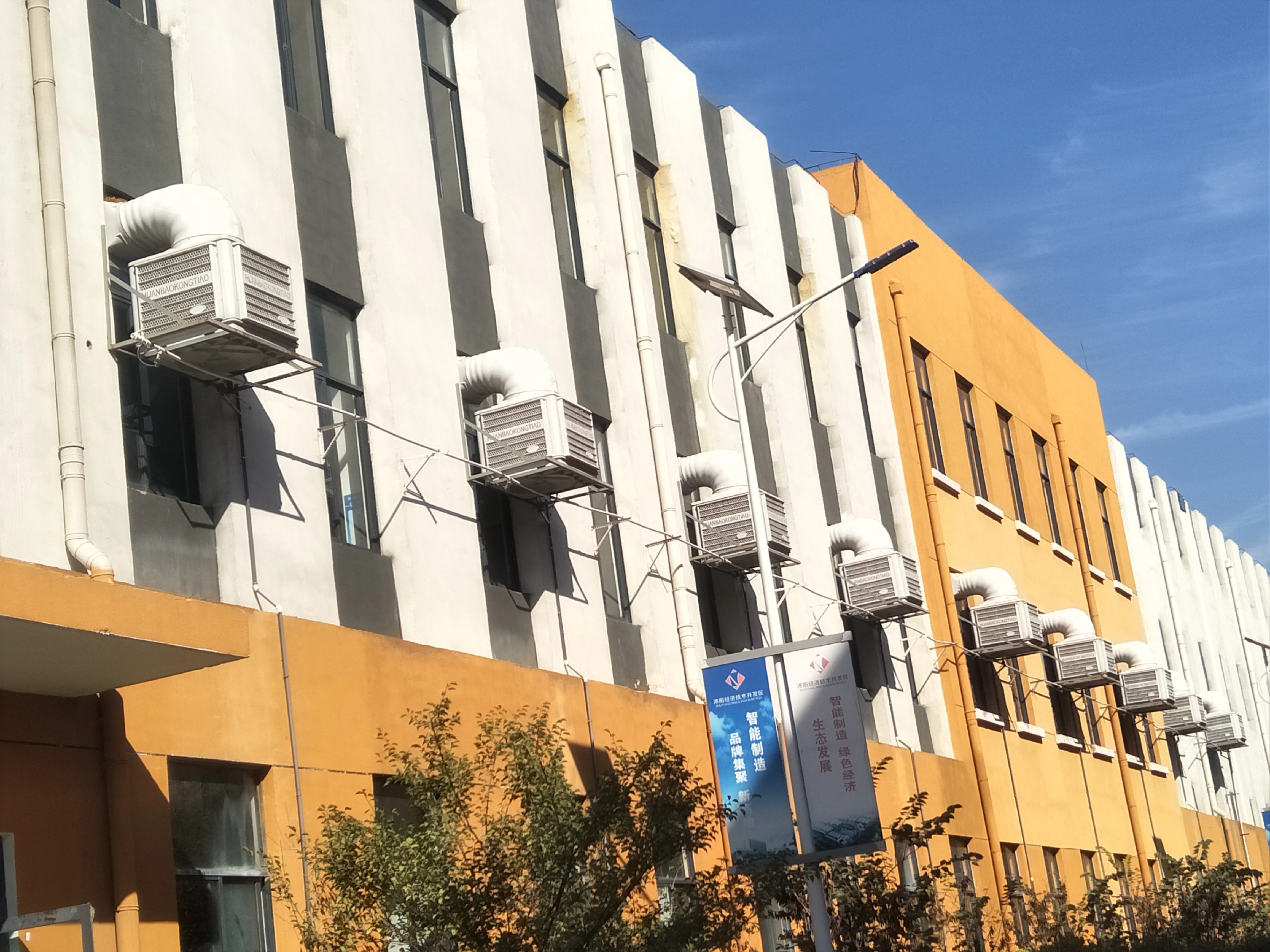

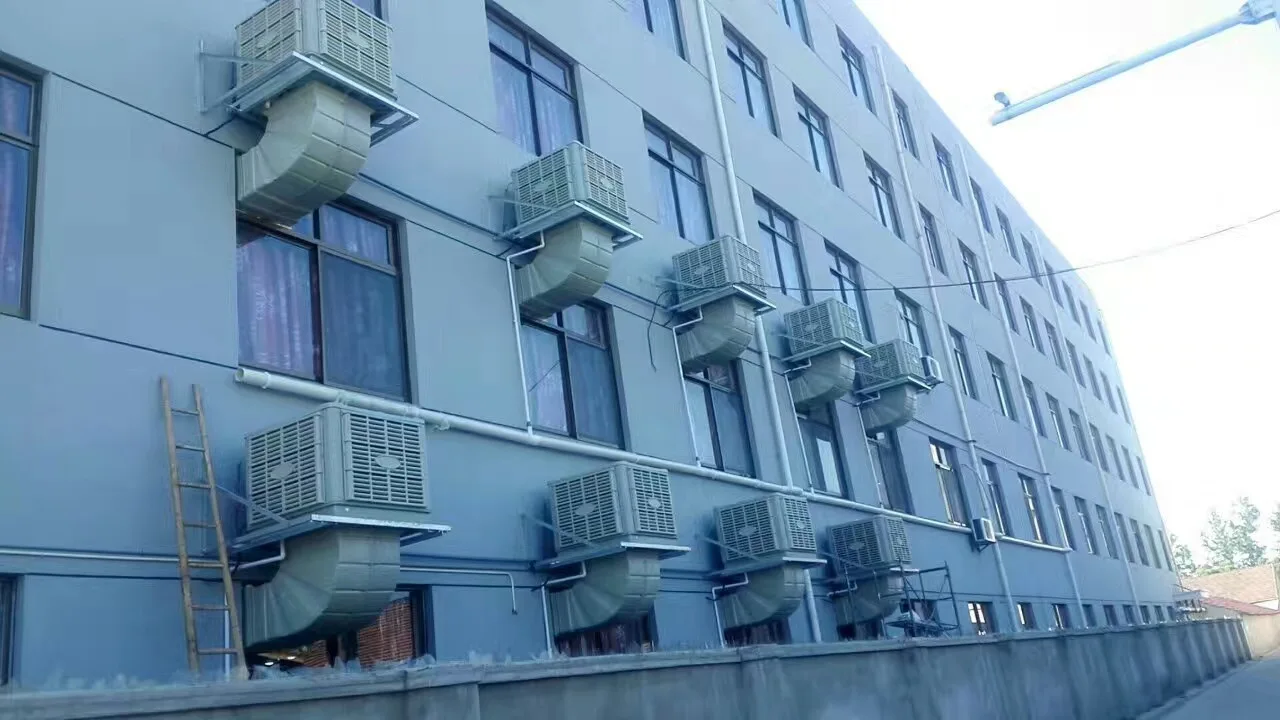

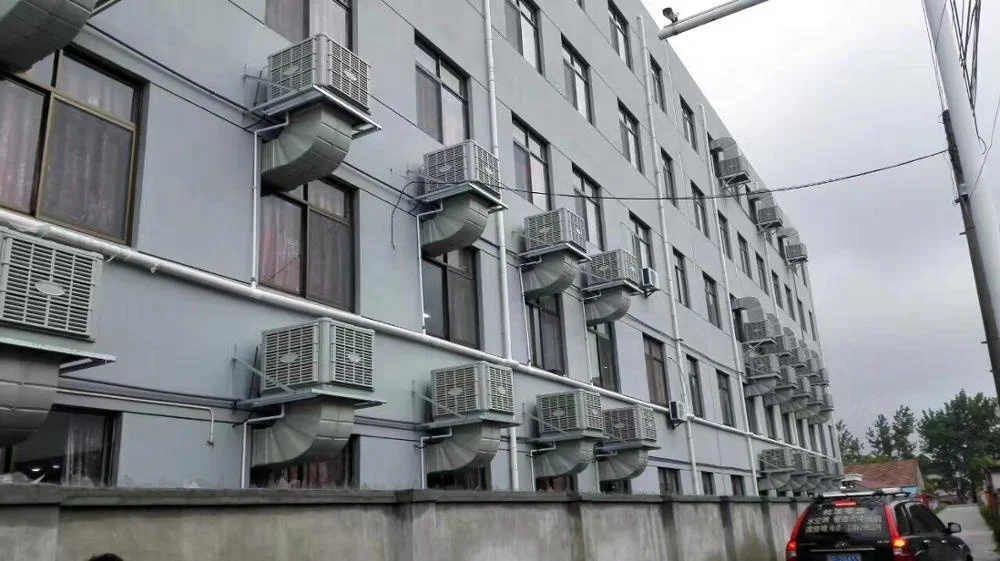

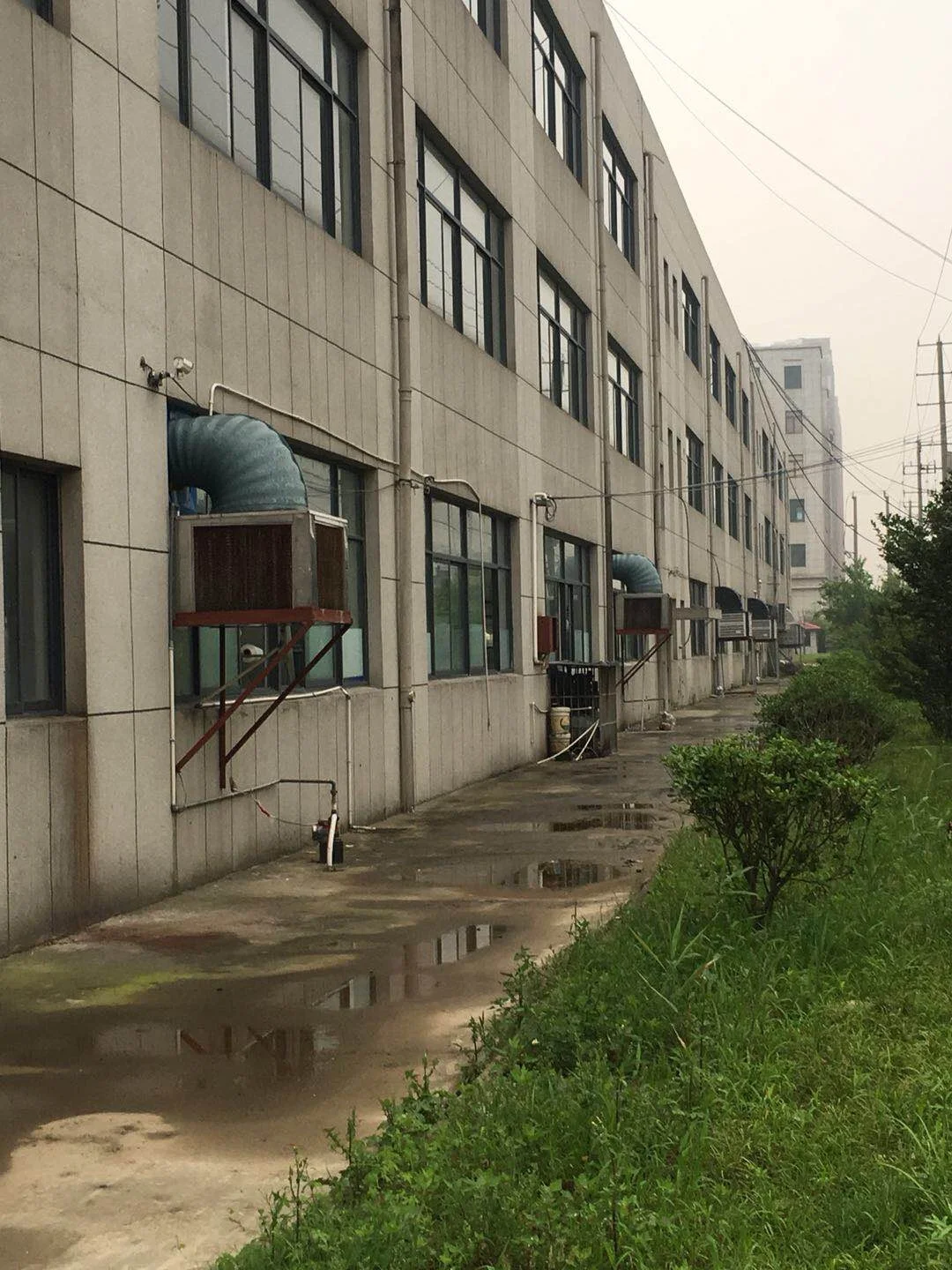

Product Uses
\t\t\t\t\t\t\t\t\tAdvantages \t\t\t\t\t\t\t
Related Products
Company Information
Nantong Yueneng Energy Saving Purification Equipment Co.,Ltd.
Founded in 2008 and located in Rugao town,Nantong City which is a famous "longevity" town. We are a professional temperature control enterprise integrating professional design,production,installation,sales and after-sales service.
Our main product:exhaust fan,air-cooler fan,no power roof ventilation fan,cooling pad,water-cooled weather condition and other products.Best-selling both in domestic and foreign,exported to southeast Asia,Europe,the United States and other countries. Reliable quality,energy-saving,among the top in the industry,we obtains our customers' unanimous praise.
Our products are widely used in livestock husbandry,greenhouse,workshop,environmental protection and other industries.Warmly welcome to visit our company!
\t\t\t\t\t\t\t\t\tPackaging & Shipping \t\t\t\t\t\t\t
FAQ
Q:Is your company a manufacturer or a trading company?
A:We are manufacturers, we have our own factory and design, sales team.
Q:Can you make our own brand?
A:Yes,we can provide OEM &ODM service. And we can make your brand on the products.
Q:What kind of voltage can you make, can you customize the voltage?
A:For exhaust fans and air coolers, the standard voltage we produce is 3 phase 380V 50Hz, or 1 phase 220V 50Hz, the input power is depends on the type of product. We can customize the voltage and frequency of the motor according to your requirements.
Q:What is your minimum order quantity?
A:Usually,MOQ of exhaust fan and air cooler is 10 sets, MOQ of cooling pad is one 20’ container. Small quantity we also can do ,but the cost will be high.
Q:Can I have a sample to test before ordering in large quantities?
A:Yes,of course. We can offer 1 set sample for evaluation and testing.
