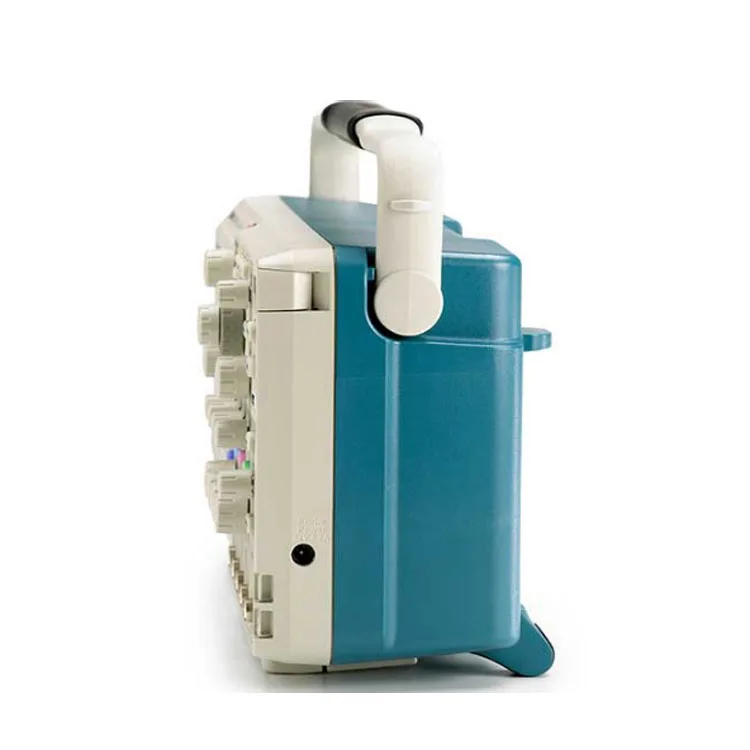

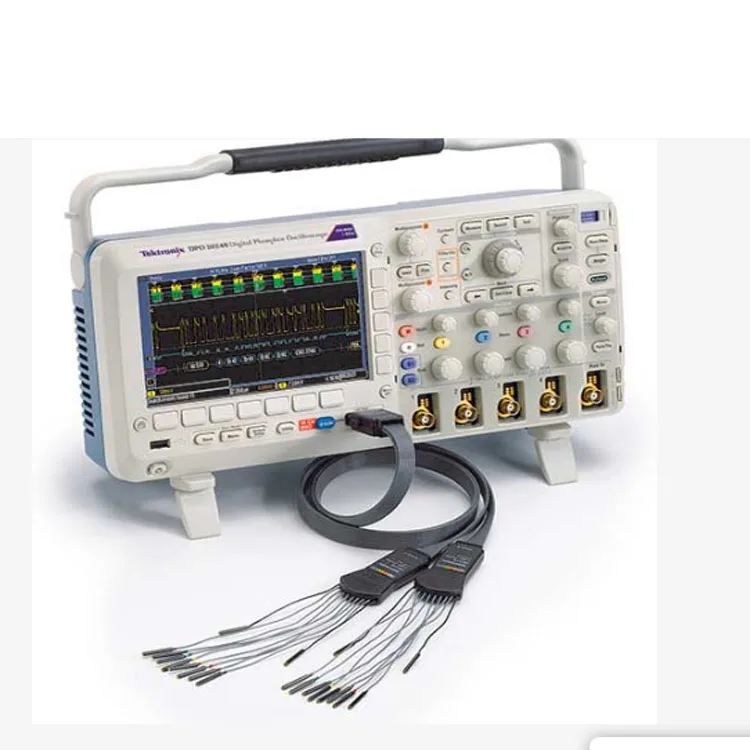

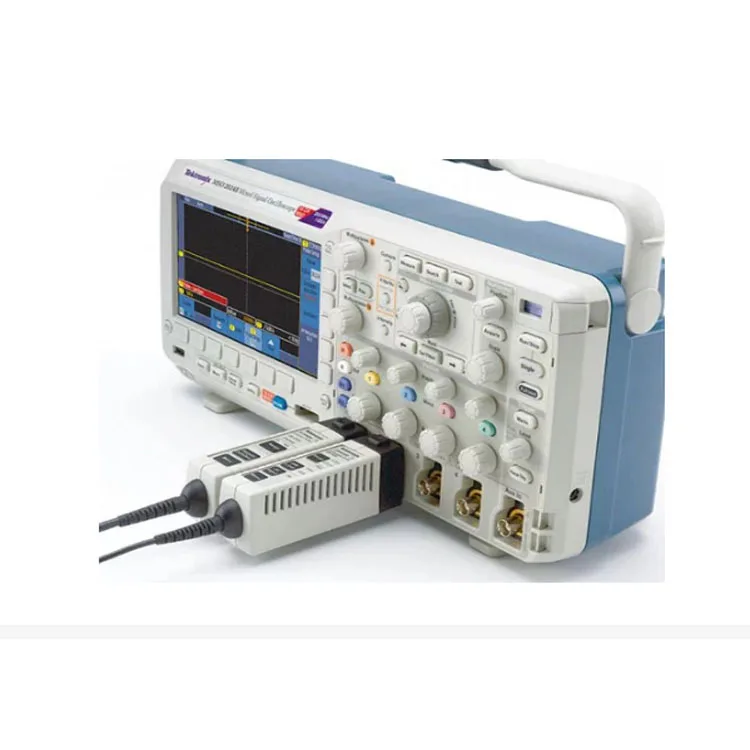

Tektronix DPO2024B oscilloscope

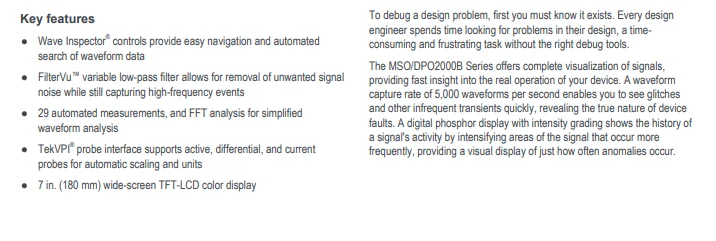

Key Feature:

16 automated measurements and FFT analysis for simplified waveform analysis

Built-in waveform limit testing

Automated, extended data logging feature

Autoset and signal auto-ranging

Built-in context-sensitive help

Probe check wizard

11-language user interface

144 mm (5.7 inch) active TFT color display

Small footprint and lightweight - only 124 mm (4.9 inches) deep and 2 kg (4.4 lb)

USB 2.0 host port on the front panel for quick and easy data storage

USB 2.0 device port on the rear panel for easy connection to a PC or for direct printing to a PictBridge® -compatible printer

Includes Tektronix OpenChoice® Software for connecting to your oscilloscopes

Lifetime warranty. Limitations apply. For terms and conditions, visit www.tek.com/lifetimewarranty

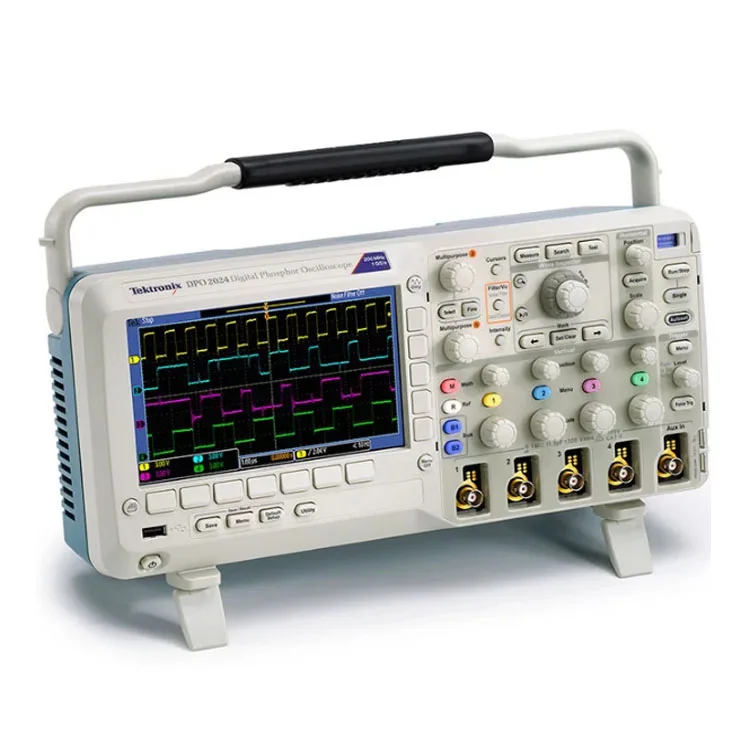

Positive display

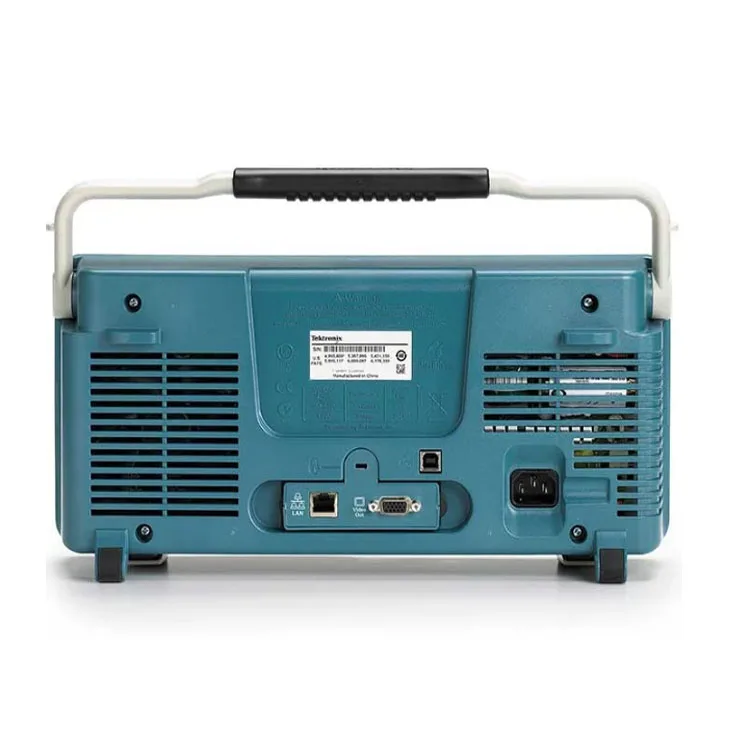

The back of the display

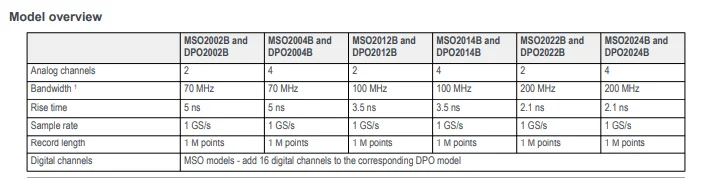

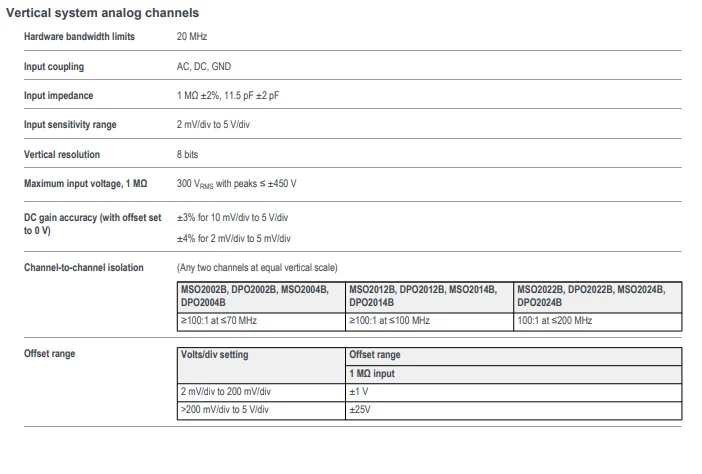

SPECIFICATION
Bandwidth	Channels	Sample rate on each channel	Record length
200 MHz	4	1.0 GS/s	2.1 ns
Dimensions(H*W*D)	Vertical resolution	Input channels	Weight
158.0 *326.3*124.2mm	8 bits	16 digital (D15 to D0)	2.0 kg (Instrument only) 2.2 kg(with accessories)
