3m3 concrete truck mixer with pump
US $2000-$4000

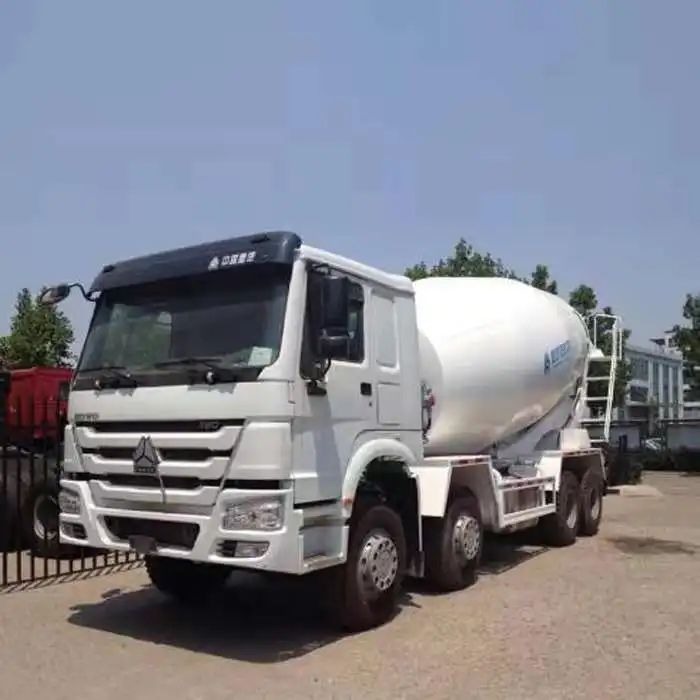

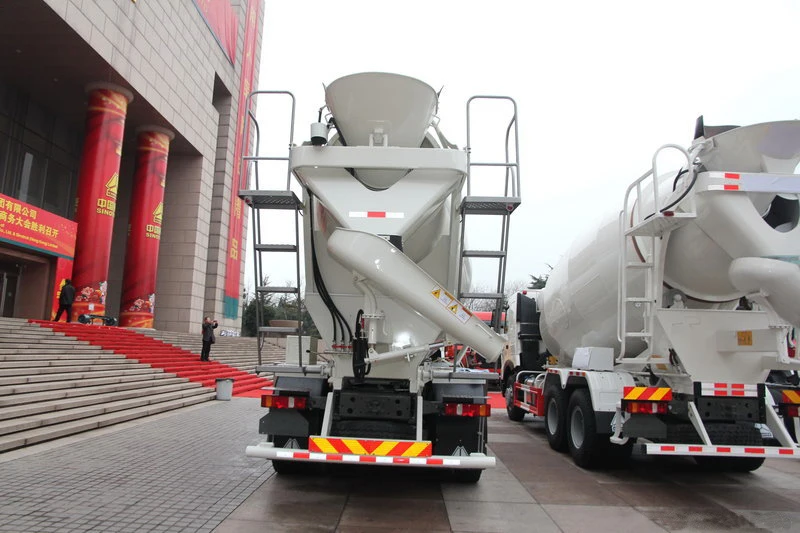

12 wheeler sinotruk HOWO 16m3 бетономешалка грузовик для продажи
- Category: Concrete Truck >>>
- Supplier: Jinan Sino Truck Sales Co. Ltd.
Share on (60835161565):
Product Overview
Description
Product Description
SPECIFICATION | DESCRIPTION | |||||
Truck Model | ZZ1317N3667A | |||||

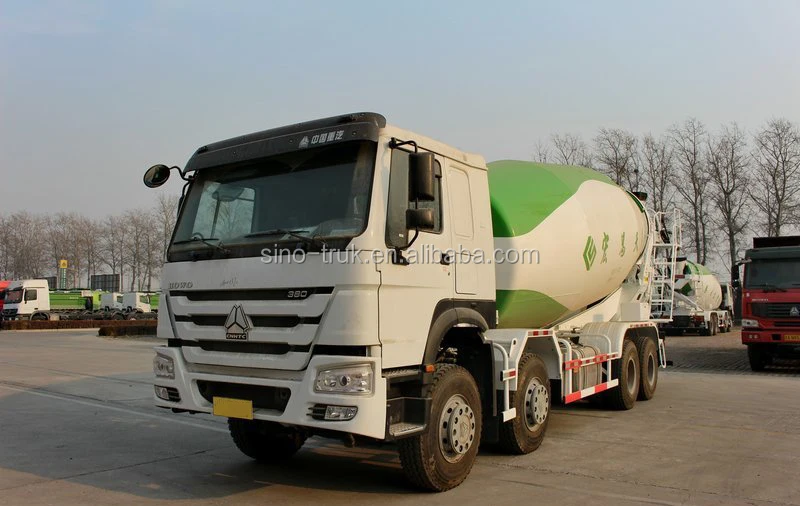

Type of Vehicle | 16m3 Concrete Mixer Truck | |||||
Truck Brand | SINOTRUK—HOWO | |||||
Driving Position | Left hand Driving | |||||
The Total Mass | 31,000kg | |||||
Dead Weight | 17000 | |||||
Max speed(km/h)(km/h) | 78 | |||||
Color | Optional | |||||
Chassis & Add Components | ||||||
Frame Details | parallel ladder with U-profiles and riveted cross members | |||||
Dimension(Lx W xH)(unloaded)(mm) | 12000x2496x3990 | |||||
Approaching angle/Departure angle(°) | 16/12 | |||||
Overhang(front/rear) (mm) | 1500/3000 | |||||
Wheel base (mm) | 1800+3600+1350 | |||||
Engine | ||||||
Model | WD615.47 | |||||
Brand | SINOTRUK | |||||
Power | 371HP | |||||
Emission | EURO II | |||||
Displacement(L) | 9.726 | |||||
Type | water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection | |||||
Kind of Fuel | Diesel | |||||
Clutch & Gear Box System | ||||||
Clutch | SINOTRUKΦ430mm diaphragm spring clutch | |||||
Gear Box | HW19710 10 forwards and 2 reverse. | |||||
Brand | SINOTRUK | |||||
Axles | ||||||
Front Axle Model | HF9 axle. Capacity: 9000kg | |||||
Rear Axle | HC16 axle. Capacity:2X 13000kg | |||||
Electrical System | ||||||
Battery | 2X12V/165Ah | |||||
Alternator | 28V-1500w | |||||
Starter | 7.5Kw/24V | |||||
Brake System | ||||||
Service brake | Dual circuit compressed air brake | |||||
Parking brake | spring energy, compressed air operating on rear wheels | |||||
Auxiliary brake | Engine exhaust brake | |||||
Steering system | ||||||
Model | 8118 Germany Brand | |||||
Wheels & Tyres | ||||||

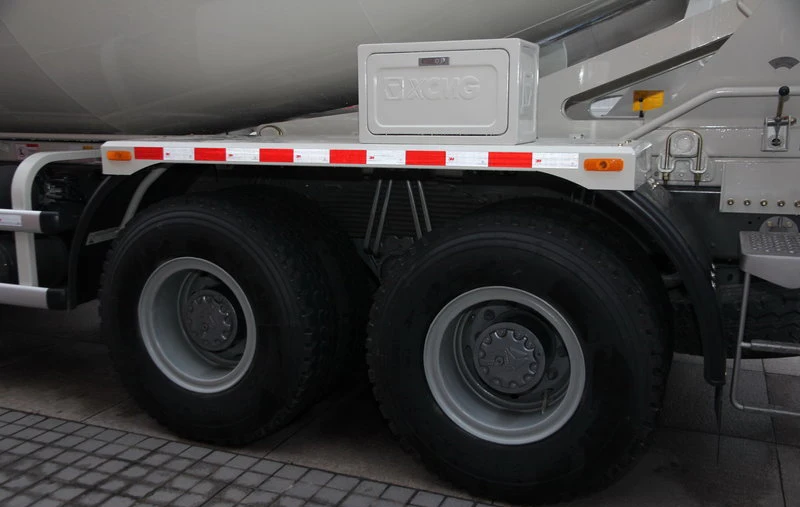

Type | 12.00R20 10+1 spare Tubeless tire | |||||
Cabin HW76 standard cabin , (single sleeper, with air-condition) | ||||||

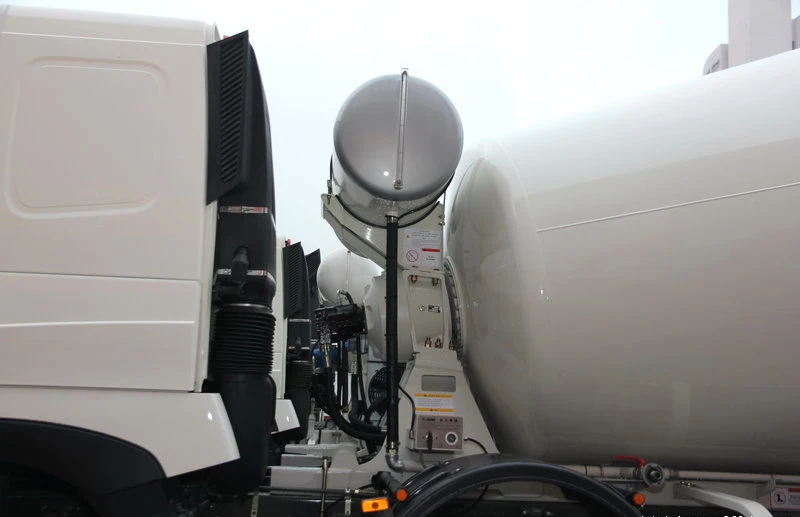

Mixer Body | ||||||
Agitating Capacity | 16m3 | |||||

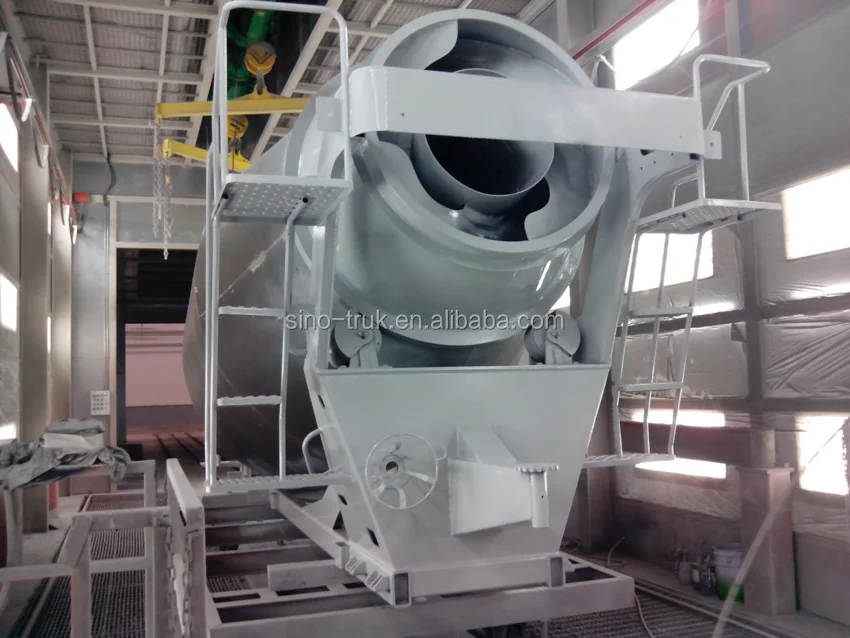

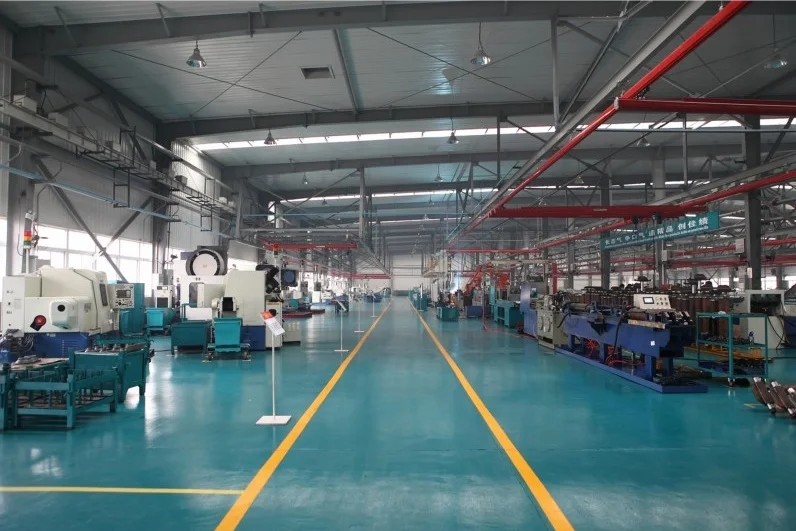

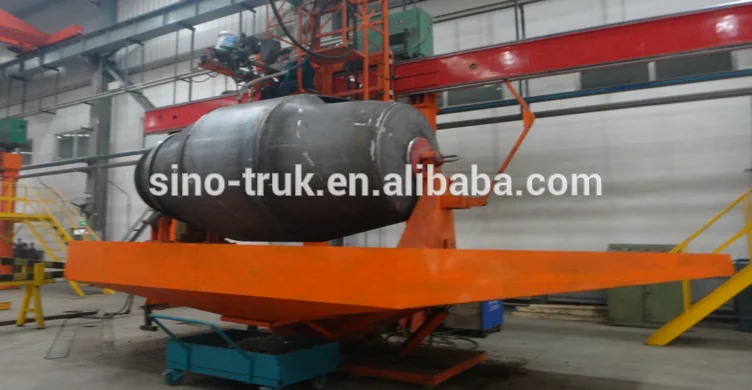

Pruduction line

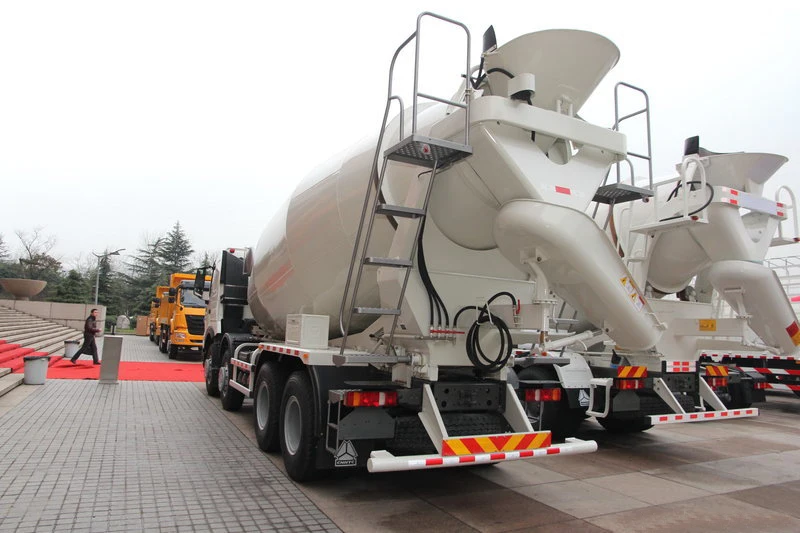

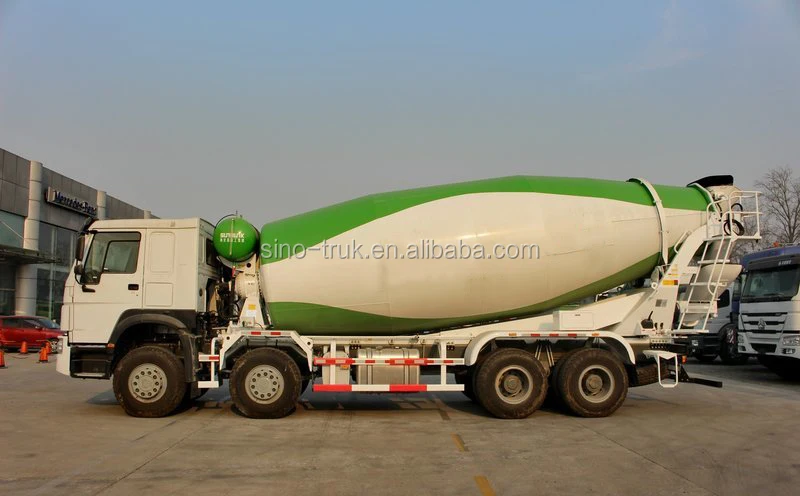

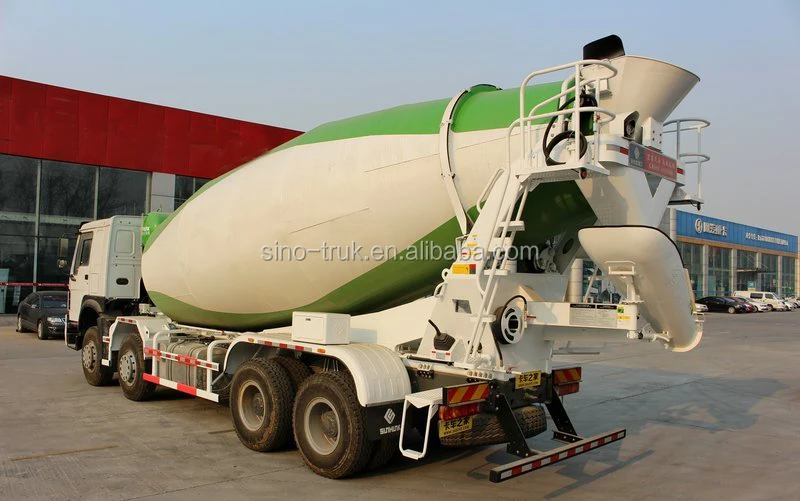

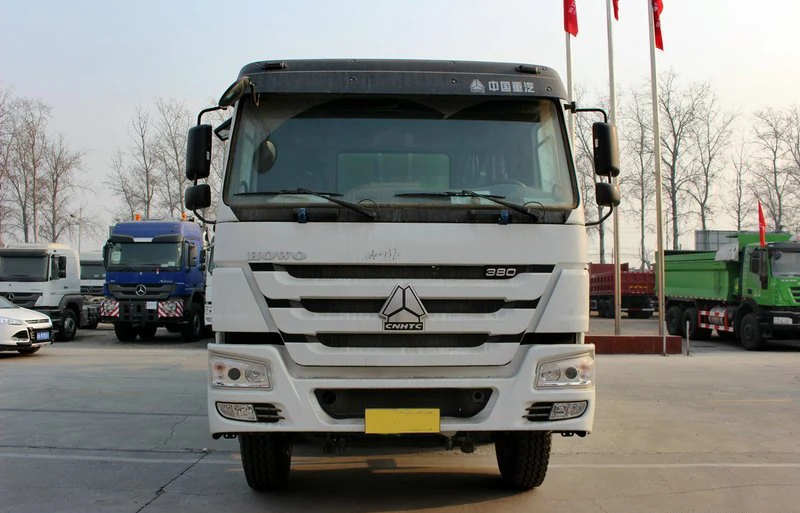

Truck show
Optional

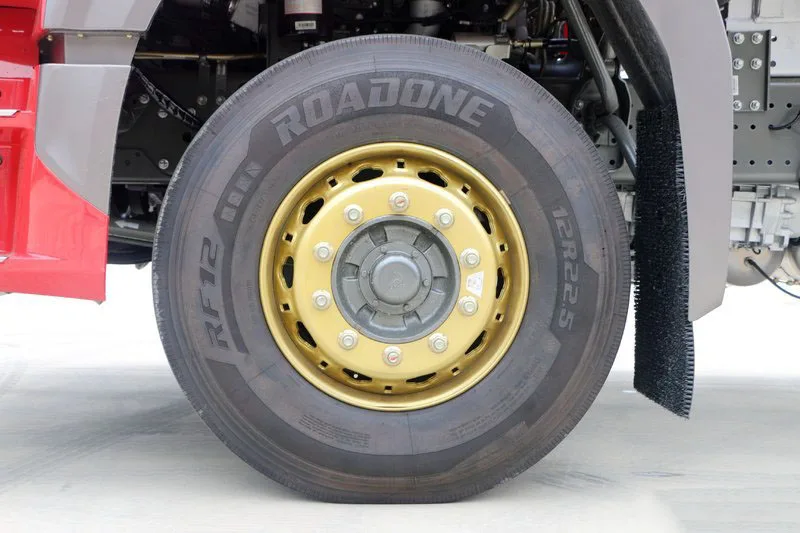

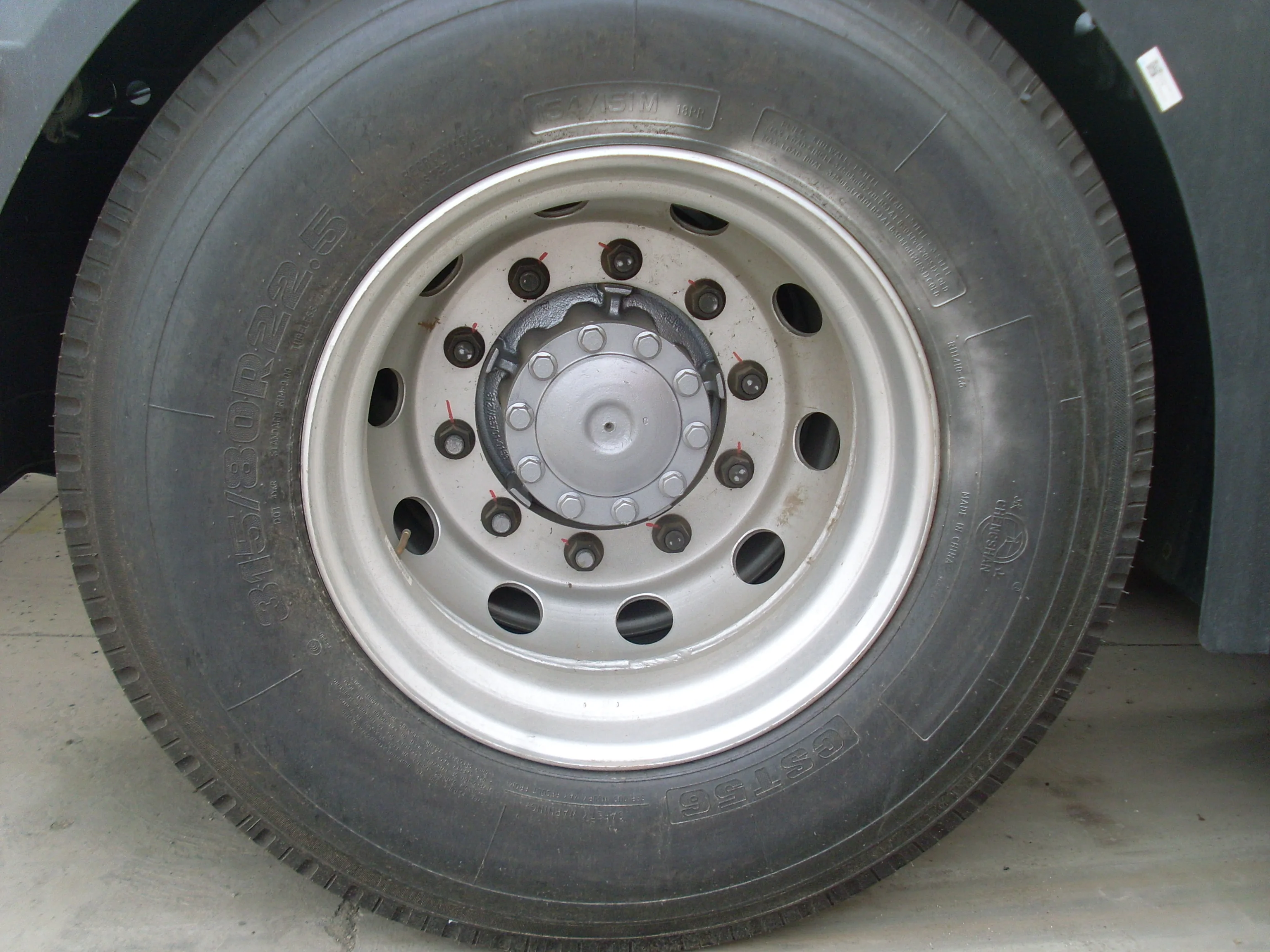

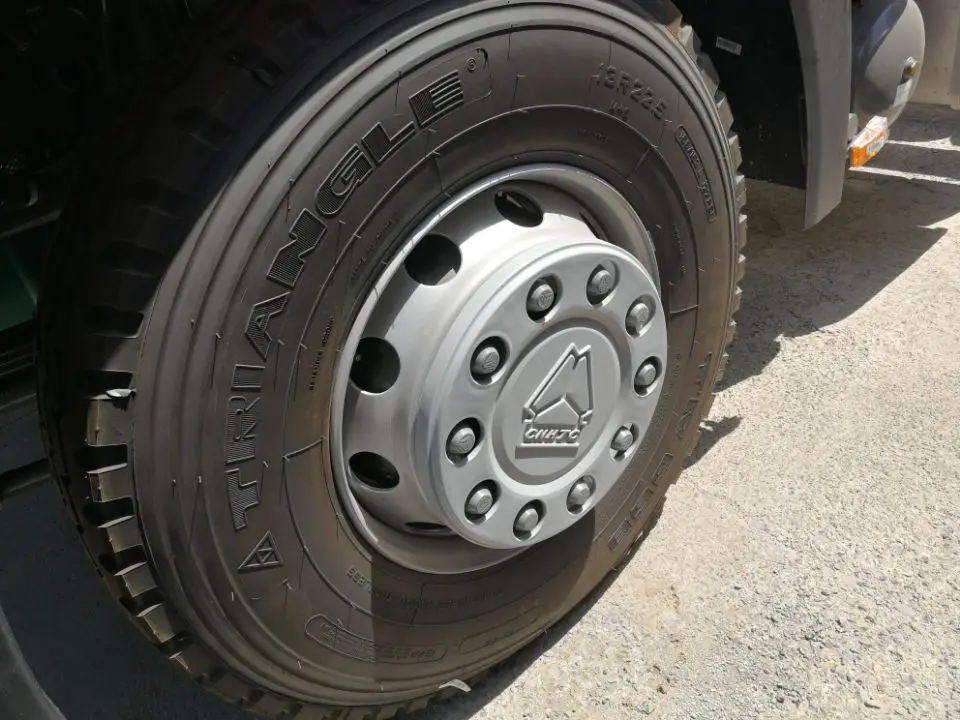

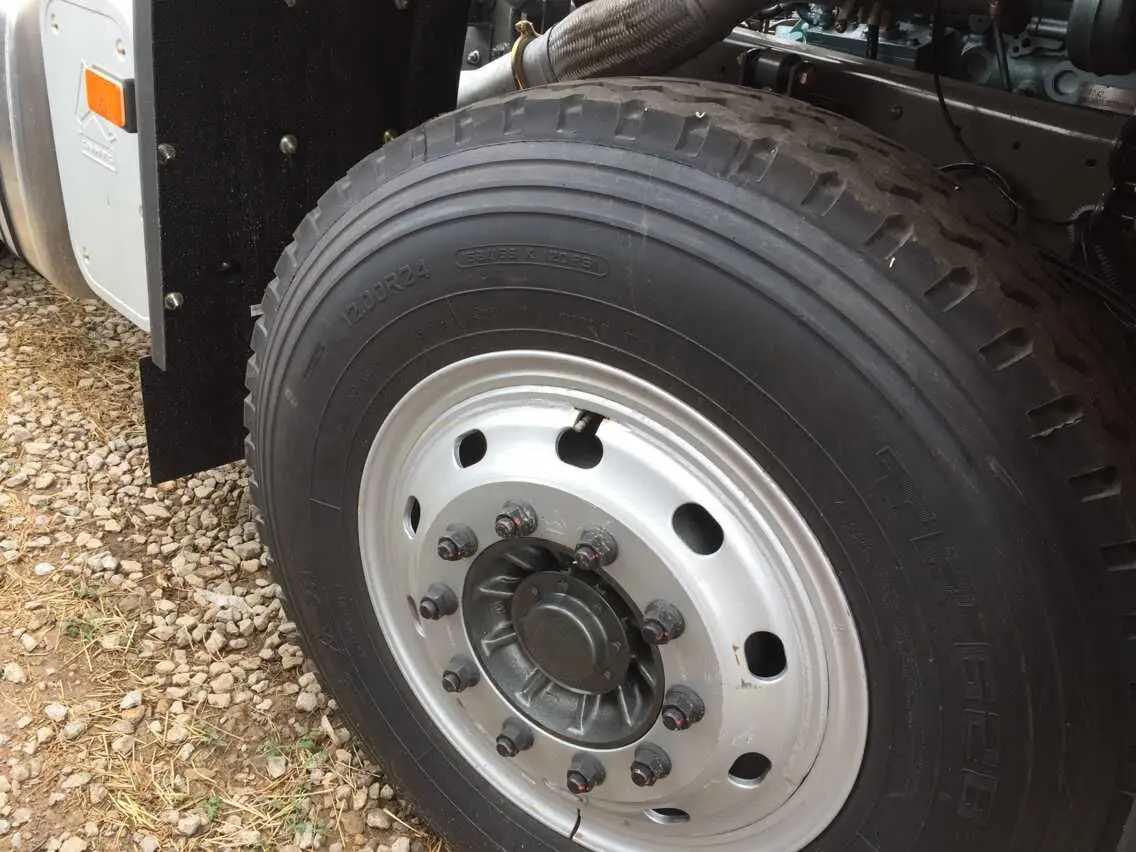

Choose your favor tires model 12R22.5 13R22.5 315/80R22.5 1200R24
One stop shop
Products: You name it, we have it
Quality : 100% 6months/30 000kms warranty
Price: as best as we can go
Delivery: as fast as we can
Provide spare parts (No less than 10 years)
Win-win situation is our target
Products: You name it, we have it
Quality : 100% 6months/30 000kms warranty
Price: as best as we can go
Delivery: as fast as we can
Provide spare parts (No less than 10 years)
Win-win situation is our target
Company Profile
Jinan Sino Truck Sales Co.,Ltd located in Jinan, Production base of heavy duty truck in China.
So competitive price, awe some quality , quantity can be guaranteed.
10 years or so experineced in exporting trucks.
So professional advices related products and satisfying service can be provided.
The main productwe can supply is CNHTC trucks trailers (HOWO, STR, Golden Prince,etc.), and spare parts.
Include tipper trucks, tractor trucks, concrete mixer trucks, water tank trucks, fuel tank trucks, cargo trucks, dry cement
transport trucks, fire fighting trucks ,all-wheel driving wheel , ,mining dump trucks, special trucks, different type semi trailer
and spare parts etc.
The main productwe can supply is CNHTC trucks trailers (HOWO, STR, Golden Prince,etc.), and spare parts.
Include tipper trucks, tractor trucks, concrete mixer trucks, water tank trucks, fuel tank trucks, cargo trucks, dry cement
transport trucks, fire fighting trucks ,all-wheel driving wheel , ,mining dump trucks, special trucks, different type semi trailer
and spare parts etc.
Our Service
Packaging: All the trucks will be polished with wax before shipping
Shipping: RORO, BULK CARGO VESSEL AND FLAT RACK CONTAINER
Suitable way will be choose according to the real situation.
Why should you choose to work with us
That is not because how good we are boasting or how cheap our product seems to be.
It is because our offer bridges your needs and our solution addresses your pain.
That is not because how good we are boasting or how cheap our product seems to be.
It is because our offer bridges your needs and our solution addresses your pain.
24 hours online,Offer professional advices on trucks purchasing.
Suppy Customized Products with your specific requirements.
Top quality, workable price , fast delivery guaranteed by international production line.
Supply free one set of filter element for your purchased truck.
Suppy Customized Products with your specific requirements.
Top quality, workable price , fast delivery guaranteed by international production line.
Supply free one set of filter element for your purchased truck.
