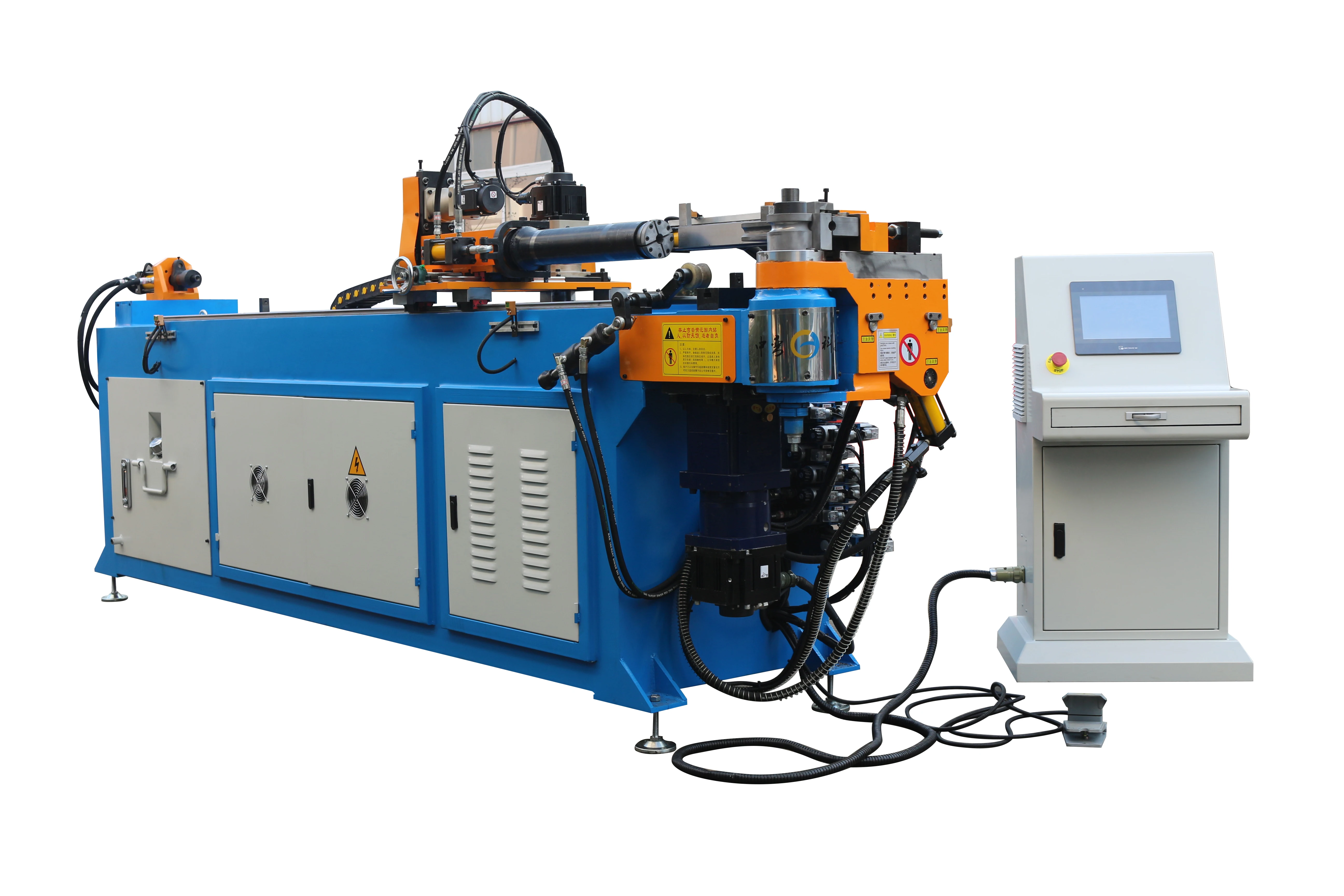

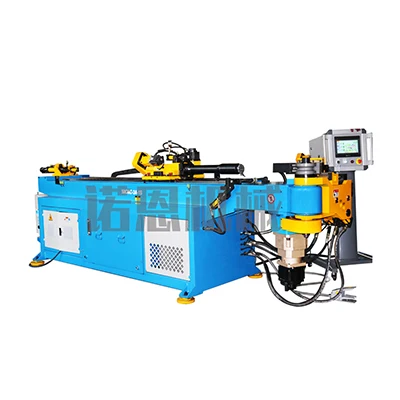

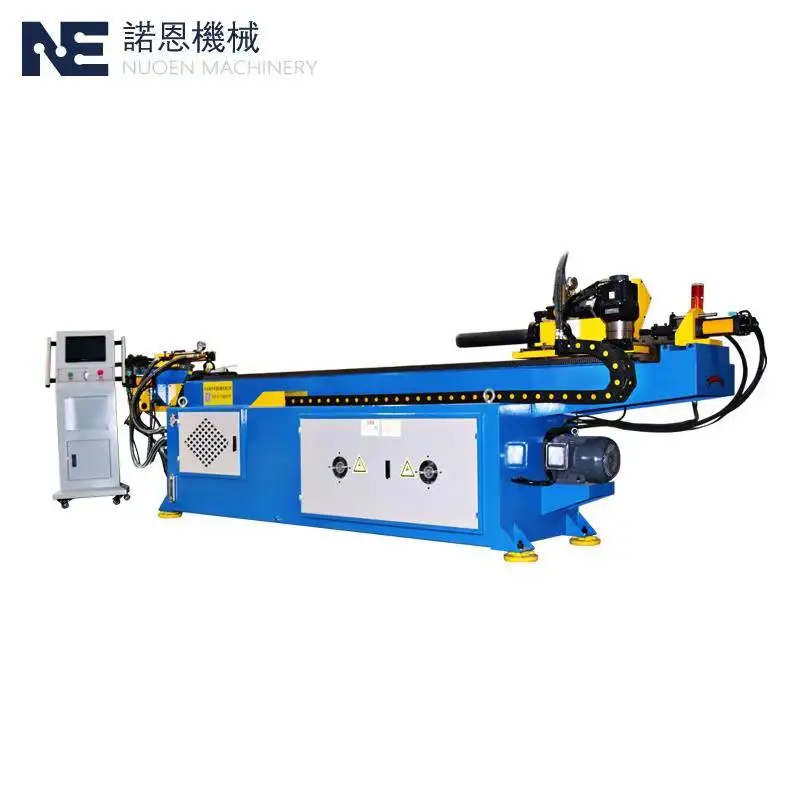

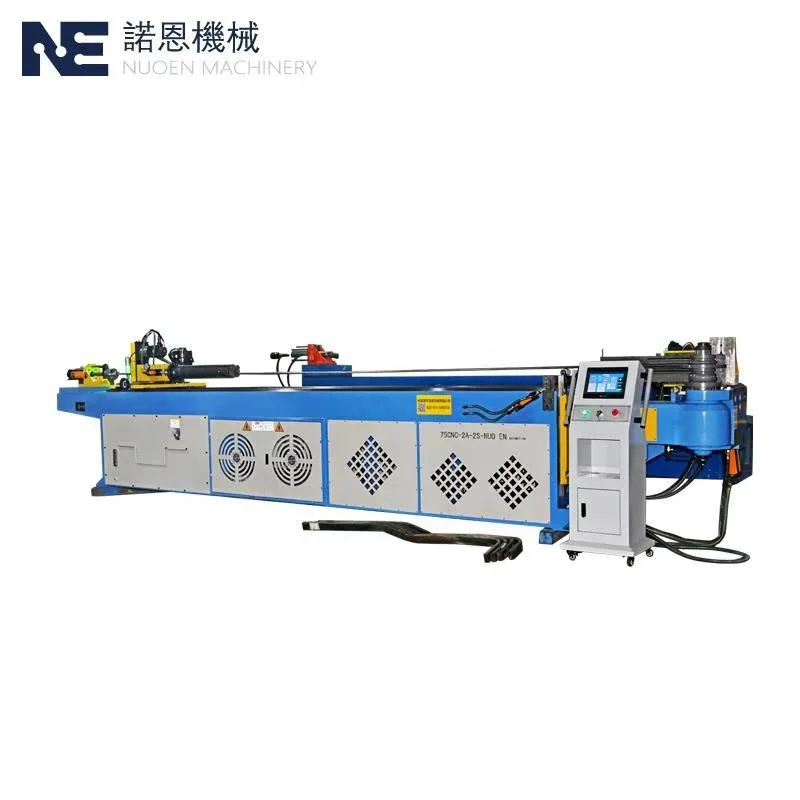

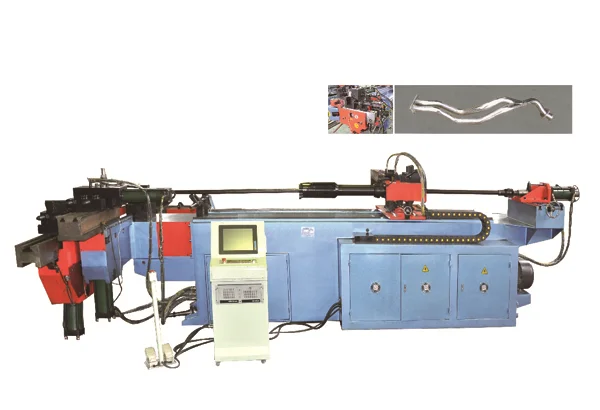

DW 89CNC высшее качество Лидер продаж гидравлическая гибочная машина трубы трубогиб гибочная машина трубогибочный станок оборудование
- Category: Pipe and Tube Bending Machines >>>
- Supplier: Zhangjiagang Nuoen Machinery Co. Ltd.
Share on (60836390962):
Product Overview
Description
A.Technical parameters:
Name | Unit | Model: 1,DW89CNCX2A-1S | Remarks | |
Maximum Bending Pipe Diameter * Wall Thickness | mm | Φ89*8 |
| |
Minimum Bending Radius | mm | R250 | ||
Maximum Bending Radius | mm | R30 | ||
Maximum Bending Angle | Degree | 190° | ||
Maximum Feeding Length | Mm | 2850 | ||
Feeding Mode | 1.Direct Feeding 2.Clamp-type Feeding | Optional | ||
Working Speed | Pipe Bending Speed | Deg/sec | 30 | |
Pipe Rotating Speed | Deg/sec | 160 | ||
Feeding Speed | Mm/sec | 800 | ||
precision | Feeding Precision | mm | ±0.1° | |
Pipe Rotating Precision | Degree | ±0.1° | ||
Pipe Bending Precision | Degree | ±0.1 | ||
Information input mode |
| Optional | ||
Bend way |
| 1. Servo bend: 1 kw (more than three axis) | ||
Power of Pipe Rotating Servo Motor | W | 1500 | ||
Power of Feeding Servo Motor | W | 2000 | ||
Allowable Pipe Fitting Elbow Number |
| 1,12 2,33 | ||
Storable Component Number |
| 1,330 2,125 | ||
Oil Hydraulic Motor Power | Kw | 11 | ||
Maximum System Pressure | Mpa | 12 | ||
Machine Size | cm | 5090*1350*1230 | ||
Machine Weight | Kg | 5500 | ||
B. Machine tool characteristics:
1. Standard display language: Chinese/English switch. (Other language can be changed as needed)
2. The maximum bending program memory capacity is 400 groups, and each group can be programmed with up to 16 bends. (expandable)
3. Directly input the bending pipe processing parameters. The machine can be single-stepped and paused during automatic operation, so that it can be manually intervened when bending special pipe fittings, and can also resume automatic operation. At the same time, it has a pause function, with automatic and manual functions. It is activated by a switch when running the next cycle after one cycle, and an emergency stop button is required when an emergency stop is required.
4. The operating program and the elbow program have unlimited memory storage time, and will not cause program loss due to power outage or long-term non-use.
5. While the machine is performing automatic machining, the controller can still input or edit the program.
6. The elbow program can set the individual actions of each axis in each processing step. 0-9 A total of ten speeds can be flexibly used for different work items to improve work efficiency. An external speed knob is also available to reduce or increase the machining speed as needed.
C. Machine tool configuration:
Item | Supplier |
Electromagnetic reversing valve | Yuken |
Servo motor | Mitsubishi |
Reducer | PINHONG |
Linear guides | Hiwin |
Overflow valve | Yuken |
Superposition valve | Yuken |
Rack | ATLANTA |
Micro computer | Changzhou |
Vane pump | NOVA |
Seals | DingZing |
AC contactor | Schneider |
Thermal overload relay | Schneider |
Fuse | Schneider |
Proximity switch | ROKO |
Switch | Delixi |
Electric motor | TAIHU |
Oil tube | KuDos |
