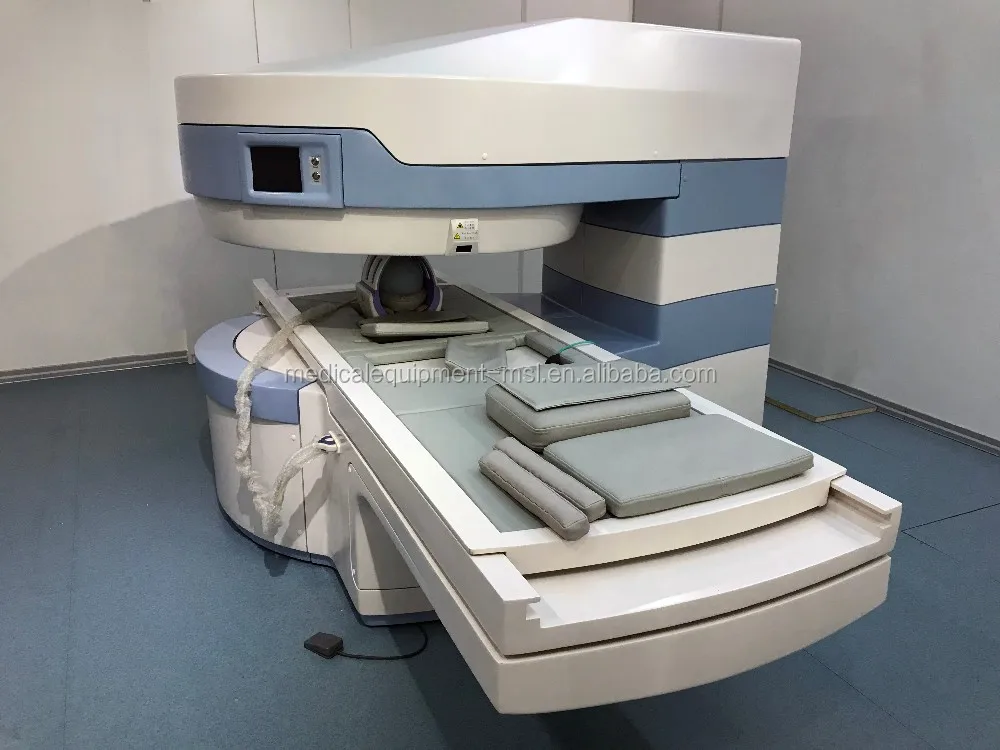

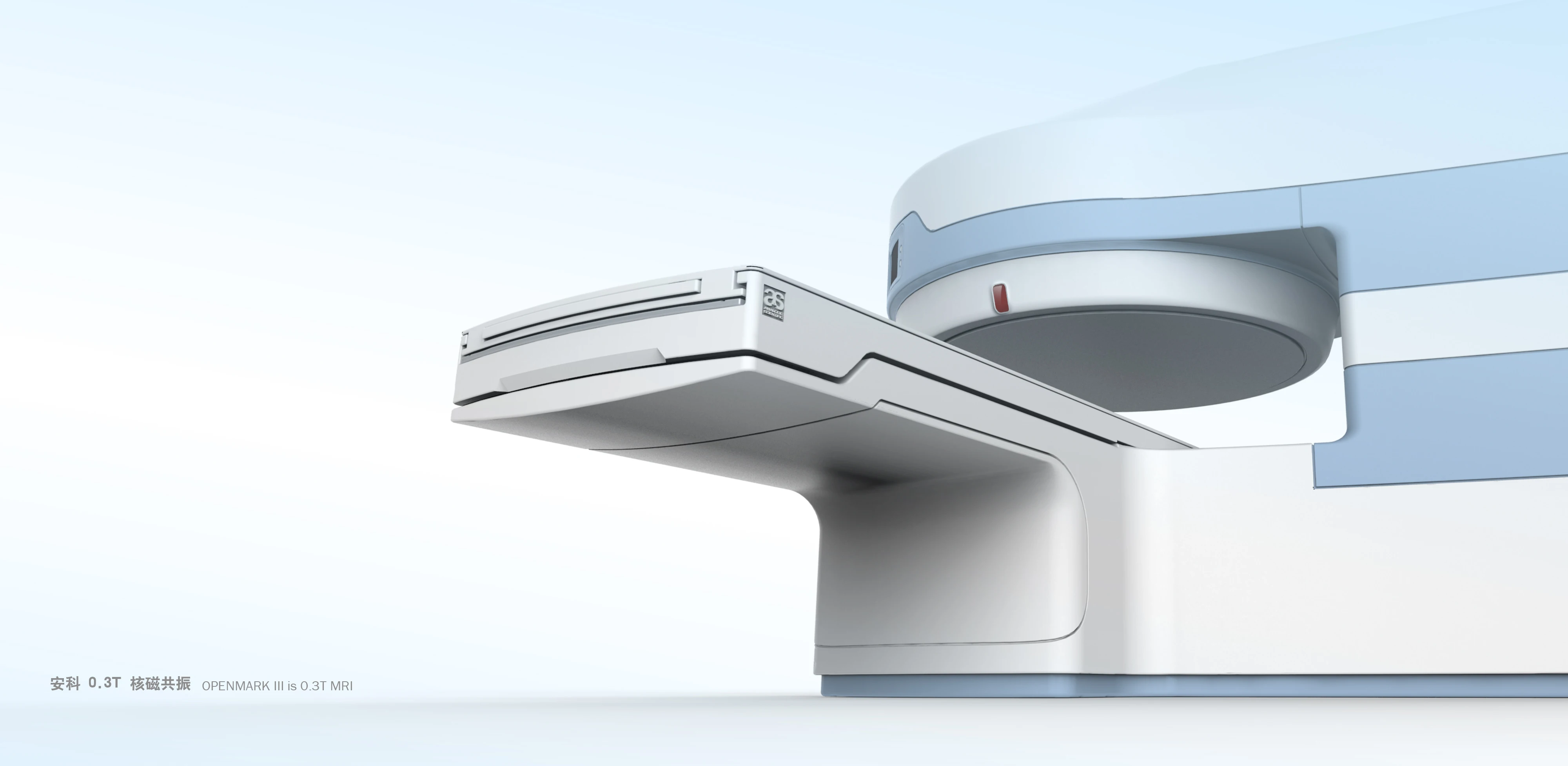

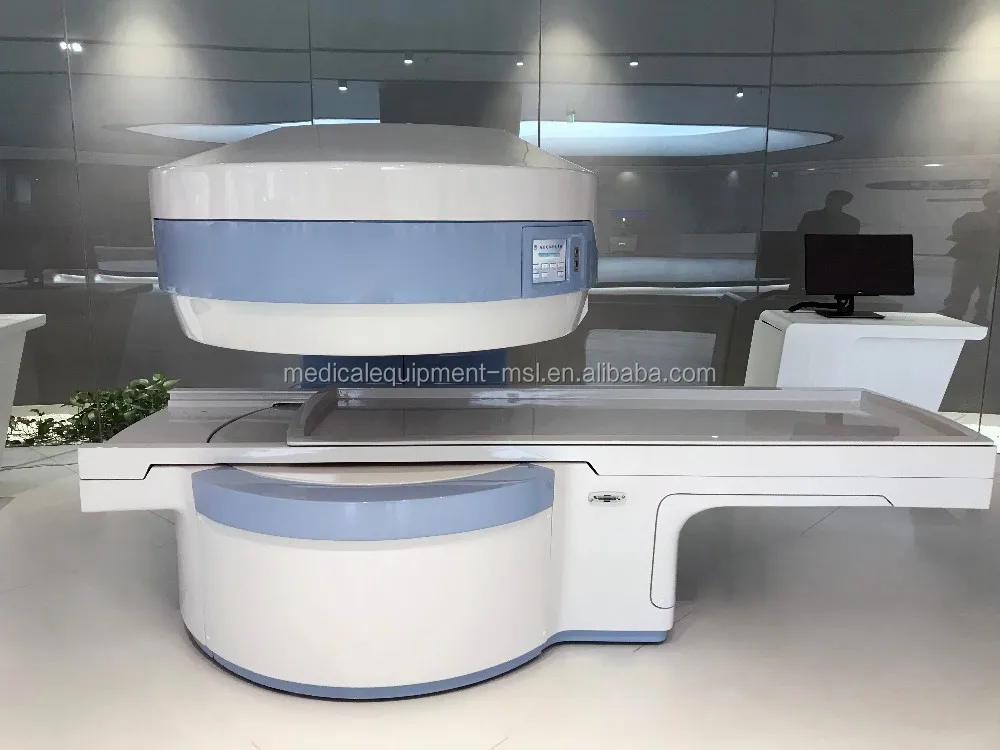

MSLMRI13 африканская Больничная магнитно резонансная система визуализации/медицинская система МРТ на продажу

2\tPatient Couch and Communication

3\tGradient System

3.1\tGradient Field Strength(Single Axis)\t≥28mT/m\t

3.2\tGradient Slew Rate (Single Axis)\t≥93mT/m/ms\t

3.3\tRise Time\t≤0.3ms\t

3.4\tGradient Cooling System(Gradient coils and Power electronics)\tAir Cooling\t

4\tRF System

4.1\tRF System Type\tDigital Transmit and Receive\t

4.2\tNumber of RF Channel \t4\t

4.3\tTransmitter Amplifier Peak Power\t6kW\t

4.4\tRF Bandwidth of Receiver\t≥1MHz\t

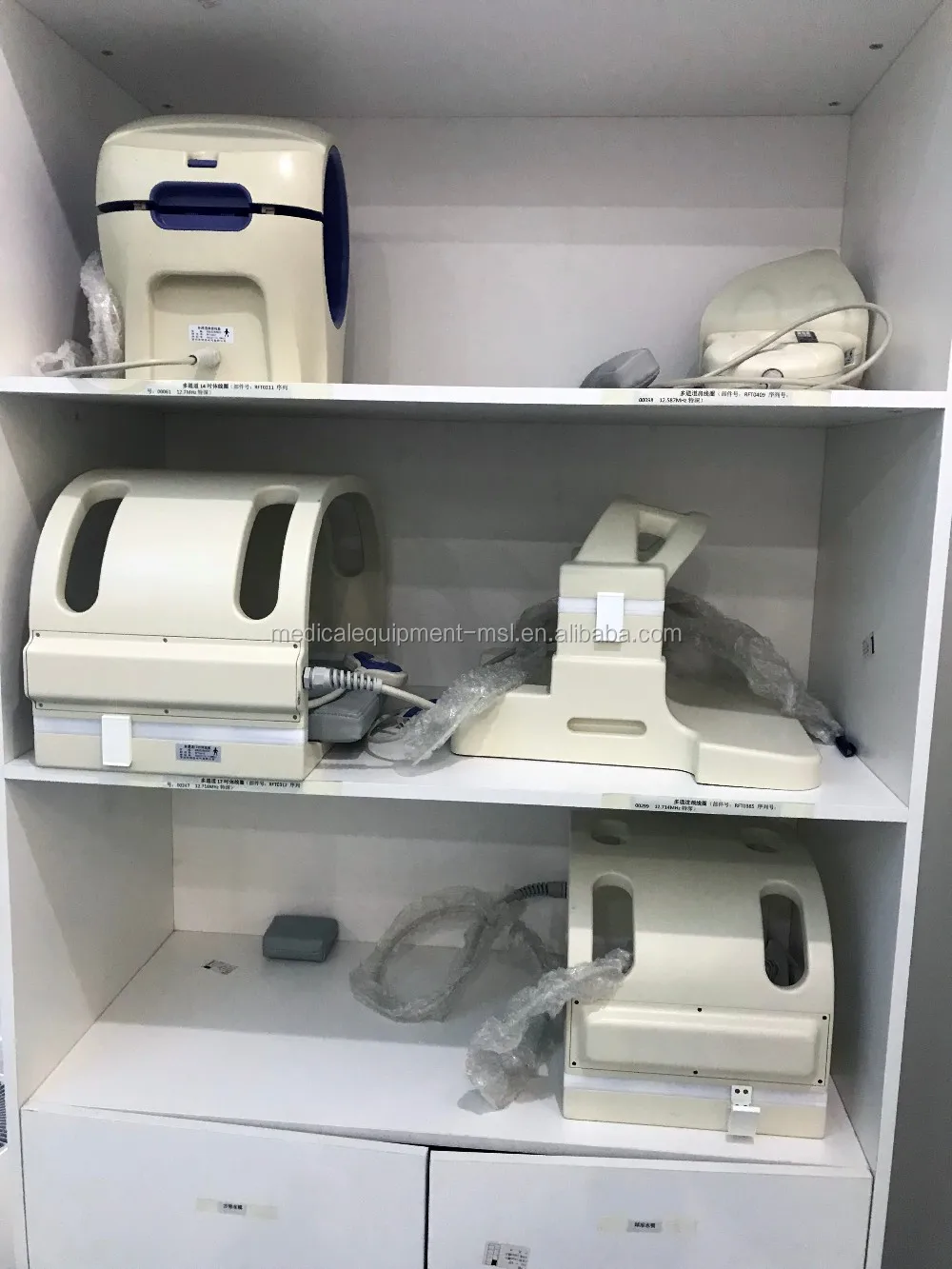

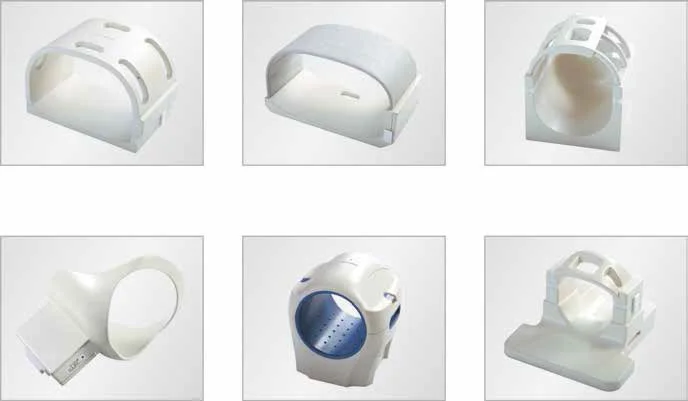

4.5\tPA Head Coil\tYes\t

4.6\tPA Neck Coil\tYes\t

4.7\tPA Body/Spine Coil (17 inch)\tYes\t

4.8\tPA Body/Spine Coil (20 inch)\tYes\t

4.9\tPA Knee Coil\tYes\t

4.10\tPA Shoulder Coil\tYes\t

5\tComputer System

5.1\tHost Computer\tDELL Computer (Professional for MRI)\t

5.2\tSystem Software\tWindows 7\t

5.3\tOperation Software\tAPEX\t

5.4\tCPU Clock rate\t3.6GHz\t

5.5\tMain Memory\t2GB\t

5.6\tColor LCD Monitor\t19"\t

5.7\tKeyboard and Mouse\tStandard\t

5.8\tImage Reconstruction Speed(256 x 256 Matrix)\t1500 FPS.\t

5.9\tHard Disk\t500 GB \t

5.10\tImage Storage Capacity(256 x 256 Matrix)\t2,650,000 images\t

5.11\tMedia Driver\tDVD RW\t

5.12\tDICOM 3.0\tYes\t

5.13\tEthernet\tYes\t

5.14\tOperator's Console\tYes\t

5.15\tOperator's Chair\tYes

6\tScanning Parameter

6.1\tMax. FOV\t400mm\t
6.2\tMin. FOV\t10mm\t
6.3\tMin. TE(SE)\t5ms\t
6.4\tMin. TR(SE)\t11ms\t
6.5\tMin. TE(GR)\t2ms
6.6\tMin. TR(GR)\t5ms\t
6.7\tMin. 2D Thickness\t1.0mm\t
6.8\tMin. 3D Thickness\t0.1mm
6.9\tMax. Image Matrix\t1024x1024
