Radiolink R9DS V2.0 9 Channels RC Receiver SBUS/PWM/PPM Signal Compatible with AT9 AT9S AT10II AT10
- Category: >>>
- Supplier: Shenzhen Jinxinyi Electronic Co. Ltd.
Share on (60837974695):
Product Overview
Description
Products Picture
Product Paramenters

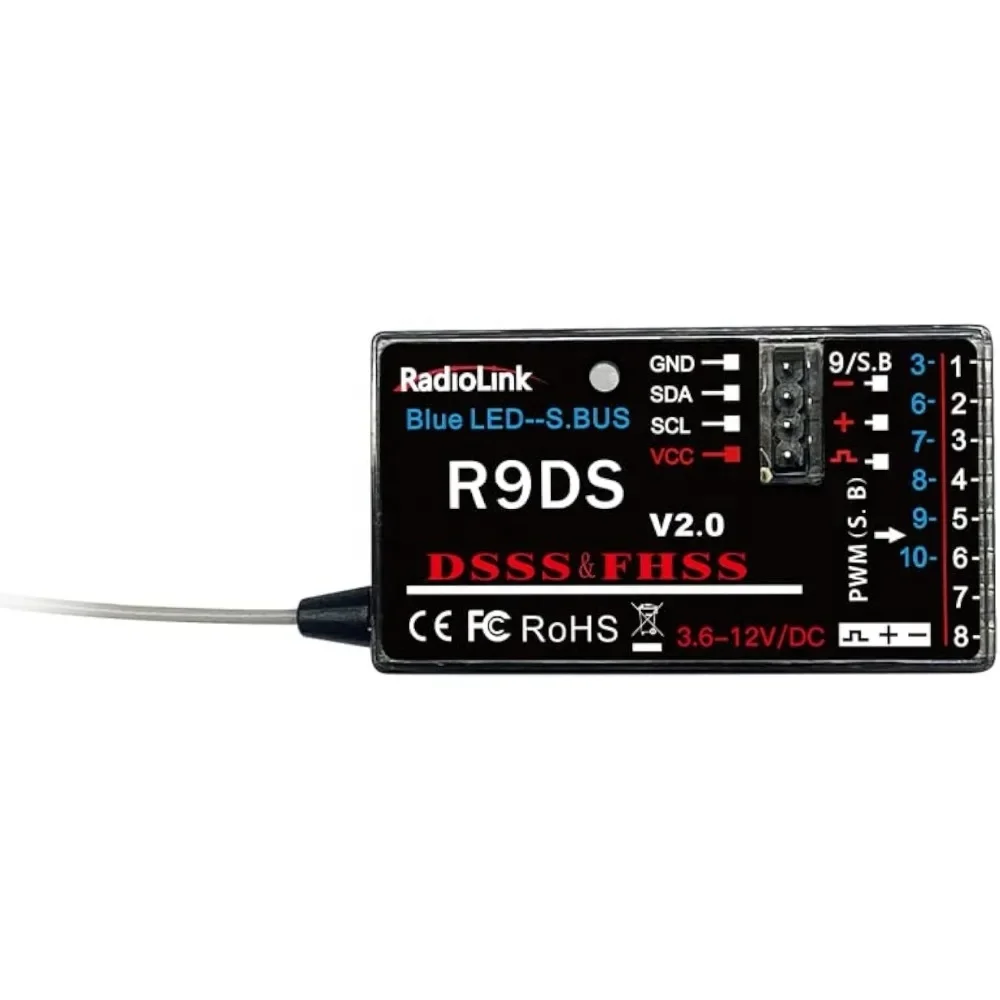

Radiolink R9DS 2.4Ghz 9/10 Channels Receiver Flight Information Transmission RX Works with AT9S/AT9S Pro/AT9/AT10II/AT10
Features:
* Excellent Anti-interference: with DSSS&FHSS pseudo random algorithm to give R9DS with excellent anti-interference ability.
* 9/10 Channels: Support PWM/SBUS signal output, works with Radiolink AT9/AT9S/AT9S Pro/AT10/AT10II. Please make sure SYSTEM channel selection is 10CH mode when it works with AT10II 12 channels transmitter, otherwise that will cannot works.
* Fast Response: High resolution ratio of 4096, the stability of 0.5us, to provide a quicker, low-latency connection for the
driver.
* Long Range Control: Outstanding control range up to 2.1 miles in air. (Actually control range depends on the using environment)
* Quick to Bind and Anti-polarity Protection: No need any setting on transmitter when R9DS bind with radio. With reverse polarity protection circuit, not damage the receiver even you plug wrong polarity.
Please note:
* 1.R9DS only work with Radiolink transmitter products: AT9S/AT9S Pro/AT9/AT10II/AT10
* 2.Short push the ID set switch two times within 1 second it can change signal, while the LED change to red, it indicates PWM signal output, the blue/purple LED indicates SBUS signal output.
* 3.Red light--9 channels PWM signal output. Blue light--10 channels SBUS and PMW signal output at the same time.
How to Match Code With Transmitter:
* 1. Place the transmitter and the receiver close to each other within 1 meter.
* 2. Turn on the transmitter, then power on the R9DS.
* 3. Connect CH3 of R9DS to ESC.
* 4.There is a black button on the R9DS, use a thin stick or pen press the binding button in one second until the receiver light starts blinking and release, after about 8 times blinking,match code success when receiver signal LED always on.
SBUS and PWM signal change:
* Short press the ID SET switch two times within 1 second, the signal is changed from normal
* PWM to SBUS. The red LED indicates the normal PWM and blue/purple LED indicates SBUS signal

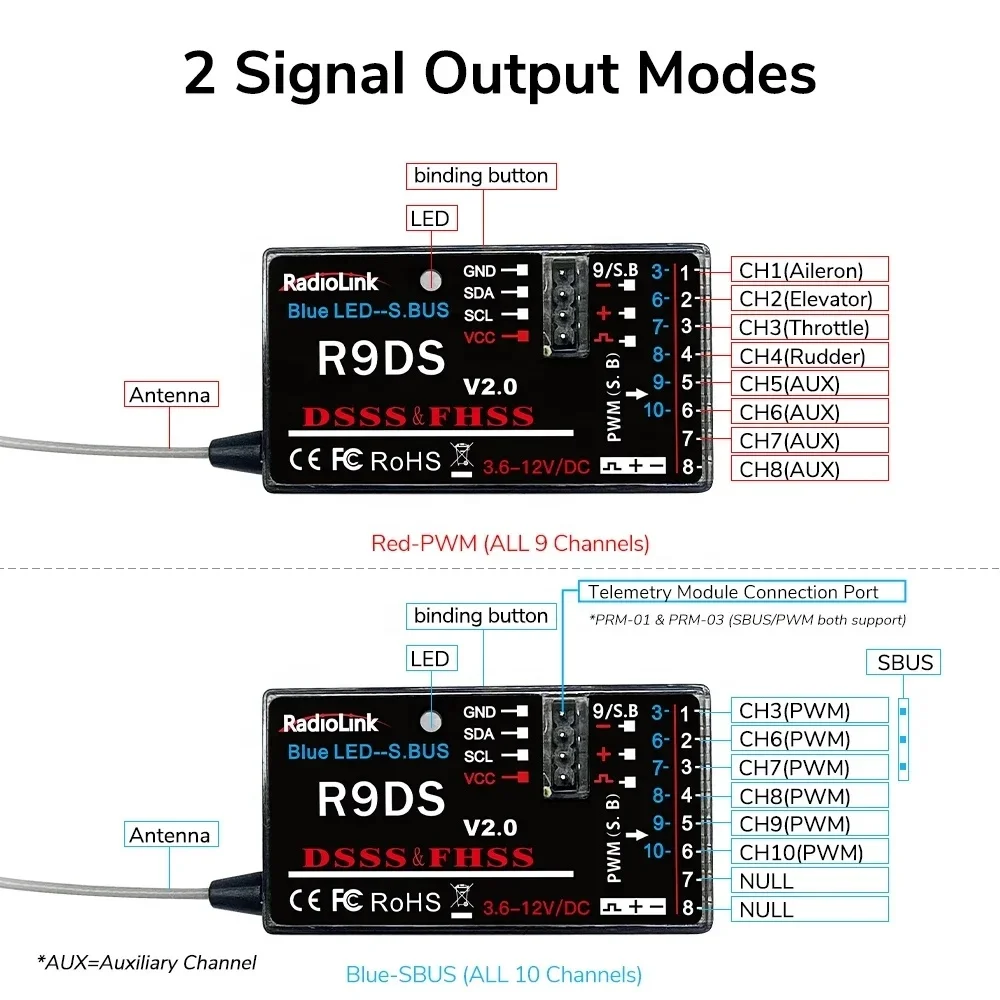

Two signal working modes:
* (1)PWM signal output working mode:red LED indicates PWM signal output, 9 channels Totally.
* (2) SBUS signal output working mode: blue/purple LED indicates SBUS signal output, 10 channels totally.
* SBUS and PWM signal possible working at the same time with SBUS signal output working mode.
* CH9 output SBUS signal, the original CH1 output CH3 and original CH2 to CH6 output CH6 to CH10 PWM signal at the same time.

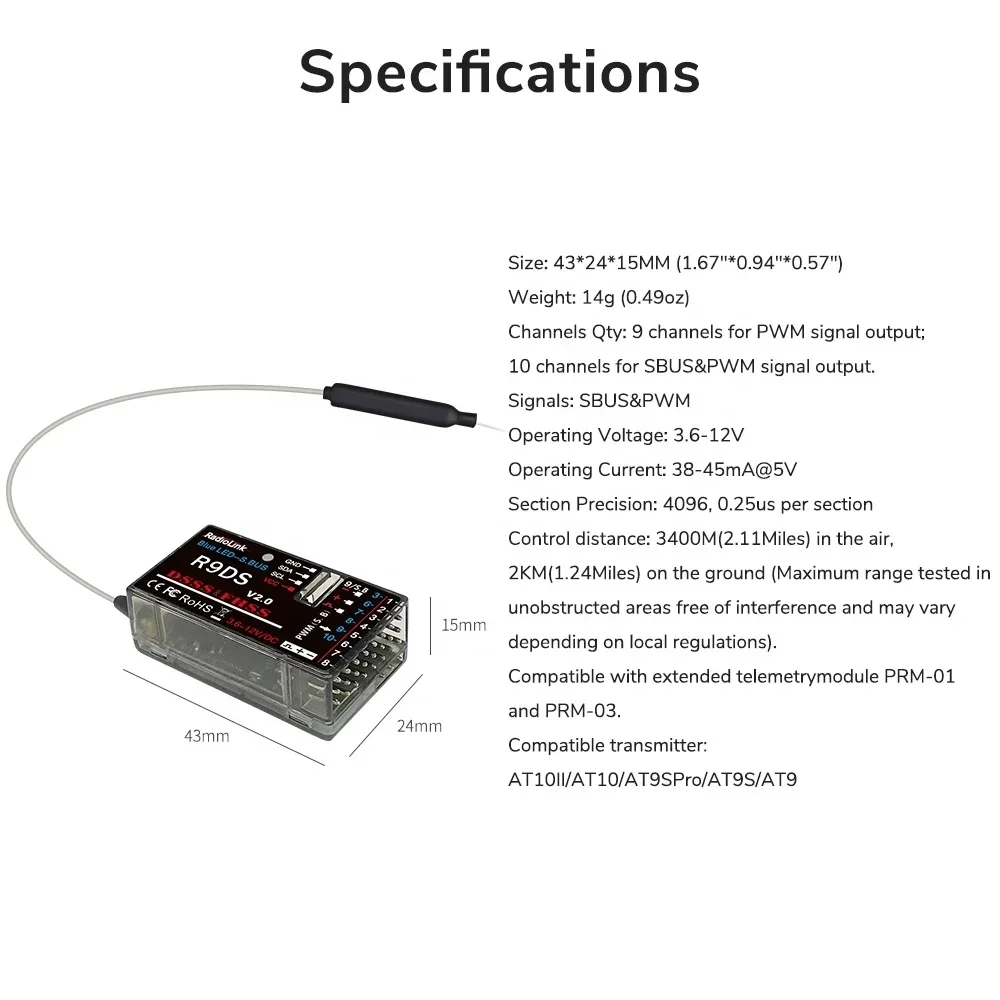

R9DS Receiver Specifications:
* Signal: SBUS,PWM
* Channel: PWM 9 channels, SBUS 10 channels
* Control Distance: 900 meters on ground, 3400 meters(2.11 Miles) in the air(Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).
* Working Voltage: 3.6-12V(new test)
* Working Current: 38-45mA(input voltage: 5V)
* Size: 43*24*15mm
* Weight: 10g
* Excellent Anti-interference: with DSSS&FHSS pseudo random algorithm to give R9DS with excellent anti-interference ability.
* 9/10 Channels: Support PWM/SBUS signal output, works with Radiolink AT9/AT9S/AT9S Pro/AT10/AT10II. Please make sure SYSTEM channel selection is 10CH mode when it works with AT10II 12 channels transmitter, otherwise that will cannot works.
* Fast Response: High resolution ratio of 4096, the stability of 0.5us, to provide a quicker, low-latency connection for the
driver.
* Long Range Control: Outstanding control range up to 2.1 miles in air. (Actually control range depends on the using environment)
* Quick to Bind and Anti-polarity Protection: No need any setting on transmitter when R9DS bind with radio. With reverse polarity protection circuit, not damage the receiver even you plug wrong polarity.
Please note:
* 1.R9DS only work with Radiolink transmitter products: AT9S/AT9S Pro/AT9/AT10II/AT10
* 2.Short push the ID set switch two times within 1 second it can change signal, while the LED change to red, it indicates PWM signal output, the blue/purple LED indicates SBUS signal output.
* 3.Red light--9 channels PWM signal output. Blue light--10 channels SBUS and PMW signal output at the same time.
How to Match Code With Transmitter:
* 1. Place the transmitter and the receiver close to each other within 1 meter.
* 2. Turn on the transmitter, then power on the R9DS.
* 3. Connect CH3 of R9DS to ESC.
* 4.There is a black button on the R9DS, use a thin stick or pen press the binding button in one second until the receiver light starts blinking and release, after about 8 times blinking,match code success when receiver signal LED always on.
SBUS and PWM signal change:
* Short press the ID SET switch two times within 1 second, the signal is changed from normal
* PWM to SBUS. The red LED indicates the normal PWM and blue/purple LED indicates SBUS signal
Two signal working modes:
* (1)PWM signal output working mode:red LED indicates PWM signal output, 9 channels Totally.
* (2) SBUS signal output working mode: blue/purple LED indicates SBUS signal output, 10 channels totally.
* SBUS and PWM signal possible working at the same time with SBUS signal output working mode.
* CH9 output SBUS signal, the original CH1 output CH3 and original CH2 to CH6 output CH6 to CH10 PWM signal at the same time.
R9DS Receiver Specifications:
* Signal: SBUS,PWM
* Channel: PWM 9 channels, SBUS 10 channels
* Control Distance: 900 meters on ground, 3400 meters(2.11 Miles) in the air(Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).
* Working Voltage: 3.6-12V(new test)
* Working Current: 38-45mA(input voltage: 5V)
* Size: 43*24*15mm
* Weight: 10g
Product name | R9DS Receiver |
Size | 43*24*15mm |
Weight | 10g |
MOQ | 10pcs |
